Acer AGS-1020AHD, NEW 2010, 3X AUTO FEEDS SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Acer

Model:: AGS-1020AHD, NEW 2010, 3X AUTO FEEDS

Year:: 2010

Ref #:: 163817

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

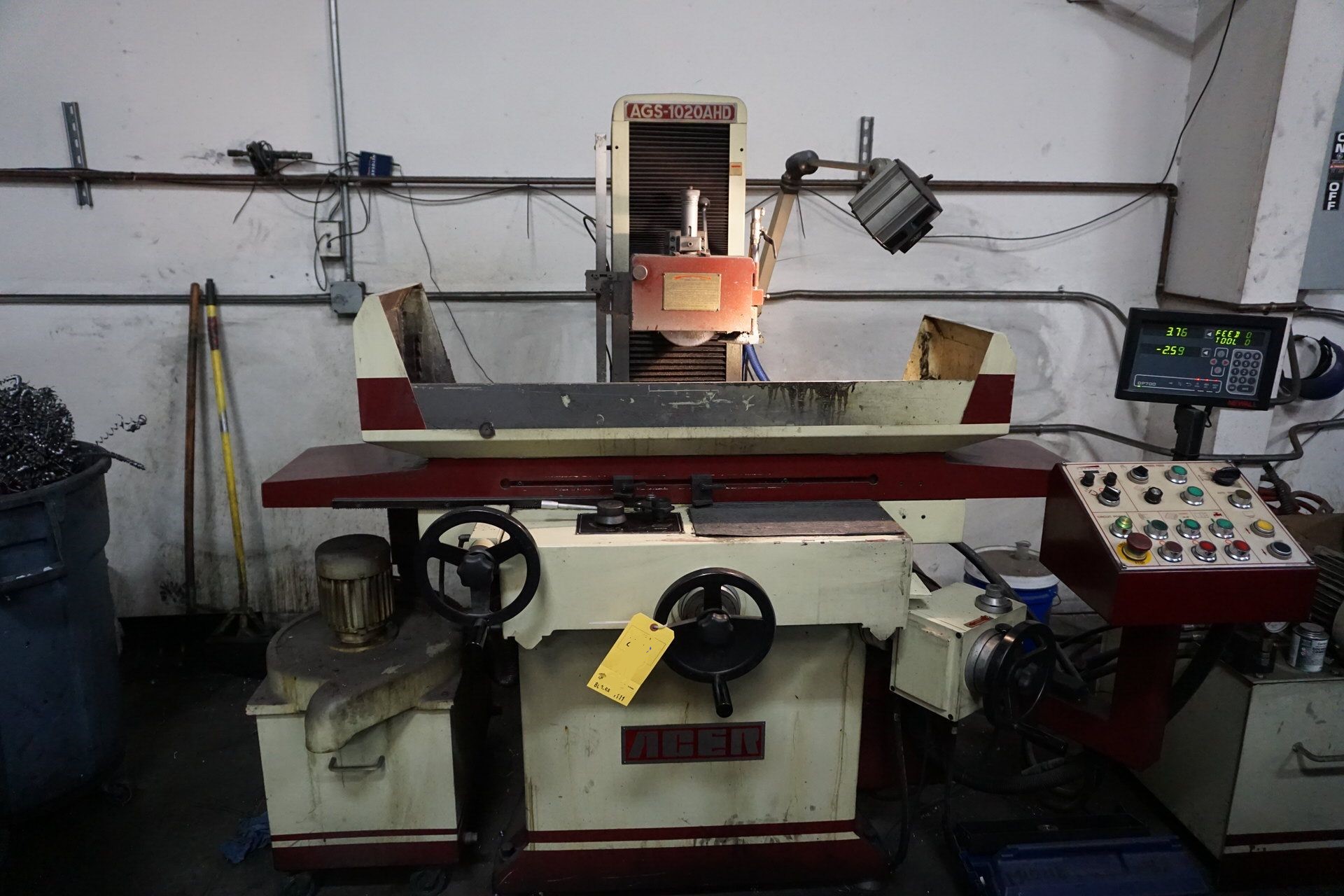

           8" X 18" ACER
3-AXIS AUTOMATIC FEEDS SURFACE GRINDER
  WITH AUTOMATIC INCREMENTAL DOWNFEED

NEWALL TWO-AXIS DIGITAL READOUT DISPLAY

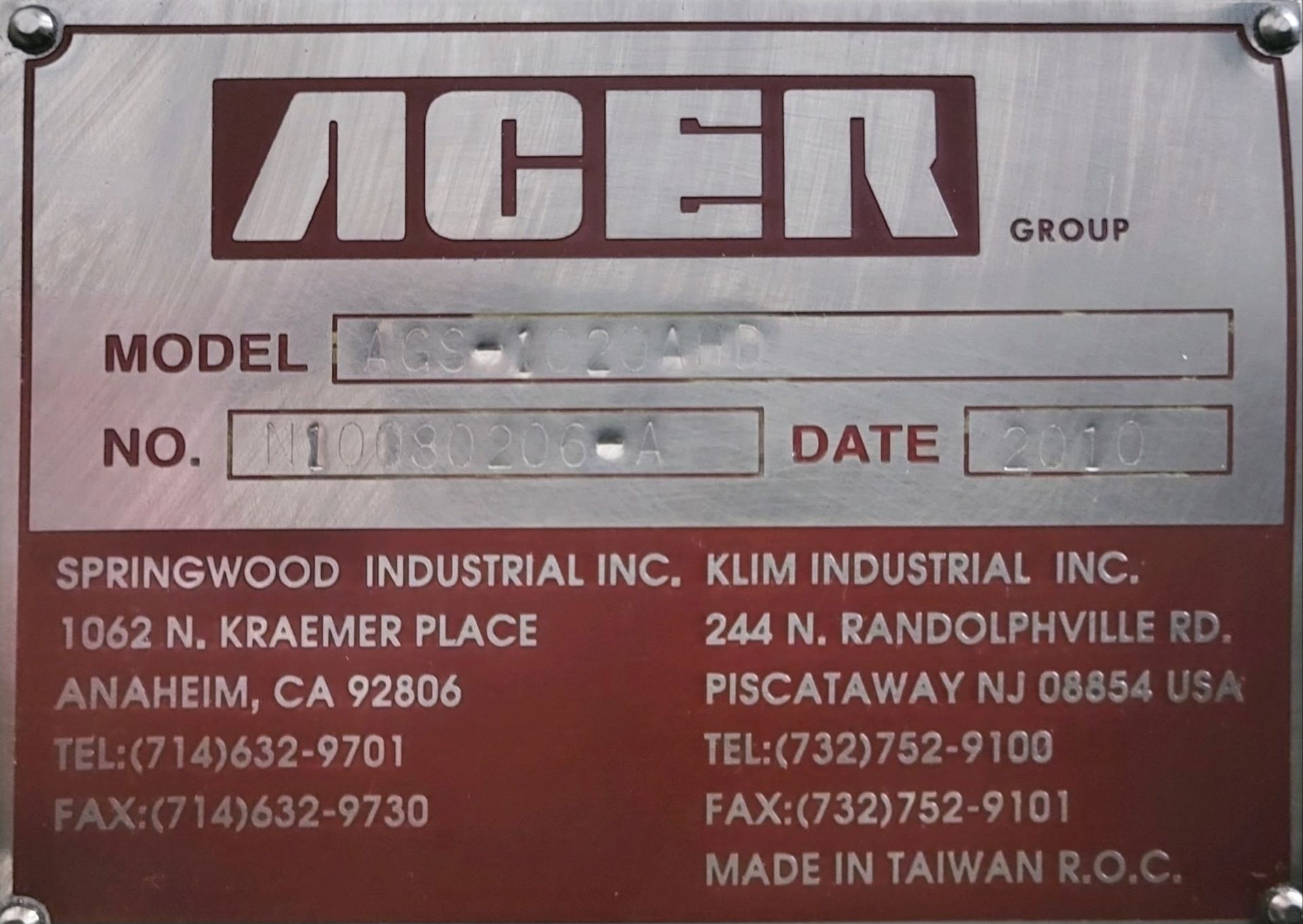

MODEL: AGS-1020AHD
S/N: N10080206-A
NEW: 2010

MAX. SURFACE GROUND .................. 10" X 20"
DIST. FROM SPINDLE CENTER TO TABLE ... 19- 1/2"
VARIABLE TABLE SPEED, HYDRAULIC ...... 16' TO 80' FPM
MAX. TABLE TRAVEL .................... 20- 1/2"
AUTOMATIC CROSSFEED INCREMENT ........ 0" TO 1"
MAX. CROSSFEED TRAVEL ................ 11"

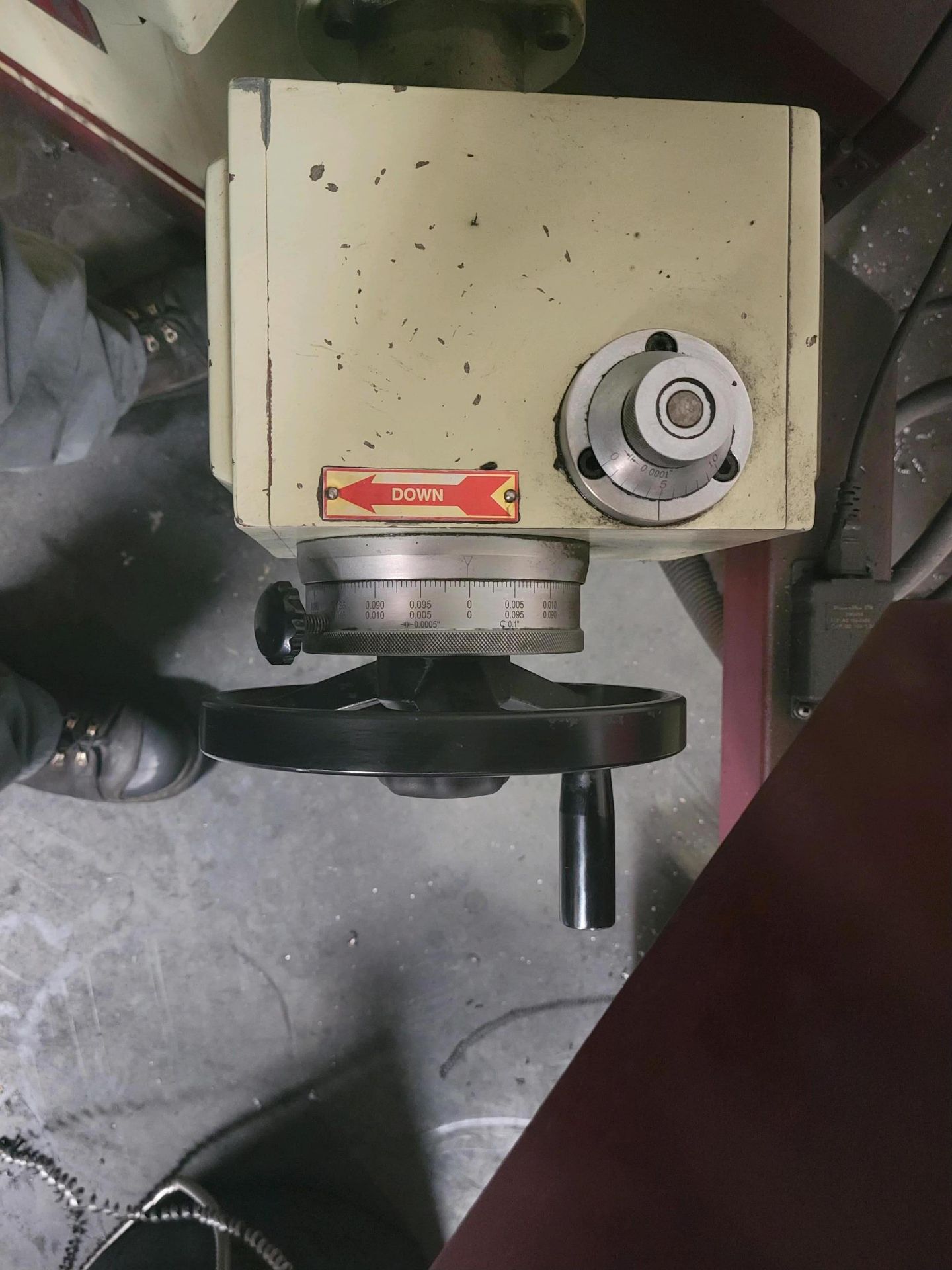

DOWNFEED HANDWHEEL PER GRADUATION .... 0.0005"
PER REVOLUTION ....................... 0.1"
CROSSFEED HANDWHEEL PER GRADUATION ... 0.001"
PER REVOLUTION ....................... 0.2"
AUTO INCREMENTAL DOWNFEED ............ 0.001" TO .0001"
SPINDLE MOTOR ........................ 2 H.P.
STANDARD GRINDING WHEEL .............. 8"D x 1/2" x 1- 1/4"

APPROX. WEIGHT ....................... 2,970 LBS


  EQUIPPED WITH:
AUTOMATIC INCREMENTAL DOWNFEED (SURFACE & PLUNGE)
POWER RAPID WHEELHEAD POSITIONING OPTION BY
  PUSHBUTTON ON CONSOLE, OUR MACHINE HAS THIS!
HYDRAULICALLY POWERED LONGITUDINAL FEED
POWER CROSSFEED
TURCITE-B ON THE LONGITUDINAL WAYS (LOW FRICTION & WEAR)

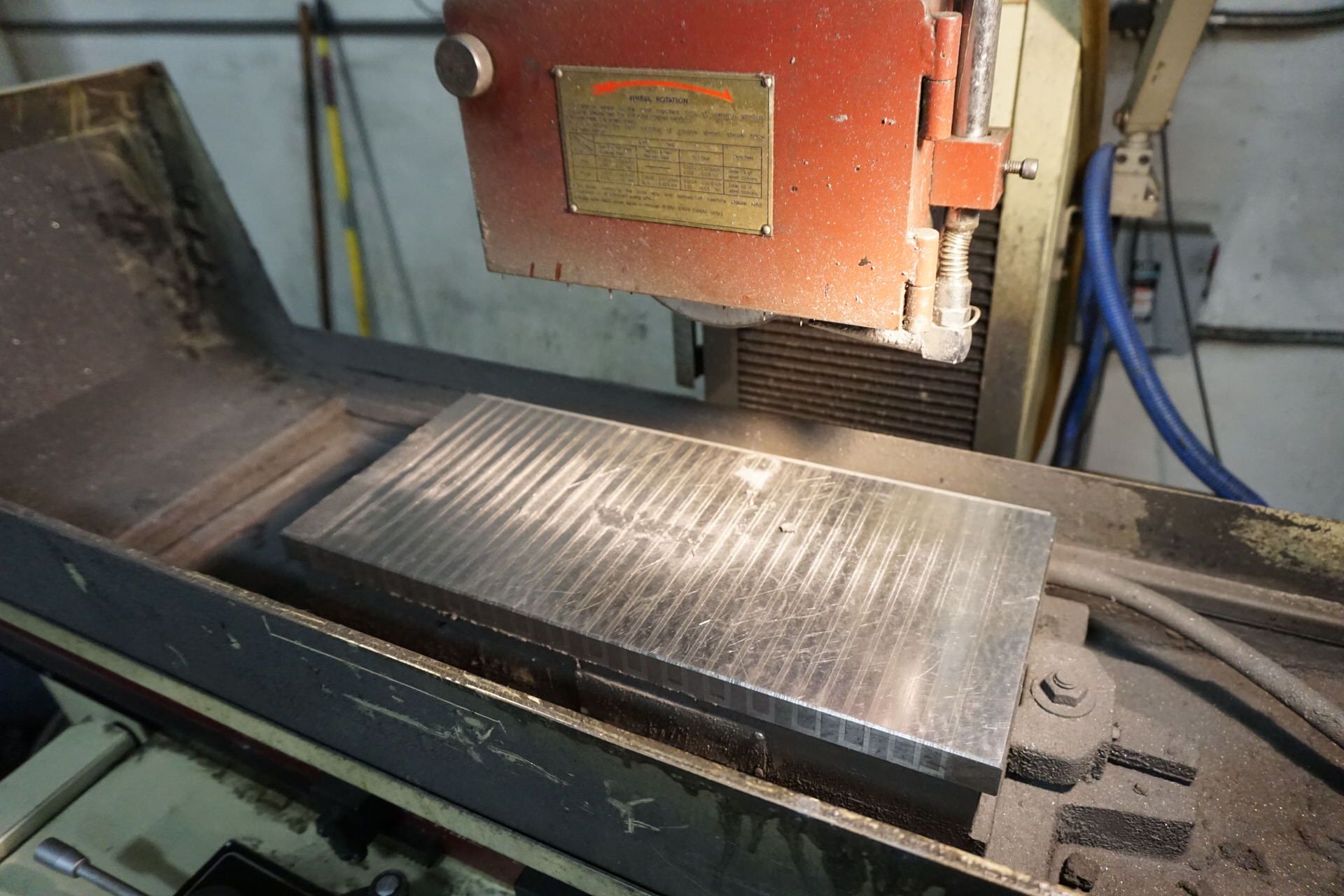

8" x 18" "ACER" ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL
ON THE MACHINE CONSOLE CONTROL
COMBINATION COOLANT SYSTEM & DUST COLLECTOR
OVER-THE-WHEEL DRESSER

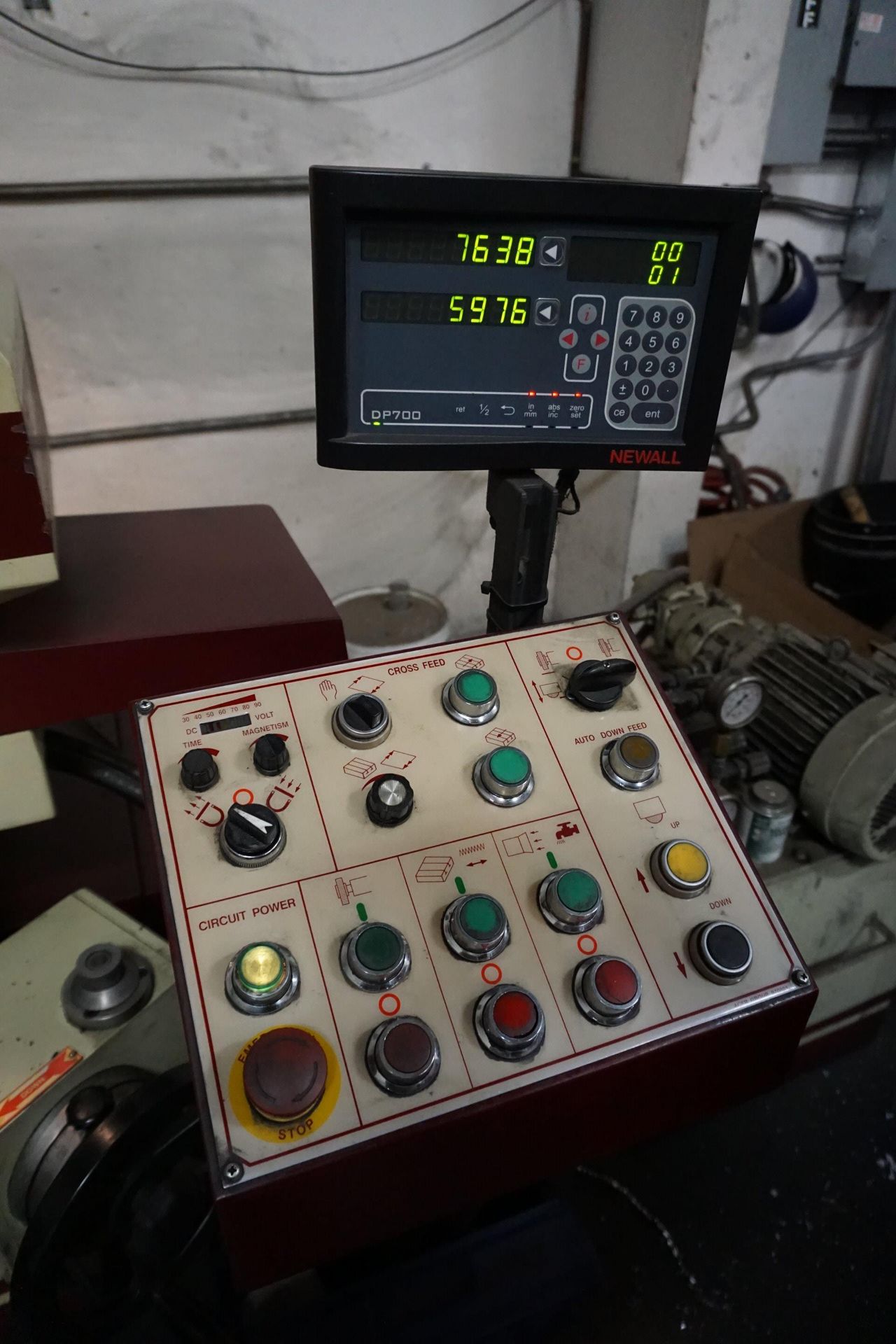

"NEWALL" 2-AXIS DIGITAL READOUT DISPLAY
MEEHANITE CASTING
AUTO LUBE SYSTEM
EXTERNAL HYDRAULIC SYSTEM
2 HP 3/60/230-460 VOLT EXTERNAL HYDRAULIC PUMP MOTOR & TANK
2 HP 3/60/230-460 VOLT SPINDLE MOTOR
MACHINE IS WIRED FOR 3/60/230 VOLTS



** EXCEPTIONAL CONDITION& APPEARANCE   **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
