Allsteel 120-8 PRESS BRAKES w/CNC BACK GAUGES

$24,500

Make:: Allsteel

Model:: 120-8

Year:: 1988

Ref #:: 163818

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

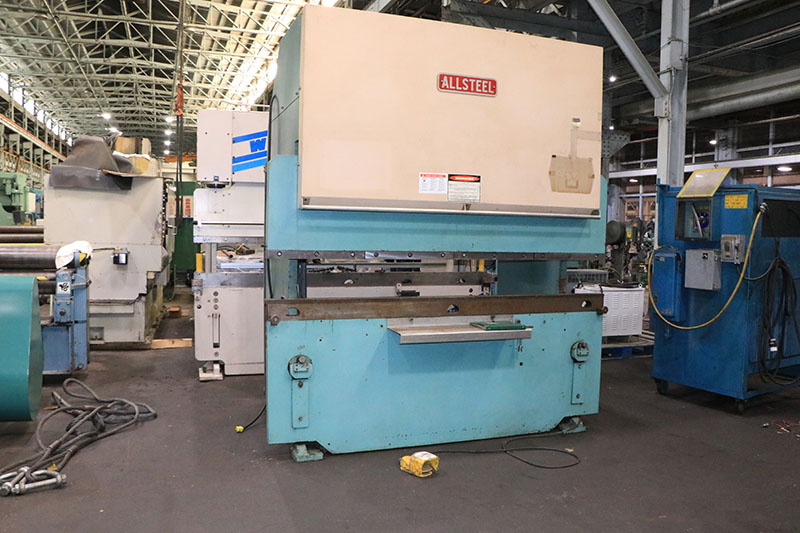

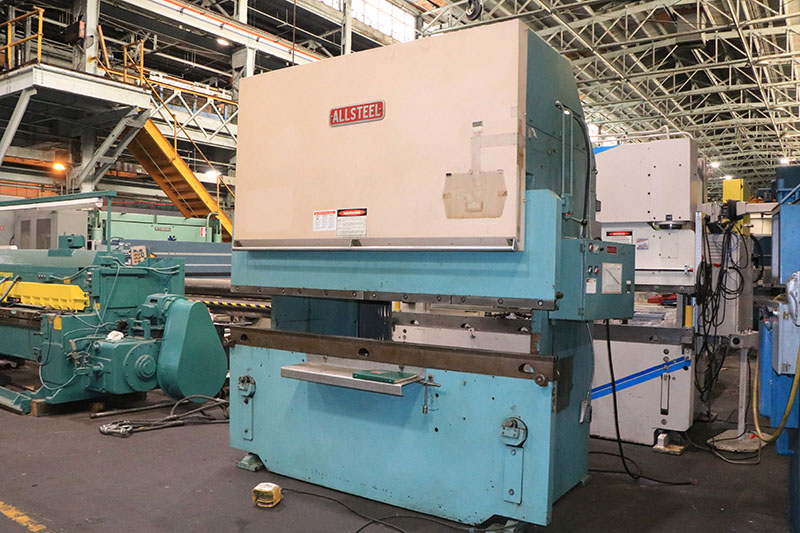

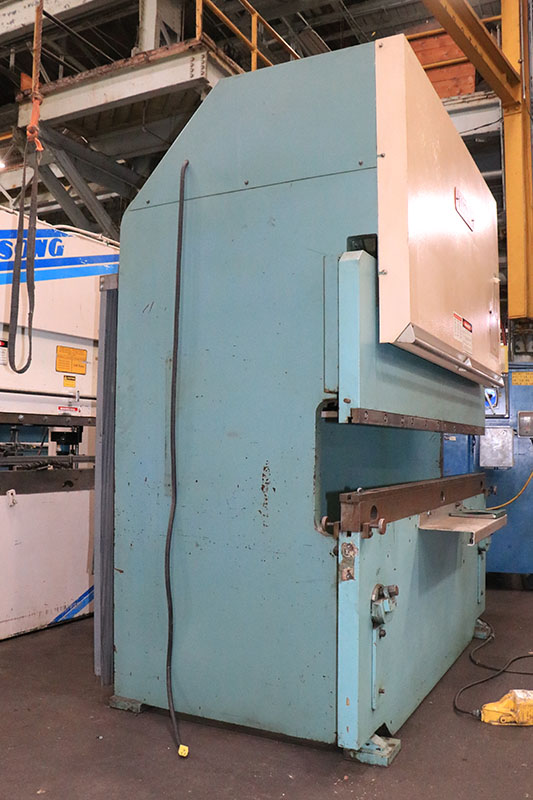

120 TON X 8'  ALLSTEEL HYDRAULIC PRESS BRAKE

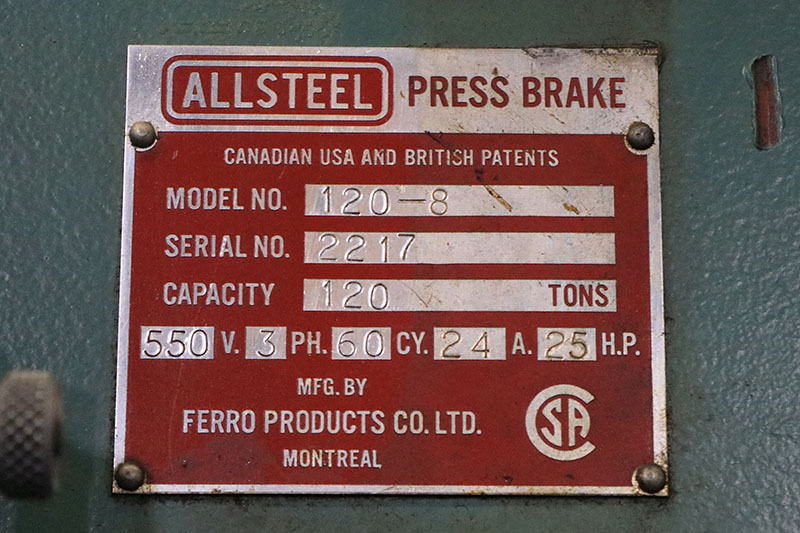

MODEL 120-8        S/N 2217       NEW 1988

Capacity ..................................... 120 tons
Bending capacity ............................. 8' x 3/16"
Distance between housings .................... 78"
Stroke ....................................... 0"- 8"
Throat ....................................... 8"
Overall die surface .......................... 96"
Die space - open ............................. 17"
closed ....................................... 9"
Ram speeds ................................... 190 ipm approach
 ............................................. 12-35 ipm forming
 ............................................. 190 ipm return
Motor ........................................ 25 HP

Approximate overall dimensions 96" W x 53" D x 108" H
Approximate weight 18,000 lbs.

Machine is equipped with:
Automec CNC-1000 CNC back gauge

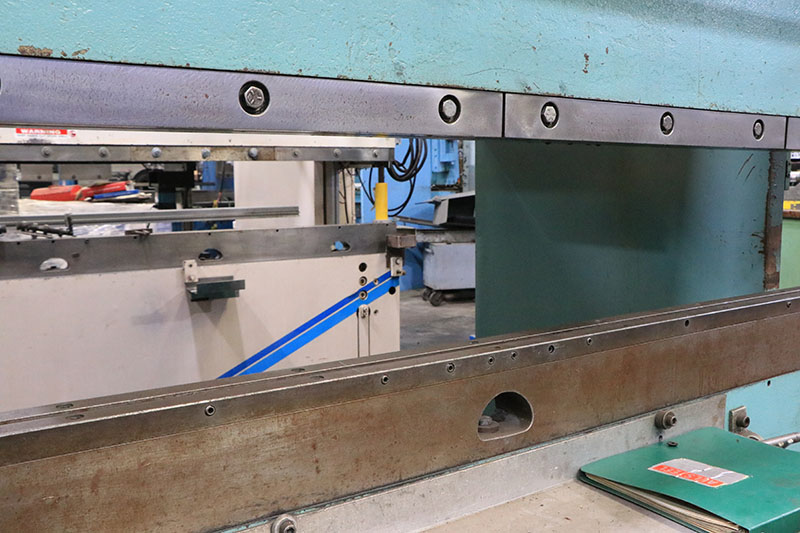

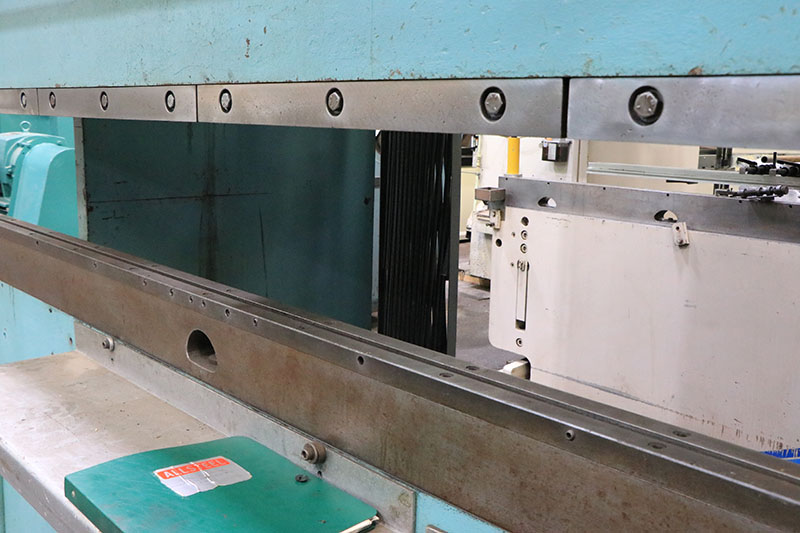

Lower die rail
Dual remote foot pedal
Side Guarding
Light Curtains

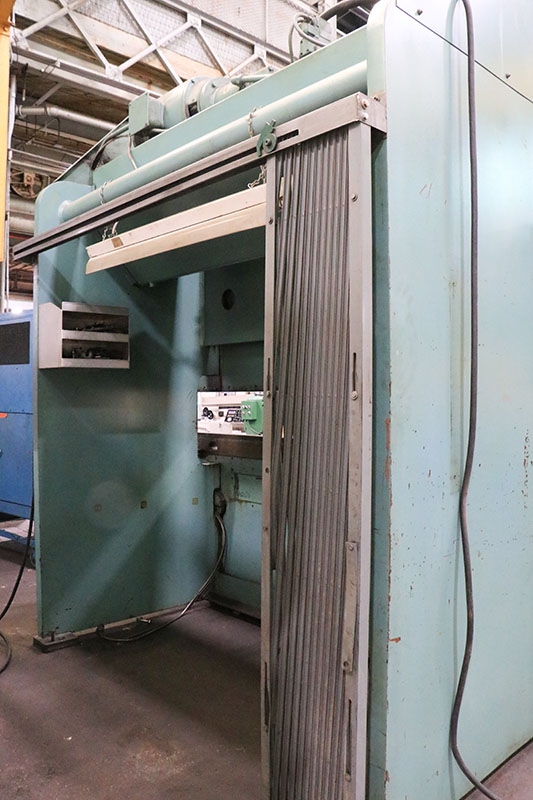

Rear safety gate
