Amada FBD 8025 PRESS BRAKES w/CNC BACK GAUGES

$24,900

Make:: Amada

Model:: FBD 8025

Year:: 1995

Ref #:: 167537

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

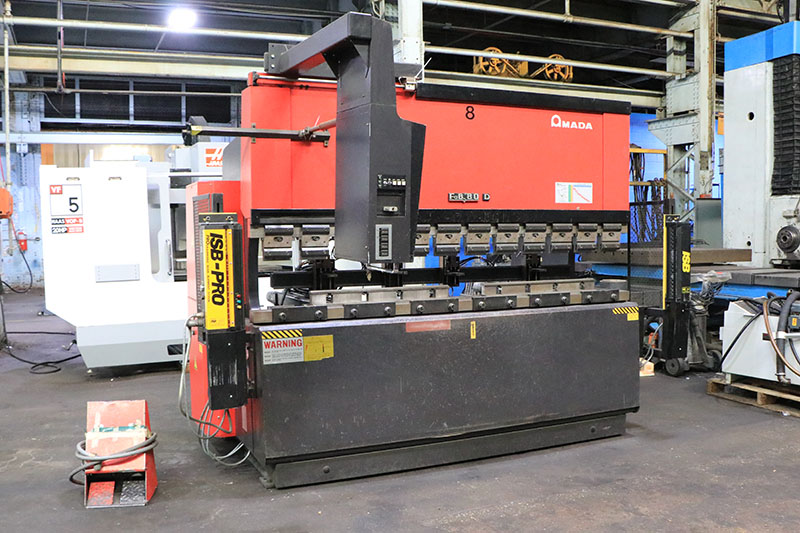

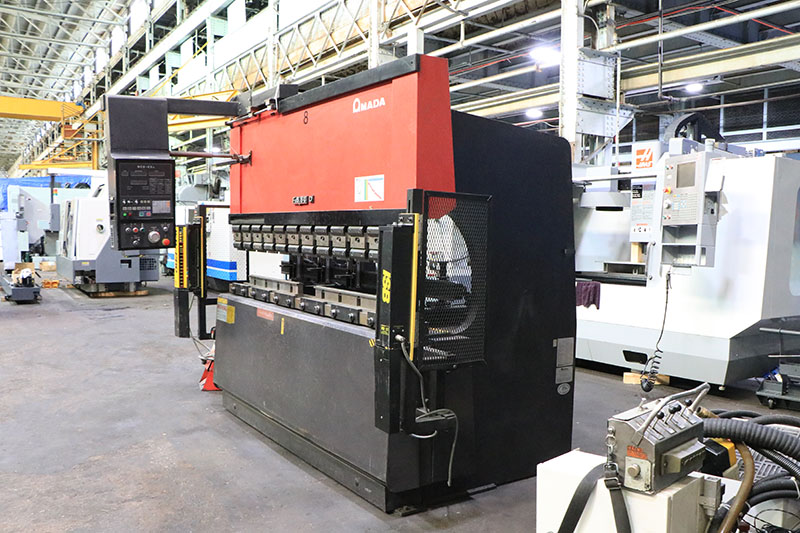

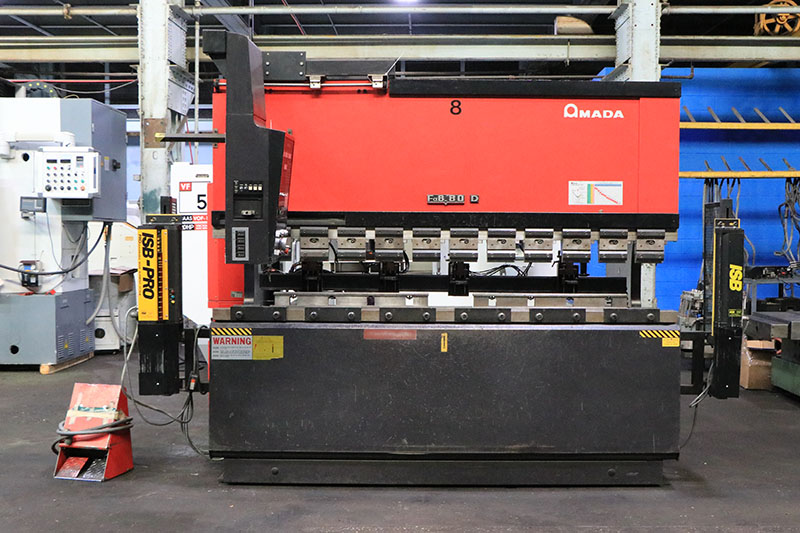

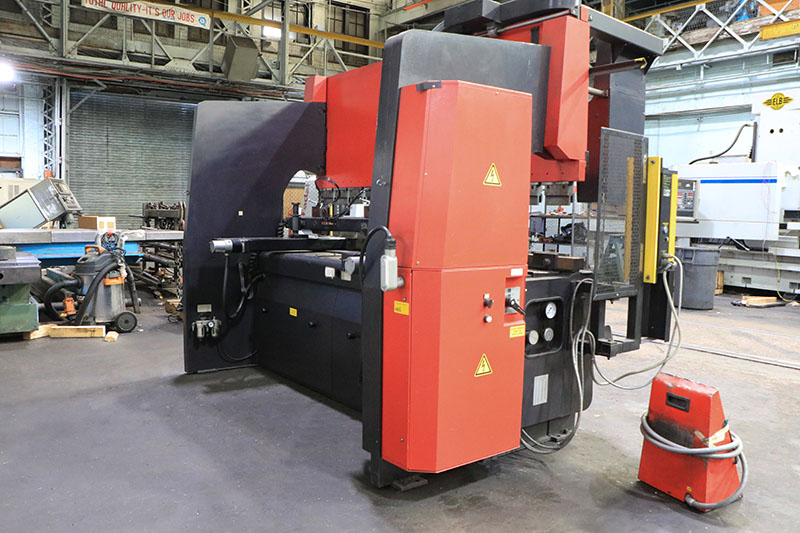

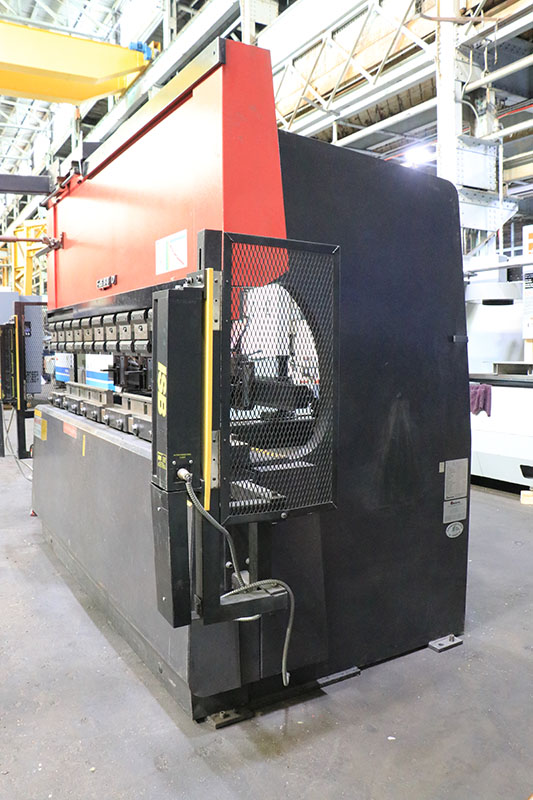

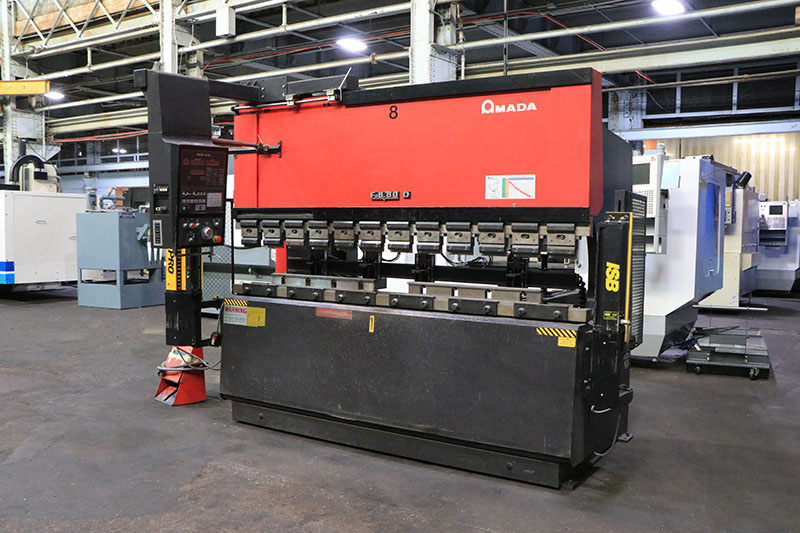

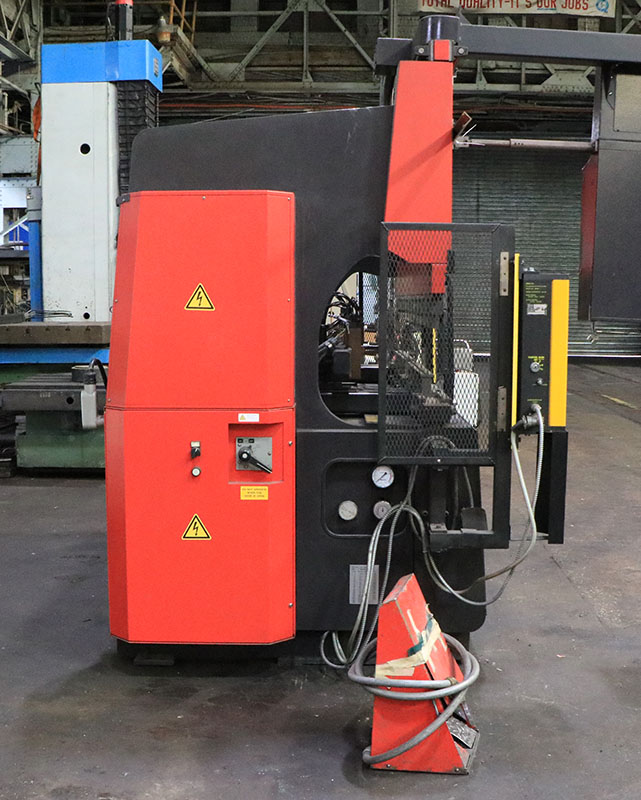

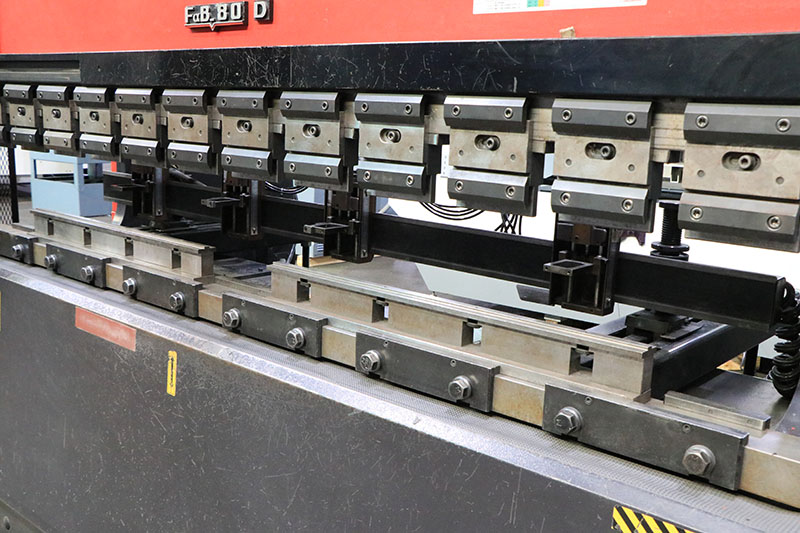

88 TON x 98.6" AMADA UPACTING HYDRAULIC PRESS BRAKE

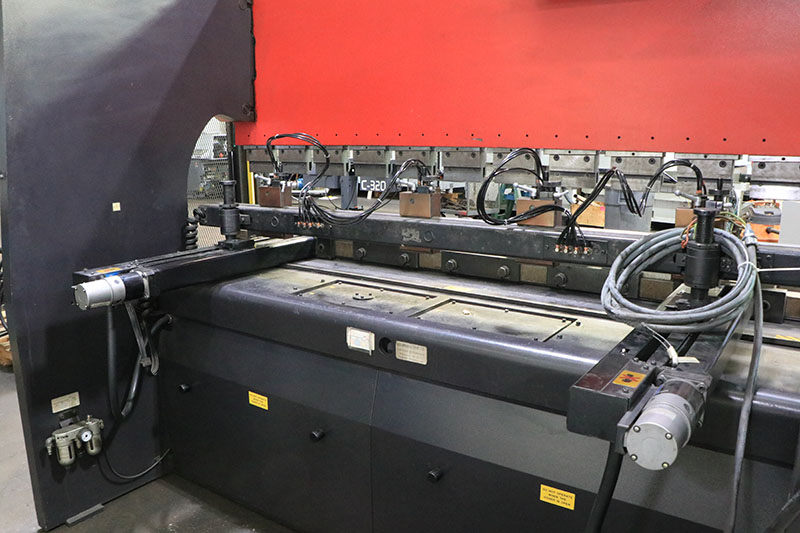

w/NC9EX-II 3-AXIS CNC BACKGAUGE

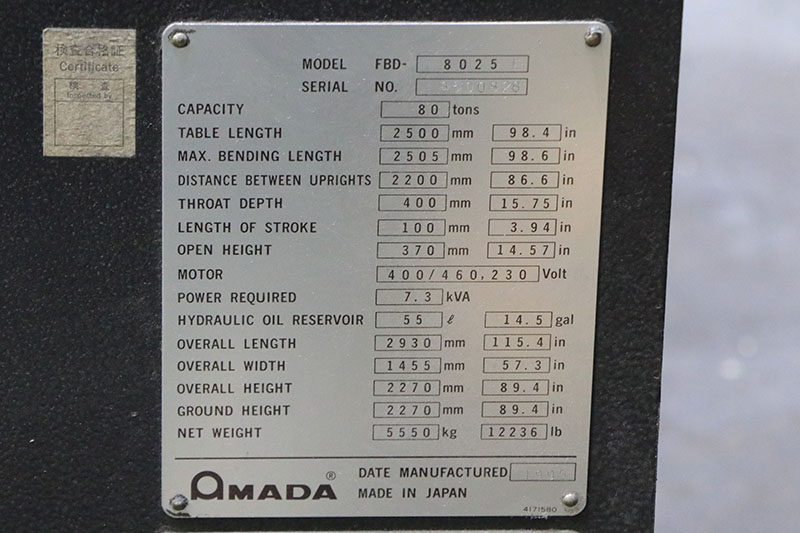

MODEL FBD-8025         S/N 8500828         NEW 1995

MAXIMUM TONNAGE ...................... 88 TONS
MAX. BENDING LENGTH .................. 98.6"
MAX. STROKE LENGTH ................... 3.94"
OPEN HEIGHT .......................... 14.57"
THROAT DEPTH ......................... 15.7"
DISTANCE BETWEEN SIDE FRAMES ......... 86.6"
RAM SPEED:
APPROACH ............................. 3.62"/SEC.
BENDING .............................. .33" /SEC.
RETURN ............................... 3.58"/SEC.
MACHINE WEIGHT ....................... 10,360 LBS.
NO. OF CYLINDERS ..................... 3

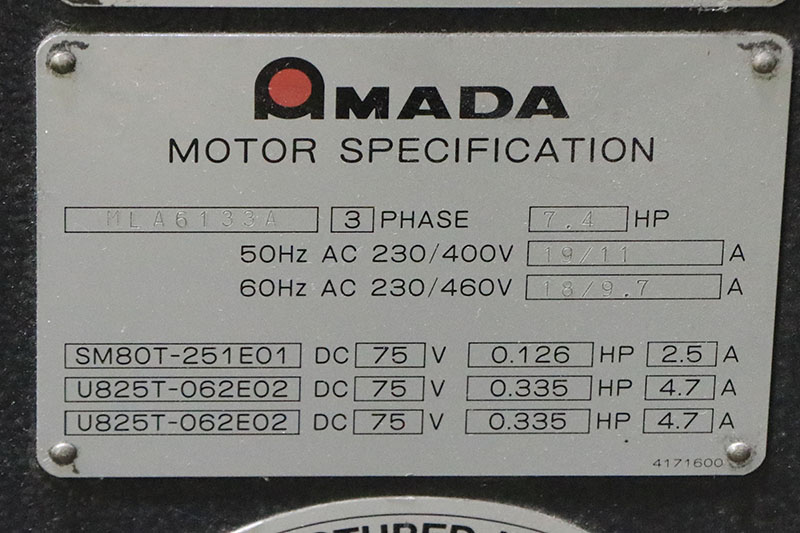

MOTOR HP ............................. 7.5 (230/460)

EQUIPPED WITH:

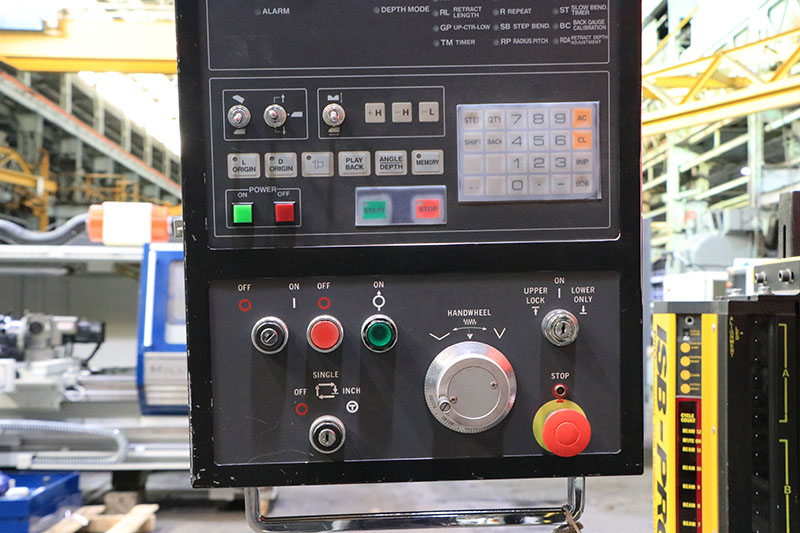

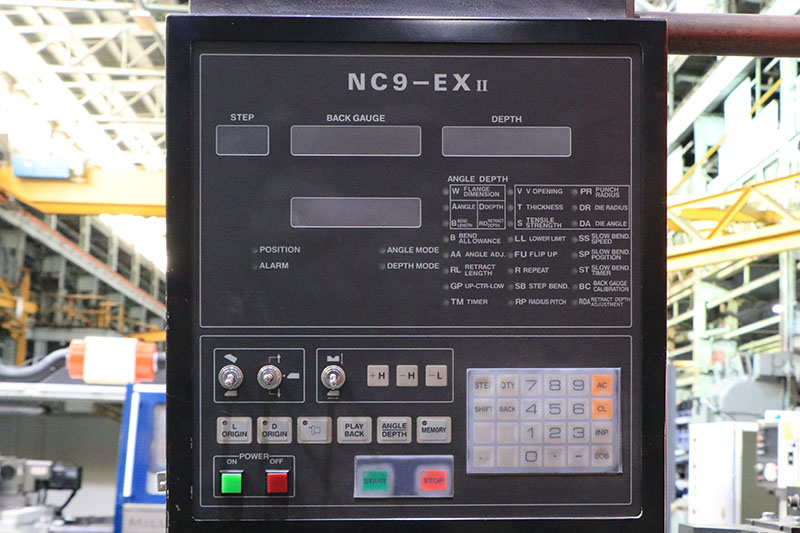

- NC9EX-II AMADA 3-AXIS CNC CONTROL
- FOOT PEDAL
- FULL COMPLEMENT OF CLAMPS

DIMENSIONS: 115.4" L-R x 57.3" F-B x 89.4" H
WEIGHT: 12,236 LBS.
