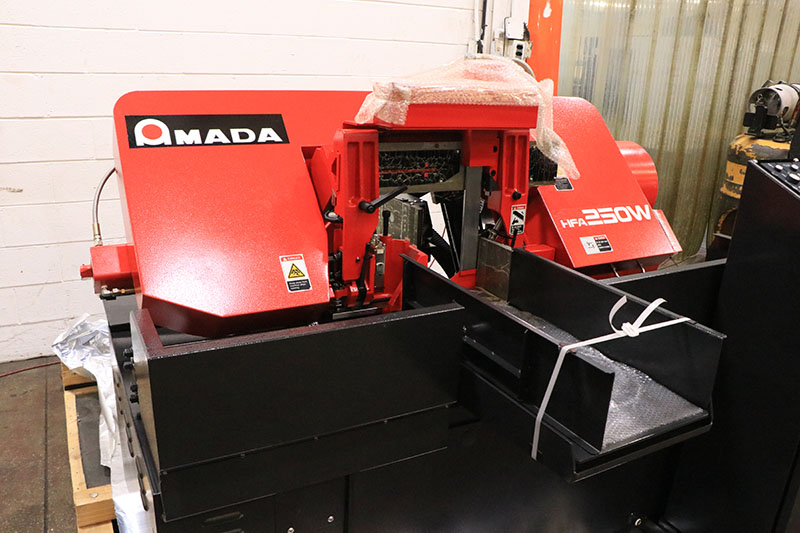

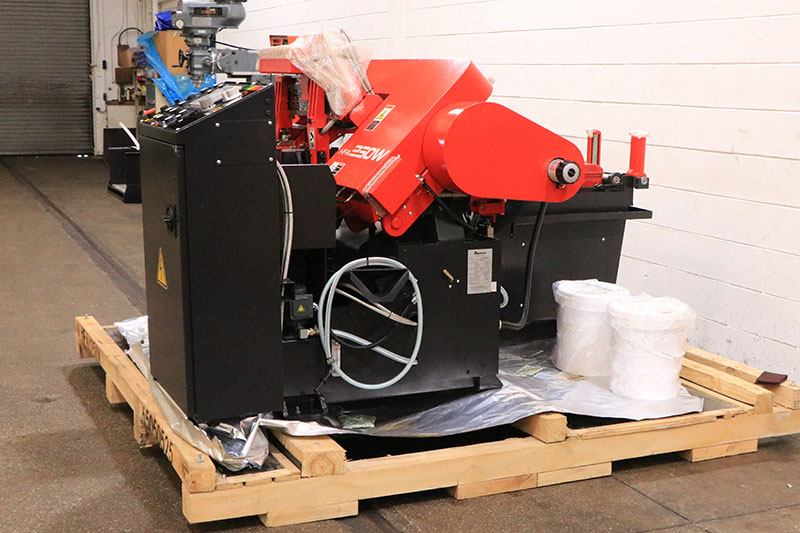

Amada HFA250W HORIZONTAL BAND SAWS

Price on Request

Make:: Amada

Model:: HFA250W

Year:: NEW

Ref #:: 177774A

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

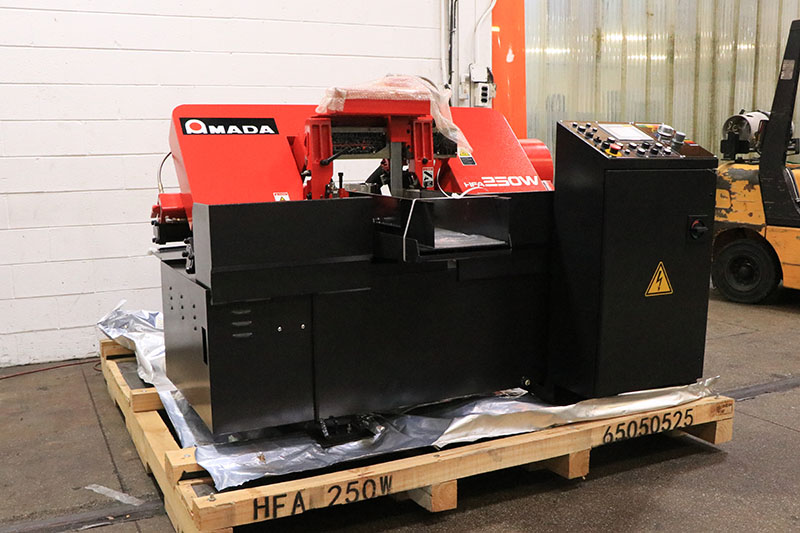

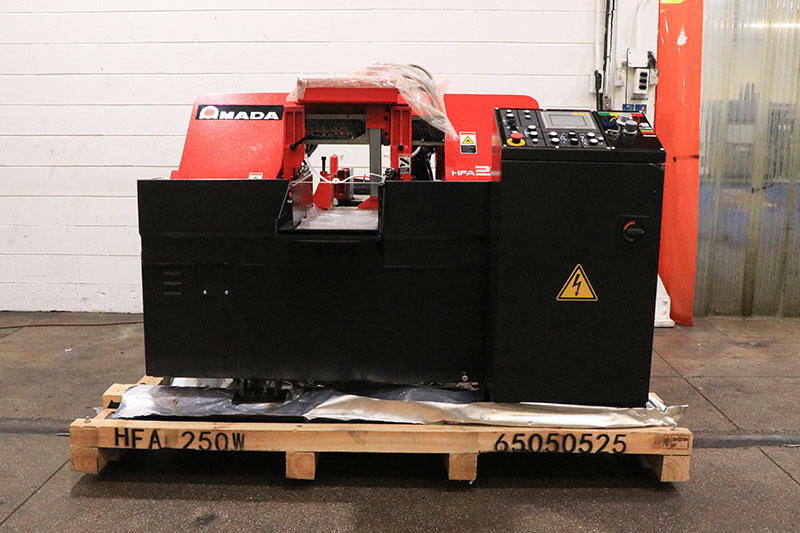

NEW AMADA HORIZONTAL BANDSAW
MODEL: HFA250W

THE HFA SERIES OF FULLY AUTOMATIC BANDSAWS WAS CREATED TO DELIVER EXTRAORDINARY PRECISION WITH HIGHLY ACCURATE MATERIAL INDEXING CONTROLLED BY NC POSITIONING.

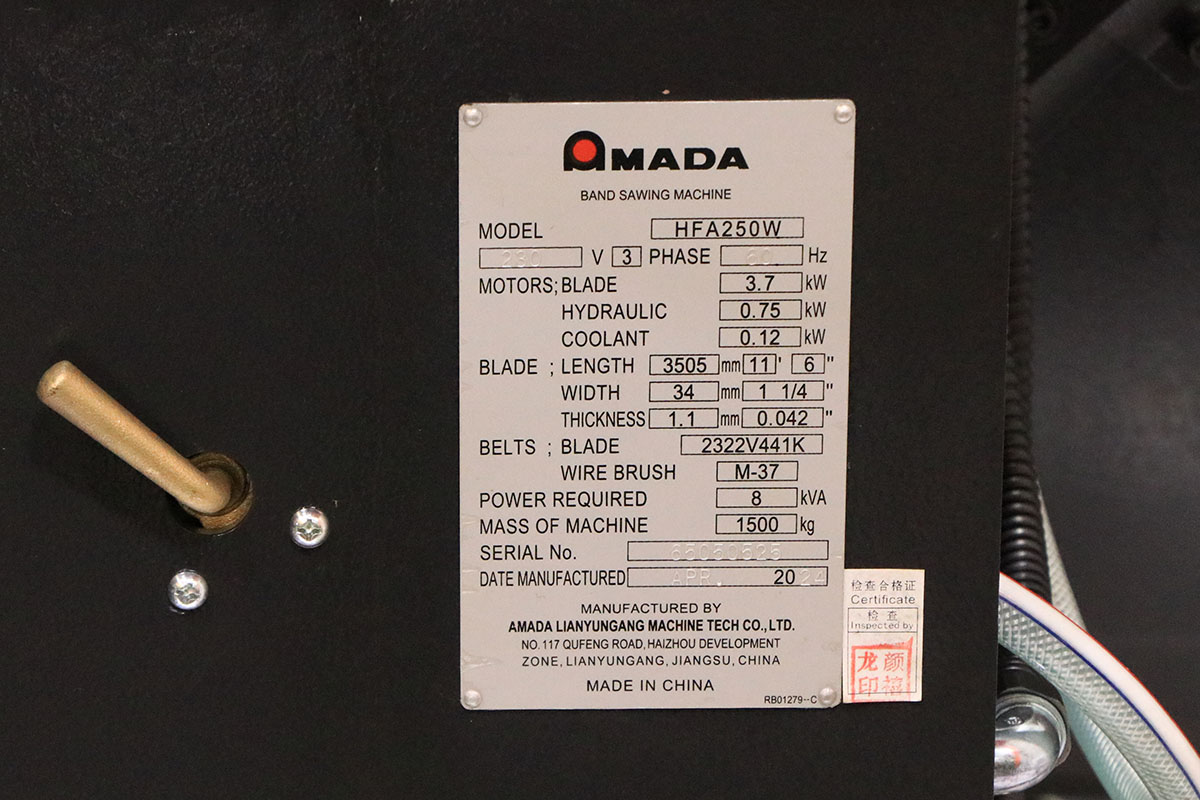

SPECIFICATIONS:
ROUND CAPACITY ................ 1.18" - 10"
RECTANGLE CAPACITY ............ 10.6" X 10"
WORK LOAD CAPACITY ............ 3,307 LBS
BLADE SIZE .................... 11'6" x 0.042" X 1-1/4"
BLADE SPEED ................... 89 - 295 FT/MIN
SAW BLADE MOTOR ............... 5HP
HYDRAULIC PUMP MOTOR .......... 1HP
CUTTING FLUID PUMP MOTOR ...... 1/4HP
SINGLE INDEX STROKE ........... 15.75" (MAX 9 TIMES INDEX)
INDEX LENGTH .................. 0.39" - 999.999"
MATERIAL INDEX REMNANT LENGTH . 2.24" PLUS LENGTH OF PARTS
HEAD UP POSITION .............. 76.9" X 93.1" X 69.8"
HEAD DOWN POSITION ............ 76.6: X 93.1" X 50.6"
TABLE HEIGHT .................. 27.6"
MACHINE WEIGHT ................ 3,307 LBS

STANDARD FEATURES:
PRESSURE FLOW VALVE
POWERED CHIP CONVEYOR

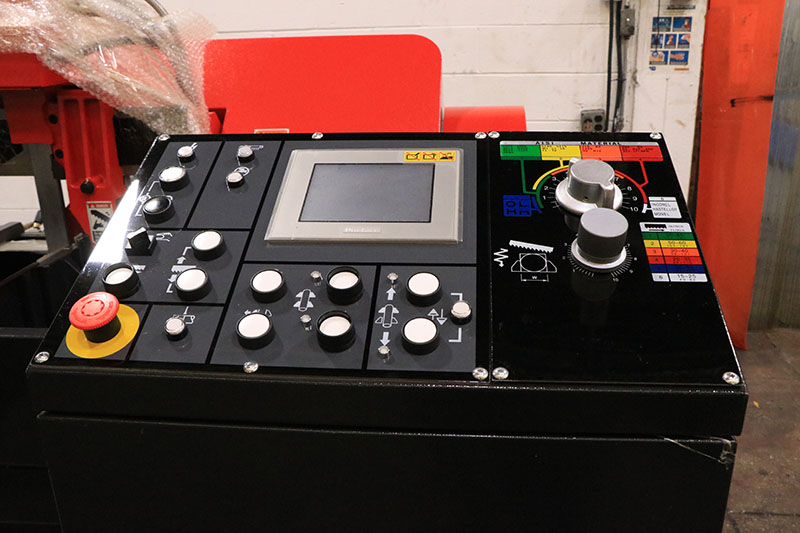

PLC CONTROLLER
BLADE DEVIATION MONITOR
MOTION DETECTOR
VARIABLE BLADE SPEED
WHEEL COVER LIMIT SWITCH
AUTO TRIM CUT
NC BACK GAUGE
SELF DIAGNOSTICS

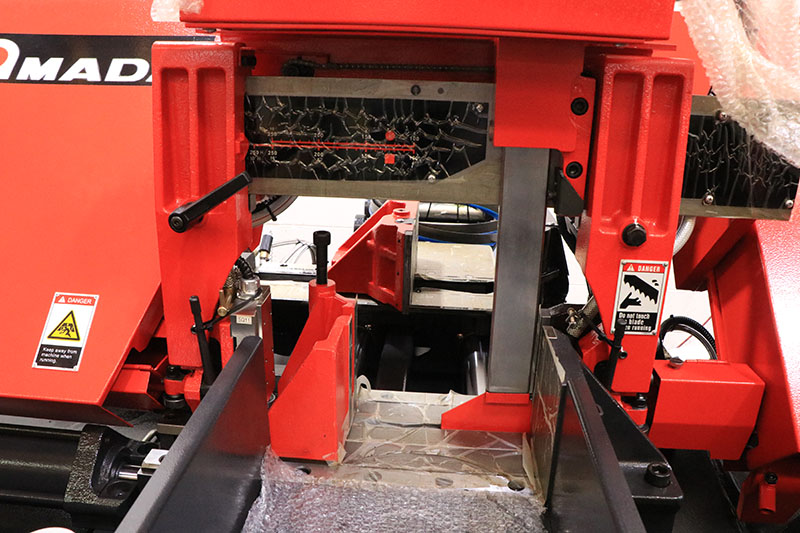

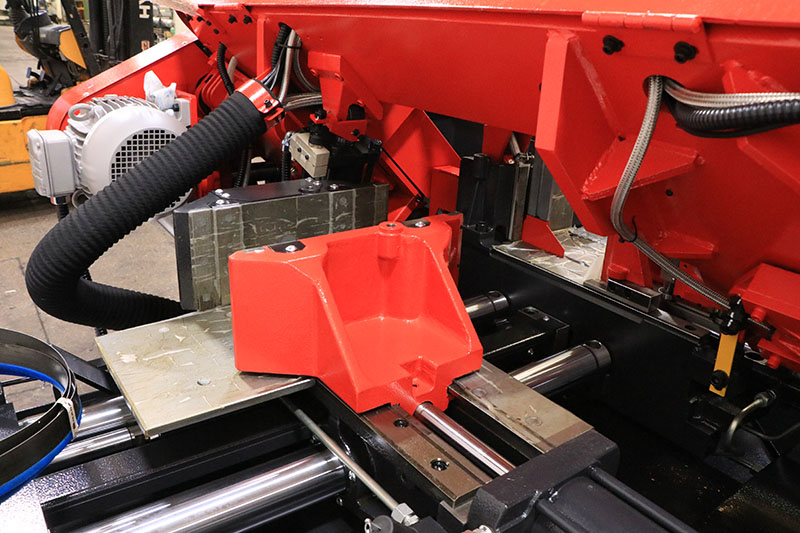

FULL STROKE VISE
SPLIT VISE (HFA250W)

OPTIONAL FEATURES:
ROLLER TABLE 6'
ROLLER TABLE 10'
VISE PRESSURE CONTROL
VERTICAL CLAMPS
EXTERNAL CHIP CONVEYOR
STAGING TABLE 6' X 4'
STAGING TABLE 10' X 4'

NC FUNCTIONS:
HOUR METER
AUTO TRIM CUT
BLADE DEVIATION MONITOR
99 CUT-OFF LENGTHS FROM THE SAME BAR
NUMBER OF PIECES REQUIRED/CUT
DOUS NOT HAVE BLADE LIFE/HISTORY
