Amada/Marvel MODEL VT4555M (8-MARK III) VERTICAL BAND SAWS

$54,700

Make:

Amada/Marvel

Model:

MODEL VT4555M (8-MARK III)

Year:

NEW

Ref #:

161309a

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

---

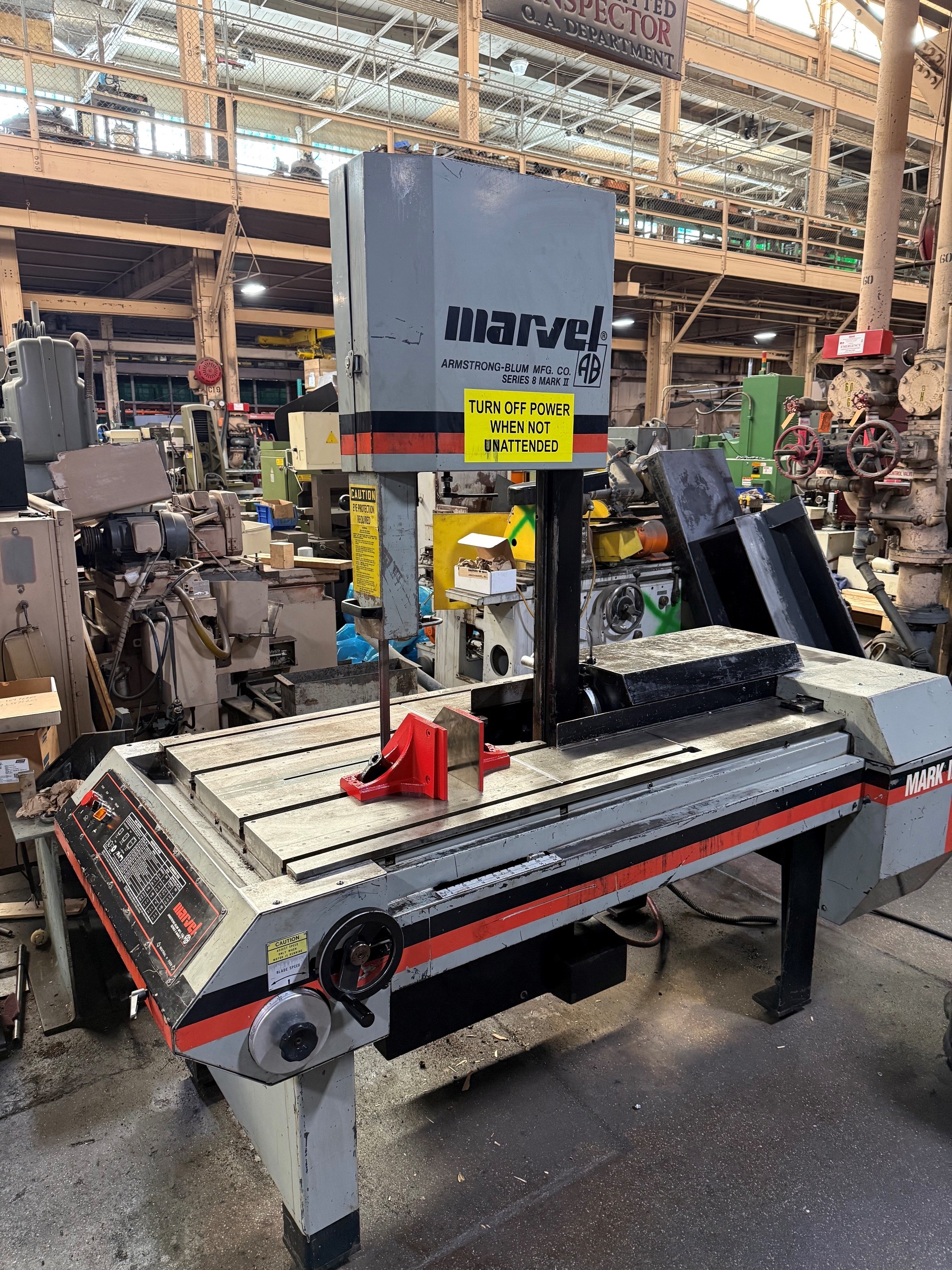

NEW MARVEL TILT FRAME BAND SAW

MODEL: SERIES 8 MARK III - VT4555M



SPECIFICATIONS:

RECTANGULAR CAPACITY:

-CAPACITY NOMINAL ................... 18" X 22"

-CAPACITY 45 DEGREES RIGHT .......... 18" X 14.5"

-CAPACITY 45 DEGREES LEFT ........... 18" X 13"

-CAPACITY 60 DEGREES RIGHT .......... 18" X 9.7"

-CAPACITY 60 DEGREES LEFT ........... 18" X 7.3"

ROUND CAPACITY ...................... 18"

TILT ................................ 0 TO 60 DEGREES LEFT & RIGHT

BLADE SIZE .......................... 15'4" X 1.25" X 0.042"

BLADE SPEED RANGE ................... 50 TO 450 FPM

FEED PRESSURE INFINITELY VARIABLE ... 0 TO 250 LBS

WHEEL DIAMETERS ..................... 19"

SLOTTED WORK TABLE .................. 24.25" X 33"

TABLE HEIGHT ........................ 34.5"

APPROXIMATE SIZE .................... 72"W x 102"D x 90"H

APPROXIMATE WEIGHT .................. 3,000 LBS



EQUIPPED WITH:

- VARIBLE SPEED CONTROL:

- FEED PRESSURE CONTROL: INFINITY VARIABLE

- POWER TILT

- 0 OR 3 DEGREE ADJUSTABLE CANTED COLUMN:

   USED FOR NOTCHING OR INCREASED EFFICENCY IN CUTTING

   STRUCURAL MATERIALS

- BLADE BREAK/STALL DETECTION

- COOLANT SYSTEM

- QUICK ACTION VISE

- 5 HORSE POWER MAIN MOTOR
