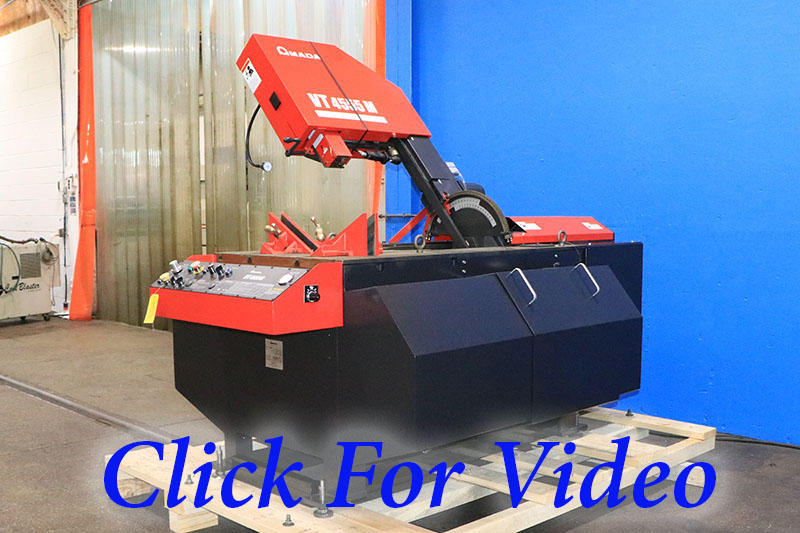

Watch Video:

Amada/Marvel MODEL VT4555M (8-MARK III) VERTICAL BAND SAWS

$54,675

Make:: Amada/Marvel

Model:: MODEL VT4555M (8-MARK III)

Year:: NEW

Ref #:: 161309a

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

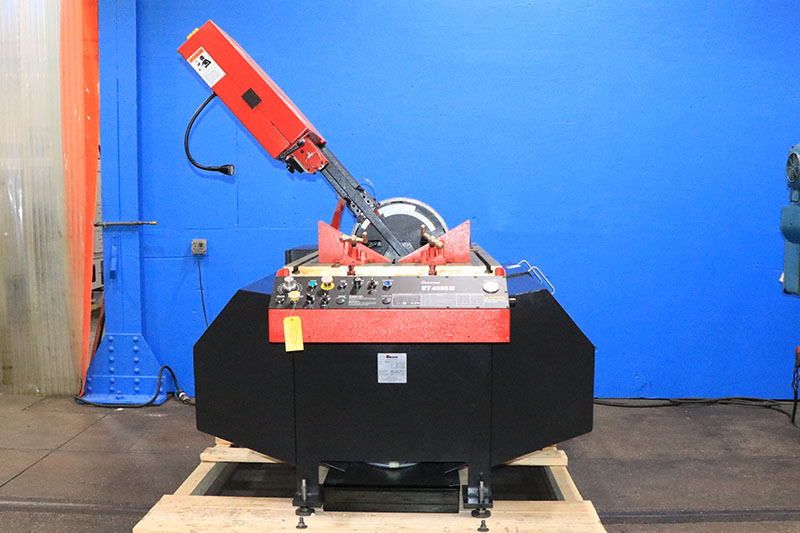

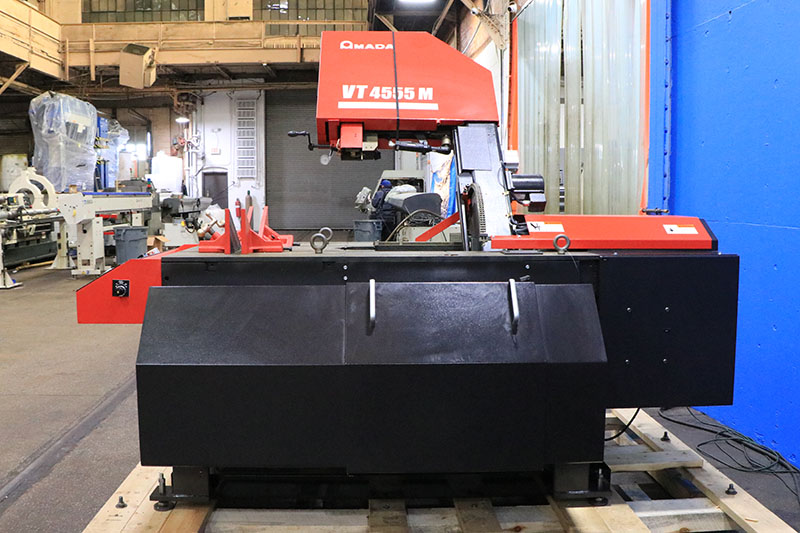

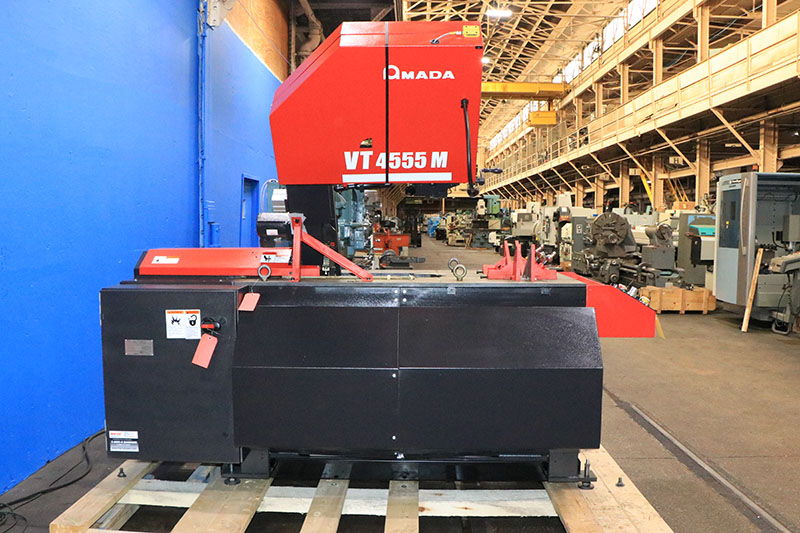

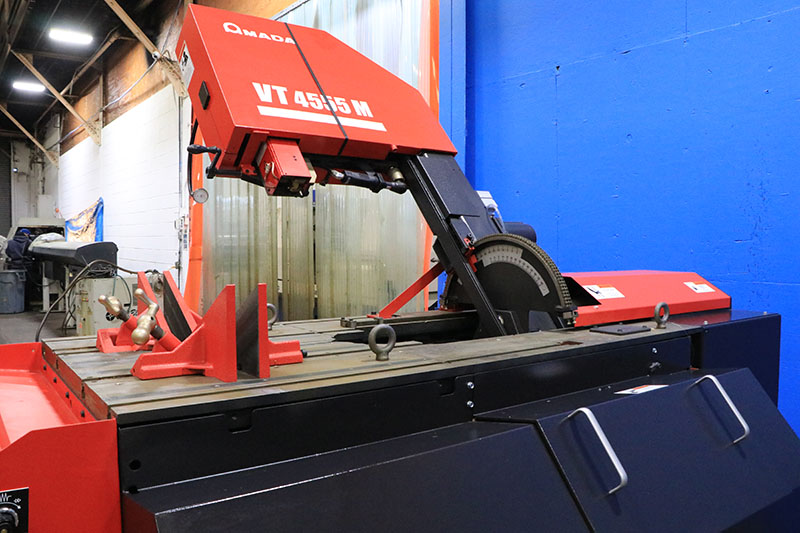

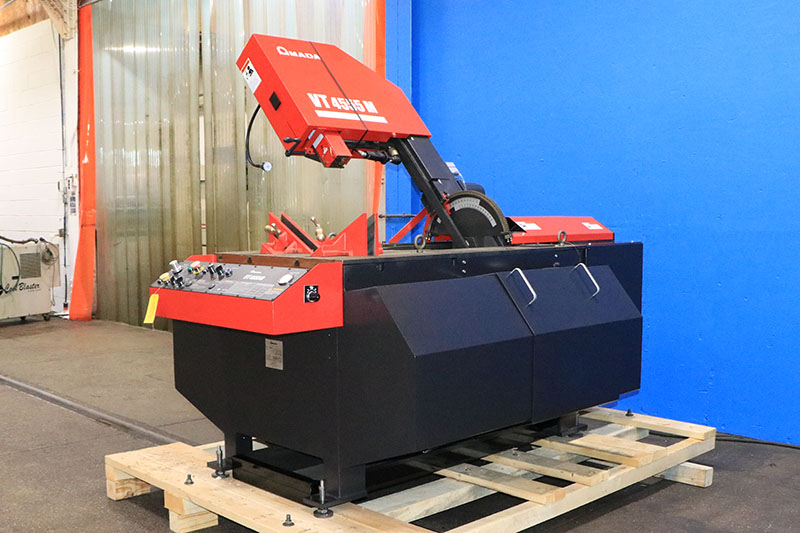

NEW MARVEL TILT FRAME BAND SAW
MODEL: SERIES 8 MARK III - VT4555M

SPECIFICATIONS:
RECTANGULAR CAPACITY:
-CAPACITY NOMINAL ................... 18" X 22"
-CAPACITY 45 DEGREES RIGHT .......... 18" X 14.5"
-CAPACITY 45 DEGREES LEFT ........... 18" X 13"
-CAPACITY 60 DEGREES RIGHT .......... 18" X 9.7"
-CAPACITY 60 DEGREES LEFT ........... 18" X 7.3"
ROUND CAPACITY ...................... 18"

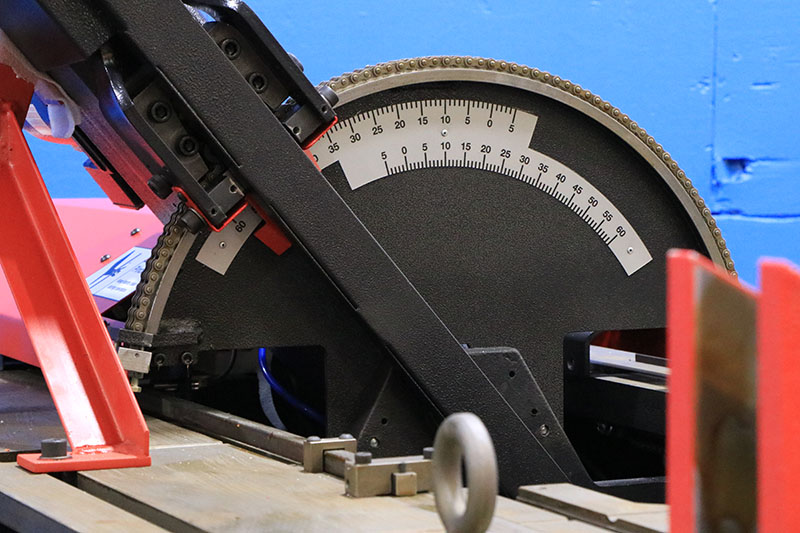

TILT ................................ 0 TO 60 DEGREES LEFT & RIGHT
BLADE SIZE .......................... 15'4" X 1.25" X 0.042"
BLADE SPEED RANGE ................... 50 TO 450 FPM

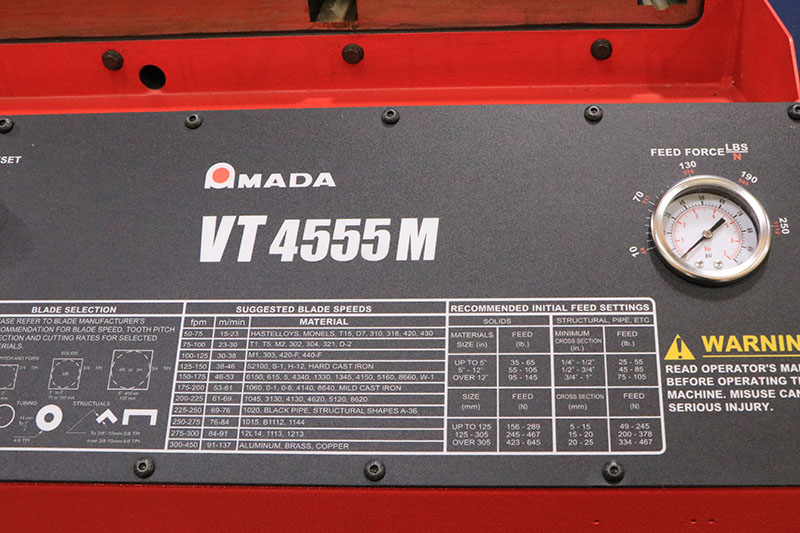

FEED PRESSURE INFINITELY VARIABLE ... 0 TO 250 LBS
WHEEL DIAMETERS ..................... 19"

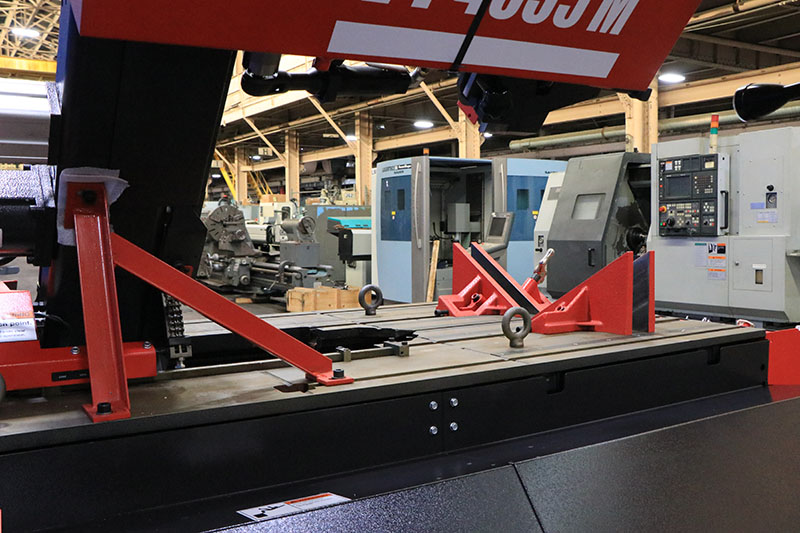

SLOTTED WORK TABLE .................. 24.25" X 33"
TABLE HEIGHT ........................ 34.5"
APPROXIMATE SIZE .................... 72"W x 102"D x 90"H
APPROXIMATE WEIGHT .................. 3,000 LBS

EQUIPPED WITH:

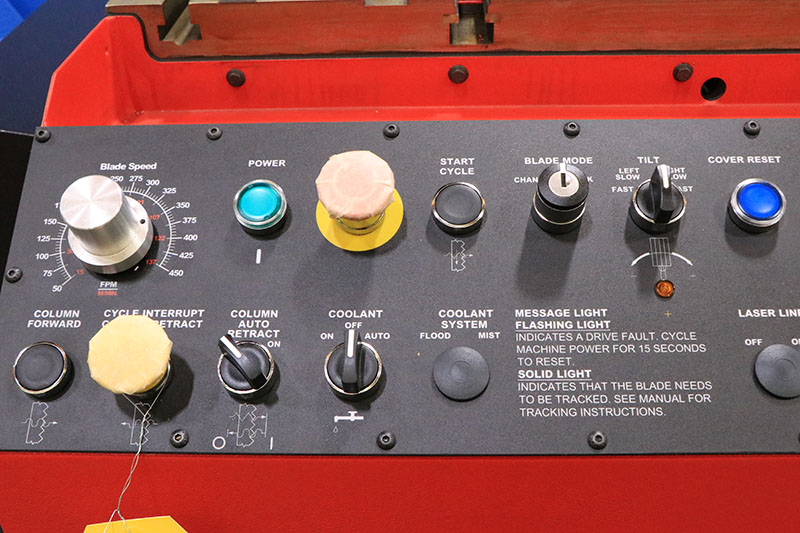

- VARIBLE SPEED CONTROL:
- FEED PRESSURE CONTROL: INFINITY VARIABLE

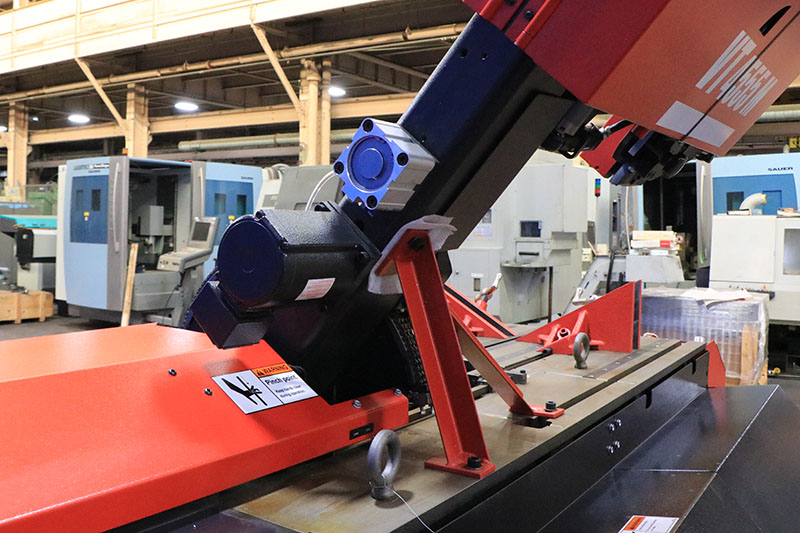

- POWER TILT
- 0 OR 3 DEGREE ADJUSTABLE CANTED COLUMN:
   USED FOR NOTCHING OR INCREASED EFFICENCY IN CUTTING
   STRUCURAL MATERIALS
- BLADE BREAK/STALL DETECTION
- COOLANT SYSTEM

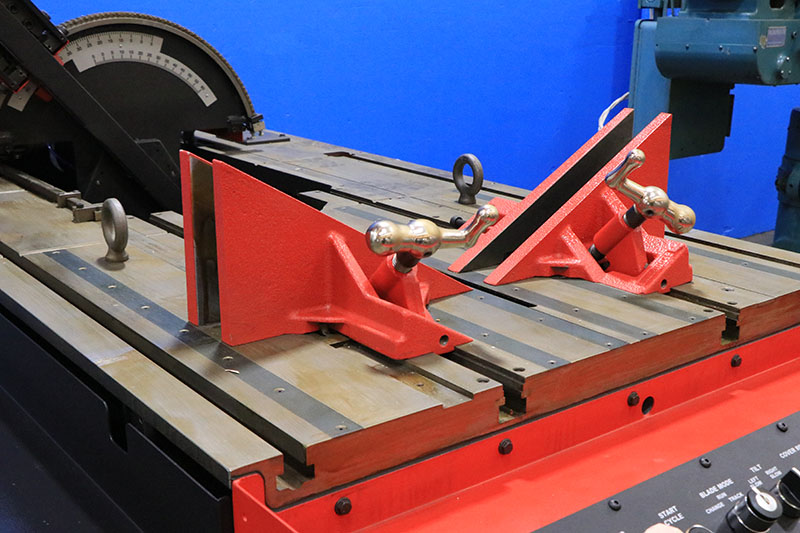

- QUICK ACTION VISE
- 5 HORSE POWER MAIN MOTOR
