American Steel Line 60 UNCOILERS & UPCOILERS

$4,250

Make:: American Steel Line

Model:: 60

Year:: 1973

Ref #:: 162285

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

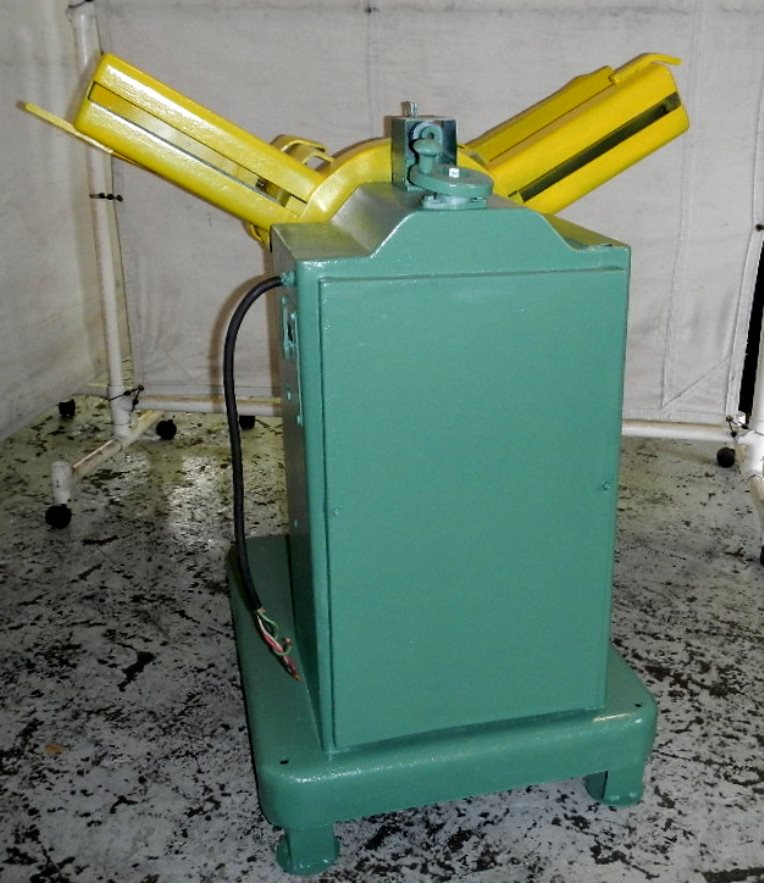

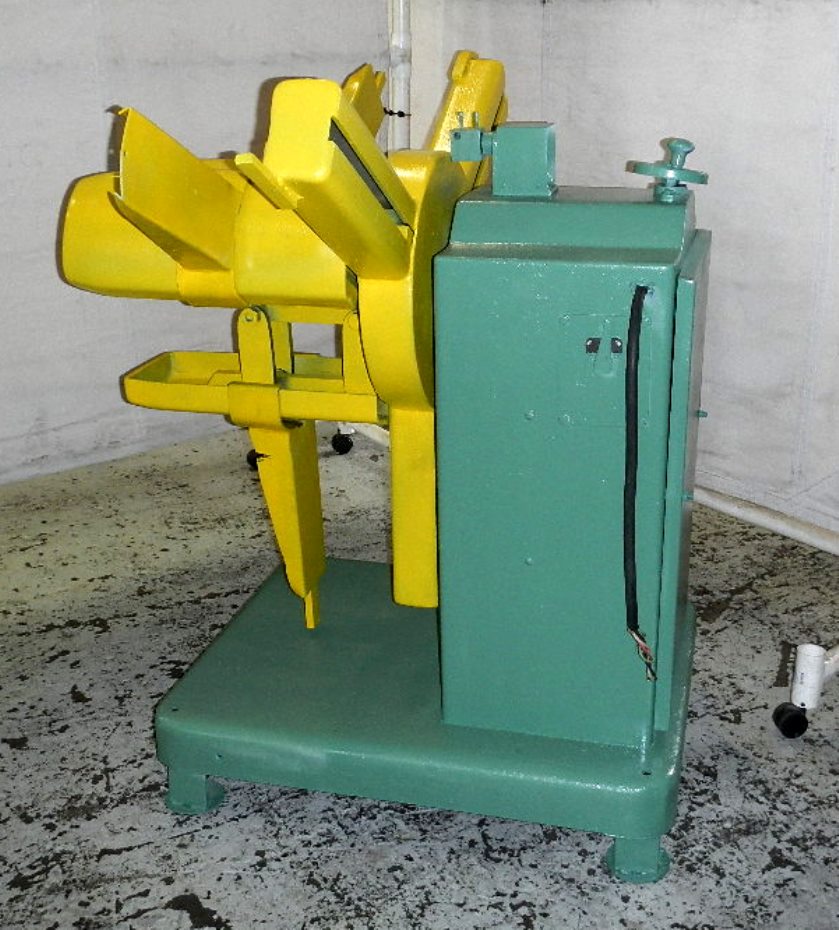

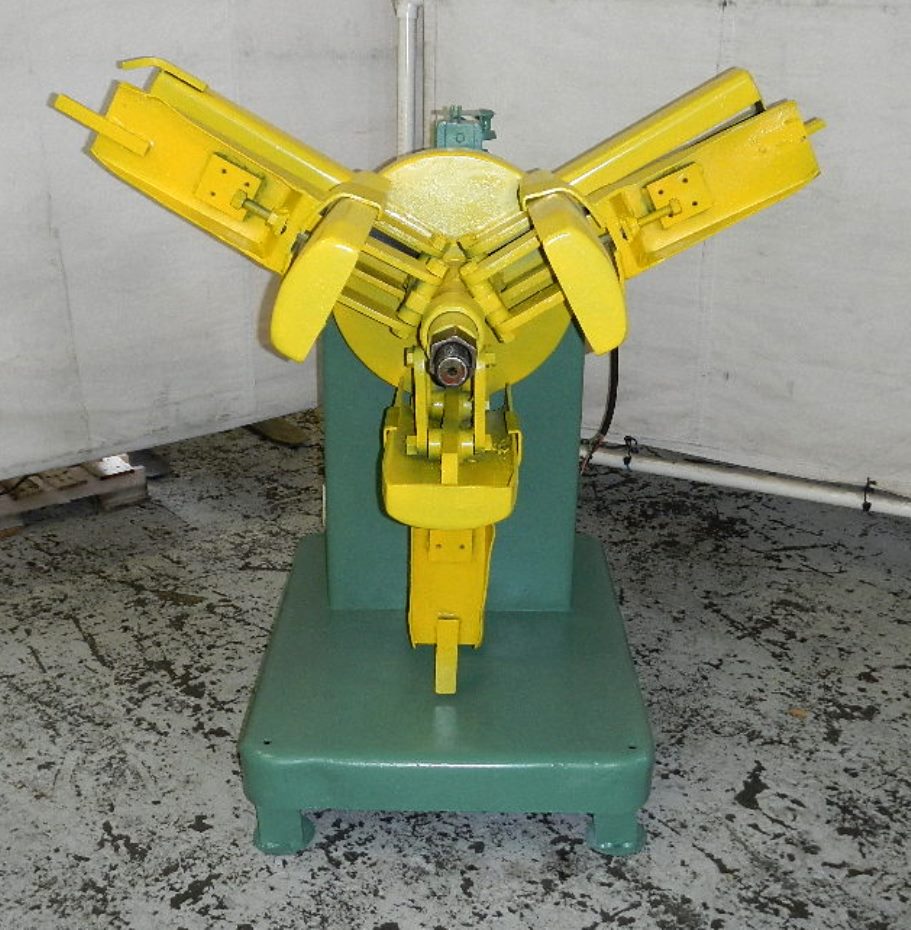

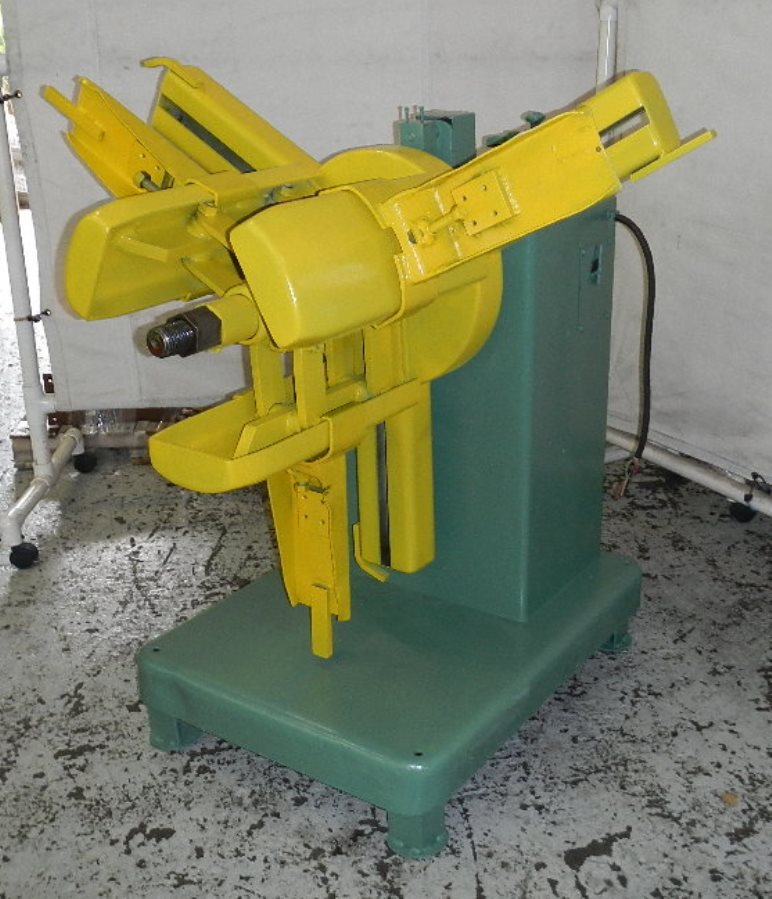

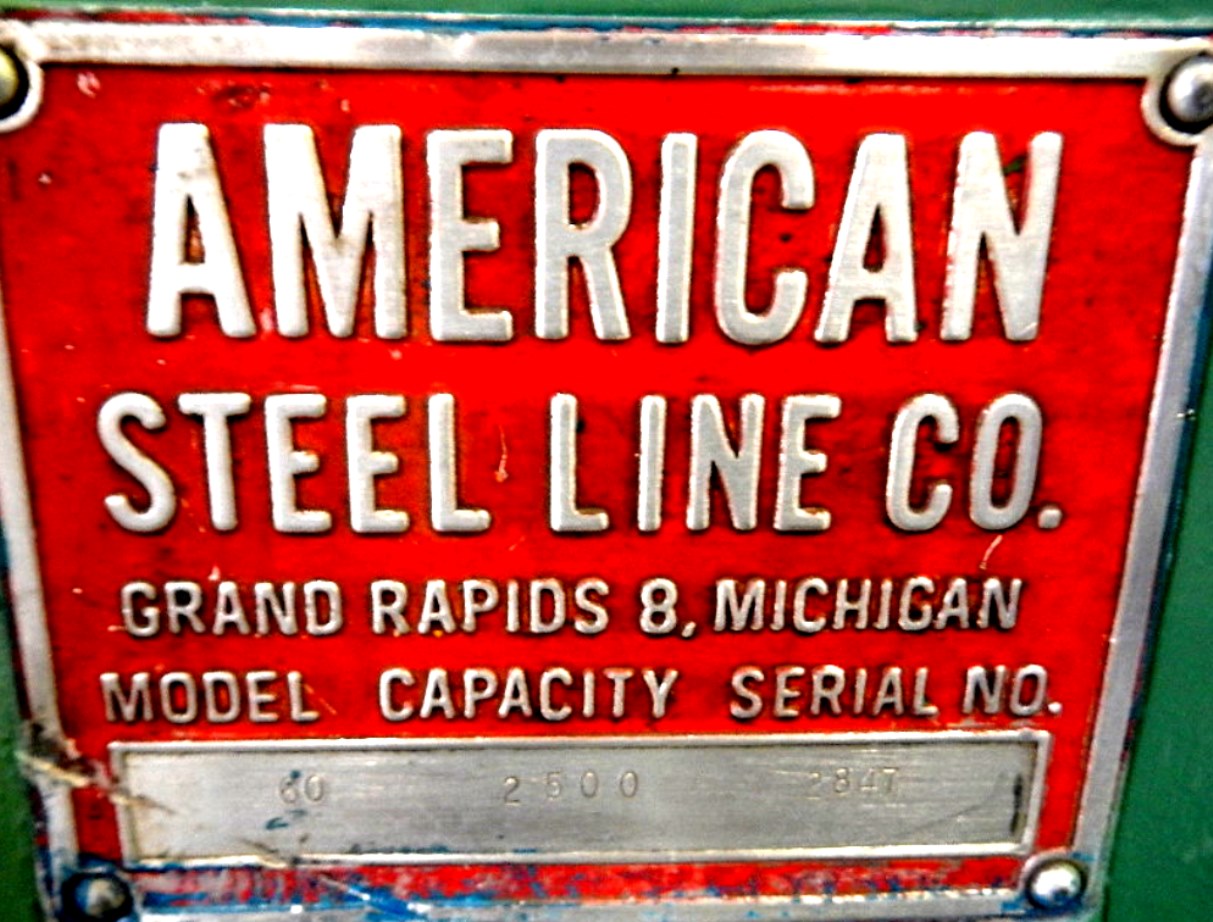

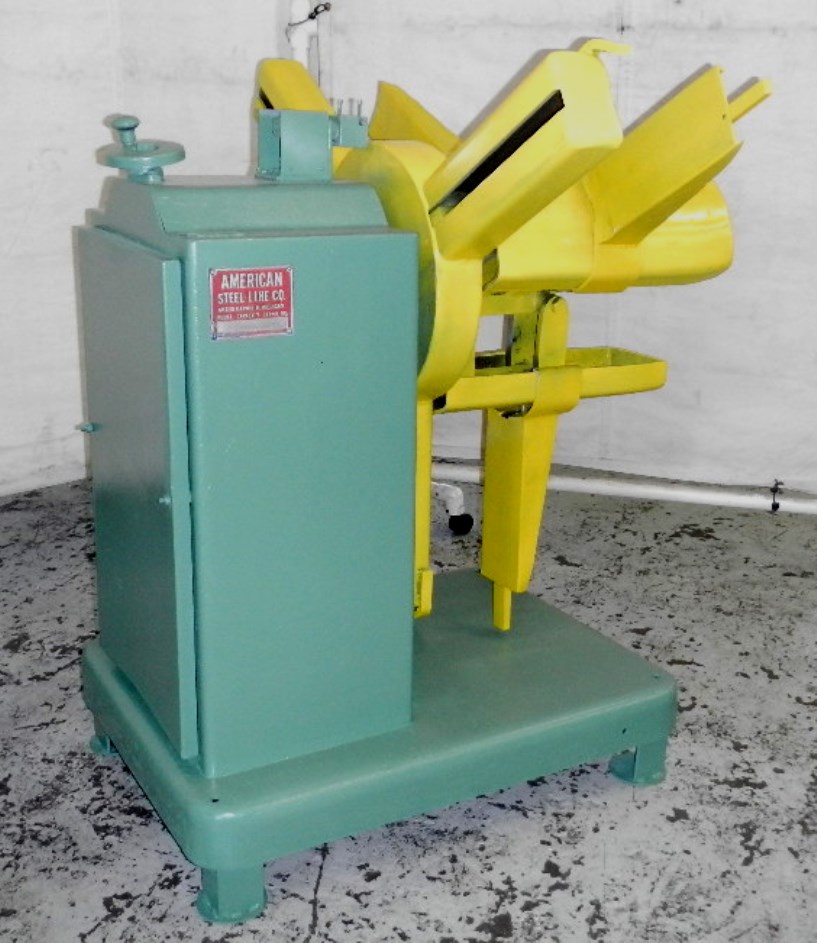

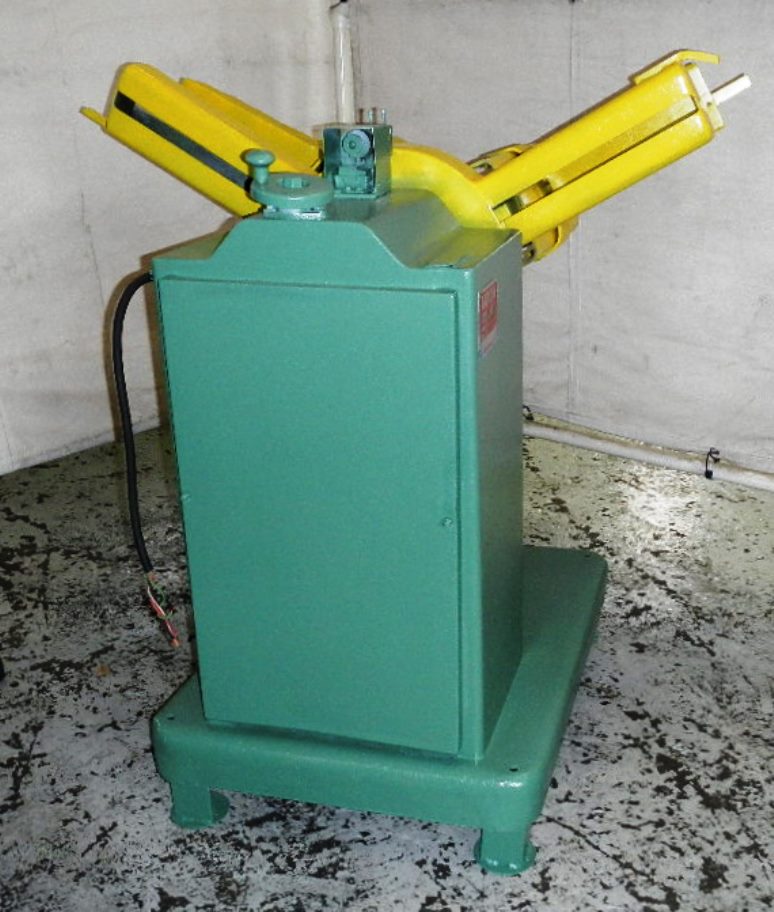

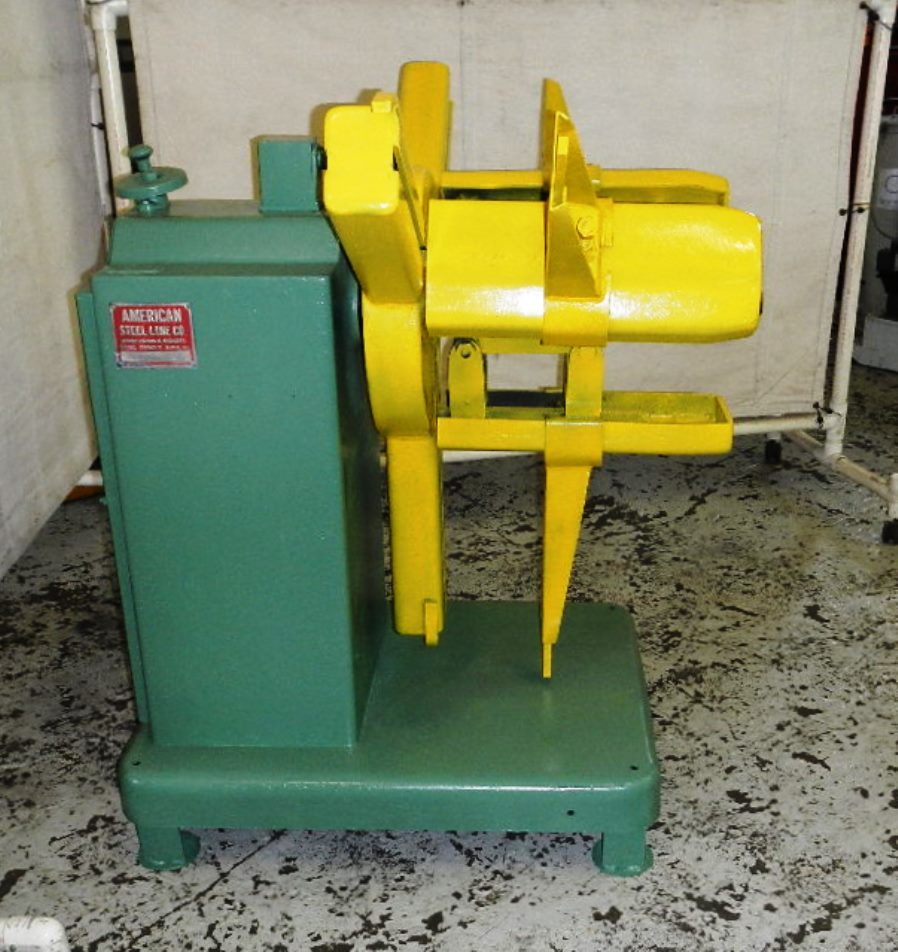

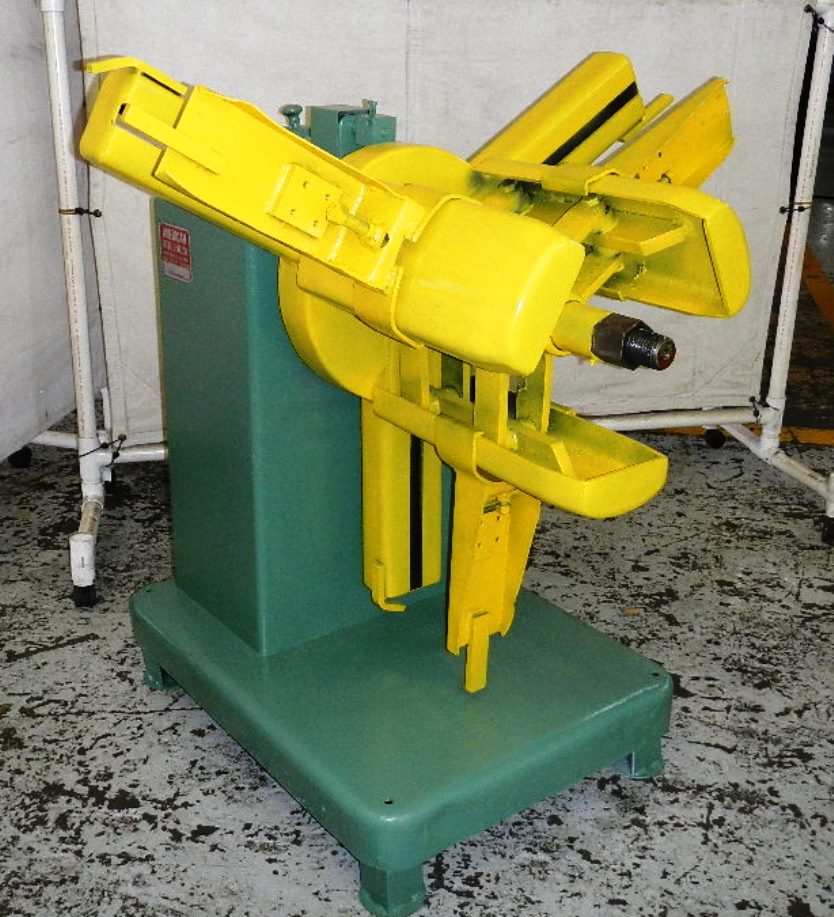

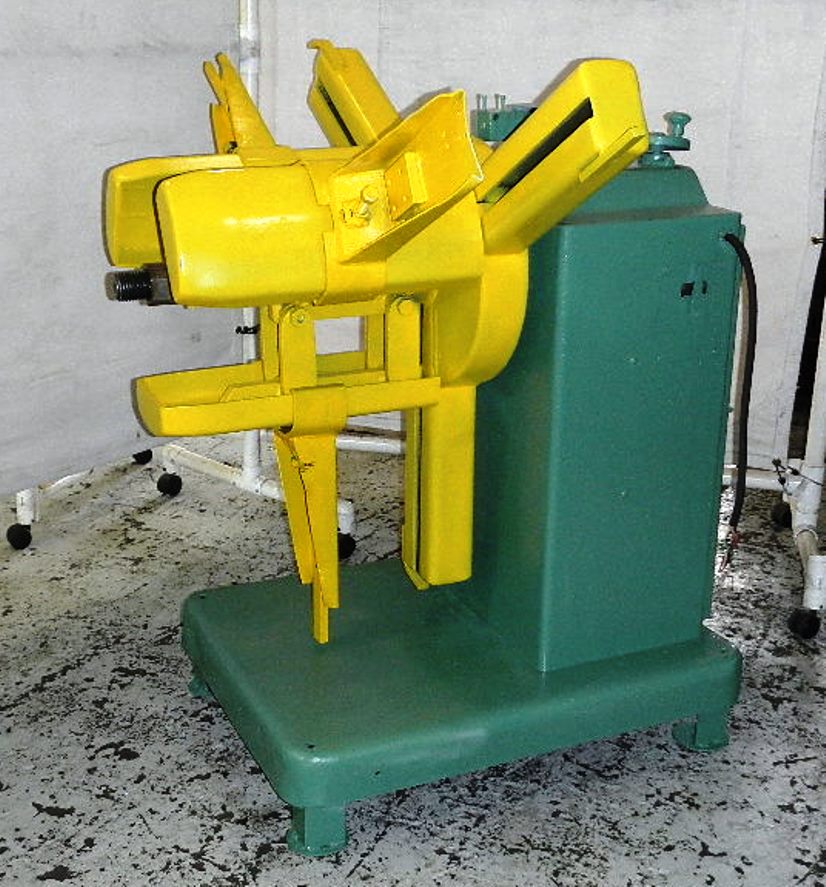

2,500 LB.X 12" AMERICAN STEEL LINE MOTORIZED COIL REEL*
MODEL 60           S/N 2847         Year 1973

Capacity .......................... 2,500 lbs
Width ............................. 12"
Actual width of face .............. 20-1/2"
Inside diameter range ............. 14" - 21"
Maximum outside diameter .......... 60"
Floor to centerline of mandrel .... 37-1/2" (mounted on 9" beams)
Speed ............................. 25 - 65 fpm
Motor ............................. 1 HP

Dimensions 54" x 46" x 62" high
Weight 1,500 lbs

Machine is equipped with:
- Fixed back support arms (3)
- Loop control
- Variable speed
- Manual / auto modes
- Jog forward / reverse
- Keepers (3)
- Machine is currently bolted to 9" high channels.

*PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION

** Located in our Harrison,NJ Warehosue **
