Baileigh CS-350M NEW COLD SAWS

Price on Request

Make:

Baileigh

Model:

CS-350M

Year:

NEW

Ref #:

151321

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

---

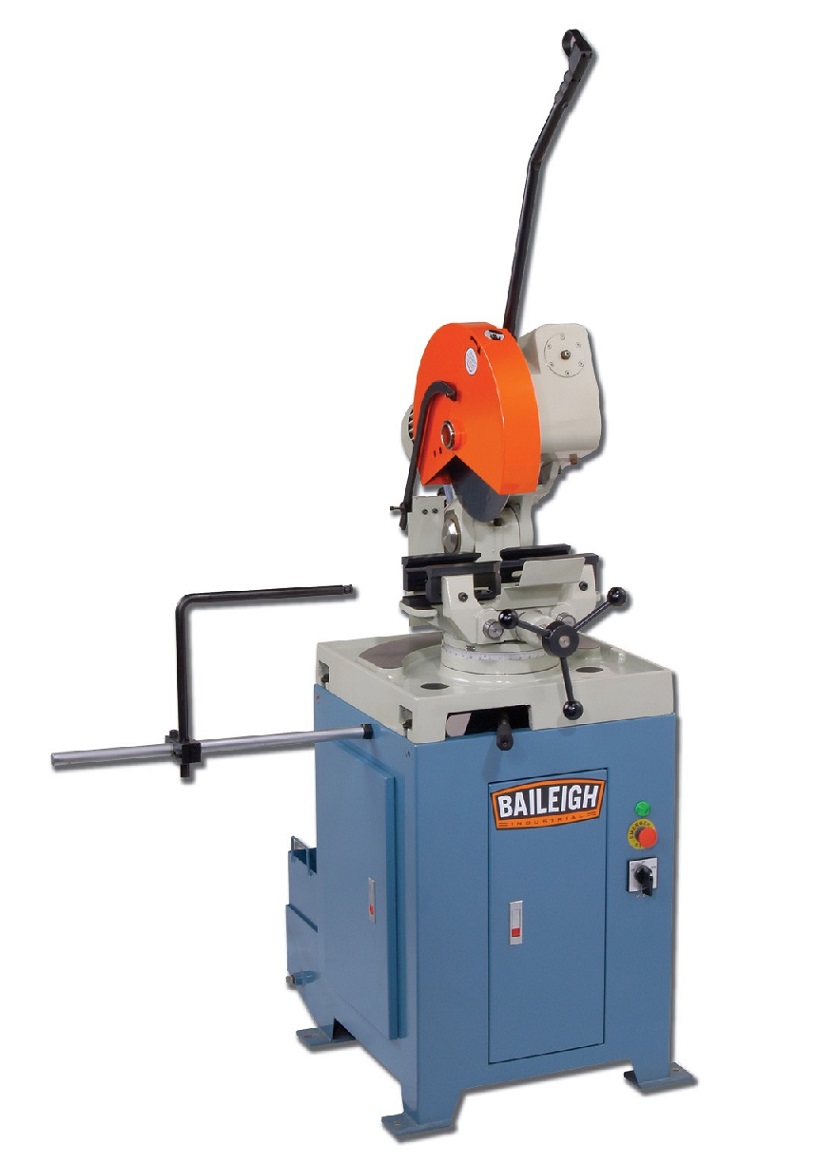

NEW BAILEIGH HEAVY DUTY MANUALLY OPERATED COLD SAW MODEL:  CS-350M





Description:

The CS-350M metal cutting saw is the best cold saw on the market for its price. It makes pristine cuts and includes features you won’t find on competing saws, like a self-centering vise and coolant system.



• Accepts a 14” blade.
• 4.25” round tube capacity at 90°.

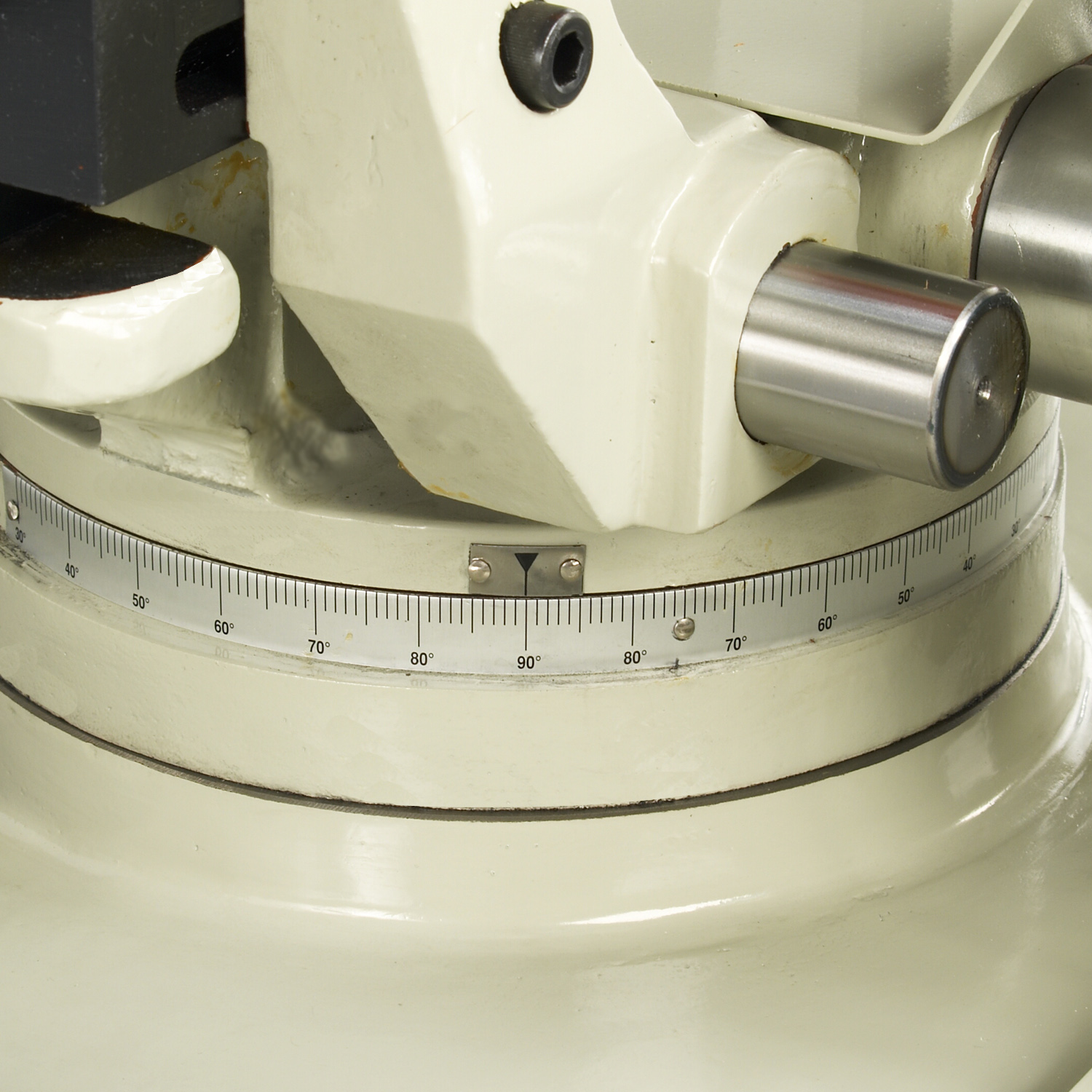

• Miters 45° right and 90° left, perfect for slotting applications.
• 2 blade speeds: 26 and 52 rpm. Switch between them to cut a variety of materials.
• Robust 4 hp motor runs on 220-volt 3-phase power.
• All-metal gears in direct-drive head are ground and hardened for reliability.

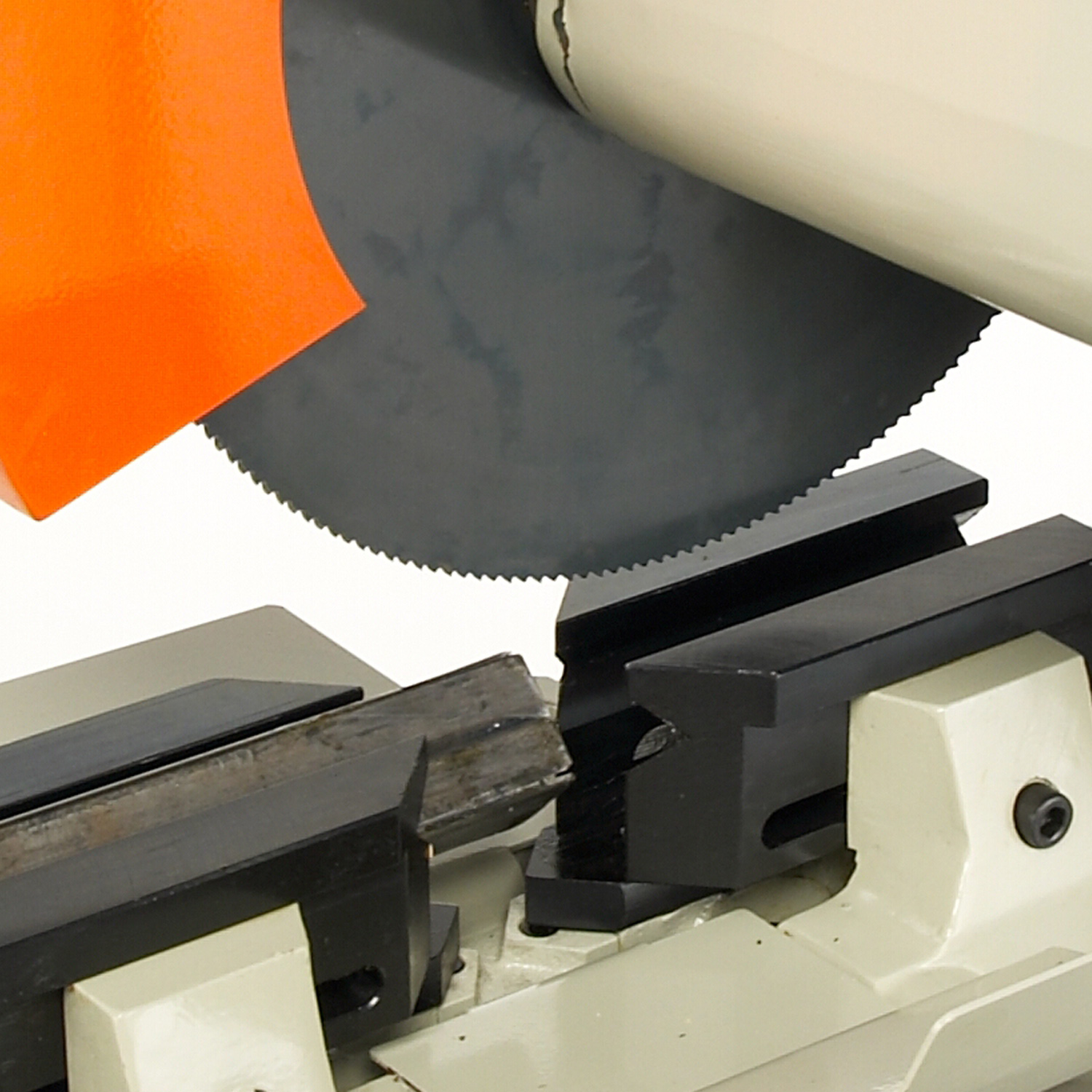

• American-style vise keeps the material perfectly centered with the blade for clean, correct cuts.
• Backlash adjustment maintains tight tolerances and keeps “play” in the gearbox to a minimum.
• Rigid cast iron base keeps vibrations to a minimum so that the saw cuts accurately and reliably.
• Heavy molded steel stand brings the saw up to a comfortable cutting height.

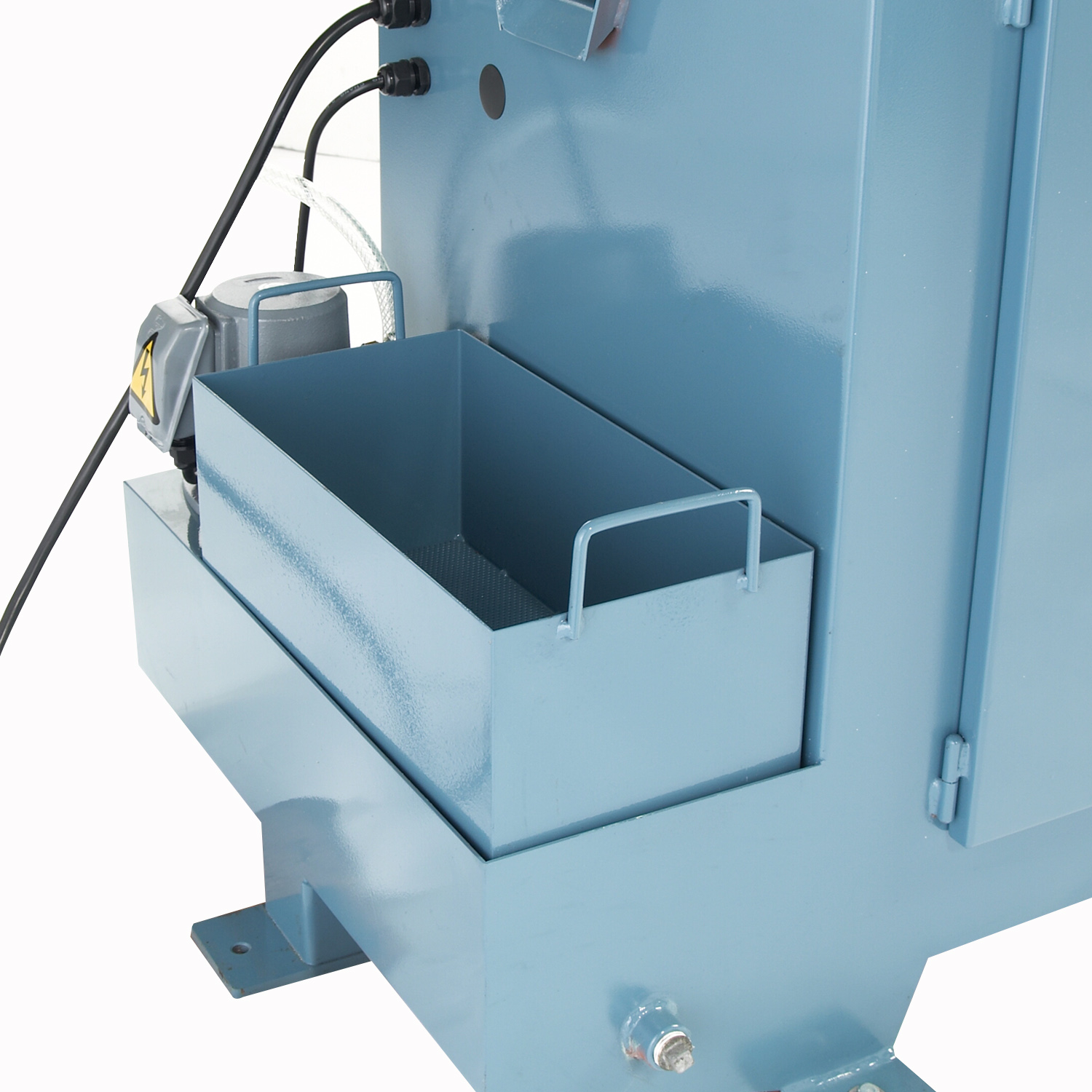

• Industrial-grade flood coolant system ensures a long lifespan of use for both blades and saw and ensures high cut quality.
• Coolant system lubricates the blade, reducing strain on the operator.
• Replacement parts are in stock for quick deliveries.
• We cover this circular cold saw machine with a 1-year parts warranty.
• You can count on lifetime technical support by phone from our team of experienced metalworkers. Call whenever you need help.



Recommended for:

• Marine rails
• Playground equipment
• Hand railings
• Various chassis applications
• Other fabrication cutting jobs



Specifications:

Item Number: CS-350M

Operation: Manual

Head Miter: 45° Left / 45° Right

Round Solid at 45°: 1.575"

Square Tube at 45°: 2.953" x 2.953"

Round Tube at 45°: 2.953"

Rectangle Tube at 45°: 2.953" x 2.362"

Round Solid at 90°: 2.362"

Rectangle Tube at 90°: 4.25" x 3.5"

Square Tube at 90°: 4.25" x 4.25"

Round Tube at 90°: 4.331"

Coolant System: Yes

Slotting Capable: Yes, Left and Right

Vice Style: Dual Action, Self Centering

Max. Vice Opening: 6.5"

Head Style: Pivot

Arbor Size: 1.26"

Motor: 4.0 / 3.0 hp

Blade Speed: Two Speeds, 26 / 52 (rpm)

Power220V / 3-phase

Shipping Weight: 795lbs

Shipping Dimensions (Inches): 60x44x77

* specifications subject to change without notice.
