Baileigh R-CNC120 NEW BENDING ROLLS

Price on Request

Make:: Baileigh

Model:: R-CNC120

Year:: NEW

Ref #:: 151092

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

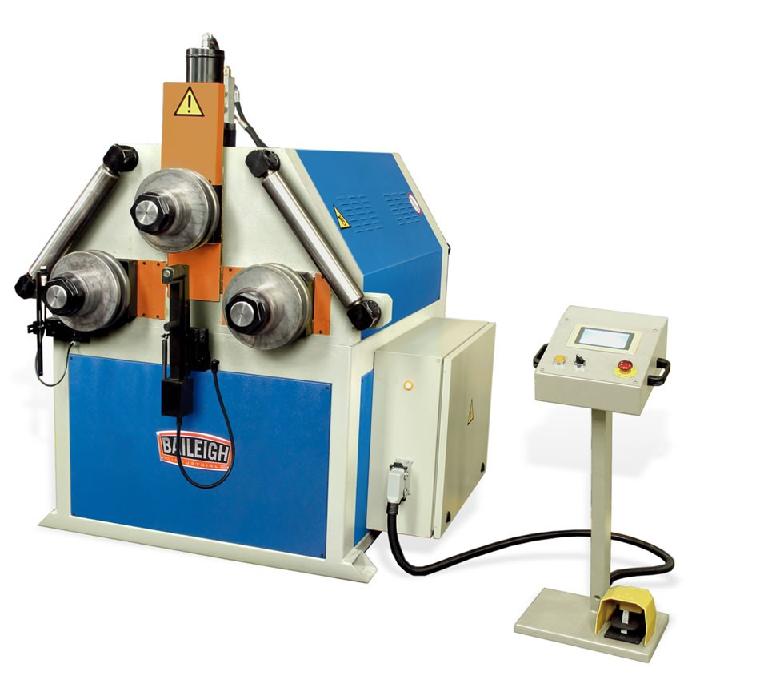

										NEW BAILEIGH CNC ROLL BENDER
 MODEL: R-CNC120

 FEATURES:

 With bending capabilities far beyond the norm, this CNC roll bender is ideal for structural
 applications, playground manufactures, shipyard builders, etc that want high production
 with minimal waste.  The R-CNC120 computer controlled roll bender from Baileigh Industrial
 can bend up to 4.75" tube and has the ability to bend multiple radii on a single section.
 Working together with a hand held calibration device and cutting edge CNC technology the
 R-CNC120 is capable of automatically producing a desired radius on its own.  Unlike other
 CNC roll benders, the integrated software on the Baileigh Industrial line of CNC profile
 benders is extremely intuitive and easy to operate and program.  The programming of the
 R-CNC120 is done through the use of its touch screen operator pedestal.

 The top roll of the R-CNC120 roll bender is adjusted hydraulically and the bottom rolls have
 a unique mechanical side to side adjustment for less "length of straight" at the beginning and
 end of the bend.  Built from only the best components the R-CNC120 is built to last.  It has a
 robust 9hp motor that is driven by an inverter which allows speeds from 0-8 rpm.  The frame
 of the R-CNC120 is built using structural grade steel plate for the ultimate in rigidity, which
 is needed for accuracy in CNC production.
