Baileigh RDB-150 NEW PIPE, TUBE & BAR BENDERS

Price on Request

Make:: Baileigh

Model:: RDB-150

Year:: NEW

Ref #:: 150026

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

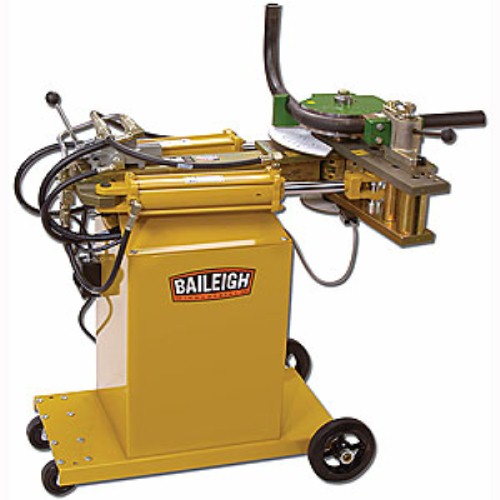

										NEW BAILEIGH HYDRAULIC ROTARY DRAW BENDER
 FOR TUBE & PIPE BENDING, MODEL: RDB-150



 FEATURES:

 -Bends to 180 degrees in one shot
 -Low pressure industrial grade hydraulic system
 -Uses standard Baileigh Industrial drop on die sets for fast tooling changes
 -Replaceable bronze bushings at all pivot points with grease zerks
 -Degree dial with bend indicator included
 -Infinite tooling possibilities
 -Portable
 -Optional auto stop for bend repeatability (Call for Pricing)


 SPECIFICATIONS:

 -Mild Steel Pipe (Schedule 40):  2.00"
 -Aluminum Pipe (Schedule 40):  2.00"
 -Stainless Steel Pipe (Schedule 40):  1.50"
 -Mild Steel Round Tube (Wall):  2.50" (.125)
 -Aluminum Round Tube (Wall):  2.50" (.156)
 -Stainless Steel Round Tube (Wall):  2.375" (.125)
 -Chromolly Round Tube (Wall):  2.00" (.125)
 -Mild Steel Solid Rod:  1.25"
 -Mild Steel Square Tube (Wall):  2.00" (.125)
 -Minimum OD:  .25"
 -Maximum Speed to 180 Degrees:  30 Sec.
 -Maximum Center Line Radius* (CLR):  9.50"
 -Minimum CLR:  .50"
 -Power Requirements:  110V
 -Weight:  600 lbs.
 -Length:  44.00"
 -Width:  28.00"
 -Height:  42.00"

 *Maximum CLR dependant on material outside diameter.


 OPTIONAL TOOLING (Call for Pricing):

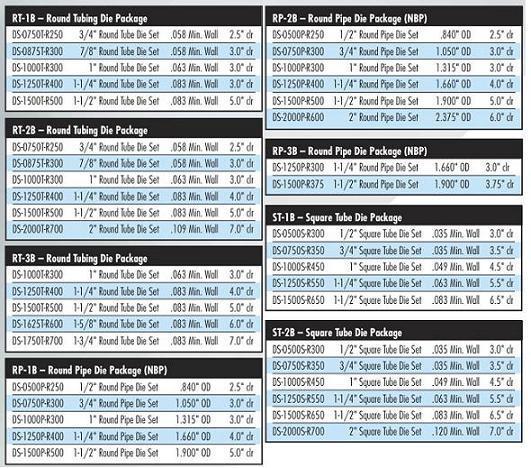

 -Die Sets and Packages* (see diagram above)
 -Angle Finder
 -Inside and Outside Radius Gauges
 -Universal Bend Plate
 -B-lube

 *All pipe packages based on Schedule 40 pipe.
