Baileigh RDB-175 NEW PIPE, TUBE & BAR BENDERS

Price on Request

Make:: Baileigh

Model:: RDB-175

Year:: NEW

Ref #:: 150030

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

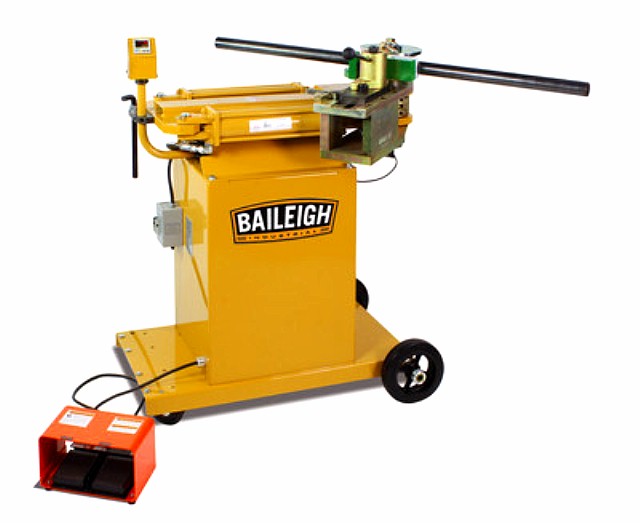

										NEW BAILEIGH HYDRAULIC ROTARY DRAW BENDER
 FOR TUBE & PIPE BENDING, MODEL: RDB-175

 see video at - http://youtu.be/6gmi1UKISGo



 FEATURES:


 -Ratchet counter die positioner
 -2x faster than standard RDB-150 (12-seconds to 180 degrees)
 -Foot pedal operation
 -Bends to 180 degrees in one shot
 -Low pressure industrial grade hydraulic system
 -Uses standard Baileigh Industrial drop on die sets for fast tooling changes
 -Replaceable bronze bushings at all pivot points with grease zerks
 -Digital readout for bend repeatability included
 -Infinite tooling possibilities
 -US patent no. 7,380,430
 -US patent no. 7,743,636



 SPECIFICATIONS:


 -Mild Steel Pipe (Schedule 40):  2.00"
 -Aluminum Pipe (Schedule 40):  2.00"
 -Stainless Steel Pipe (Schedule 40):  1.50"
 -Mild Steel Round Tube (Wall):  2.50" (.125)
 -Aluminum Round Tube (Wall):  2.50" (.156)
 -Stainless Steel Round Tube (Wall):  2.375" (.125)
 -Chromolly Round Tube (Wall):  2.00" (.125)
 -Mild Steel Solid Rod:  1.25"
 -Mild Steel Square Tube (Wall):  2.00" (.125)
 -Minimum OD:  .25"
 -Maximum Speed to 180 Degrees:  12 Sec.
 -Maximum Center Line Radius* (CLR):  9.00"
 -Minimum CLR:  .50"
 -Power Requirements:  110V
 -Weight:  630 lbs.
 -Length:  44.00"
 -Width:  28.00"
 -Height:  42.00"

 *Maximum CLR dependant on material outside diameter.



 OPTIONAL TOOLING (Call for Pricing):

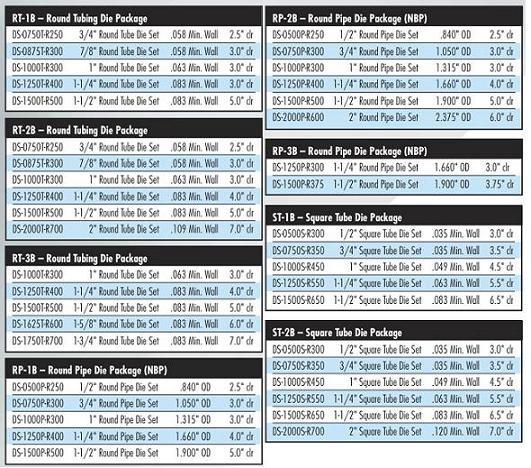

 -Die Sets and Packages* (see diagram above)
 -Angle Finder
 -Inside and Outside Radius Gauges
 -Universal Bend Plate
 -B-lube

 *All pipe packages based on Schedule 40 pipe.
