Baileigh RDB-350-TS NEW PIPE, TUBE & BAR BENDERS

Price on Request

Make:: Baileigh

Model:: RDB-350-TS

Year:: NEW

Ref #:: 150093

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

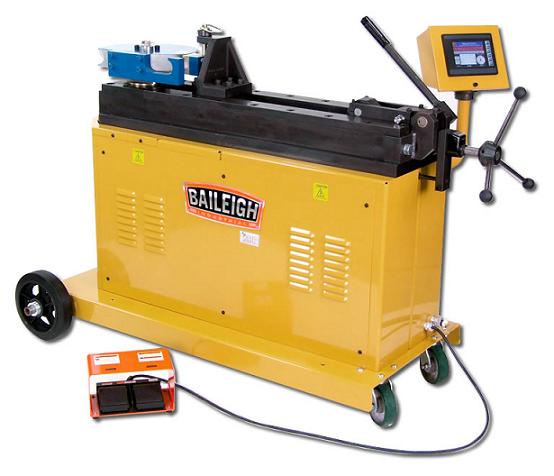

										NEW BAILEIGH TOUCH SCREEN PROGRAMMABLE ROTARY DRAW BENDER
 FOR TUBE & PIPE BENDING, MODEL: RDB-350-TS



 FEATURES:

 -Computer programmable
 -Easy to use touch screen controls
 -Programmer holds 170 jobs with 10-bends per job
 -Can bend 360 degrees left or right (with optional tooling)
 -Quick release counter die system
 -Fast, 16-seconds to 180 degrees
 -24" (610 mm) maximum centerline radius
 -Accepts optional positioning table


 SPECIFICATIONS:

 -Mild Steel Pipe (Schedule 40):  2.50"
 -Aluminum Pipe (Schedule 40):  3.00"
 -Stainless Steel Pipe (Schedule 40):  2.00"
 -Mild Steel Round Tube (Wall):  3.00" (.187)
 -Aluminum Round Tube (Wall):  3.50" (.250)
 -Stainless Steel Round Tube (Wall):  3.00" (.125)
 -Chromolly Round Tube (Wall):  2.50" (.125)
 -Mild Steel Solid Rod:  1.50"
 -Mild Steel Square Tube (Wall):  3.00" (.125)
 -Minimum OD:  .24"
 -Maximum Speed to 180 Degrees:  16 Sec.
 -Maximum Center Line Radius* (CLR):  24.00"
 -Minimum CLR:  .50"
 -Power Requirements:  220V (3 Ph)
 -Weight:  1,500 lbs.
 -Length:  69.00"
 -Width:  32.00"
 -Height:  46.00"

 *Maximum CLR dependant on material outside diameter.


 OPTIONAL TOOLING (Call for Pricing):

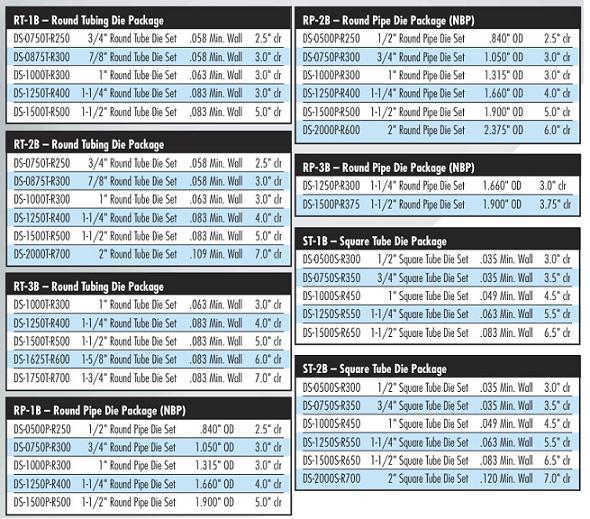

 -Die Sets and Packages* (see diagram above)
 -Angle Finder
 -Inside and Outside Radius Gauges
 -Rotary Positioning Tables:  10ft., 15ft., & 20ft. lengths
 -Universal Bend Plate
 -B-lube
 -Mini Mandrel Attachment

 *All pipe packages based on Schedule 40 pipe.
