Baileigh SW-443 NEW IRONWORKERS

Price on Request

Make:

Baileigh

Model:

SW-443

Year:

NEW

Ref #:

150279

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

---

NEW BAILEIGH 44 TON, 4 STATION IRONWORKER
5 HP, 220V, 3-PHASE
MODEL: SW-443



FEATURES:

-44 ton
-Oversize tables with adjustable material stops
-Foot pedal controlled
-CE and CSA certified
-Material hold downs
-Many optional accessories available
-220V single phase


SPECIFICATIONS:

PUNCHING:

-Punching Pressure:  44 tons
-Punch Capacity:  .75" x .625"
(Diameter x Thickness) 1.5" x .375"
-Throat Depth:  6.88"
-Max. Stroke Length:  1.125"
-Cycles/Min.  23
-Working Height Up to Die:  42.32"

FLAT SHEARING:

-Flat Bar Shearing:  7.87" x .5"
(Width x Thickness) 13.77" x .25"
-Blade Length:  13.87"
-Angle Flange Trim:  3.14" x .393"
-Working Height:  42.32"

ANGLE SHEARING:

-At 90-degrees Shearing:  3" x 3" x .25"
-Working Height:  40"

BAR SHEARING:

-Round Bar Shear:  1.125"
-Square Bar Shear:  1" x 1"
-Working Height:  44.88"

OTHER:

-Electrical Requirements:  5 Hp-220V 3-phase
-Net Weight (Apr.):  1,320 lbs.
-Dimensions (LxWxH):  44" x 22" x 59"

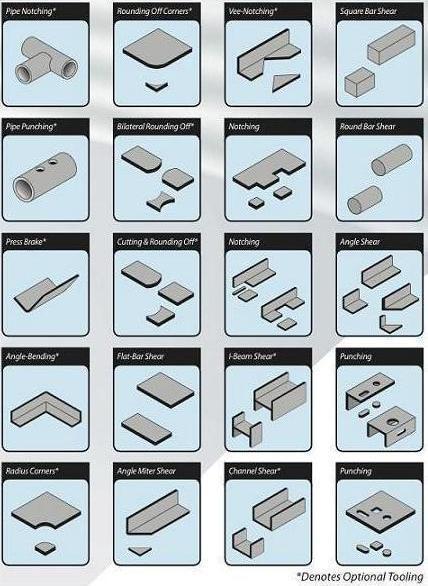

TOOLING: (see diagram above)
