Baileigh VM-1054-3 NEW VERTICAL MILLS

Price on Request

Make:: Baileigh

Model:: VM-1054-3

Year:: NEW

Ref #:: 151145

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

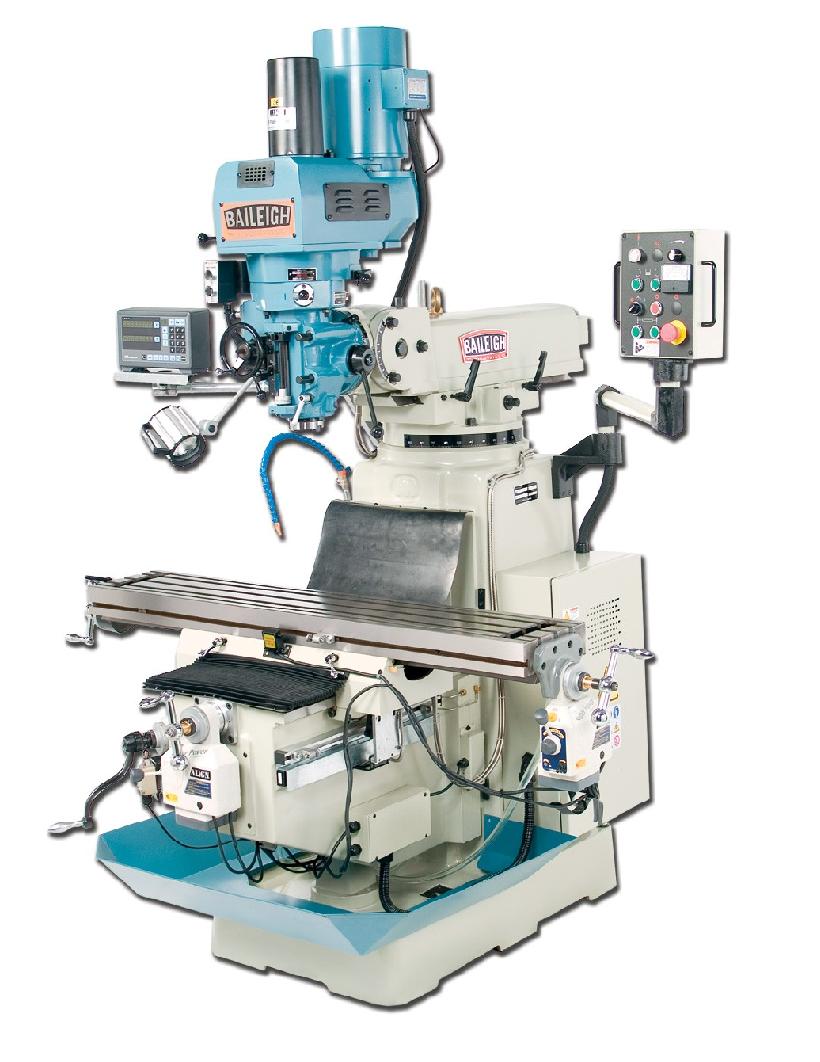

										NEW BAILEIGH 220V 3-PHASE VARIABLE SPEED VERTICAL MILL
 MODEL: VM-1054-3



 FEATURES:

 Mitutoyo 2 axis DRO-standard
 Yaskawa inverter head
 Pneumatic power draw bar
 Power feed on X,Y, and Z axis
 NST 40 spindle taper
 Standard table and knee locks
 Square slide ways
 Ball screws on X and Y axis
 Reversing quill
 Turcite B coated ways and guides for extreme durability
 Meehanite castings for superior rigidity
 Way covers and chip tray included
 Adjustable halogen work light


 SPECIFICATIONS:

 Table size (LxW):  54" x 10"
 Table load capacity:  550 lbs.
 T-slot size:  .625"
 Travel:
     Manual X-axis:  35.43"
     Manual Y-axis:  15.75"
     Manual Z-axis:  16"
     Auto X-axis:  32.25"
     Auto Y-axis:  15.75"
     Auto Z-axis:  16"
 Spindle taper:  NST 40
 Spindle speeds:  80-3800 rpm
 Spindle feed per rev.:  .0015"/.003"/.005"
 Spindle diameter:  3.93"
 Spindle head swivel:  45 degrees (F&R), 90 degrees (R&L)
 Spindle travel:  5"
 Spindle nose to table (min./max.):  1.57"-17.55"
 Spindle center to column (min./max.):  7.87"-26.77"
 Cross travel of ram:  18.89"
 Motor spindle:  3 hp
 Motor coolant pump:  1/8 hp
 Power requirement:  220v/3-phase
 Shipping dimensions (LxWxH):  60" x 60" x 87"
 Shipping weight:  3,000 lbs.
