Bantam B212 NEW PRESS BRAKES

Price on Request

Make:: Bantam

Model:: B212

Year:: NEW

Ref #:: 146929

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

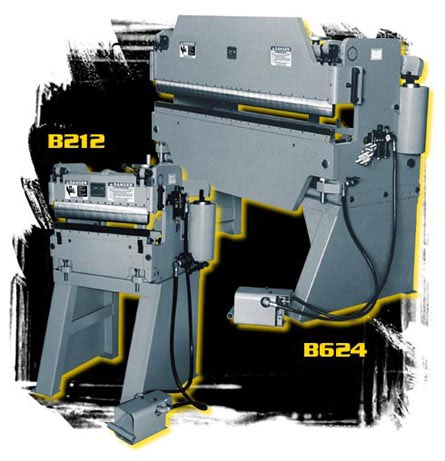

NEW ATEK BANTAM 12 TON X 2' PNEUMATIC PRESS BRAKE
MODEL: B212
MADE IN THE USA

SPECIFICATIONS:
BED WIDTH: ............................... 2'
RAM HEIGHT: .............................. 5-7/8"
MAX BACK GAUGE DEPTH: .................... 18"
(NOTE: MAXIMUM BACK GAUGE DEPTH IS REDUCED BY 2 INCHES WHEN EQUIPPED WITH MICRO-ADJUSTABLE GAUGE OPTION.)
MAX SPEED @ FULL STROKE: ................. 30 SPM
WEIGHT: .................................. 940 LBS

STANDARD FEATURES:
ADJUSTABLE STROKE DEPTH CONTROL IS PROVIDED BY THE SCREW STOP FOR PRECISE
REPEATABILITY. RAISE THE ADJUSTABLE BED AND SHORTEN THE RAM STROKE TO MAXIMIZE
PRODUCTIVITY WHILE REDUCING AIR CONSUMPTION AND MINIMIZING THE PINCH POINT FOR SAFER OPERATION.

ACCOMMODATE A WIDE VARIETY OF TOOLING...

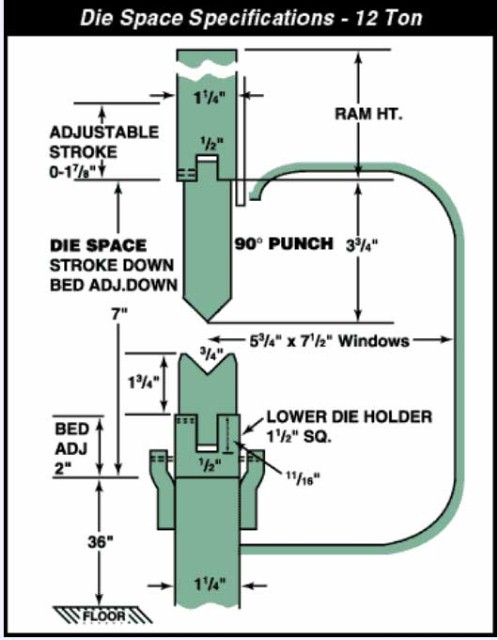

ADJUSTABLE DIE SPACE HANDLES NUMEROUS TOOL SETS AND REDUCES OR ELIMINATES THE PINCH POINT. PER OSHA GUIDELINES, A DIE SPACE GAP OF 1/4" OR LESS IS NOT A PINCH
POINT AND PROVIDES THE SAFEST OPERATION METHOD. LOOSEN THE BED AND RAISE OR LOWER IT WITH THE LARGE BED ELEVATING SCREWS. LEVELING OF BED TO RAM IS EASILY ACCOMPLISHED USING THIS FEATURE.

SELECT THE OPTIMAL SPEED...
RAM SPEED CONTROL VIA AN INFINITELY VARIABLE VALVE ALLOWS INSTANT ADJUSTMENT OF AIR FLOW TO THE DUAL CYLINDERS. A MINIMUM SETTING CREATES A CREEP MODE FOR SETUP, OR
SELECT ANY OTHER POSITION TO SAFELY MATCH RAM SPEED WITH YOUR JOB.

GIVE THE OPERATOR FULL COMMAND...
SAFETY HOODED FOOT PEDAL CONTROLS ALL RAM MOTION. FULLY DEPRESS CONTROL PEDAL FOR DOWN STROKE. SLIGHTLY RELEASE PEDAL TO STOP ADVANCING THE RAM. COMPLETELY
RELEASE PEDAL AT ANY TIME AND THE COUNTER-BALANCED RAM AUTOMATICALLY RETRACTS TO
THE TOP OF THE STROKE. FOR ADDED SAFETY, THE RAM RETRACTS IF AIR SUPPLY IS REMOVED.
THE UNIQUE ZERO-BACKLASH DESIGN WITH ITS +/- 0 POSITION TOLERANCE IS MORE ACCURATE THAN ANY HYDRAULIC PRESS BRAKE THAT USES SWITCHES, SENSORS, AND VALVES TO STOP RAM MOTION.

CONDITION THE AIR SUPPLY...
MODULAR FRL UNIT IS STANDARD ON ALL MODELS TO CONDITION AIR SUPPLY TO PNEUMATIC COMPONENTS FOR LONG LIFE. THE UNIT CONSISTS OF AN ADJUSTABLE FILTER/REGULATOR MODULE WITH PRESSURE GAUGE, ADJUSTABLE FLOW LUBRICATOR MODULE AND A THREE-WAY LOCKABLE SHUT-OFF VALVE. THE VALVE IS VENTED TO RELIEVE DOWNSTREAM PRESSURE IN THE OFF POSITION PER OSHA GUIDELINES. KEYED PADLOCK AND LOCKOUT TAG ARE INCLUDED.

SELECT THE RIGHT TONNAGE FOR THE JOB...

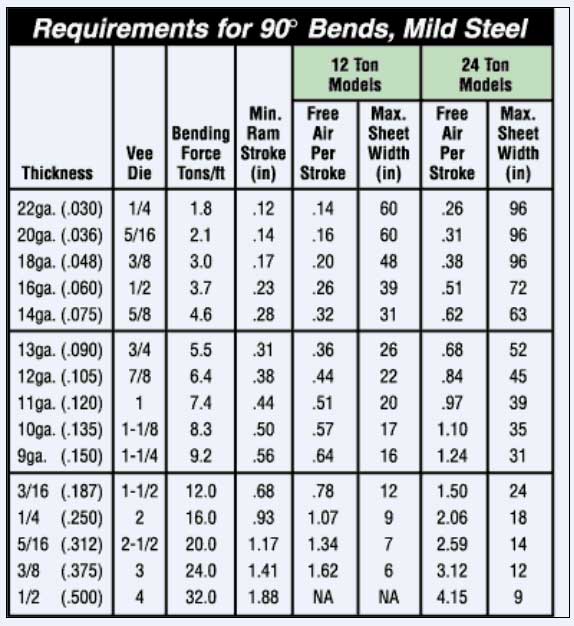

VARIABLE TONNAGE CONTROL PROVIDED THROUGH THE MODULAR FILTER/REGULATOR/LUBRICATOR UNIT DELIVERS TWELVE OR TWENTY-FOUR TONS OF RAM FORCE TO FORM UP TO 3/8" OR 1/2" AT
MAXIMUM PRESSURE. LOWER THE PRESSURE TO SUIT THE JOB, REDUCE AIR CONSUMPTION AND PRESERVE TOOLING

USE IT YEARS LONGER...
ATEK'S PRESS BRAKES ARE RECOGNIZED WORLDWIDE AS PROVEN PERFORMERS GIVING MORE YEARS OF SERVICE IN THE FIELD THAN ANY COMPARABLE UNIT. THE RUGGED LEVER WELDMENT ABSORBS TORQUE GENERATED BY OFF CENTER LOADS. BED DEFLECTION IS LESS THAN INDUSTRY STANDARDS. FROM THE SMALLEST SHOP TO THE LARGEST CORPORATION, THE BANTAM NAME IS KNOWN FOR DEPENDABLE PRODUCTIVITY.

RUN WITHOUT INTERRUPTION...
OUR FULLY PNEUMATIC PRESS BRAKES REQUIRE MINIMAL SERVICE. DESIGNED FOR SIMPLICITY, THERE ARE FEW MOVING PARTS TO WEAR OUT - NO MOTOR, CLUTCH OR BRAKE TO MAINTAIN OR REPLACE.

DETAILS THAT COUNT...
EVERY ATEK BANTAM IS DESIGNED AND BUILT WITH QUALITY AND ATTENTION TO DETAILS.
RAM GUIDES ARE SIMPLE TO ADJUST AND PROVIDE YEARS OF SERVICE. ALL CRITICAL PIVOT POINTS ARE HEAT TREATED AND EQUIPPED WITH GREASE FITTINGS. SPECIAL BUSHING MATERIAL IS ENGINEERED FOR HIGH LOADS TO SUPPORT THE ROCKING LEVER PIVOT SHAFT.

OPTIONAL EQUIPMENT: (ADD'L)
FLOOR STAND
DIGITAL READOUT FOR STANDARD REAR ADJUST Y-AXIS RAM STROKE CONTROL
FRONT ADJUST Y-AXIS RAM STROKE CONTROL
FRONT ADJUST Y-AXIS RAM STROKE CONTROL W/DRO
REAR ADJUST PRO-GAGE MICROMETER BACK GAGE, 0 - 4", TWO UNITS MOUNTED ON
COMMON CROSSBAR
FRONT ADJUST BACK GAGE W/DRO
SMART-GAGE CNC BACK GAUGE FOR 12 TON PRESS BRAKE, 0 - 12"
(1) PRO-GAGE MICROMETER FRONT GAGE W/BED MOUNT, ROTARY AND VERTICAL ADJUST,
NO BED T-RAIL
BED T-RAIL FOR FRONT GAUGE OF FEET, PRICE PER FOOT PLUS $25 CUTTING CHARGE)
PRODUCTION PARTS COUNTER
TWO HAND SAFETY CONTROL W/FRONT WORKPIECE SUPPORT TABLE
FRONT WORKPIECE SUPPORT TABLE
LARGE SHEET SUPPORT
SEGMENTED SAFETY CLAMP RAM
ADDITIONAL TOOLING SPACE SIDE FRAMES
