Barber Colman GEAR HOBBERS

$19,500

Make:: Barber Colman

Model:

Year:

Ref #:: 177813

Or call us for a quote at (973) 497-7500 or send us an email at automatics@machineryvalues.com

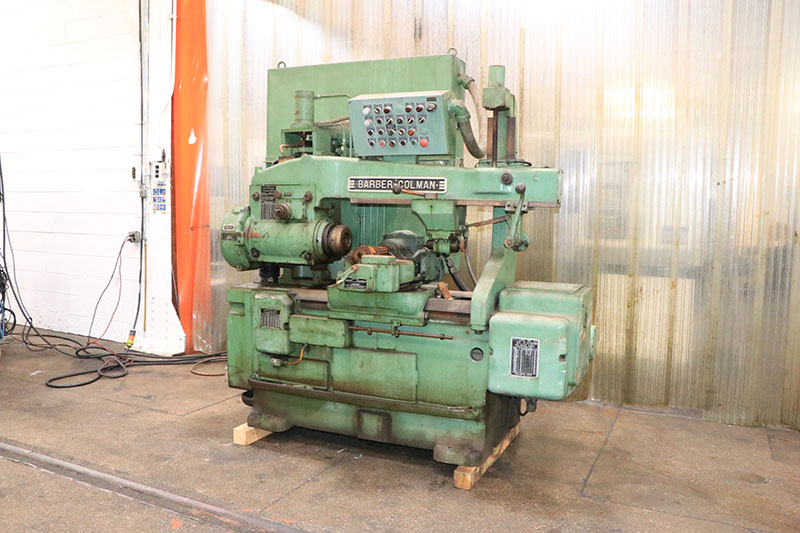

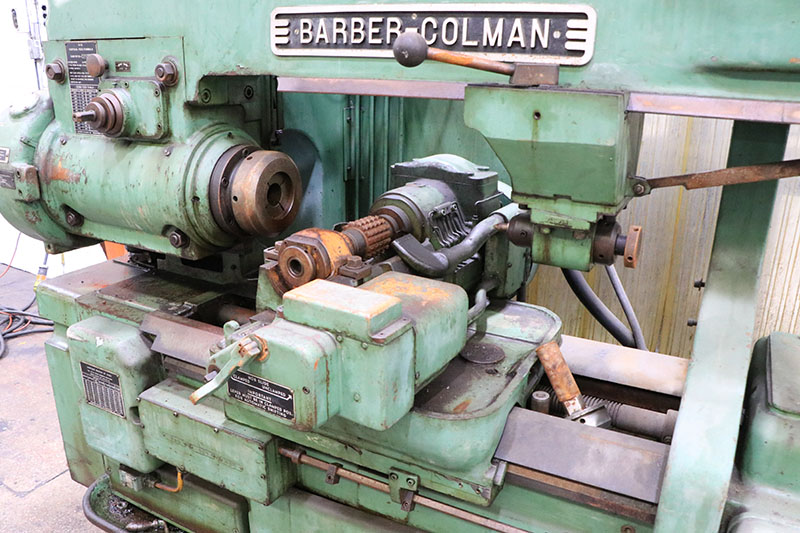

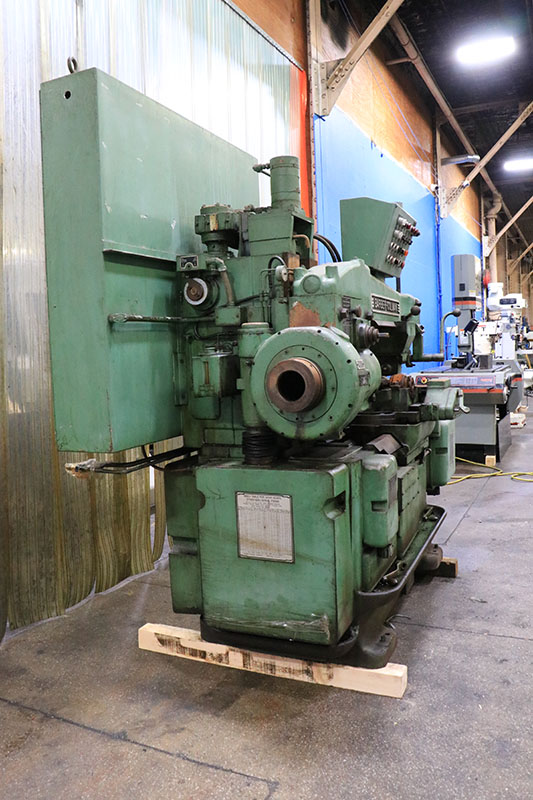

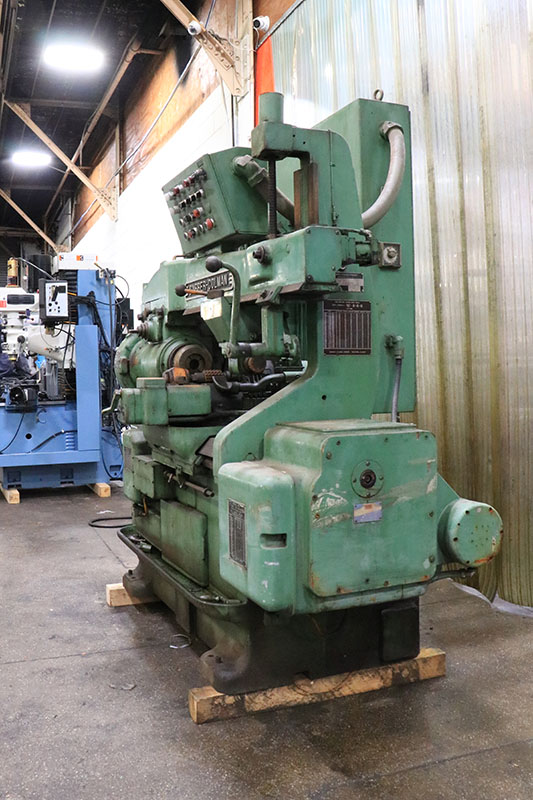

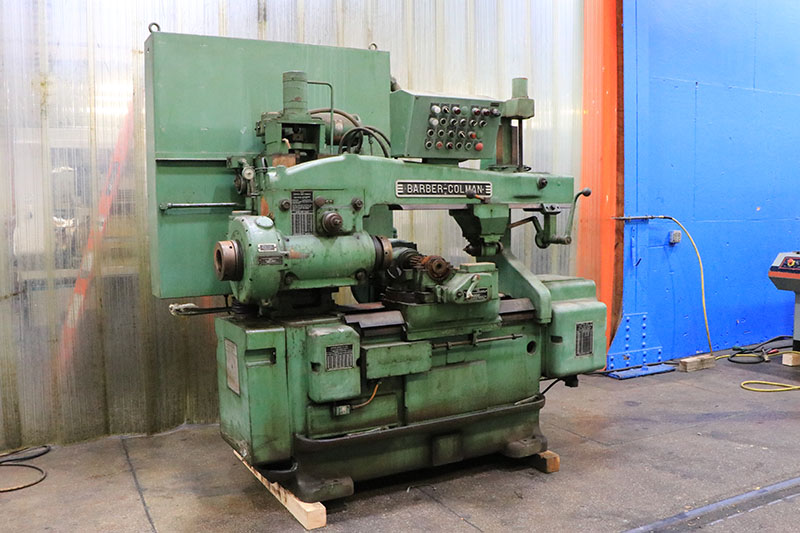

Barber Colman model 16-16 Multicycle 16" diameter cap, C-frame style , dual lead worm, lots of features, inquire. s/n 4519

SPECIFICATIONS:

Machine catalog specifications:
 * Max. DP in Steel                                  6 DP-10 DP
 * Max. Work O.D.                                    16"
 * Max. Hob Slide Travel                             16"
 * Diameter of Hole Through Work Spindle             4-1/8"
 * Max. Hob Diameter                                 5"
 * Max. Vertical Adjustment of Work Spindle          8"
 * Dist. C/L of Work Spindle to Underside of Overarm 8"
 * Dist. C/L of Work Spindle to C/L of Hob Spindle,
   Max./Min                                          8.75"/0.75"
 * Dist. Face of Work Spindle to C/L of Hob Spindle,
   Max./Min                                          19.5"/3.5"
 * Max dist of shaft from spindle face - tailstock   42"
 * Max. Hob Slide Swivel Angle Setting               45 Degrees

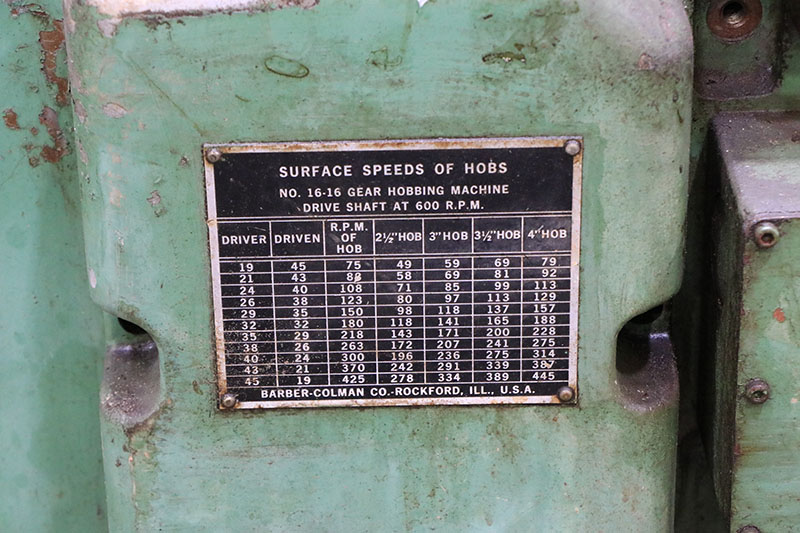

 * 9 Hob Speeds (when equipped with suitable gears)  59-246 RPM

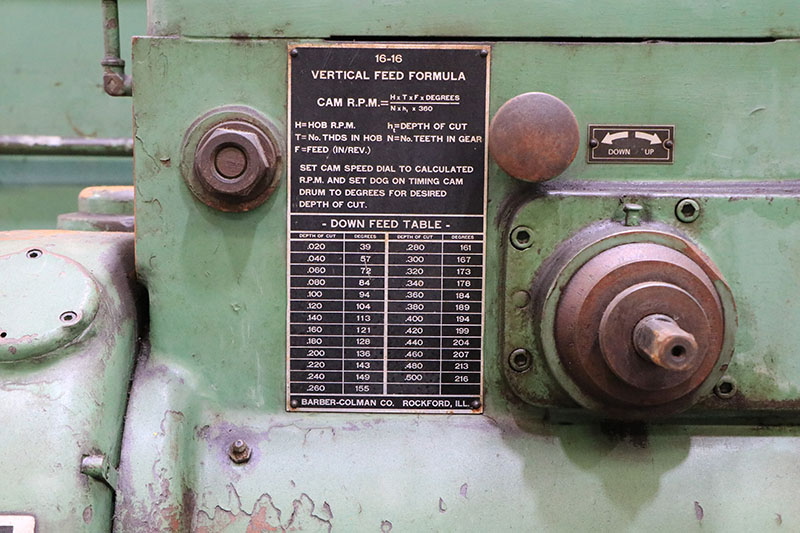

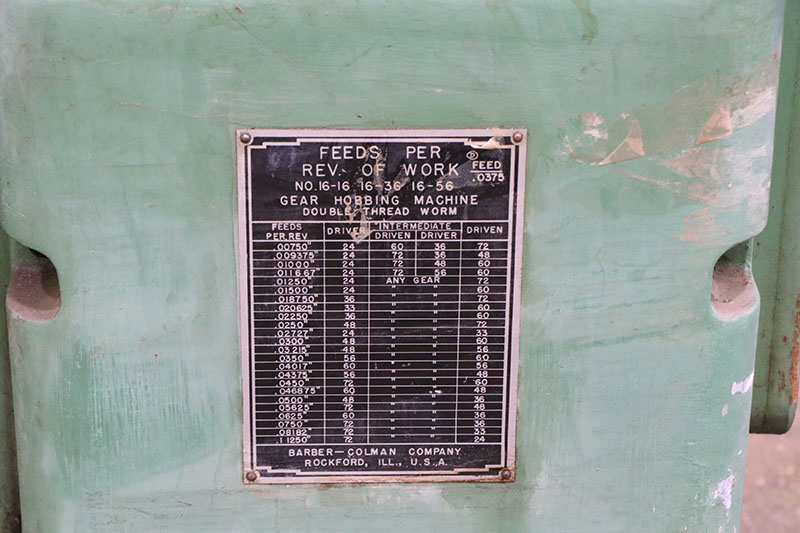

 * Hob Feeds (when equipped with suitable gears)     .0075-.1125"
 * Floor Space (approx.) L x W x H                   82" x 38" x 76"
 * Weight (approx.)                                  7500 lbs

 Machine Equipped With:
 * C-frame style machine w/ timken spindle bearings
 * 2-Start index worm and Gear
 * Large Bore in work spindle (4-1/8")
 * Automatic cycle control (Downfeed , Square, and Plunge)
 * 1 Hob Arbor
 * Hob shift
 * Max hob RPM is 425

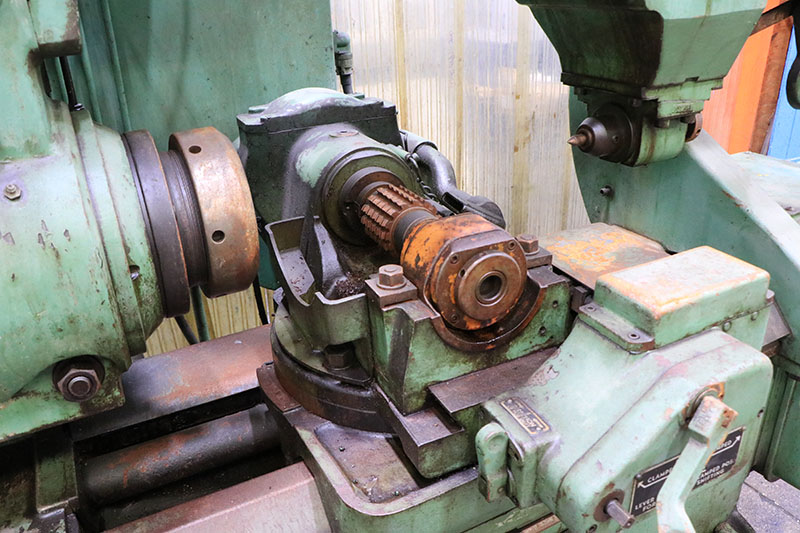

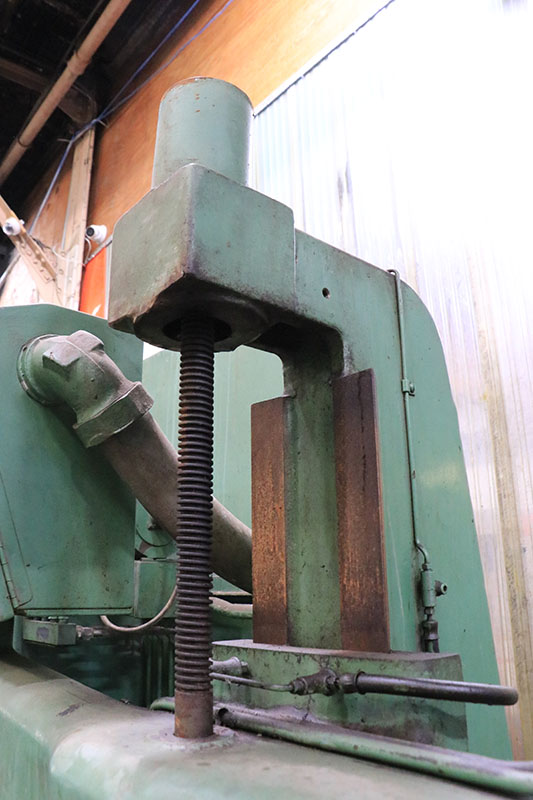

 * Tailstock- special Adjustable style

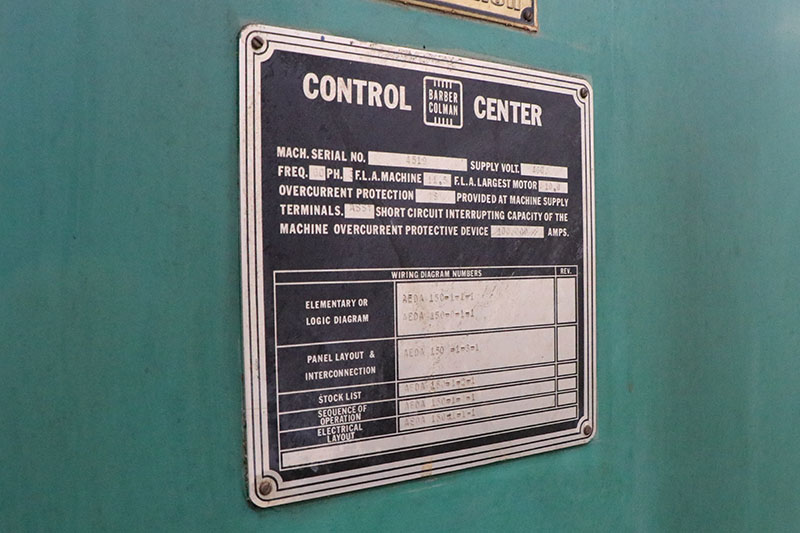

 * Power 460 volt 3/phase
 * Manual
