Betenbender 10'-125 NEW SHEARS

Price on Request

Make:

Betenbender

Model:

10'-125

Year:

NEW

Ref #:

148924

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

---

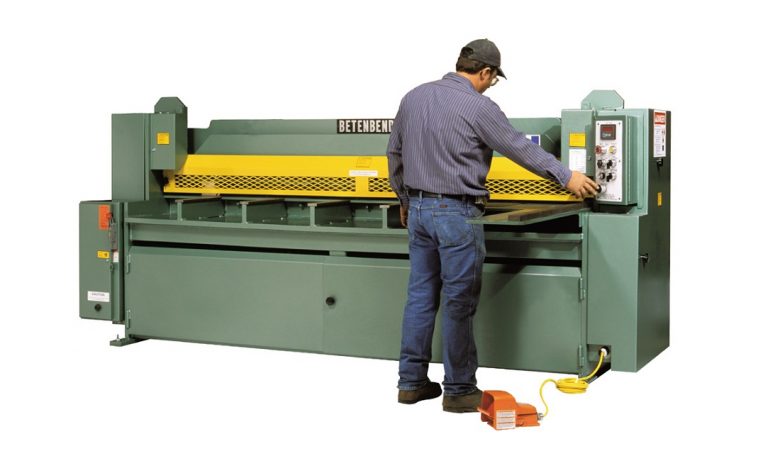

NEW BETENBENDER HYDRAULIC GUILLOTINE SHEAR

MODEL 10-125, 10’ X 10 GAUGE
(80,000 LB. TENSILE)



SPECIFICATIONS

CAPACITY - A-36 MILD STEEL (80,000 LB. TENSILE) . 10

304 STAINLESS STEEL(NON-PRODUCTION ) ............ 10

NOMINAL CUTTING LENGTH .......................... 120"

NUMBER OF HOLDDOWNS ............................. 19

KNIVES (FOUR(4) CUTTING EDGES) .................. 124"X1"X3"

RAKE OF MOVING BLADE (PER FOOT) ................. 1/4

BACK GAUGE RANGE ................................ 36"

STROKES PER MINUTE .............................. 30

OIL RESERVOIR (HYDRAULIC OIL INCLUDED) .......... 42 GALLONS

SHIPPING WEIGHT ................................. 9,100 LBS.

MACHINE DIMENSIONS:

OVERALL HEIGHT .................................. 55"

OVERALL LENGTH .................................. 145"

OVERALL WIDTH ................................... 80" (INCLUDES BACK-GAUGE)



BED - STEEL ONE PIECE BOX SECTION, STRESS RELIEVED; WELDED TO SIDE FRAME INSURES POSITIVE ALIGNMENT OF BED AND HOUSINGS WITH BEAM SUPPORTS THAT HAVE REMOVABLE WEAR TOPS WHICH ALLOW (1) CONVENIENT CHANGE TO SOLID TOP AND (2) PLATES WITH PIN GAUGING.



RAM - STEEL, STRESS RELIEVED. TRUSS ROD CONSTRUCTION ASSURES BLADE PARALLELISM WITHOUT CONSUMING, SHORT SPAN ADJUSTMENTS.



POWER RAKE - ALLOWS CHANGE OF RAKE FOR RESULTING IN LESS TWIST, CAMBER, AND BOW IN THE PART.



HYDRO-MECHANICAL HOLDDOWN - FIRMLY GRIPS MATERIAL TO PREVENT MOVEMENT AND TIPPING. OPTIONAL URETHANE GRIPPING PAD PROTECTS SOFT AND POLISHED MATERIALS FROM MARKING.



ALLOY BRONZE GIBS - PROVIDES LONG SERVICE LIFE AND ALLOW MINIMUM RUNNING CLEARANCE FOR ACCURATE CONTROL OF BLADE CLEARANCE SETTING.



FOOTSWITCH CONTROL - IS ACTIVATED FROM A FULLY SHROUDED PORTABLE FOOTSWITCH OPERATING ON 120 VOLTS.



DRIVE - TWO HYDRAULIC CYLINDERS PUSHING OR PULLING DIRECTLY ON CROSSHEAD, NO ROTATING PIN ACTION SAVING ON WEAR.



HYDRAULIC VALVES - IN MANIFOLD BLOCK FOR A MINIMUM OF FITTING AND PIPING; "C" FRAME MOTOR FOR PRECISION ALIGNMENT OF PUMP.



STANDARD EQUIPMENT

36" POWER BACKGAUGE WITH

INCH/METRIC L.E.D READOUT

NEMA ELECTRICS LIGHT BEAM GAUGE

ALL HYDRAULIC FLUID INCLUDED

AMERICA-MADE MOTORS

HYDRAULIC SELF-COMPENSATING

HOLDDOWN BAR ASSEMBLY

ALL COMPONENTS AVAILABLE FROM LOCAL SUPPLIERS

RATED-80,000 LB. TENSILE STRENGTH

HOUR METER

48" SQUARING ARM

ALL STEEL CONSTRUCTION

DISCONNECT SWITCH

KNIVES - SHOCK RESISTANT (4)CUTTING EDGES

MANUAL SWING-UP BACKSTOP

POWERED ADJUSTABLE VARIABLE RAKE

LINEMASTER FOOT SWITCH

LIFETIME TELEPHONE SUPPORT @ NO CHARGE
