Blanchard 11-16, NEW 1966, WET BASE, VARIABLE HOLD NEUTOFIER ROTARY SURFACE GRINDERS, VT SPDL (BLANCHARD TYPE)

Price on Request

Make:
Blanchard
Model:
11-16, NEW 1966, WET BASE, VARIABLE HOLD NEUTOFIER
Year:
1966
Ref #:
159189

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

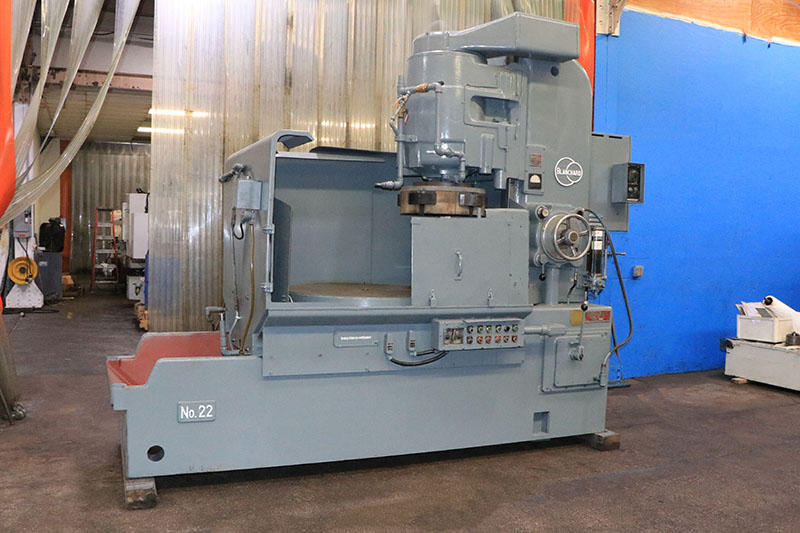

  16" BLANCHARD ROTARY SURFACE GRINDER

** REFURBISHED 2018, ALSO UPGRADED WITH NEW NEUTROFIER CONTROL FOR THE CHUCK **

MODEL:  11-16     S/N: 11715     NEW: 1966


CHUCK DIAMETER ....................... 16"
SWING INSIDE GUARDS .................. 21"
VERTICAL RANGE UNDER NEW WHEEL ....... 7"
MAXIMUM LOAD ON CHUCK ................ 500 LBS.
GRINDING WHEEL DIAMETER .............. 11"
GRINDING WHEEL SPEED ................. 1160 RPM
CHUCK SPEEDS (4) ..................... 15, 24, 41 & 64 RPM
INFINITELY VARIABLE POWER DOWNFEED ... 0.003" TO .070"

APPROXIMATE DIMENSIONS................ 7"L X 5'6W X 7'7"H
APPROXIMATE WEIGHT ................... 6,500 LBS.

EQUIPPED WITH:
15 HP 3/60/220-440 VOLT SPINDLE MOTOR
7" VERTICAL RANGE (STANDARD)
SELF-CONTAINED COOLANT SYSTEM (WET BASE)
16" ELECTRO-MAGNETIC CHUCK, VERY GOOD CHUCK LIFE
VARIABLE HOLD NEUTROFIER CONTROL
GRINDING WHEEL
WHEELHEAD HAS RAPID RAISE & LOWER BY POWER INTERLOCKED WITH FEED


** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** POWERED UP, CYCLED, READY TO DELIVER AS SHOWN - RUNNING  CONDITION & APPEARANCE **

DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
