Blanchard 18-42 ROTARY SURFACE GRINDERS, VT SPDL (BLANCHARD TYPE)

Price on Request

Make:
Blanchard
Model:
18-42
Year:
1958
Ref #:
151598

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

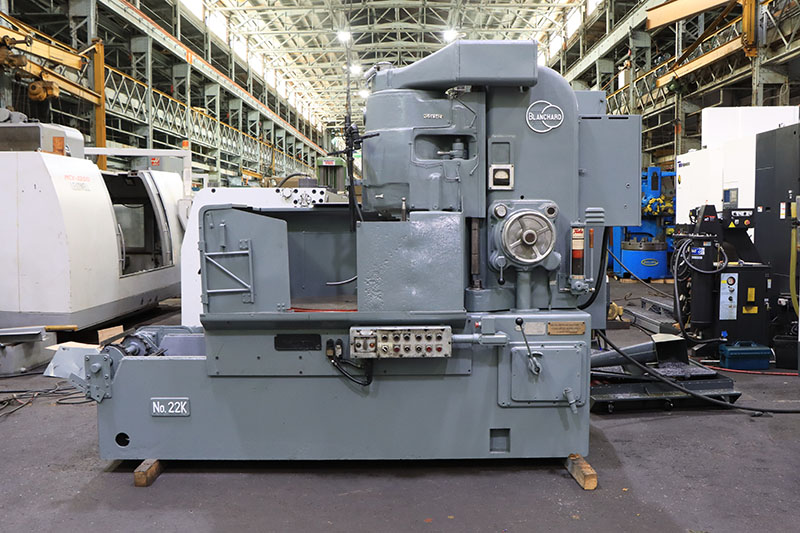

  42" BLANCHARD ROTARY SURFACE GRINDER

  MODEL: #18-42      S/N: 9498    NEW: 1958

CHUCK DIAMETER .................................... 42"
SWING INSIDE GUARDS ............................... 48"
HEIGHT UNDER NEW WHEEL ............................ 12"
MAX. WEIGHT OF WORK LOAD ON CHUCK ........... 2,000 LBS
GRINDING WHEEL DIAMETER ........................... 22"
WHEEL SPEED ................................... 720 RPM
CHUCK SPEEDS (6) .......................... 6 TO 33 RPM
INF. VARIABLE POWER DOWNFEED ...... 0.004" TO .080" IPM

APPROX. DIMENSIONS ....................... 111"L X 61"W
APPROX. WEIGHT ............................. 13,000 LBS

  EQUIPPED WITH:
40 H.P. SPINDLE MOTOR
42" ELECTRO-MAGNETIC CHUCK, 5/16" CHUCK LIFE
22" SEGMENTED GRINDING WHEEL
UPDATED W/"VERY LATE & EXPENSIVE" "ELECTRO-MATIC II"
 NEUTROFIER (1500 WATTS) CONTROL, WITH VARIABLE HOLD POWER
CORTLAND-TYPE SEGMENTED WHEEL
EXTRA HEIGHT, 12" VERTICAL CAPACITY UNDER NEW WHEEL
WHEEL HEAD HAS RAPID RAISE AND LOWER INTERLOCKED W/FEED
SELF-CONTAINED COOLANT SYSTEM
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS



** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE  **
** MACHINE IS IN GOOD RUNNING ORDER **
