Boschert PN NOTCHING MACHINES

$7,950

Make:: Boschert

Model:: PN

Year:: 1993

Ref #:: 158659

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

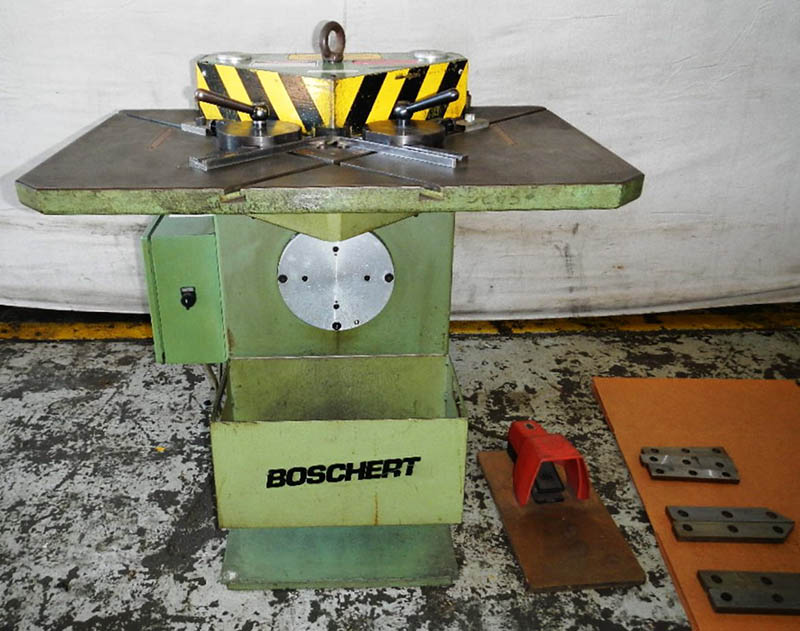

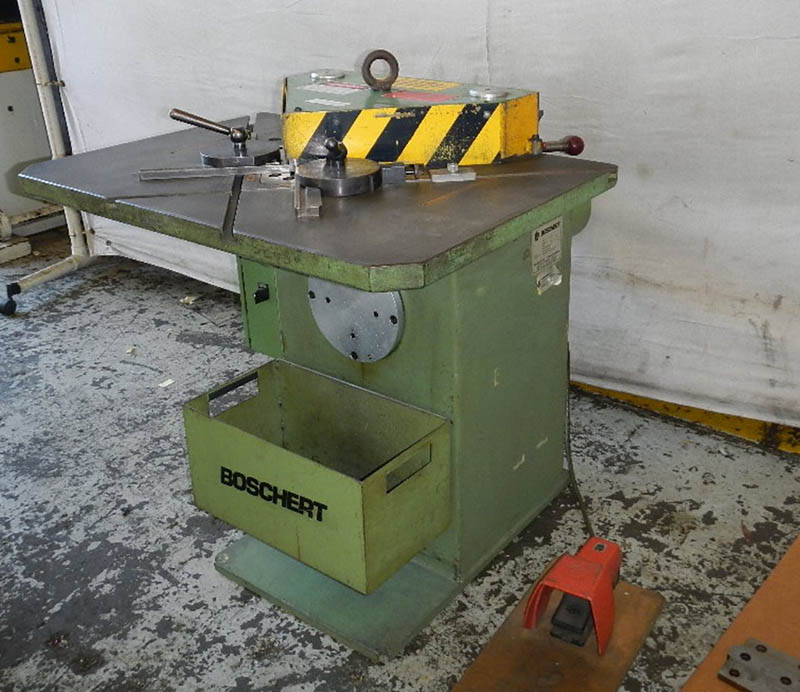

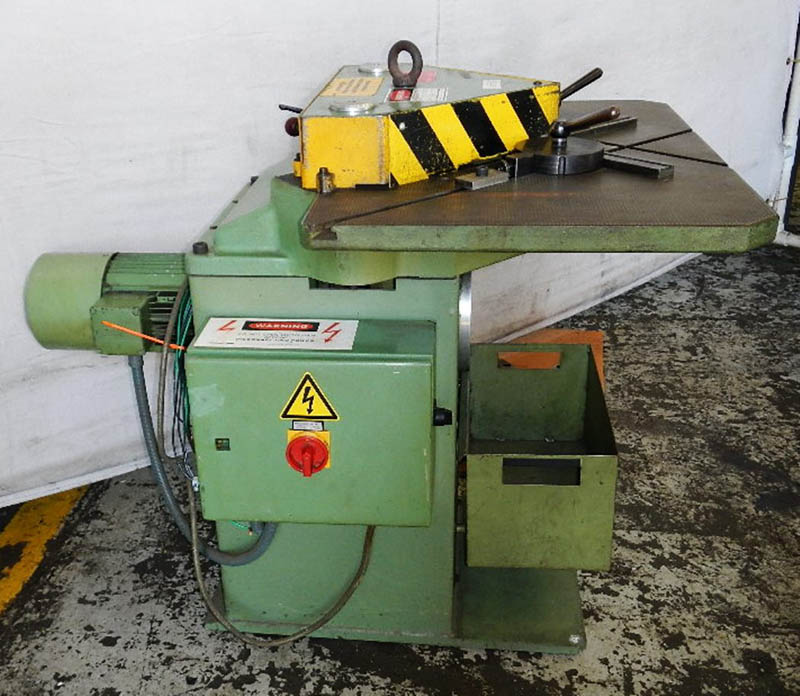

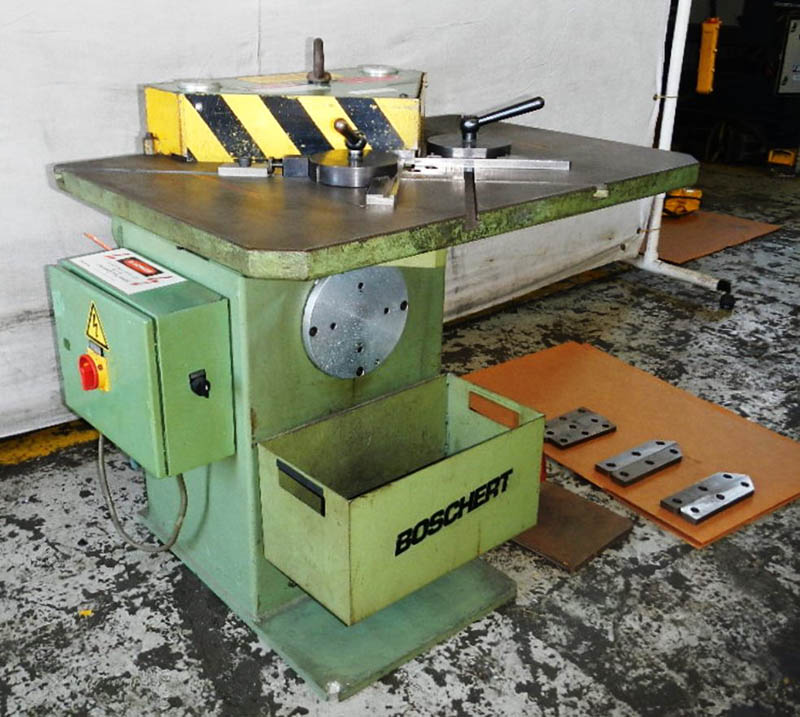

8-7/8" x 8-7/8" x 5/32" BOSCHERT POWER NOTCHER

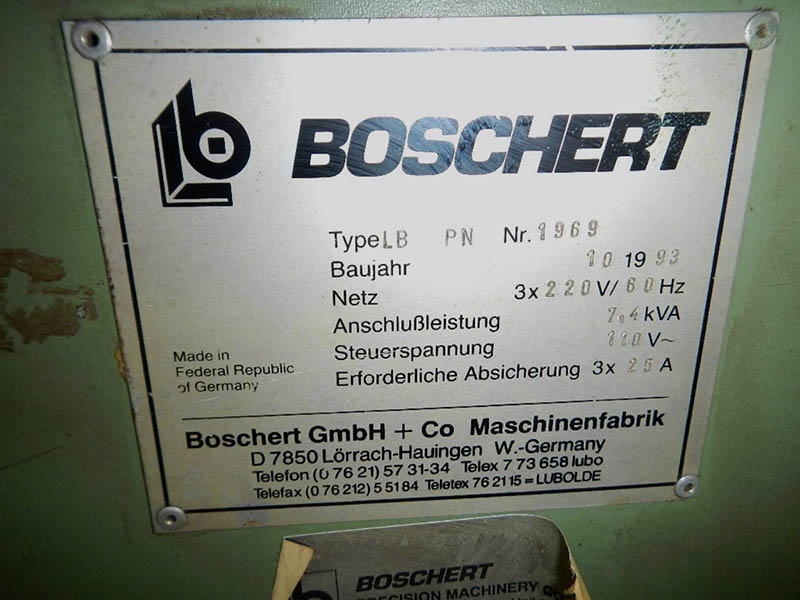

MODEL PN4         S/N 1969         Year 1993

Capacity .............................. 8-7/8" x 8-7/8"
Thickness Capacity, Mild Steel ........ 5/32"
Thickness Capacity, Stainless Steel ... 10 ga.
Table Size ............................ 35 3/4" LR x 24 1/2" FB
Table Height .......................... 35-1/2"
Ram Stroke ............................ .90"
Speed ................................. 50 spm

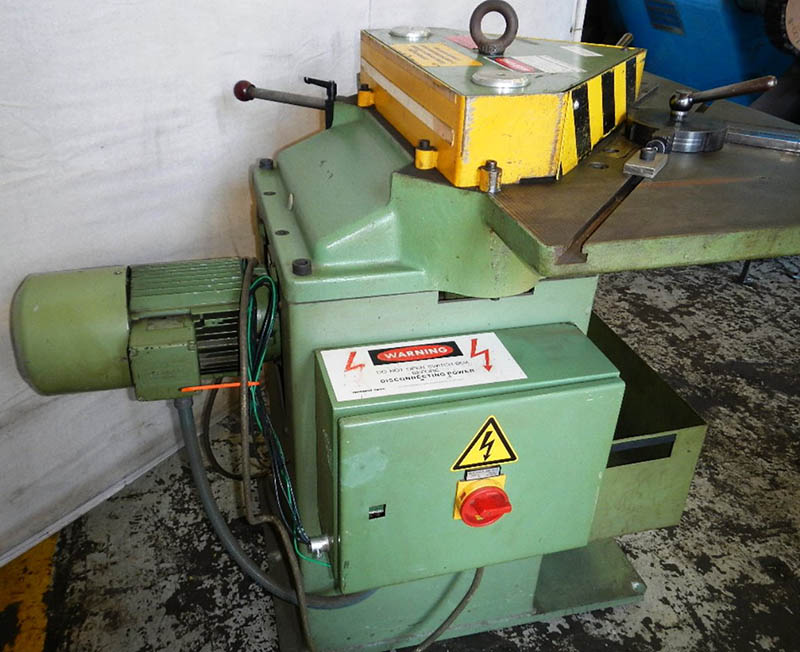

Motor ................................. 4.9 HP @ 1700 rpm

Voltage 230 / 460 3-phase
Dimensions 36" x 50" x 42" high
Approximate Weight 1,600 Lbs.

Machine is equipped with:
- "Tri-Gide" ram design (3 guide posts)
- Straight shearing w/adjustable gauge stop (0-9" in 1/32" increments)
- Remote foot pedal
- Inch / single / continuous operation modes
- (2) sets of scales built into table

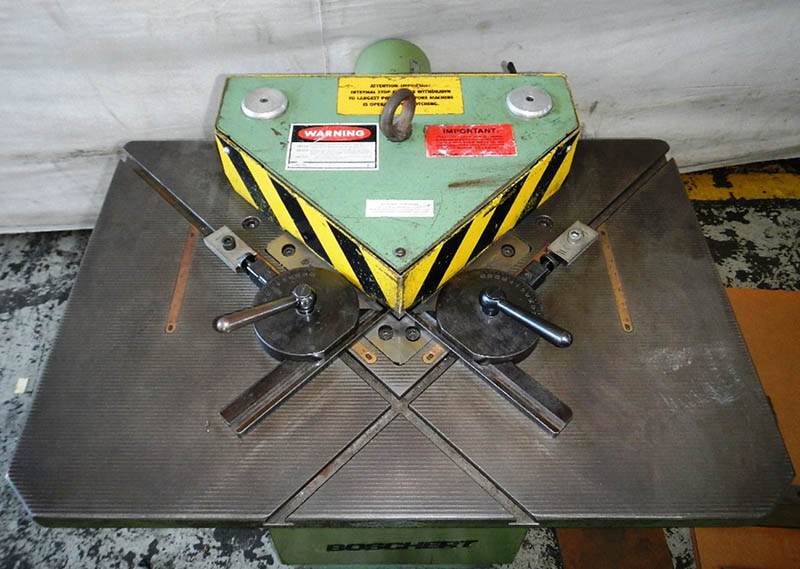

- Adjustable protractor angle guide fences and stops
- Overload protection
- Removable scrap box

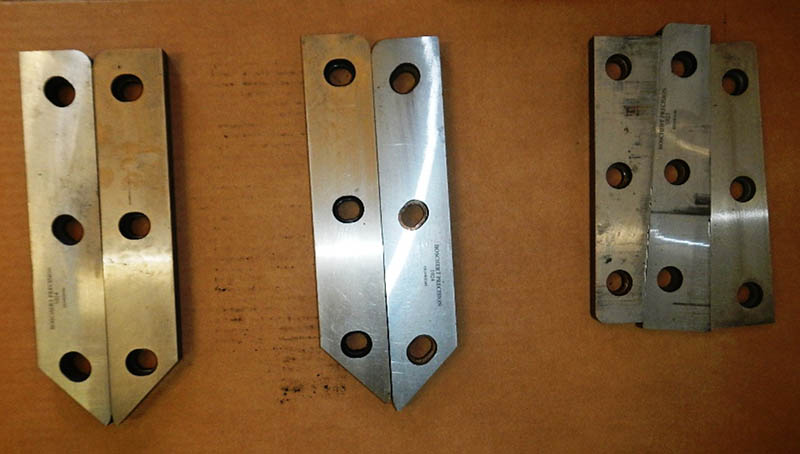

- Extra set of shear blades

*PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION
FOB: GRAND RAPIDS, MI
