Boyar-Schultz HR-612, 1985, ROLLER BEARING TABLE, PMC SURFACE GRINDERS, HAND FEED

Price on Request

Make:: Boyar-Schultz

Model:: HR-612, 1985, ROLLER BEARING TABLE, PMC

Year:: 1985

Ref #:: 177857

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

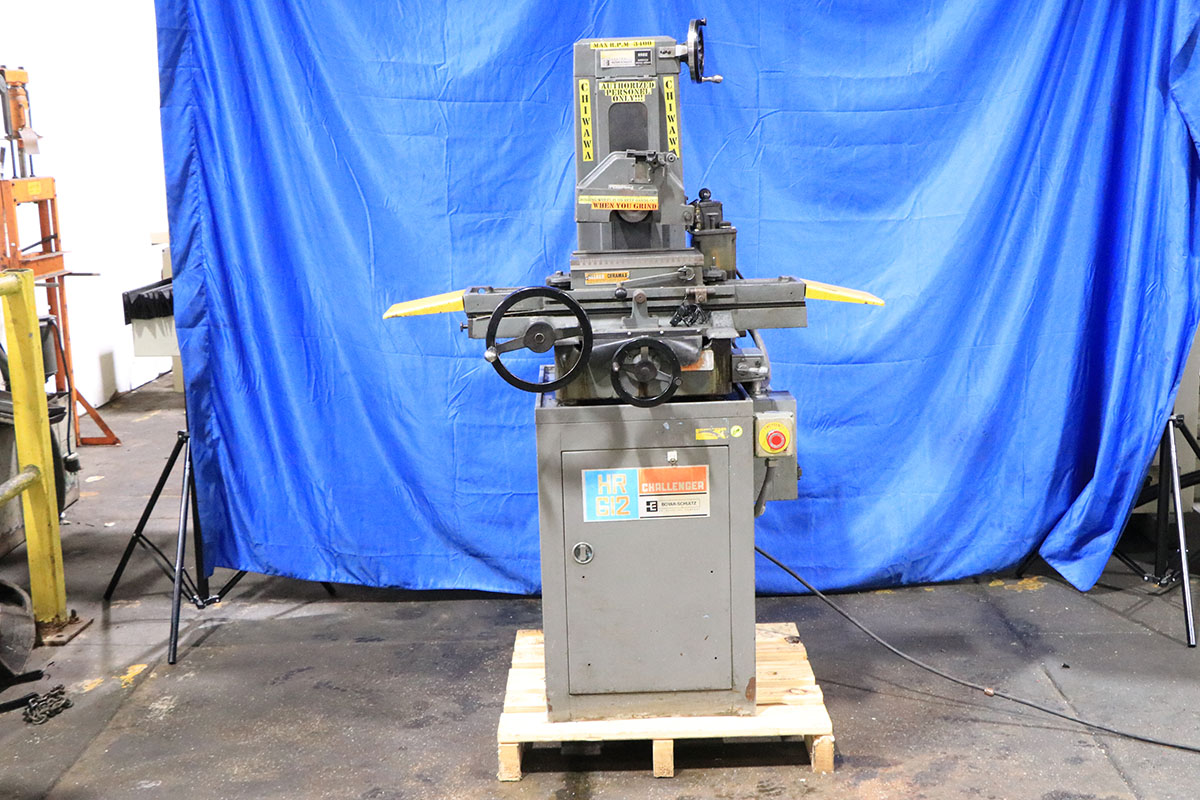

       6" X 12" BOYAR SCHULTZ "MADE IN USA"

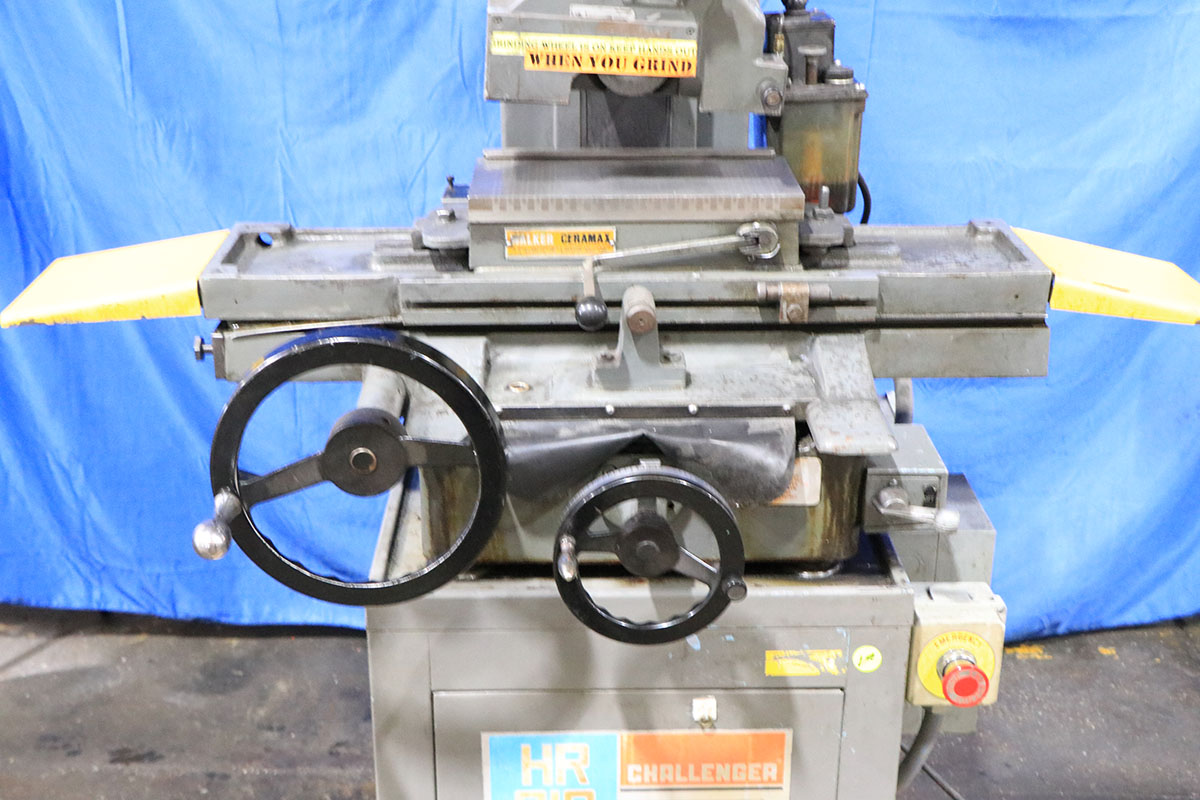

  HAND FEED SURFACE GRINDER WITH ROLLER BEARING TABLE

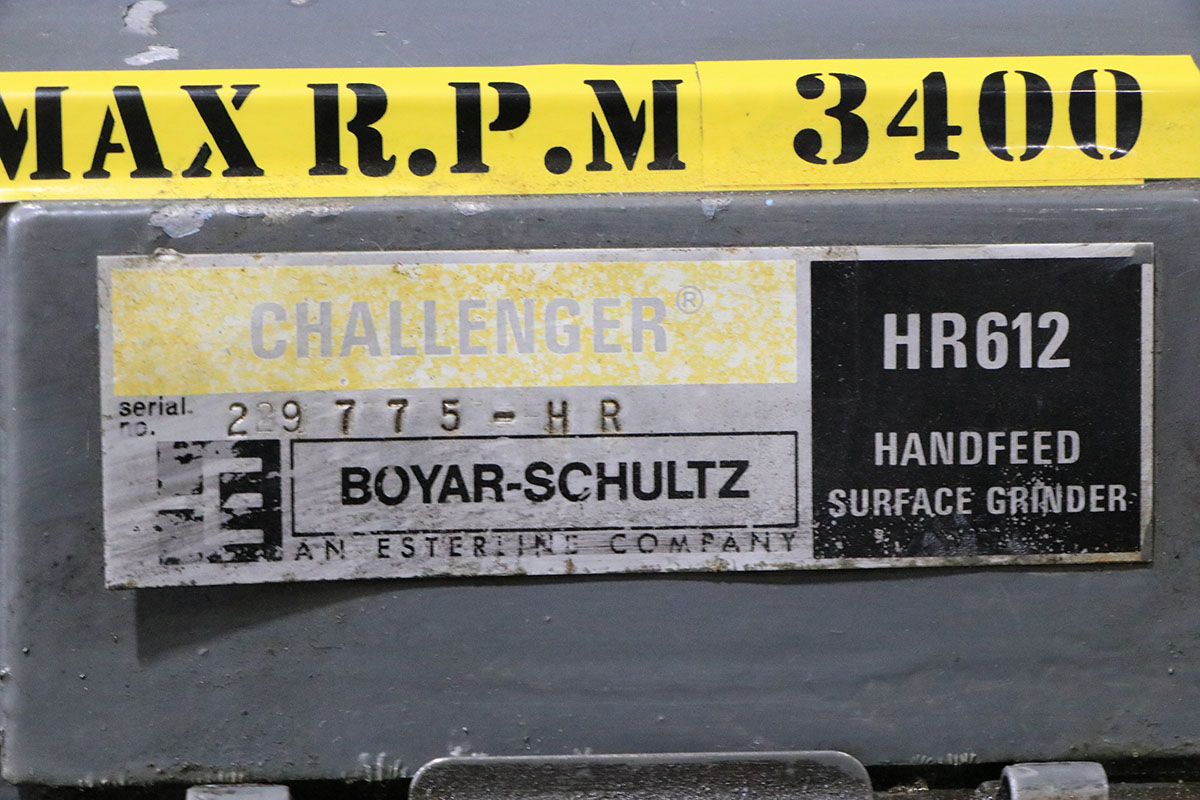

MODEL: HR-612 "CHALLENGER" SERIES

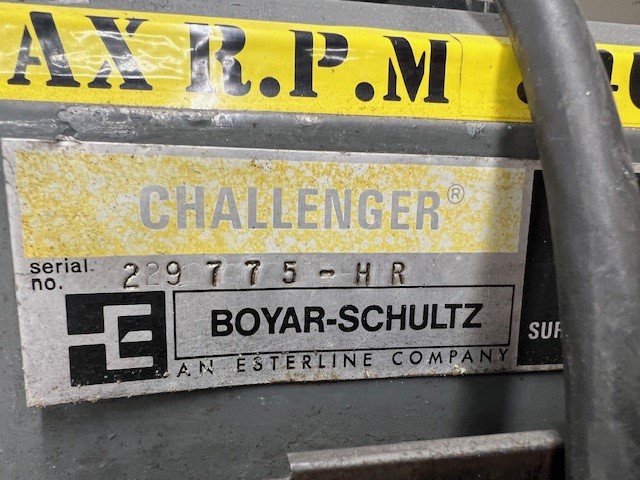

S/N: 29775-HR
NEW: 1985


SPECIFICATIONS:
WORKING SURFACE OF TABLE................. 5-5/8" X 12"
TABLE TRAVEL, LONGITUDINAL............... 13- 7/8"
CROSS ................................... 6- 13/16"

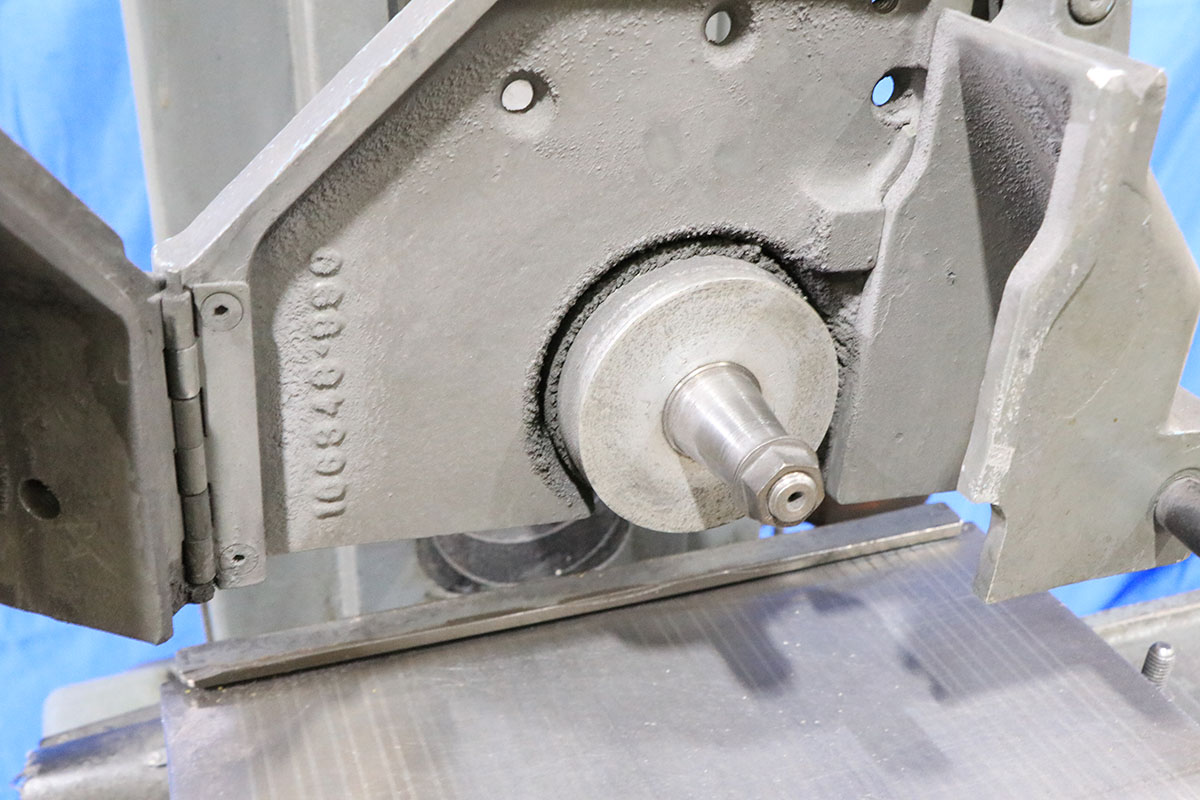

GRINDING WHEEL, MAXIMUM DIAMETER......... 7"
MINIMUM/MAXIMUM WIDTH ................... 3/16"/ 5/8"
HOLE SIZE................................ 1-1/4"
MAXIMUM DISTANCE, TOP OF PERMANENT CHUCK
TO BOTTOM SIDE OF 7" DIAMETER WHEEL...... 9-1/2"
HANDWHEEL GRADUATIONS, DOWNFEED
(VERNIER TO .0001")...................... 0.0005"
CROSS.................................... 0.001"
APPROX. MACHINE WEIGHT .................. 925 LBS.

  EQUIPPED WITH:

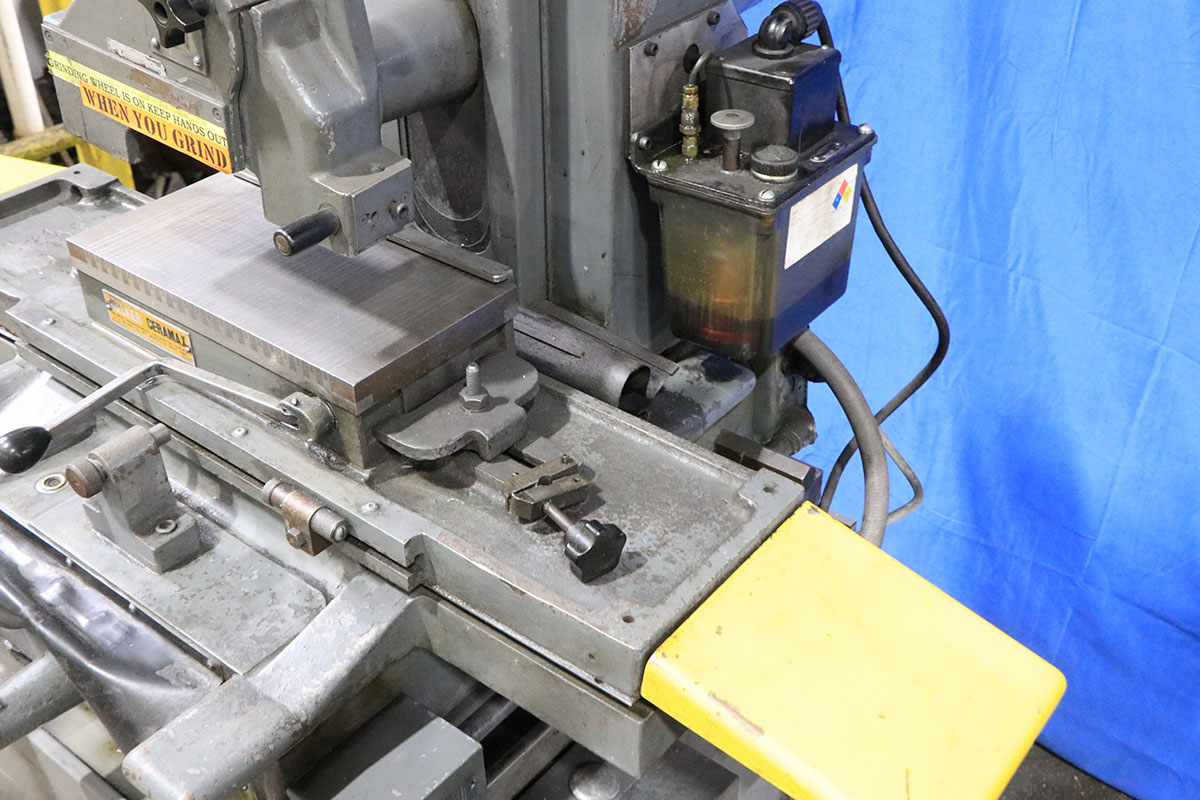

-LOW FRICTION, EASY TO MOVE, ROLLER BEARING TABLE

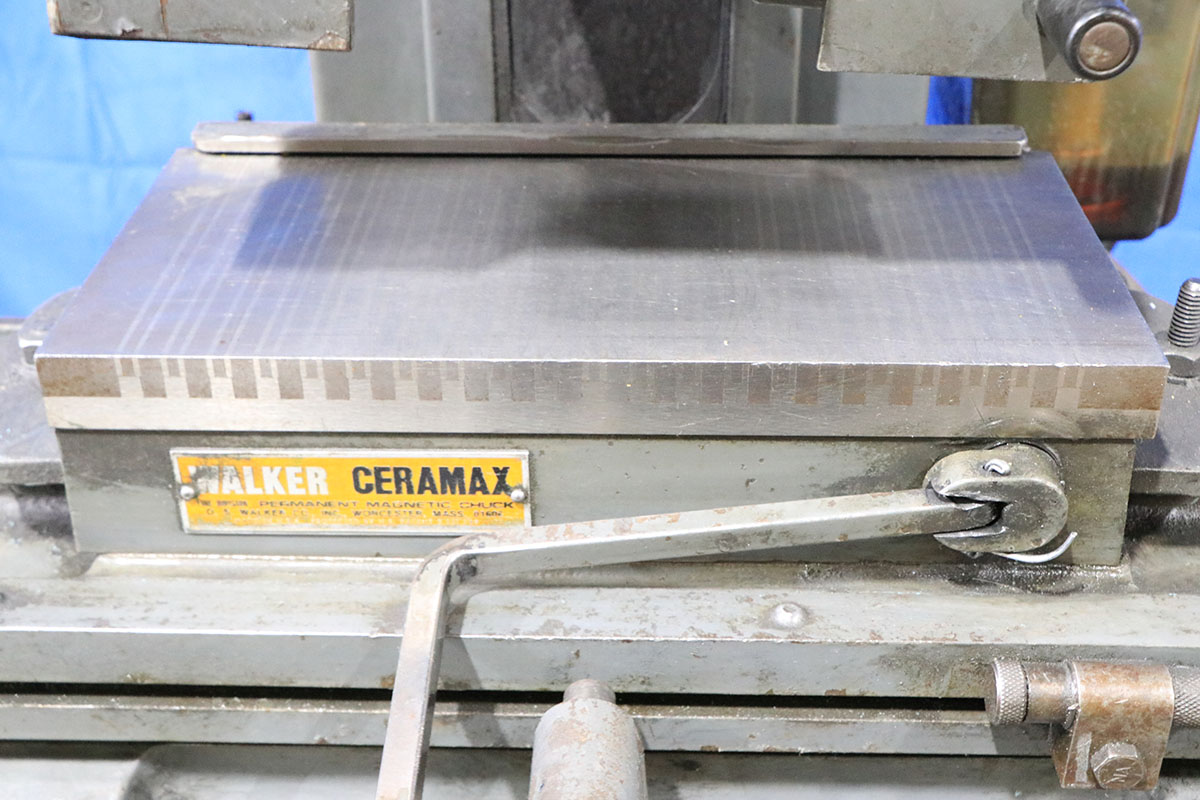

-6" X 12" "O.S. WALKER" FINE-DIVISION ELECTRO-MAGNETIC CHUCK
-"MINITRON" NEUTROFIER CONTROL
-ONE-SHOT AUTOMATIC LUBRICATION SYSTEM
-1 H.P. 3/60/208-220-440 VOLT DIRECT DRIVE SPINDLE
-HARDENED STEEL WAYS

  ** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
