Brown & Sharpe 818 MICROMASTER SERIES II, '80, HYD. X-Y FEEDS SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Brown & Sharpe

Model:: 818 MICROMASTER SERIES II, '80, HYD. X-Y FEEDS

Year:: 1980

Ref #:: 169289

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

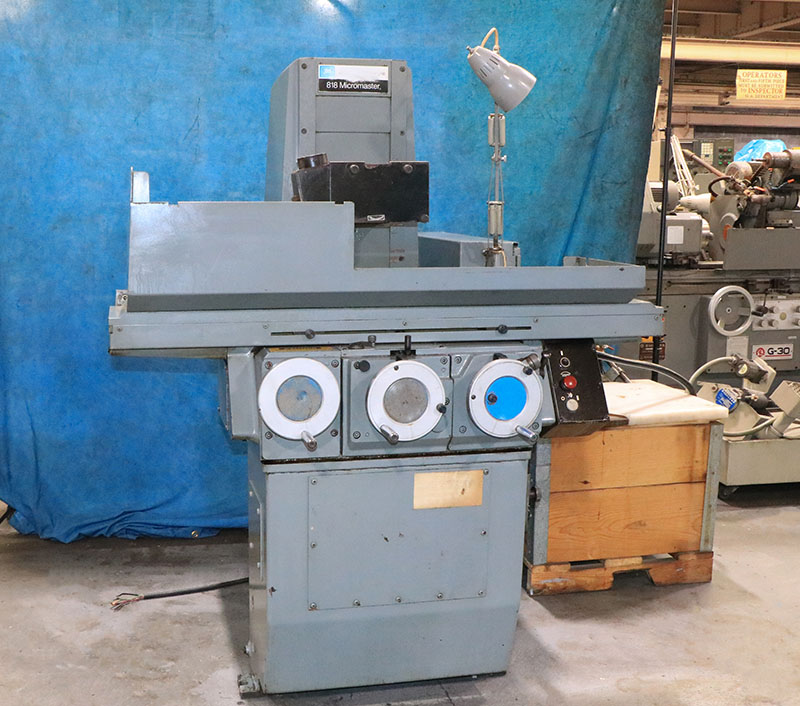

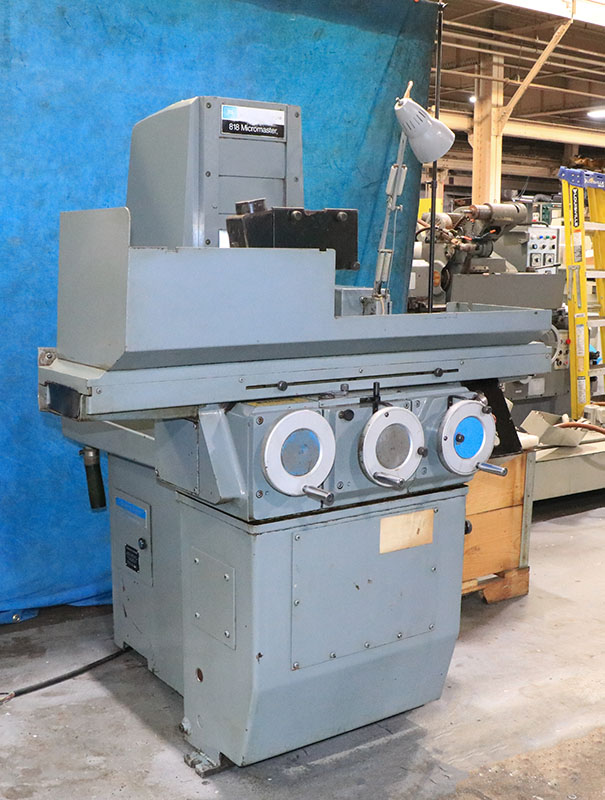

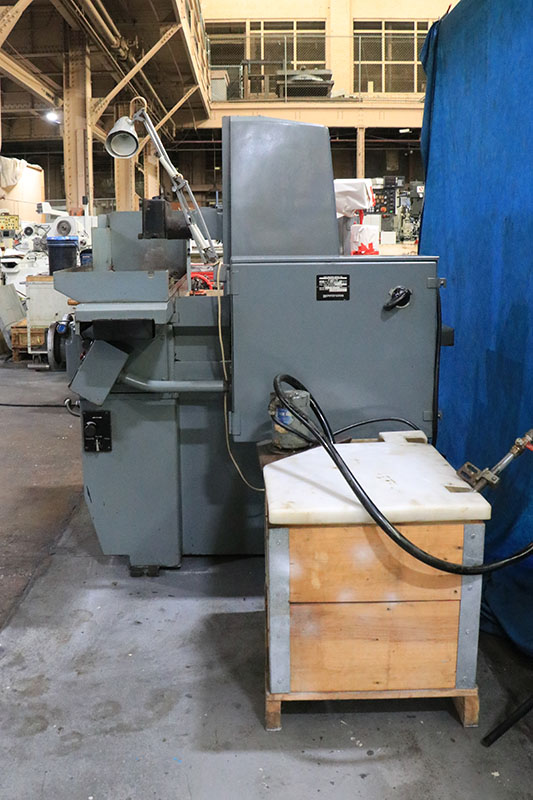

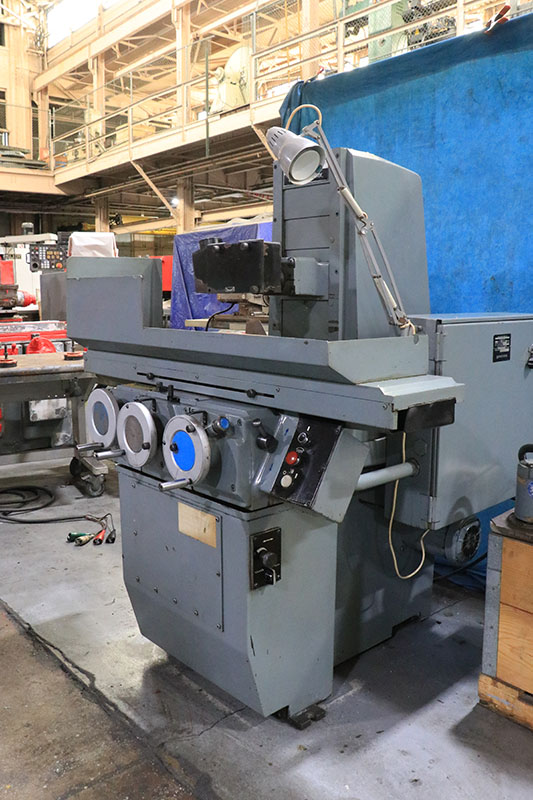

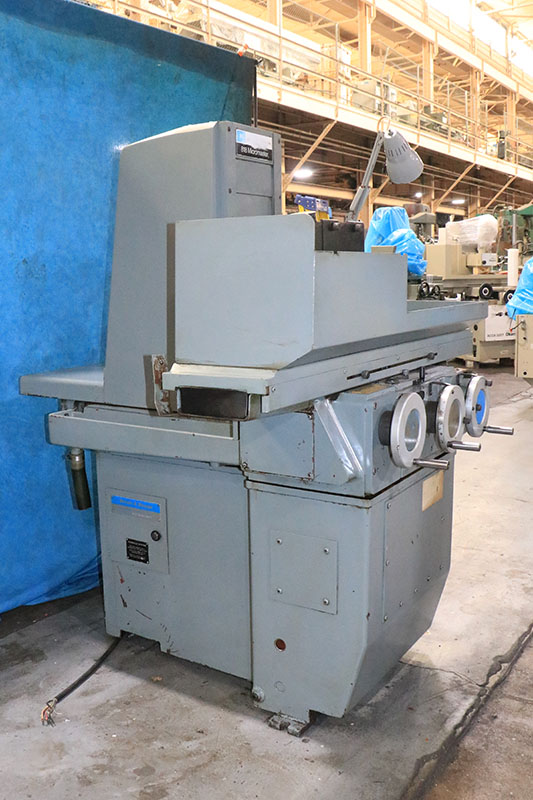

                8" x 18" BROWN & SHARPE
             "#818 MICROMASTER SERIES II"
               PRECISION "MADE IN USA"
              HYDRAULIC SURFACE GRINDER

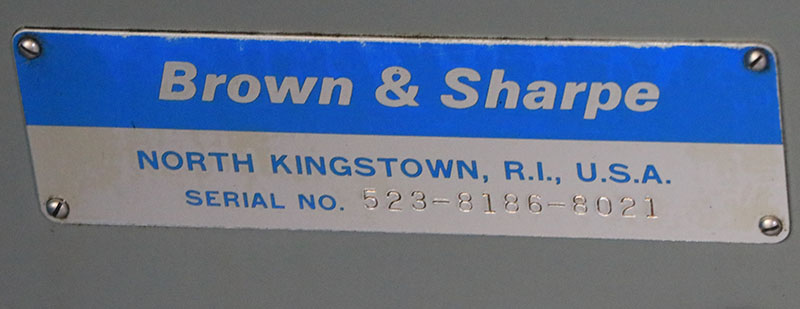

S/N: 523-8186-8021       NEW: 1980

WIDTH & LENGTH GROUND ........................... 8" X 18"
MAX. HEIGHT, CENTER OF SPINDLE TO THE TABLE ..... 15- 1/2"
MAXIMUM LONGITUDINAL TRAVEL ..................... 22"
LONGITUDINAL TABLE SPEED ........................ 5 TO 100 FPM
MAXIMUM CROSS TRAVEL ............................ 9"
AUTOCROSSFEED INCREMENT PER TABLE PASS .......... UP TO 1/4"

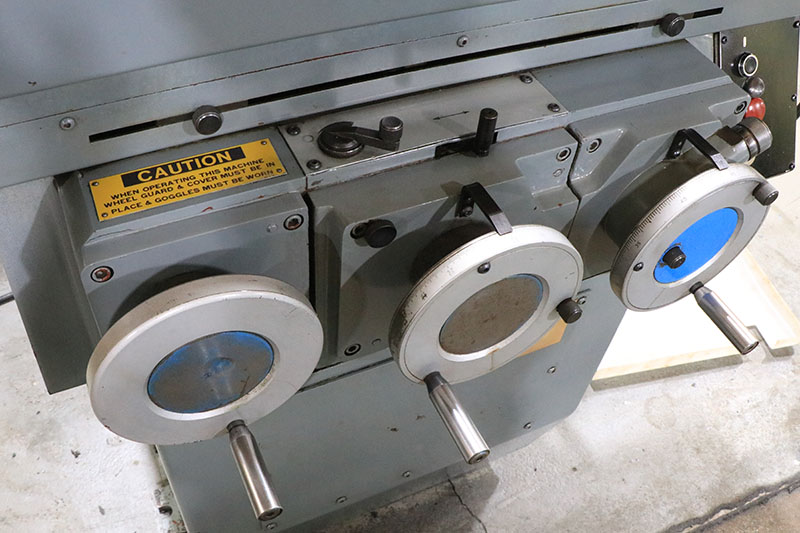

HANDWHEEL, HAS ADJUSTABLE DIAL GRADUATED
   TO READ TO ................................... 0.0002"
VERTICAL TRAVEL OF SPINDLE ...................... 15-3/4"
HANDWHEEL HAS ADJUSTABLE DIAL GRADUATED
   TO READ TO ................................... 0.0002"

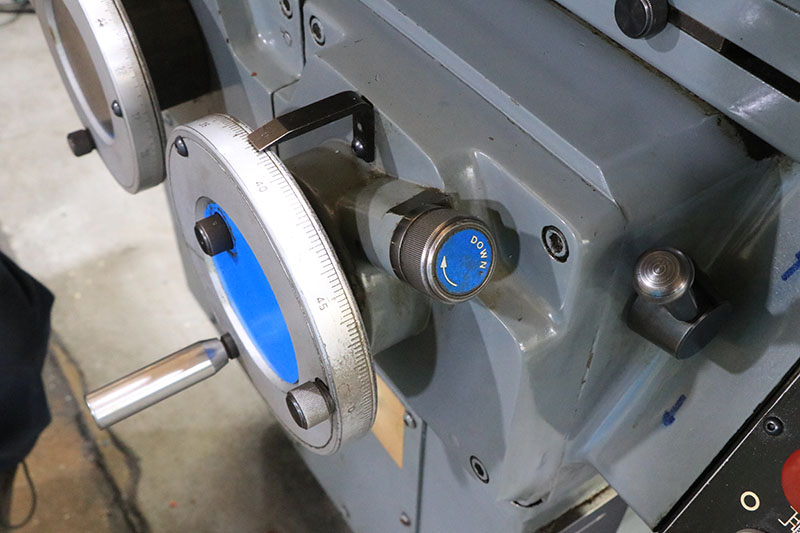

FINE-FEED KNOB, ADJACENT TO THE HANDWHEEL ....... 0.0001"

APPROXIMATE MACHINE WEIGHT ...................... 3,000 LBS
APPROXIMATE FLOOR SPACE ..................... 56"L x 62"D x 68"

EQUIPPED WITH:
COLUMN TYPE MACHINE - COLUMN MOVES FOR THE CROSS FEED
HYDRAULIC LONGITUDINAL & CROSS FEEDS
FINE FEED KNOB FOR VERTICAL HANDWHEEL (0.0001" GRADUATION)
BROWN & SHARPE 2 H.P. DIRECT DRIVE SUPER-PRECISION SPINDLE

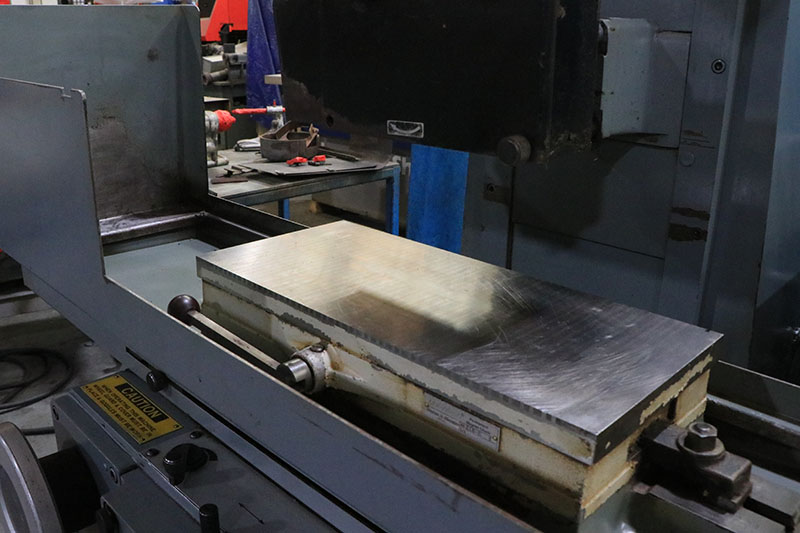

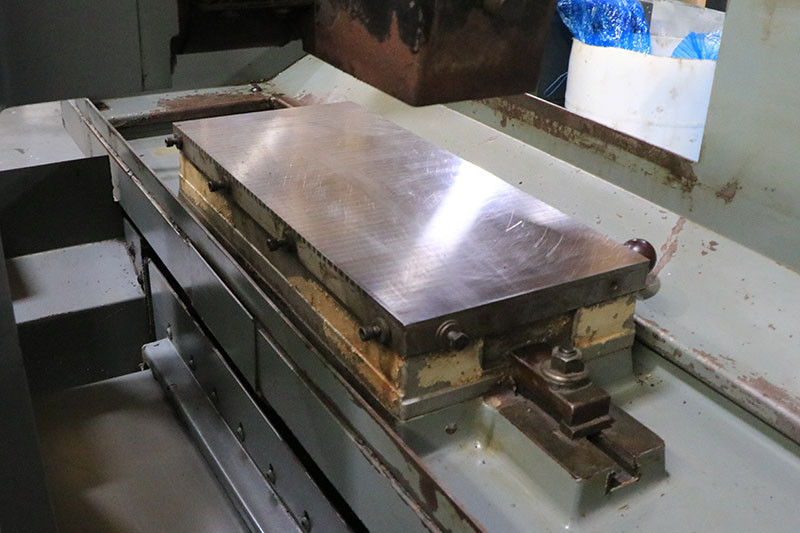

8" X 18" O.S. WALKER FINE-DIVISION CROSS-POLE

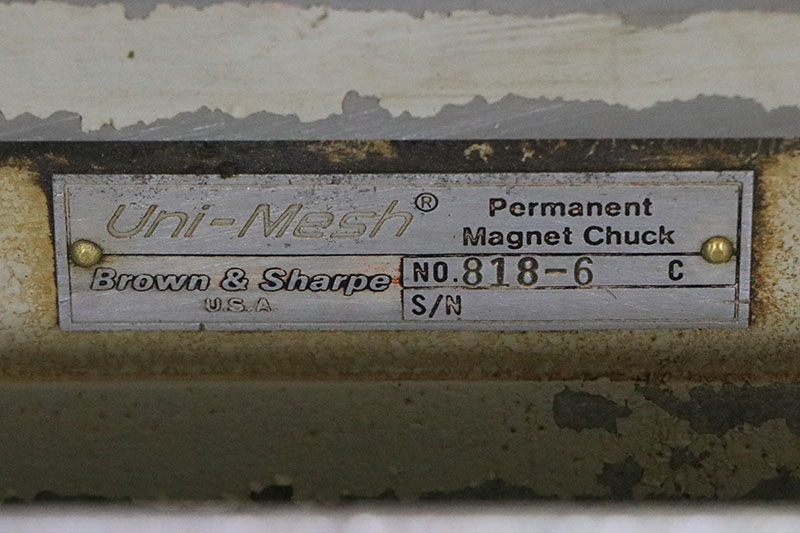

 PERMANENT MAGNETIC CHUCK

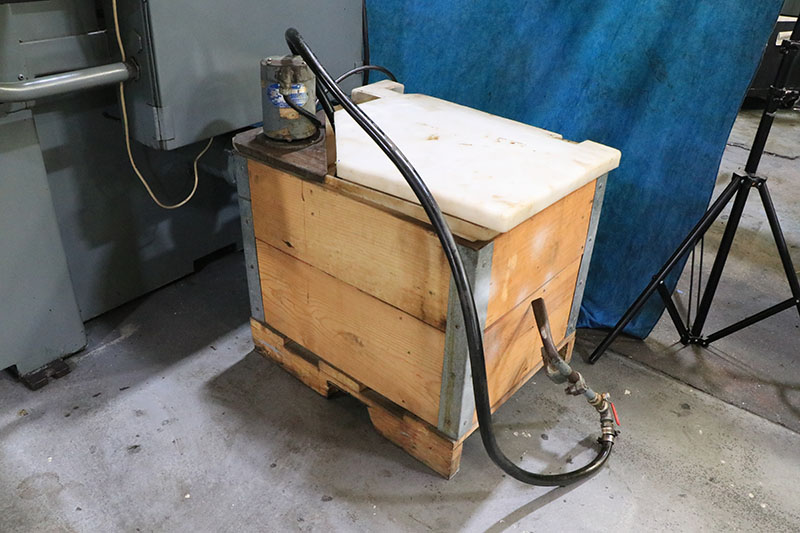

COOLANT TANK/SYSTEM, MACHINE HAS SPLASH GUARDS, ETC.
SELF-CONTAINED HYDRAULIC SYSTEM

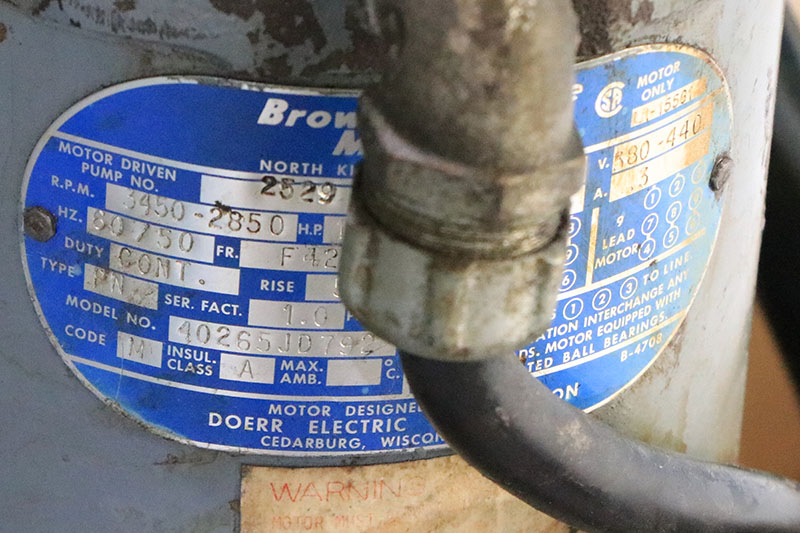

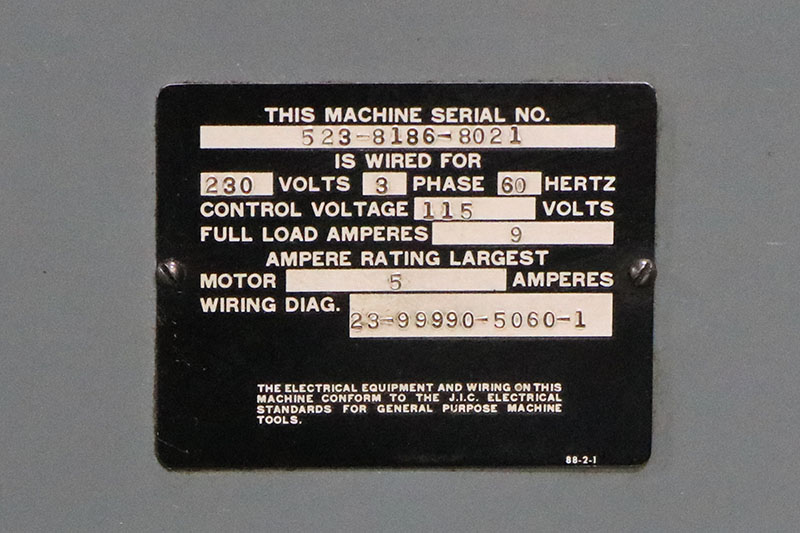

MOTORS ON THE MACHINE ARE 3/60/230-460 VOLTS
MACHINE IS PRESENTLY WIRED FOR 230 VOLTS

LINK TO VIDEO: https://youtu.be/fNpyFcv1ovc?si=fUvQ9YK6DyI3OjLE

** TOP QUALITY MADE IN USA MACHINE **
** ORIGINAL PAINT - EXCELLENT CONDITION & APPEARANCE  **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
