Chevalier FSG-1640ADII, 2005, AUTO IDF, 3-AXIS AUTO FEEDS SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Chevalier

Model:: FSG-1640ADII, 2005, AUTO IDF, 3-AXIS AUTO FEEDS

Year:: 2005

Ref #:: 170315

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

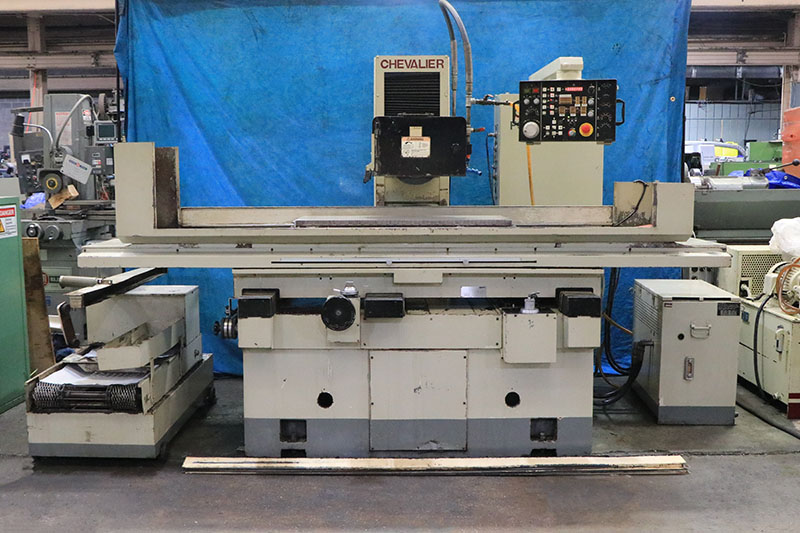

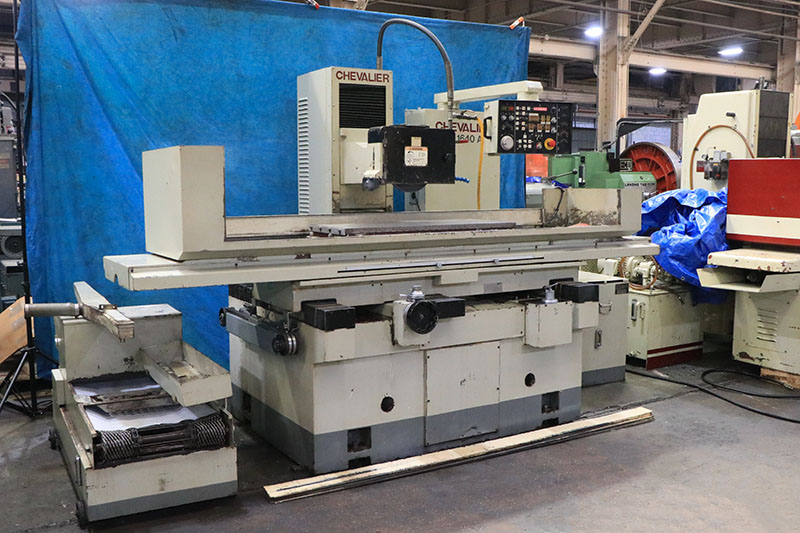

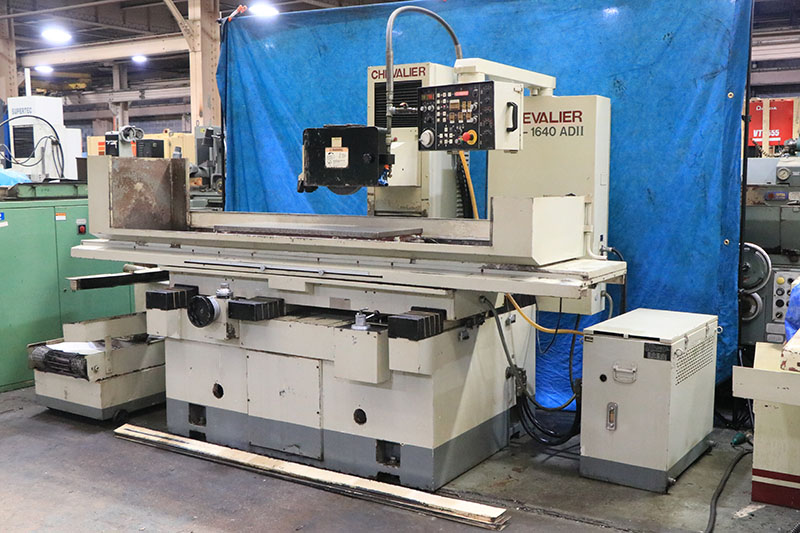

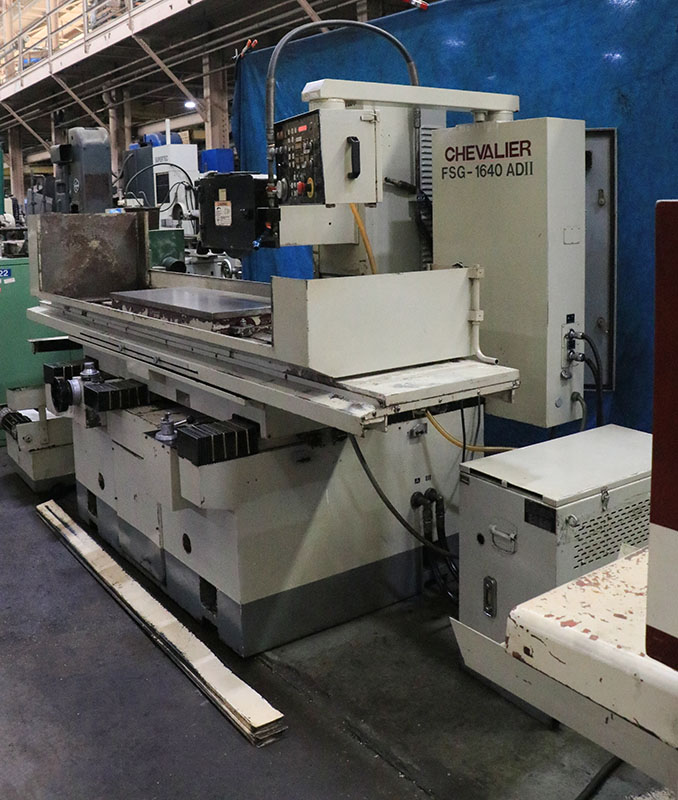

16" X 40" CHEVALIER PRECISION SURFACE GRINDER
 W/PROGRAMMABLE MICROPROCESSOR AUTOMATIC
 INCREMENTAL DOWNFEED CONTROL (PENDANT MOUNTED)

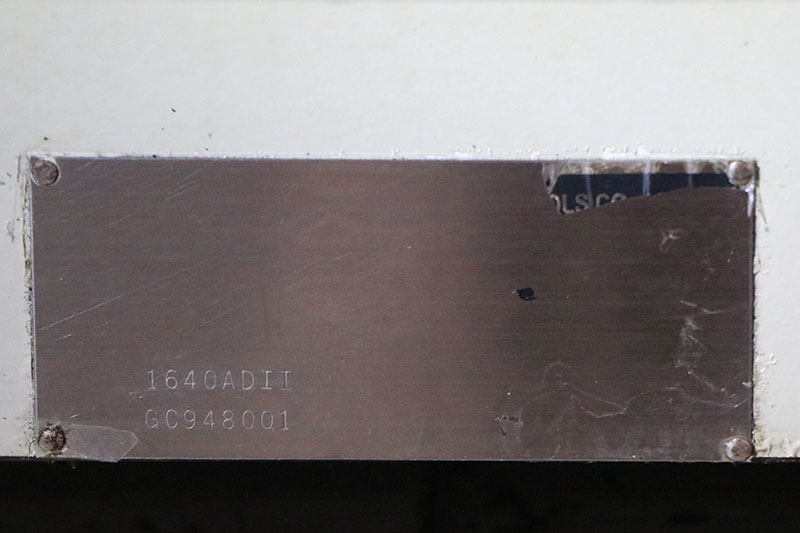

MODEL: FSG-1640ADII    S/N: GC948001    NEW: 2005


TABLE SIZE.................................. 15-3/4" x 39-5/8"
MAX. GRINDING CAPACITY ..................... 16" x 40"
DIST. FROM SPINDLE CENTER TO TABLE ......... 24-3/8"

MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC .. 41-5/16"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL ..... 43-1/4"
VARIABLE TABLE SPEED, HYDRAULIC ............ 16' TO 82' FPM

MAX. CROSSFEED TRAVEL, AUTOMATIC ...... 16"
MAX. CROSSFEED TRAVEL, MANUAL ......... 18"
CROSS RAPID TRAVEL .................... 12' FPM
AUTOMATIC CROSSFEED INCREMENT ......... 1/8" TO 1-1/4"
HANDWHEEL PER REV. .................... 0.25"
HANDWHEEL PER GRADUATION .............. 0.0025"
MICROFEED- PER REV. ................... 0.005"
MICROFEED- PER GRAD. .................. 0.00005"

AUTOMATIC INCREMENTAL DOWNFEED ........ 0.000050" TO .002"
VERTICAL RAPID TRAVERSE RATE .......... 8" IPM
SPINDLE MOTOR ......................... 5 HP
STANDARD GRINDING WHEEL ............... 14"DIA. x 2"W x 5"B
SPINDLE SPEED ......................... 1,750 RPM

APPROX. WEIGHT ........................ 9,240 LBS
APPROX. DIMENSIONS .................... 120" x 68" x 76"H

 EQUIPPED WITH:
HYDRAULICALLY ACUTATED LONGITUDINAL TABLE FEED,
 WITH HANDWHEEL FOR MANUAL TABLE MOVEMET
ELECTROMECHANICALLY ACTUATED FEED OF SADDLE
VERTICAL DRIVE BY AC SERVO MOTOR

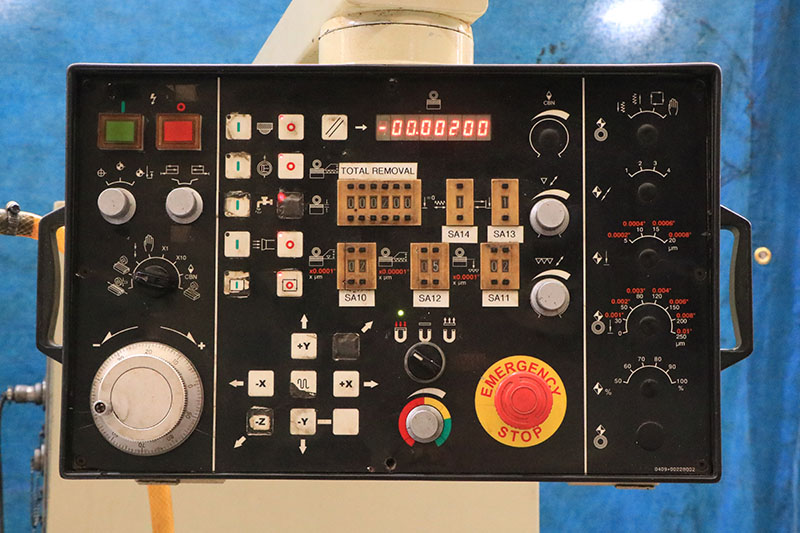

PENDANT MOUNTED AND MICROPROCESSOR CONTROLLED
  AUTOMATIC  INCREMENTAL DOWNFEED OF GRINDING
  WHEELHEAD FROM 0.00005" T0 0.002" IN SURFACE
  OR PLUNGE MODES OF OPERATION.  FULLY  AUTOMATIC
  GRINDING CYCLE INCLUDING RAPID ADVANCE OF
  GRINDING WHEELHEAD, 0 T0 7 SPARKOUT PASSES,
  AND RETRACTION OF WHEELHEAD TO A PRE-SET
  DISTANCE AT THE COMPLETION OF THE CYCLE.

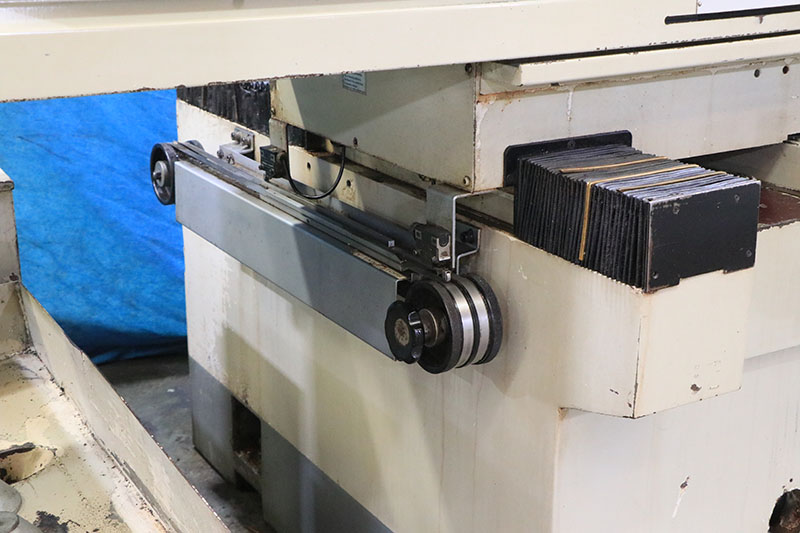

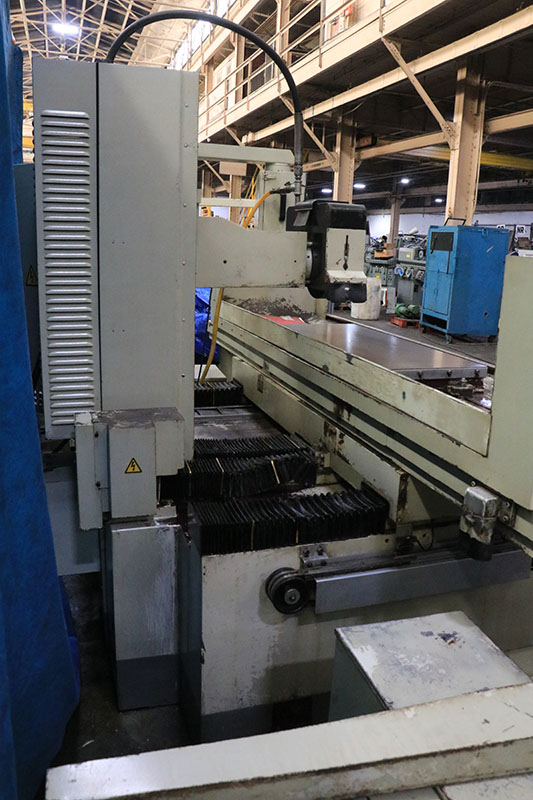

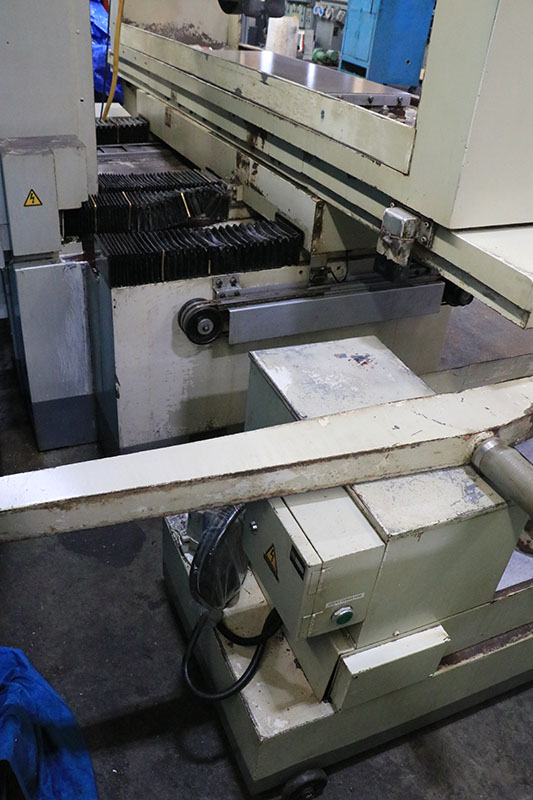

TABLE AND SADDLE GUIDE WAYS MADE OF SPECIAL
  STEEL RAILS WITH HIGH ACCURACY STEEL ROLLERS
PRECISION NEEDLE ROLLER BEARINGS USED ON THE
  ELEVATING GUIDE WAYS
FINE (MICRO) FEEDS GRADUATED TO .00005"
  FOR BOTH VERTICAL & CROSS FEEDS

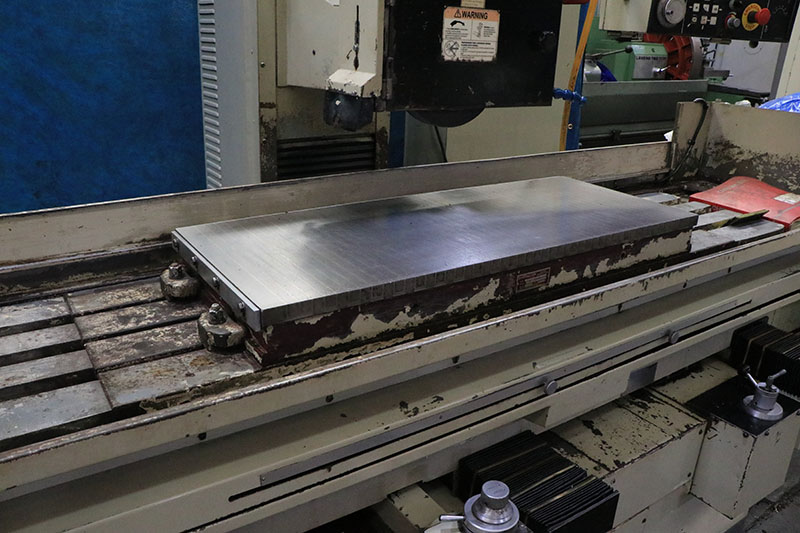

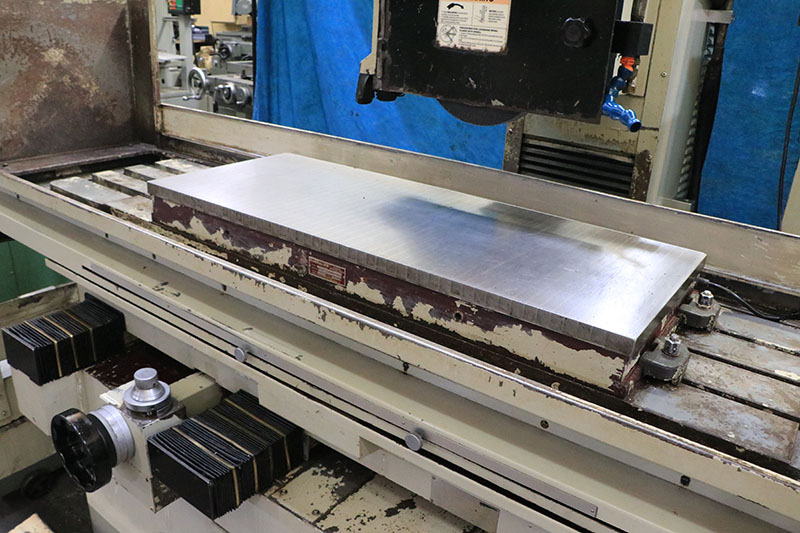

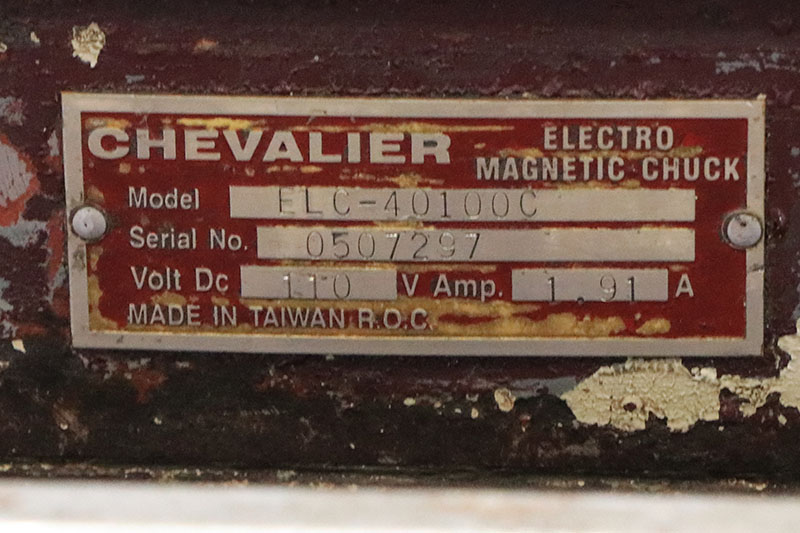

15-3/4" X 39-3/8" KANETSU MODEL KET-40100K
  ELECTRO-MAGNETIC CHUCK WITH A PENDANT MOUNTED
  POTENTIOMETER FOR VARIABLE  HOLDING POWER AND
  A SELECTOR SWITCH FOR AUTOMATIC DEMAGNETIZATION
  OF WORK PIECE.

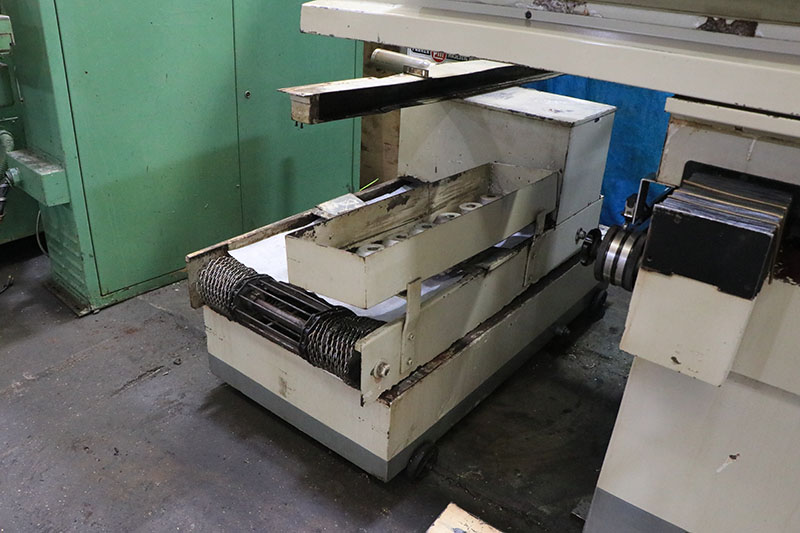

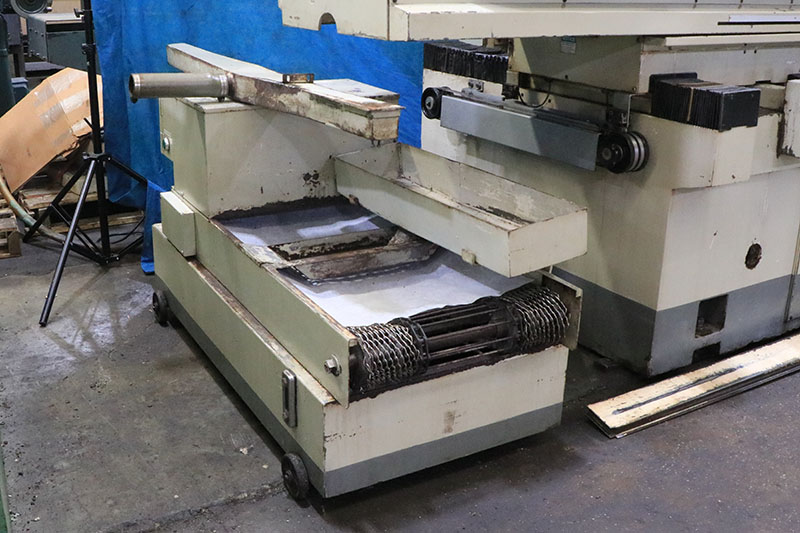

COOLANT SYSTEM w/PAPER FILTRATION

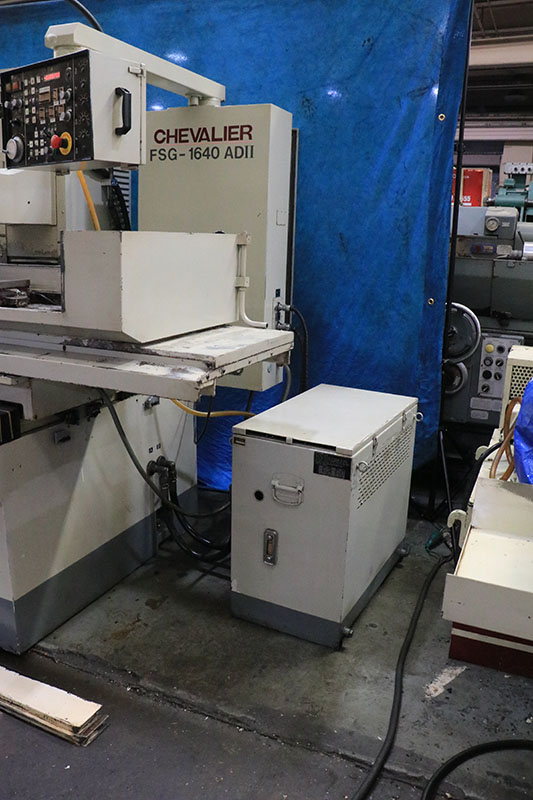

EXTERNAL HYDRAULIC PUMP AND TANK

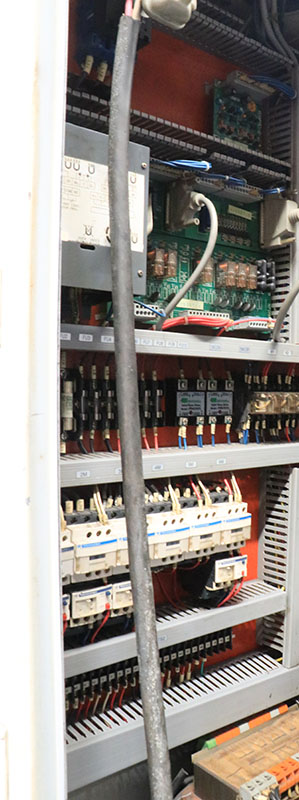

5 HP 3/60/230-460 VOLT DRIVE SPINDLE MOTOR
MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS

Link to video: https://youtu.be/gJFdwAwpe5A?si=7jWgtUuoNj8I53F_
