Chevalier FSG-2A818, 2X AUTOMATIC, 1998 SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Chevalier

Model:: FSG-2A818, 2X AUTOMATIC, 1998

Year:: 1998

Ref #:: 170395

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

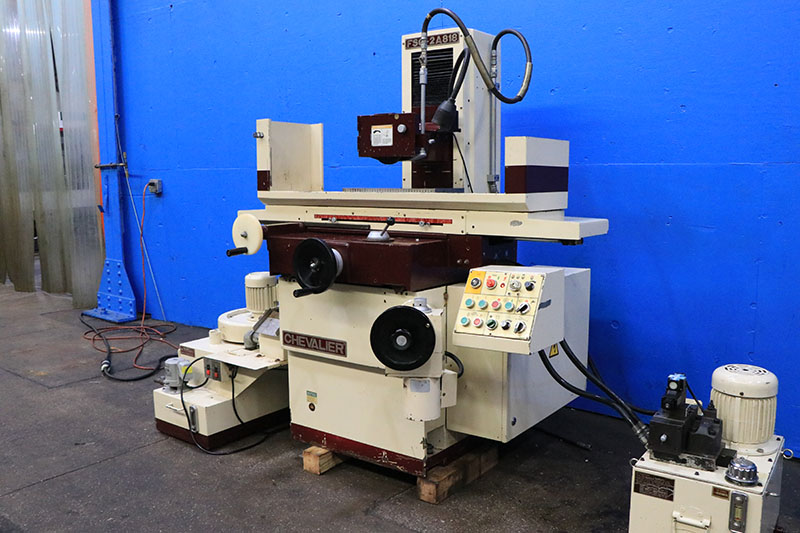

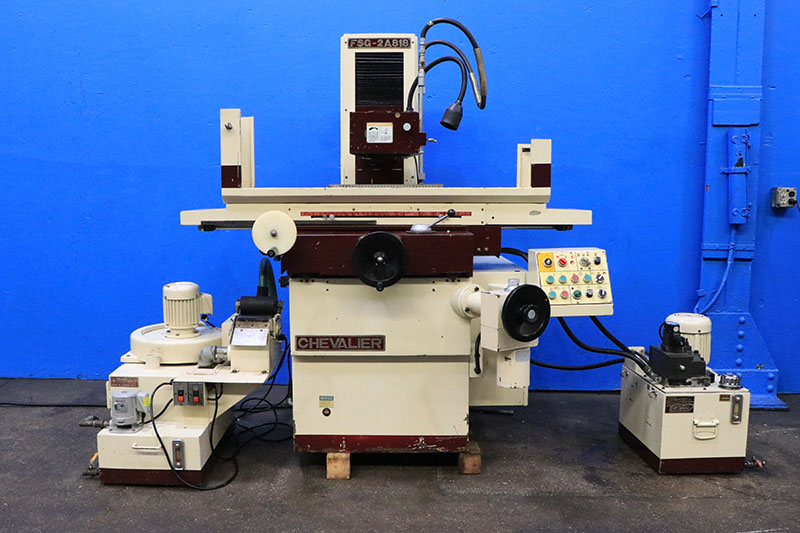

 8" X 18" CHEVALIER PRECISION SURFACE GRINDER

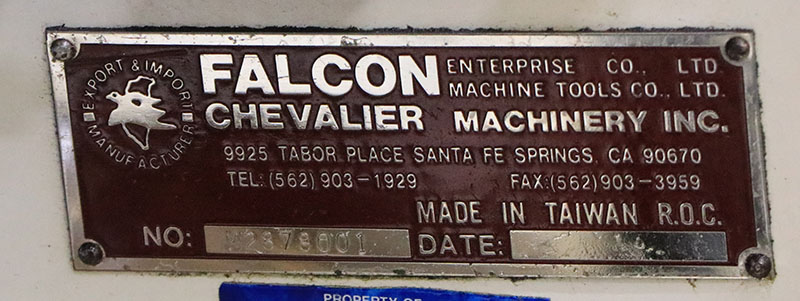

  MODEL: FSG-2A818    S/N: M2878001     NEW: 1998

  MAX. GRINDING CAPACITY ..................... 8" X 18"
MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC .... 19- 3/4"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL ....... 21"
MAX. CROSSFEED TRAVEL, AUTOMATIC ............. 9"
MAX. CROSSFEED TRAVEL, MANUAL ................ 9- 1/2"
DIST. FROM SPINDLE CENTER TO TABLE ........... 18"
VARIABLE TABLE SPEED, HYDRAULIC ........... 16' TO 82' FPM

AUTOMATIC CROSSFEED INCREMENT ............. 0.02" TO 0.4"
POWER RAPID CROSS TRAVERSE RATE .............. 48" IPM

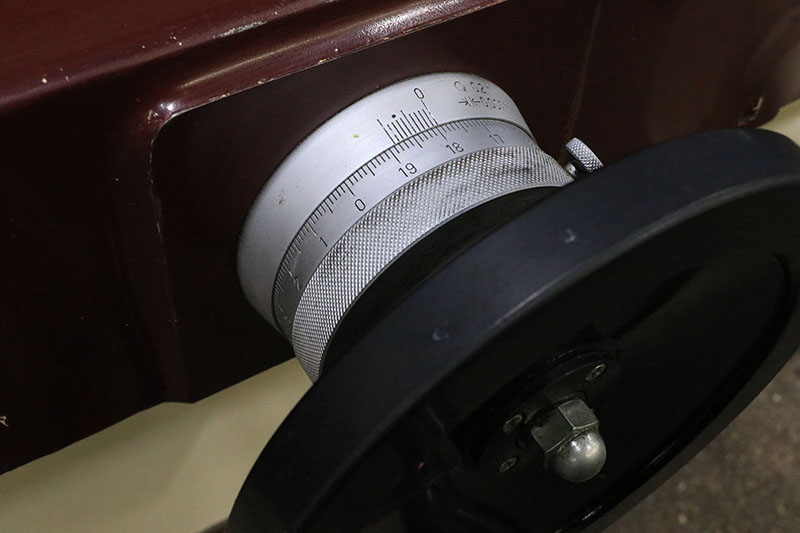

CROSSFEED HANDWHEEL, PER GRADUATION .......... 0.001"
PER REVOLUTION ............................... 0.2"
MICROFEED, PER REVOLUTION .................... 0.005"
PER GRADUATION ............................... 0.00005"

POWER RAPID TRAVERSE RATE, VERTICAL .......... 13" IPM
SPINDLE MOTOR ................................ 2 HP
STANDARD GRINDING WHEEL ...................... 8" DIA.

APPROX. WEIGHT ............................... 2,730 LBS.
APPROX. FLOOR SPACE REQUIRED ............. 83" X 61" X 75"H

  EQUIPPED WITH:
HYDRAULIC TABLE TRAVERSE
POWER CROSSFEED POWER RAPID WHEELHEAD POSITIONING
ALL SLIDEWAYS ARE LAMINATED WITH TURCITE-B & PRECISELY
  HAND-SCRAPED FOR ACCURACY.

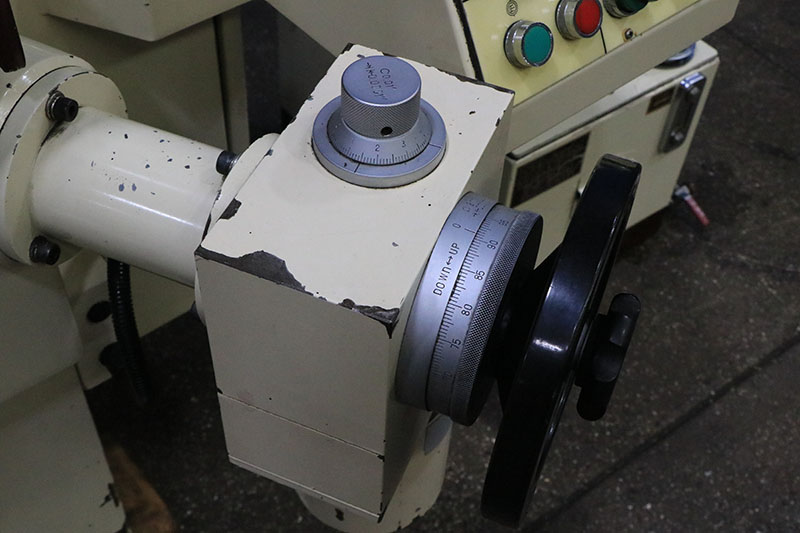

FINE FEED KNOB FOR VERTICAL AXES (.0001" GRAD.)

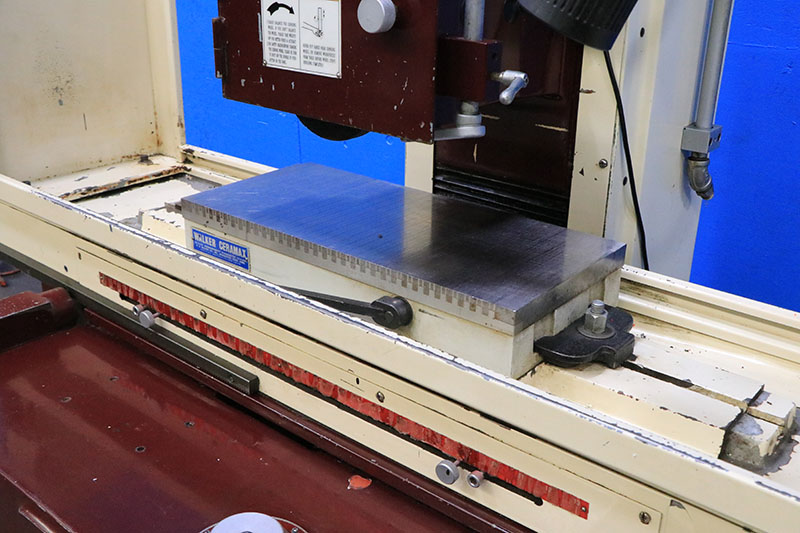

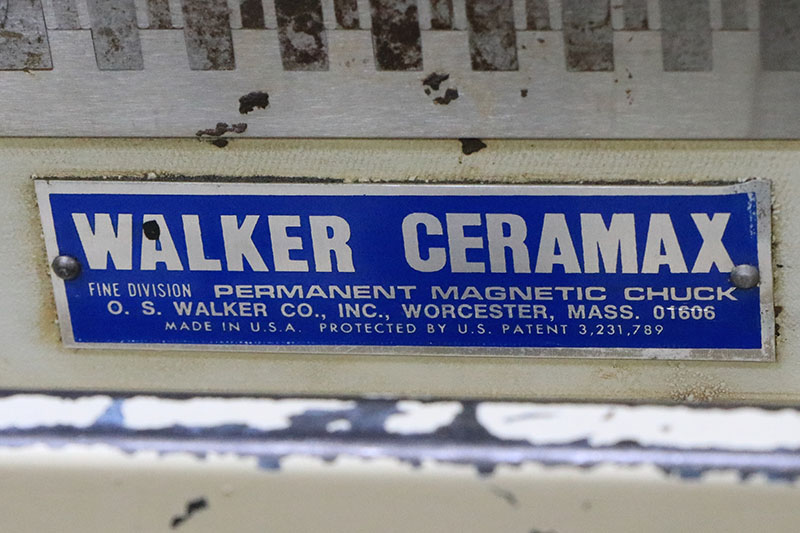

8" X 18" O.S. WALKER “CERAMAX” FINE DIVISION PERMANENT MAGNETIC CHUCK

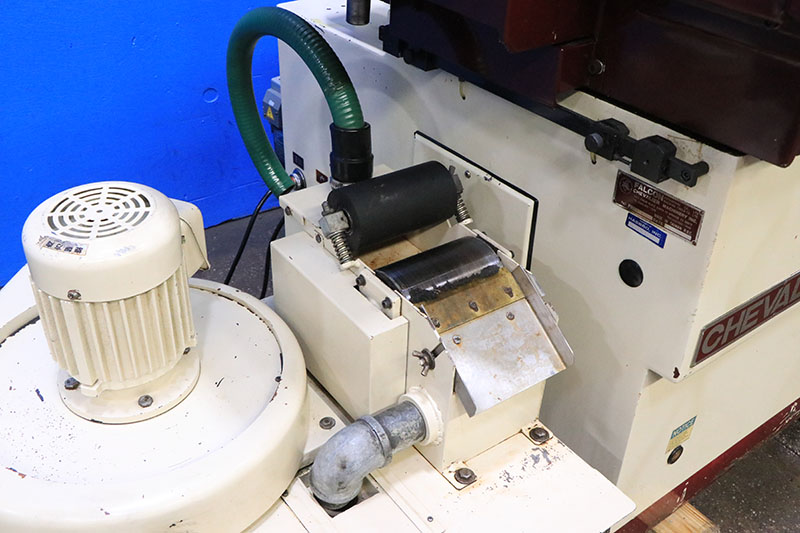

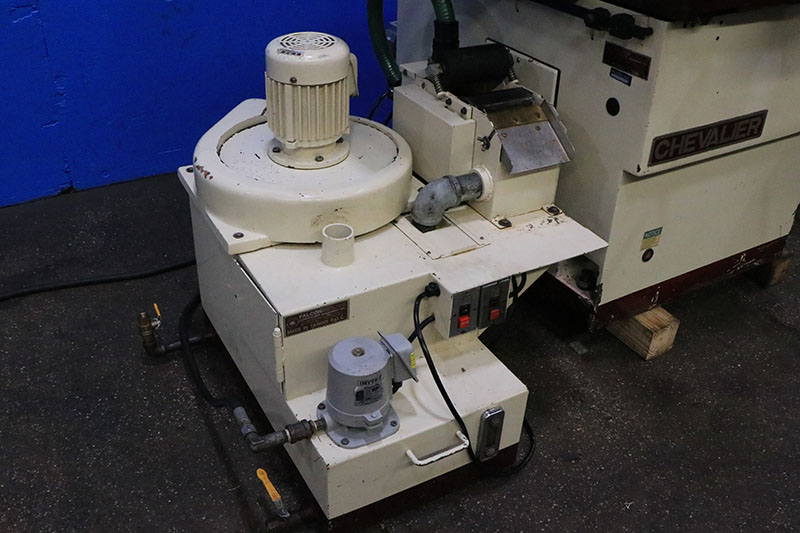

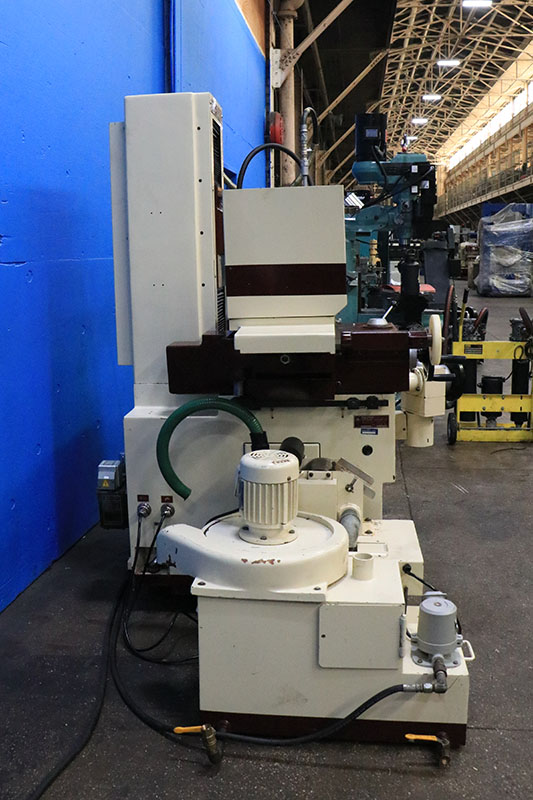

COMBINATION COOLANT SYSTEM & DUST COLLECTOR
8" GRINDING WHEEL

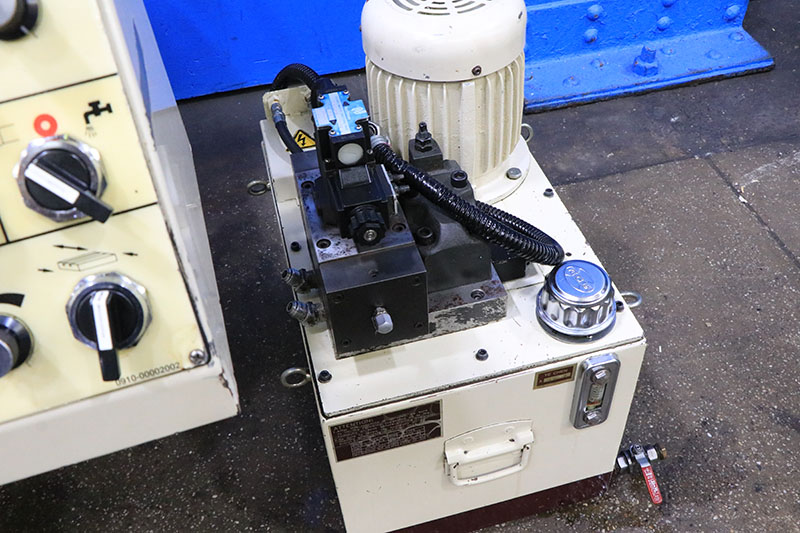

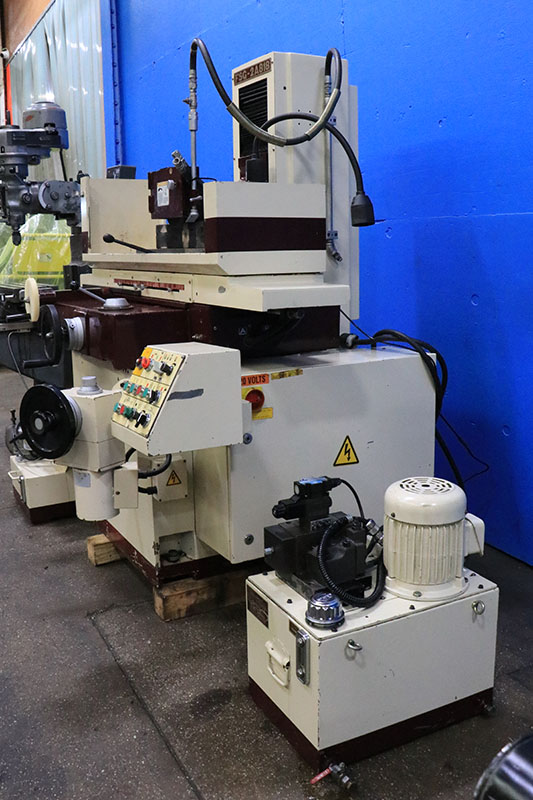

EXTERNAL HYDRAULIC SYSTEM

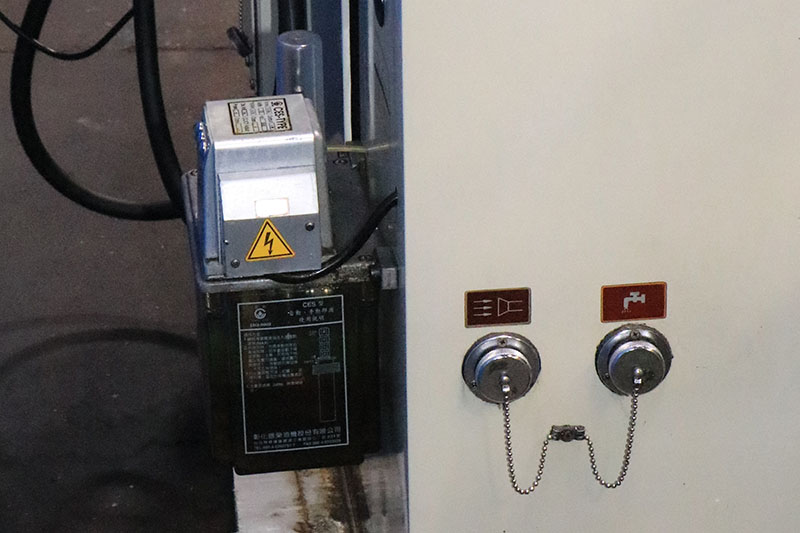

AUTO LUBE SYSTEM
2 H.P./3/60/220-440 VOLT SUPER-PRECISION DIRECT DRIVE SPINDLE
MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS

LINK TO VIDEO: https://youtu.be/K9z7UfG0GEs?si=mCbZEt9jmEhdR-j3

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
