Chevalier FSG-3A1020, 1994, NEW SPINDLE, 3X AUTO FEEDS SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Chevalier

Model:: FSG-3A1020, 1994, NEW SPINDLE, 3X AUTO FEEDS

Year:: 1994

Ref #:: 178047

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

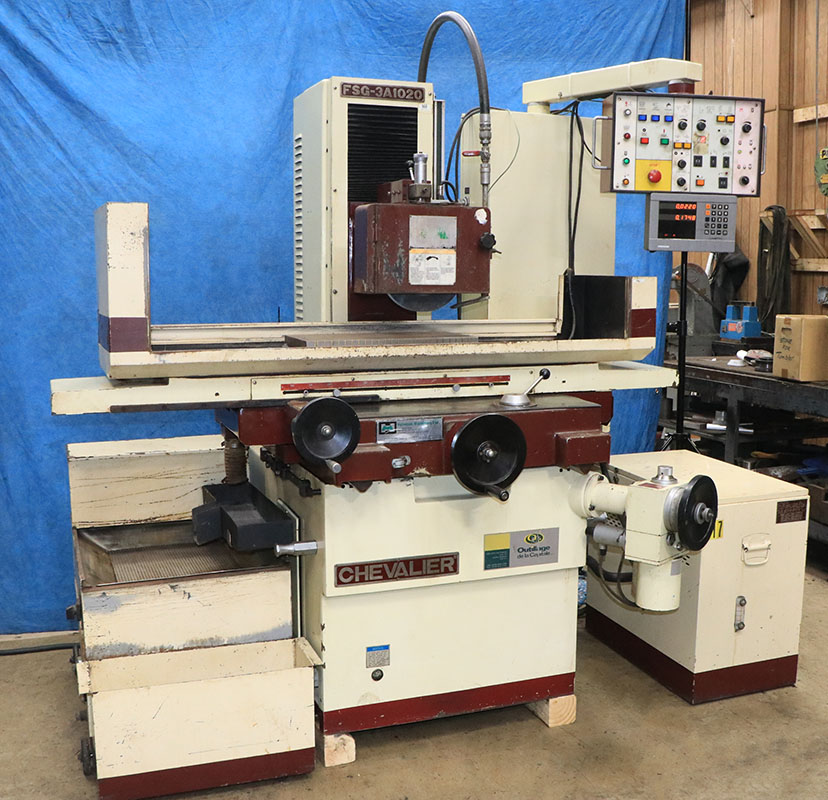

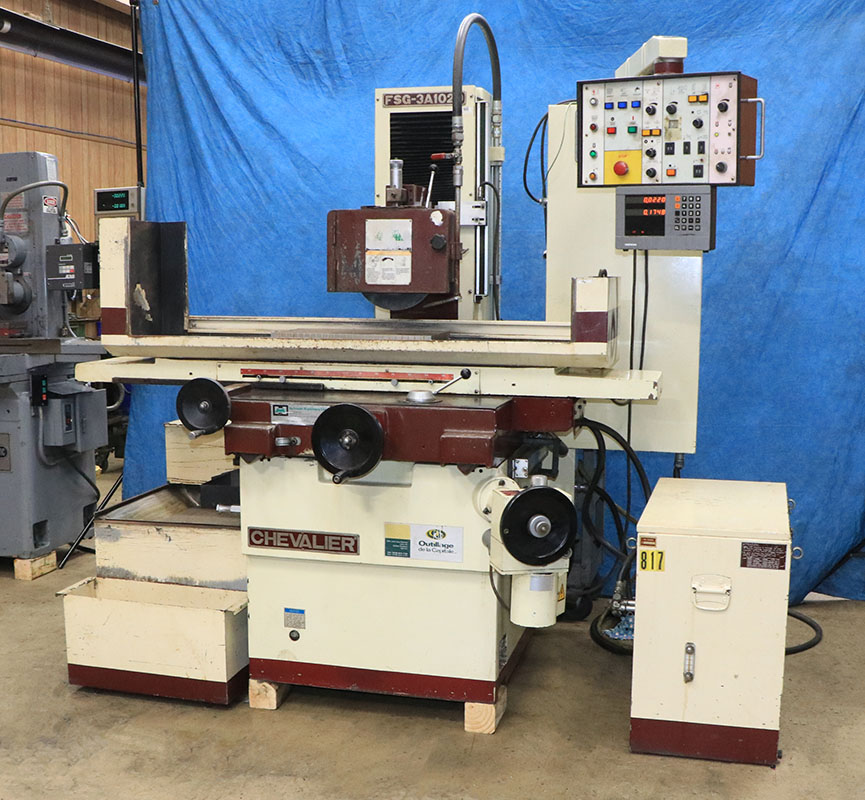

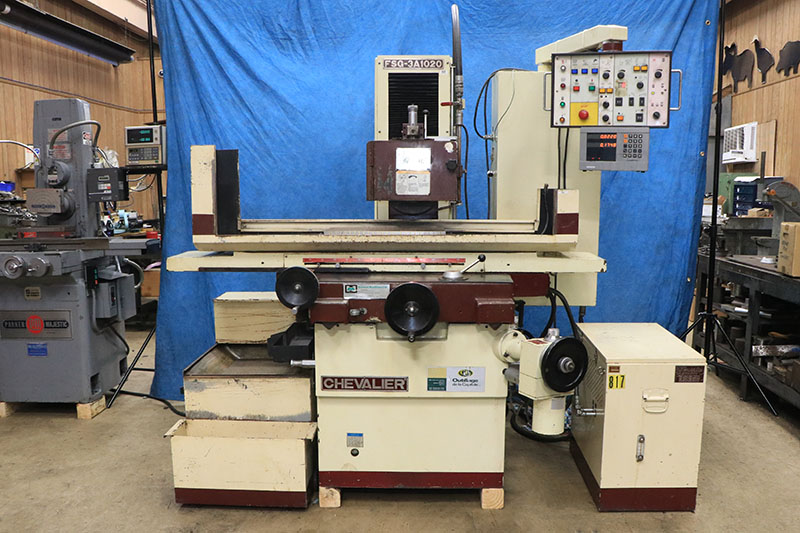

      10" X 20" CHEVALIER PRECISION SURFACE GRINDER,
       PROGRAMMABLE AUTOMATIC INCREMENTAL DOWNFEED,
                 12" GRINDING WHEEL,
             WITH BRAND NEW SPINDLE!

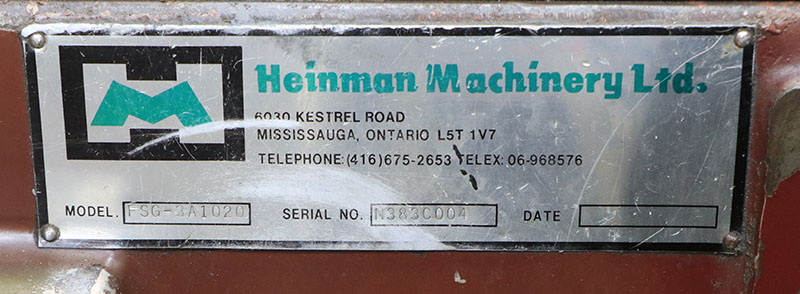

MODEL: FSG-3A1020    S/N: N383C004    NEW: 1994

NOMINAL GRINDING CAPACITY ................... 10" X 20"
MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC ... 22- 7/8"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL ...... 24- 3/8"
MAX. CROSSFEED TRAVEL, AUTOMATIC ............ 11- 7/16"
MAX. CROSSFEED TRAVEL, MANUAL ............... 11- 3/4"
DIST. FROM SPINDLE CENTER TO TABLE .......... 21- 1/2"

VARIABLE TABLE SPEED, HYDRAULIC .......... 16' TO 82' FPM

AUTOMATIC CROSSFEED INCREMENT ............ 0.02" TO 0.4"
POWER RAPID TRAVERSE (CROSS) ................ 48" IPM
CROSSFEED HANDWHEEL, PER GRADUATION ......... 0.001"
PER REVOLUTION .............................. 0.02"

AUTOMATIC INCREMENTAL DOWNFEED ......... 0.0001" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION ........... 0.0005"
PER REVOLUTION .............................. 0.1"
MICROFEED ................................... 0.0001"
RAPID TRAVERSE RATE ......................... 13" IPM

SPINDLE MOTOR ............................... 3 HP
STANDARD GRINDING WHEEL ......... 12" DIA. x 1- 1/4" x 3"B

APPROX. WEIGHT .......................... 3,306 LBS.
APPROX. DIMENSIONS ...................... 85" X 48" X 65"H

MACHINE FEATURES:

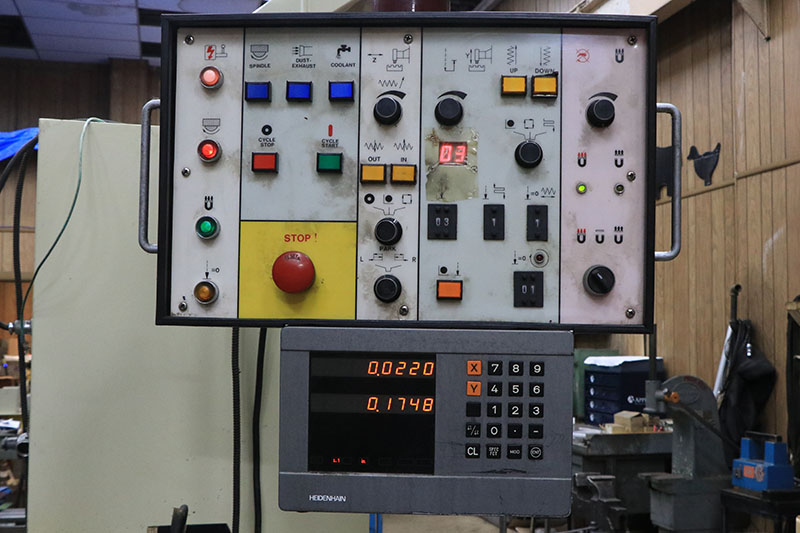

FULLY PROGRAMMABLE MICROPROCESSOR AUTO-CYCLE
  CONTROL W/DIGITAL DISPLAY
AUTOMATIC INCREMENTAL DOWNFEED (PLUNGE & SURFACE)
SPARKOUT CYCLE W/AUTOMATIC WHEELHEAD RETRACTION
  @ COMPLETION OF GRIND CYCLE
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
ELECTRONIC CROSS & VERTICAL FEEDS
MICRO-DOWNFEED (.0001" GRAD.)
12" GRINDING WHEEL

EQUIPPED WITH:

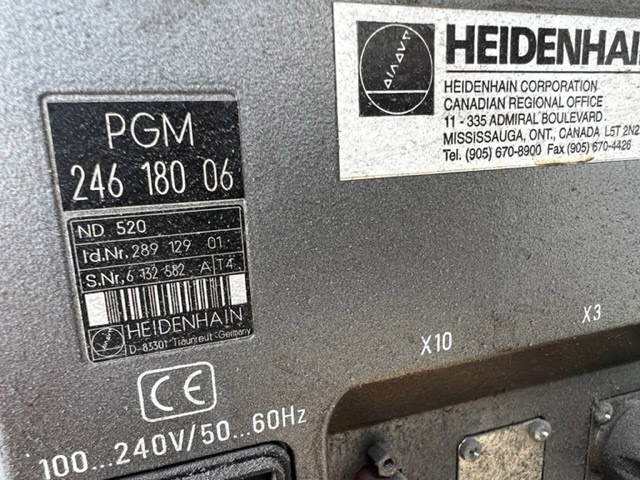

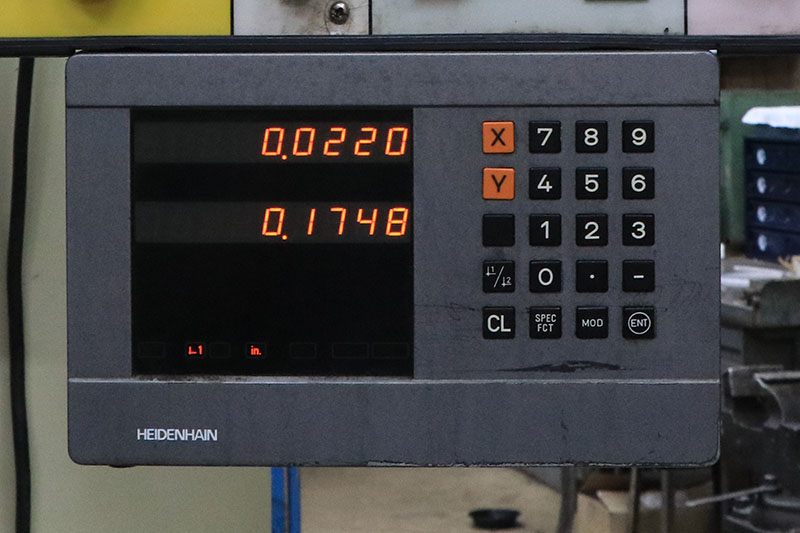

"HEIDENHAIN" MODEL ND 520 HIGH ACCURACY
  "MADE IN GERMANY" 2-AXIS DIGITAL READOUT DISPLAY.

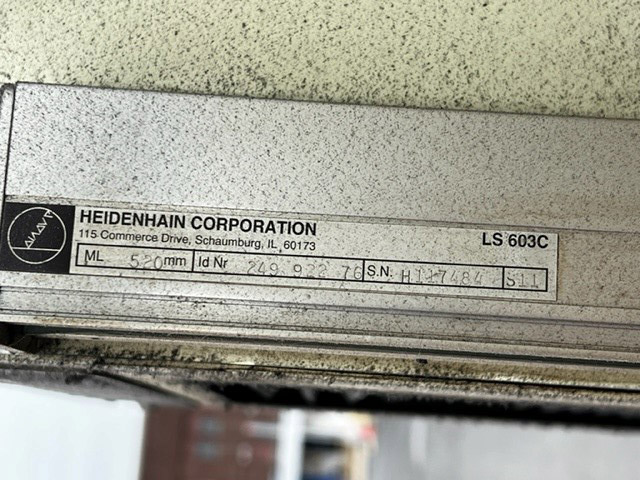

HEIDENHAIN HIGH ACCURACY "MADE IN GERMANY"
  GLASS SCALES, MODEL LC 603C.
GRADUATIONS ON OUR MACHINE ARE IN METRIC (mm).

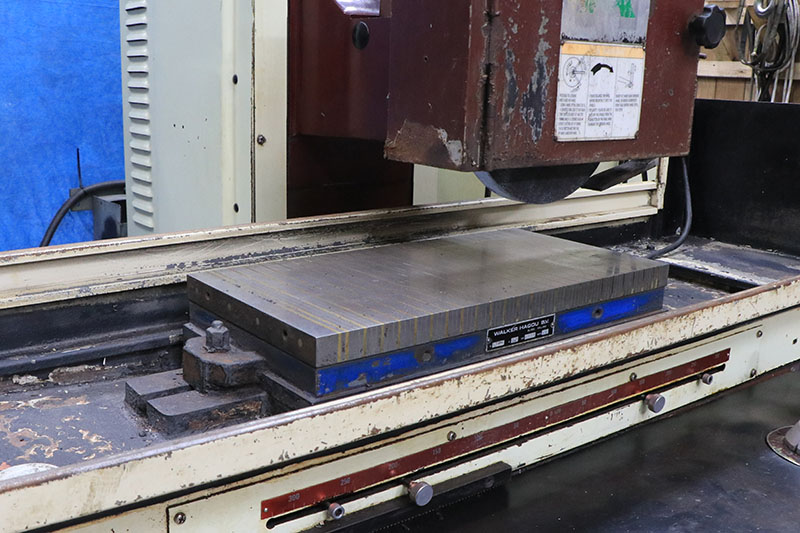

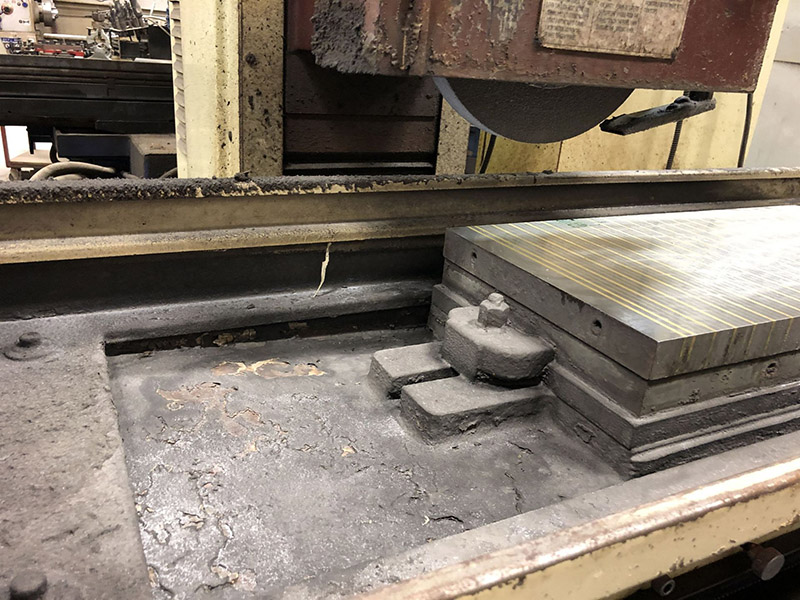

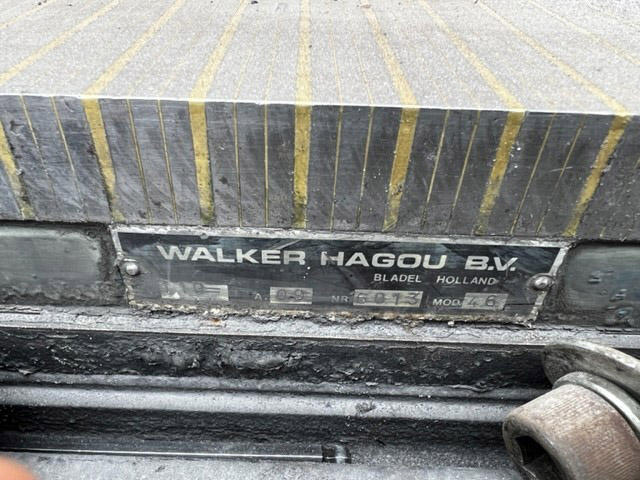

10" X 20" "WALKER-HAGOU" MADE IN THE NETHERLANDS
 ELECTRO-MAGNETIC CHUCK
W/VARIABLE HOLD NEUTROFIER CONTROL ON THE MACHINE
  CONTROL CONSOLE

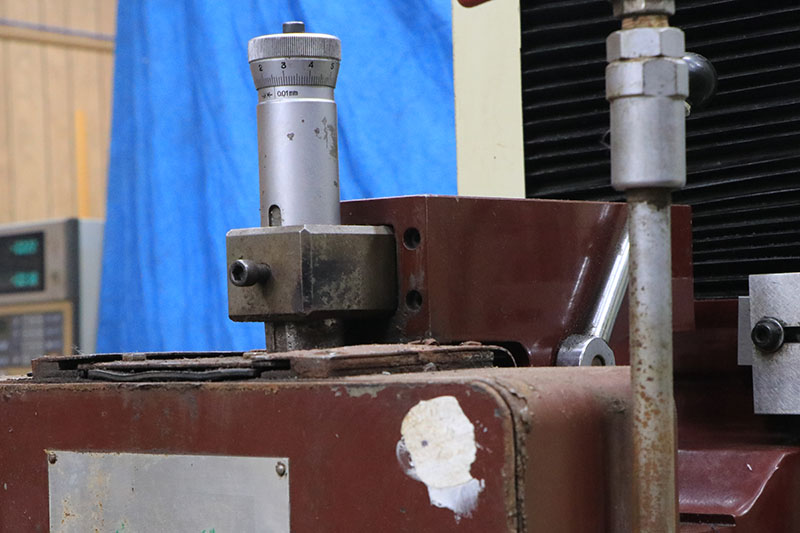

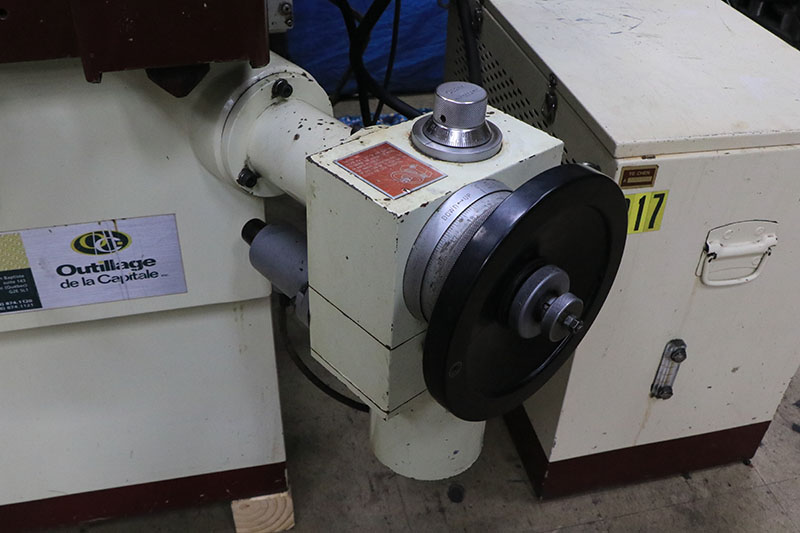

OVER-THE-WHEEL WHEEL DRESSER

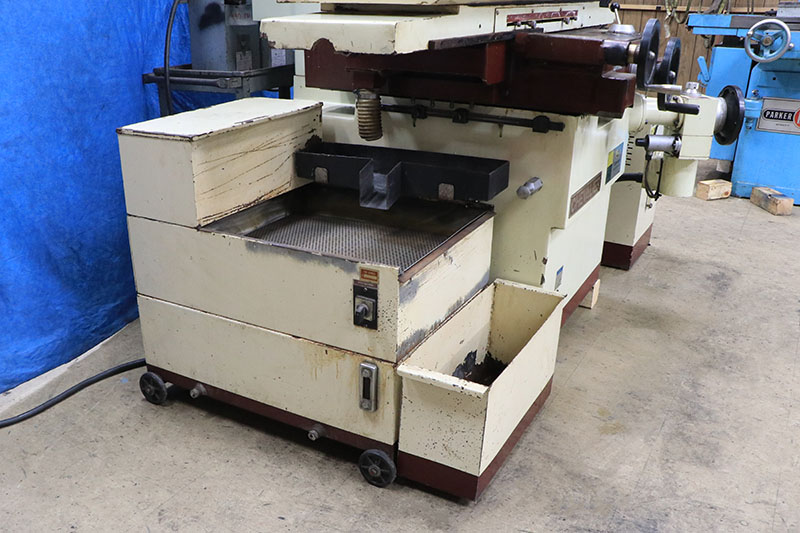

COOLANT SYSTEM w/PAPER FILTRATION
EXTERNAL HYDRAULIC SYSTEM
AUTO LUBE SYSTEM
12" GRINDING WHEEL
5 H.P SUPER-PRECISION DIRECT DRIVE SPINDLE

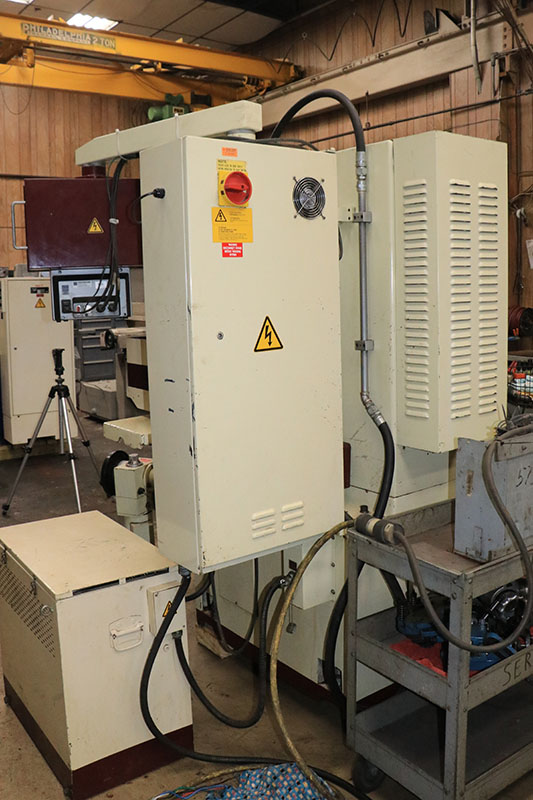

MACHINE IS WIRED FOR 3/60/575 VOLTS.
TRANSFORMER FOR 230 OR 460 VOLTS AVAILABLE
 TO PURCHASE FOR $675.

SPECIAL NOTE:
THIS MACHINE HAS A BRAND NEW SPINDLE INSTALLED!

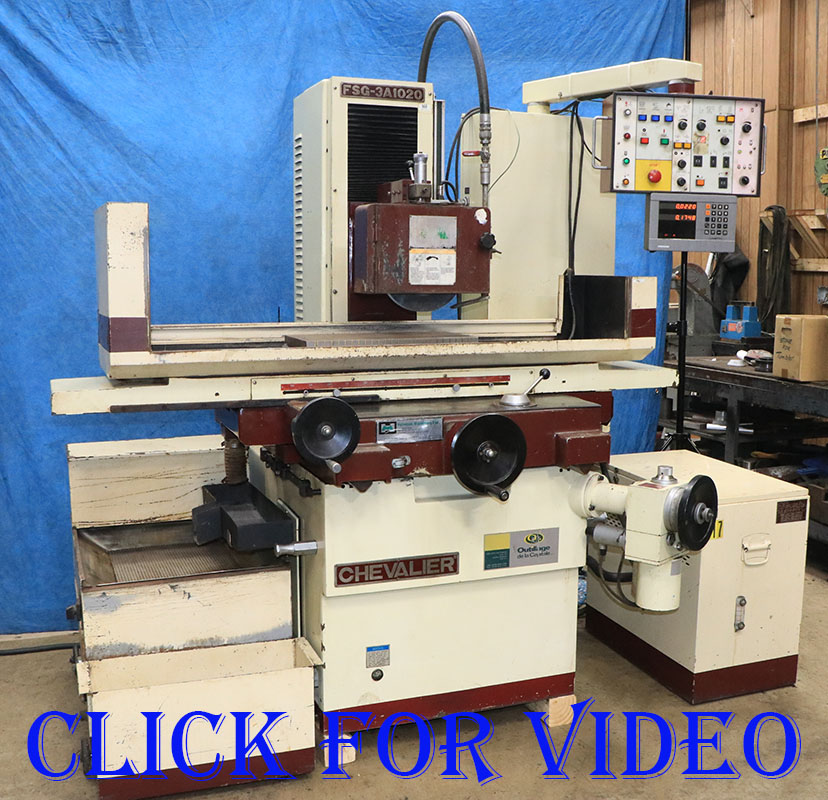

https://youtu.be/jGRmPp4QS84?si=NLfHIuqrvMkEFoC7

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** ORIGINAL PAINT - EXCELLENT CONDITION **

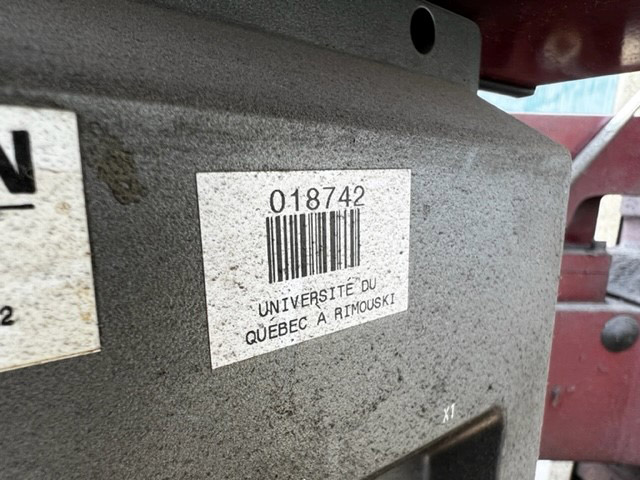

** FROM THE "UNIVERSITE DU QUEBEC" IN RIMOUSKI **
