Chevalier FSG-3A1224, 2013, 3X AUTO FEEDS, PROG. AUTO IDF SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Chevalier

Model:: FSG-3A1224, 2013, 3X AUTO FEEDS, PROG. AUTO IDF

Year:: 2013

Ref #:: 177957

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

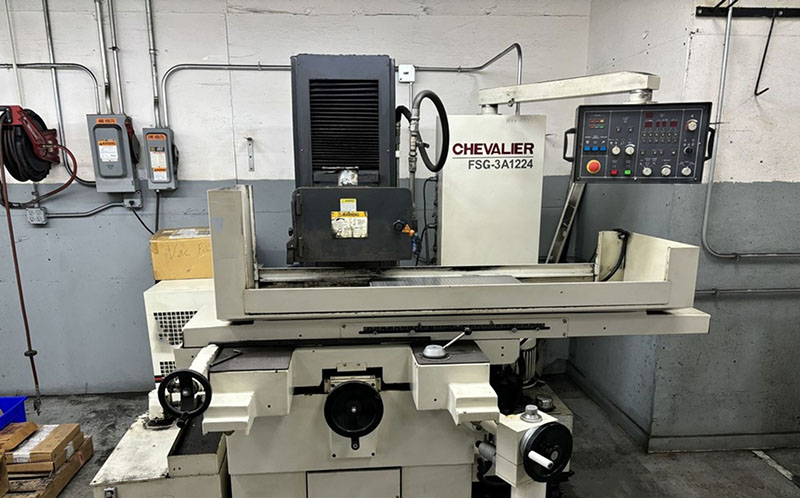

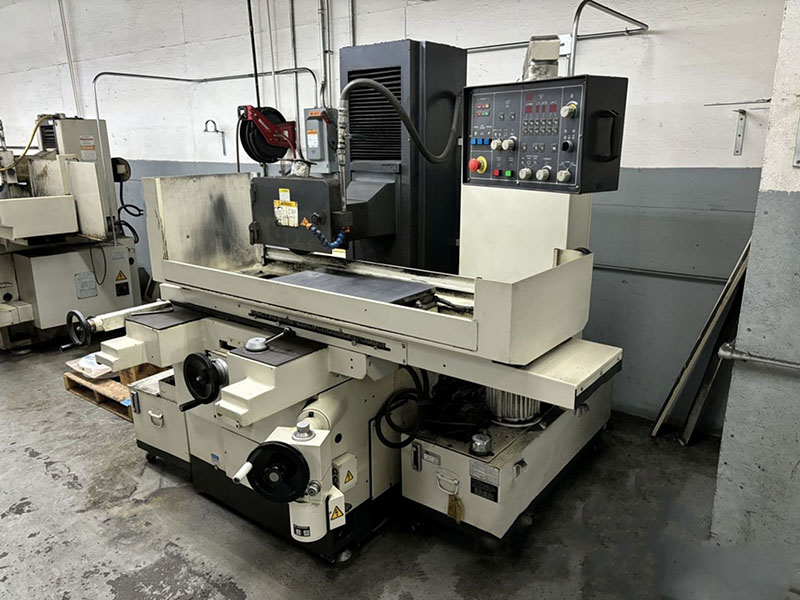

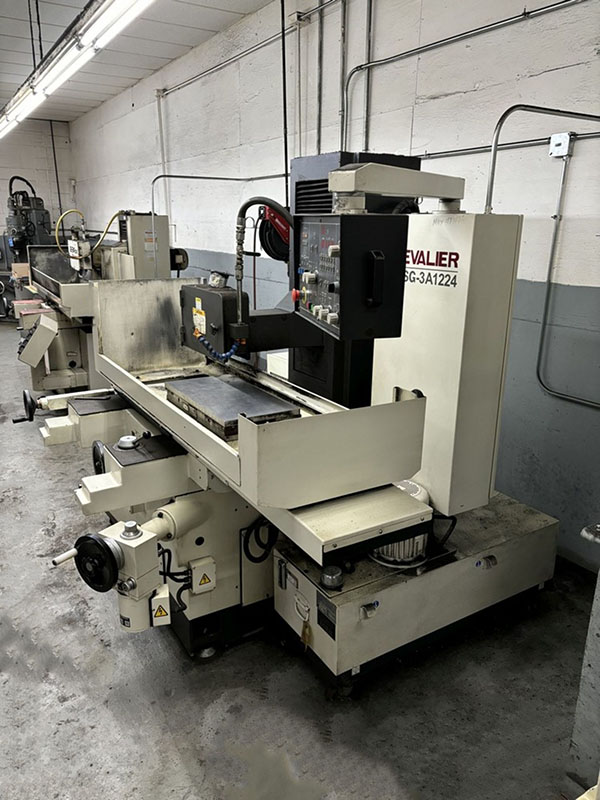

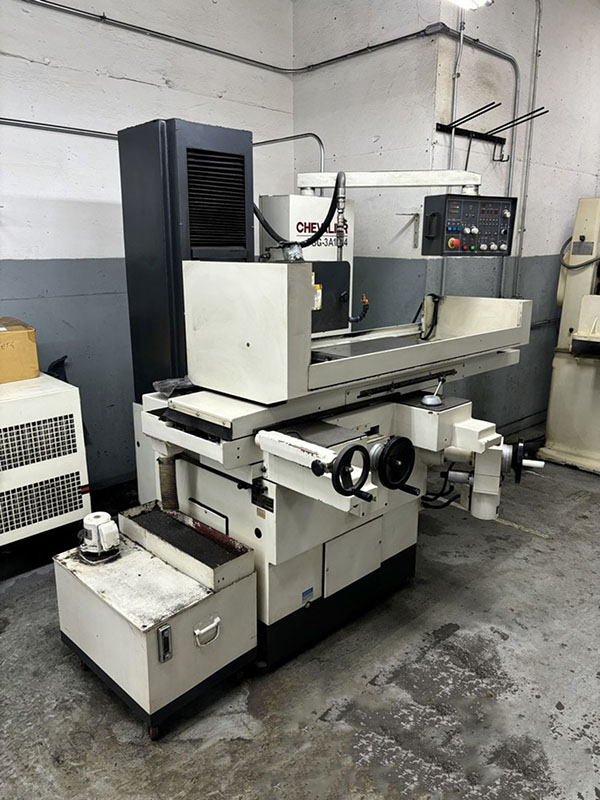

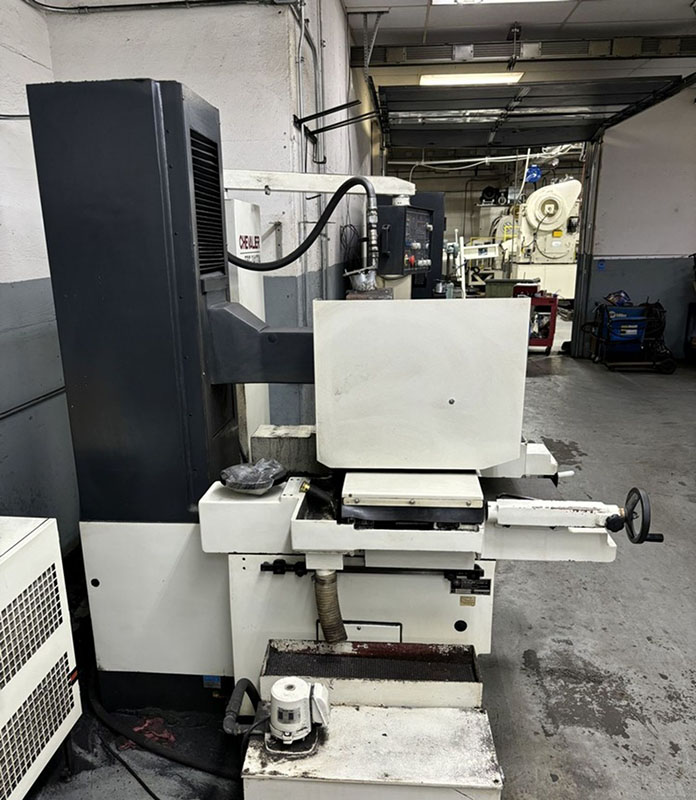

  12" X 24" CHEVALIER PRECISION SURFACE GRINDER
  WITH PROGRAMMABLE AUTOMATIC INCREMENTAL DOWNFEED


MODEL: FSG-3A1224    S/N:  PP3134002      NEW: 2013

MAX. GRINDING CAPACITY .............. 12" X 24"
MAX. LONGITUDINAL TABLE TRAVEL ...... 27- 1/2"
MAX. CROSSFEED TRAVEL ............... 14- 1/2"
DIST. FROM SPINDLE CENTER TO TABLE .. 24- 3/4"

VARIABLE TABLE SPEED, HYDRAULIC ..... 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT ....... 0.04" TO 0.6"

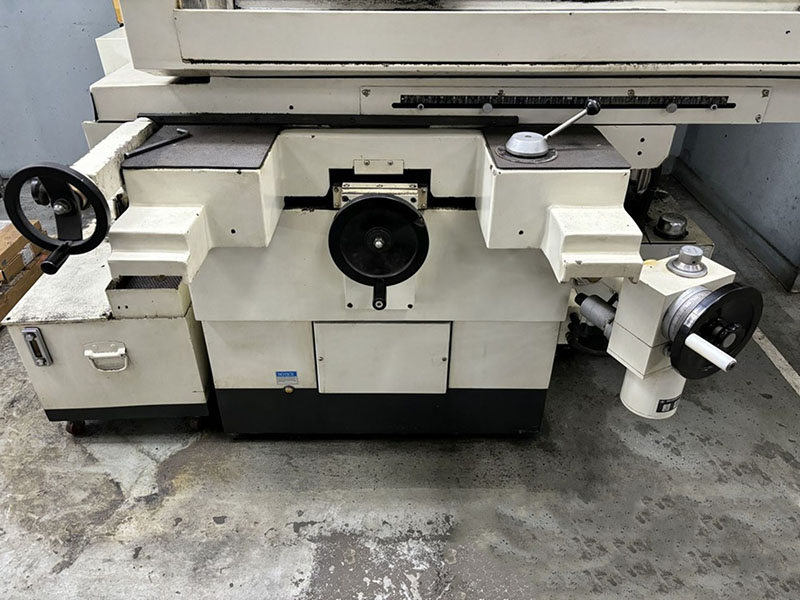

CROSSFEED HANDWHEEL, PER GRAD. ...... 0.001"
CROSSFEED HANDWHEEL, PER REV. ....... 0.2"

AUTOMATIC INCREMENTAL DOWNFEED ...... 0.0001" TO .002"
DOWNFEED HANDWEHEEL, PER GRAD ....... 0.0005"
DOWNFEED HANDWEHEEL, PER REV. ....... 0.001"
RAPID TRAVERSE RATE ................. 13" IPM

SPINDLE MOTOR ....................... 5 HP
STANDARD GRINDING WHEEL ....... 14" DIA. x 1-2"W x 5"B

APPROX. WEIGHT ...................... 4,630 LBS.
APPROX. DIMS. .................. 105"L-R x 71.25"D x 75"H

 EQUIPPED WITH:

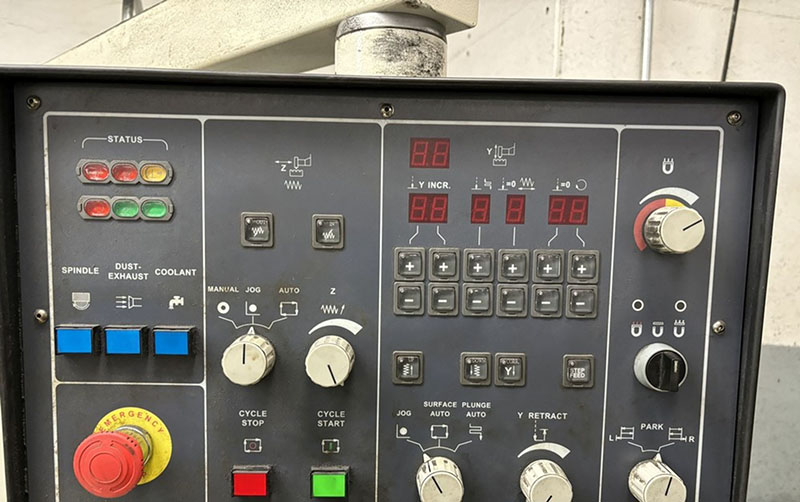

FULLY PROGRAMMABLE MICROPROCESSOR AUTO-CYCLE CONTROL
-AUTOMATIC INCREMENTAL DOWNFEED (PLUNGE & SURFACE)
-SPARKOUT CYCLE ADJUSTABLE FRO 0 TO 9 TIMES
-POWER RAPID WHEELHEAD POSITIONING
-AUTOMATIC WHEELHEAD RETRACTION @ COMPLETION OF CYCLE

HYDRAULIC TABLE TRAVERSE
POWER CROSSFEED
ALL SLIDEWAYS ARE LAMINATED WITH TURCITE-B & PRECISELY
  HAND-SCRAPED FOR ACCURACY.
FINE FEED FOR VERTICAL AXES (.0001" GRAD.)

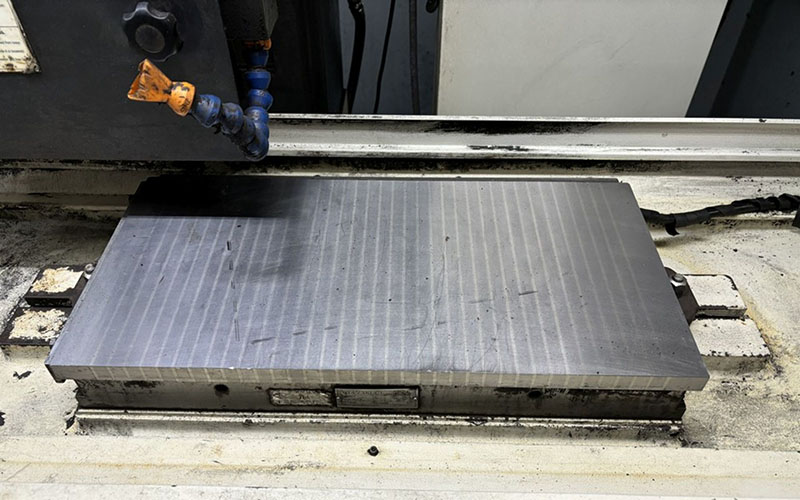

12" X 24" CHEVALIER STD. CROSS POLE

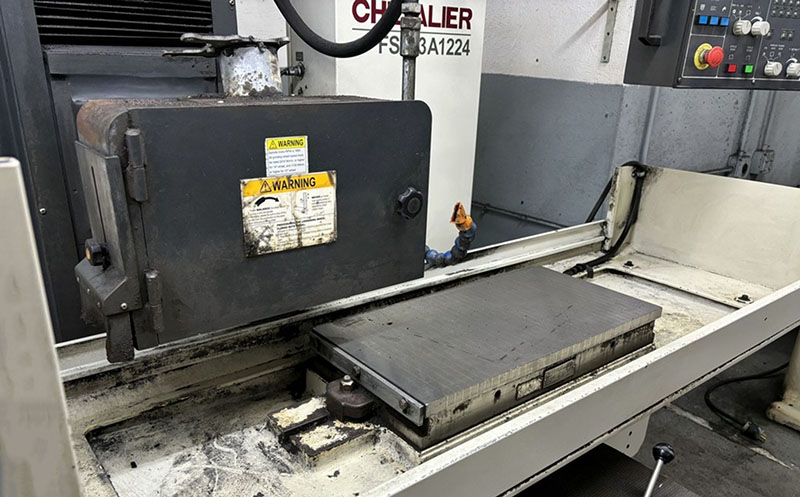

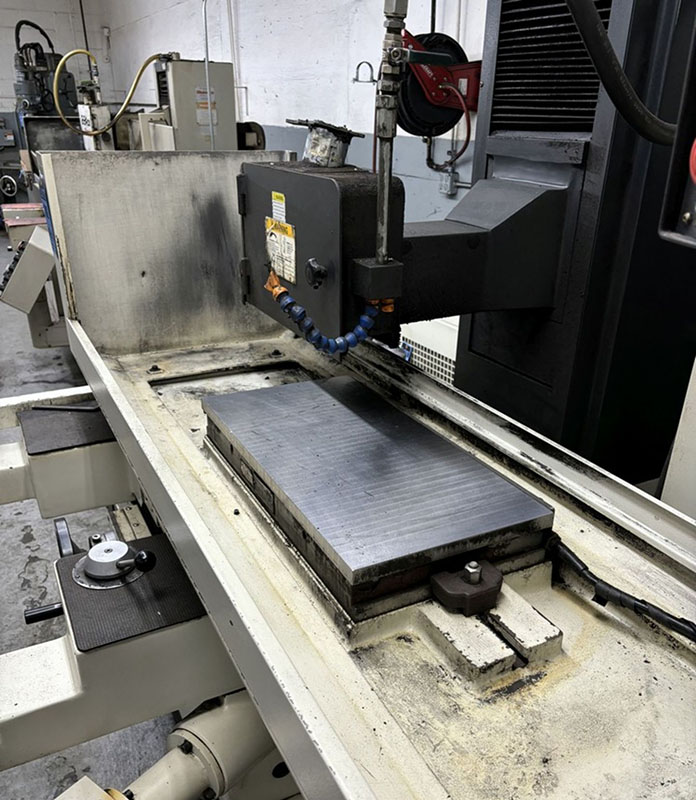

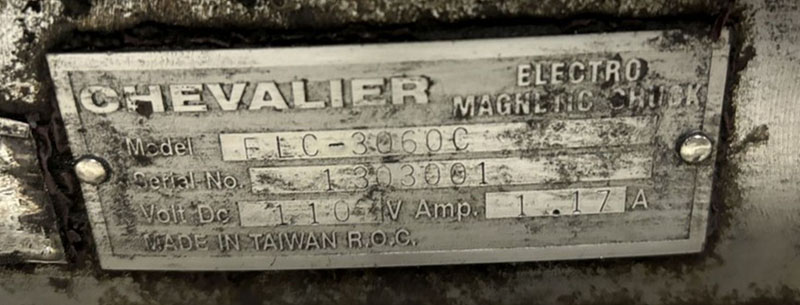

 ELECTRO-MAGNETIC CHUCK (MODEL FLC-3060C)
VARIABLE HOLD NEUTROFIER CONTROL
COOLANT SYSTEM
EXTERNAL HYDRAULIC SYSTEM
AUTO LUBE SYSTEM
5 H.P SUPER-PRECISION DIRECT DRIVE SPINDLE

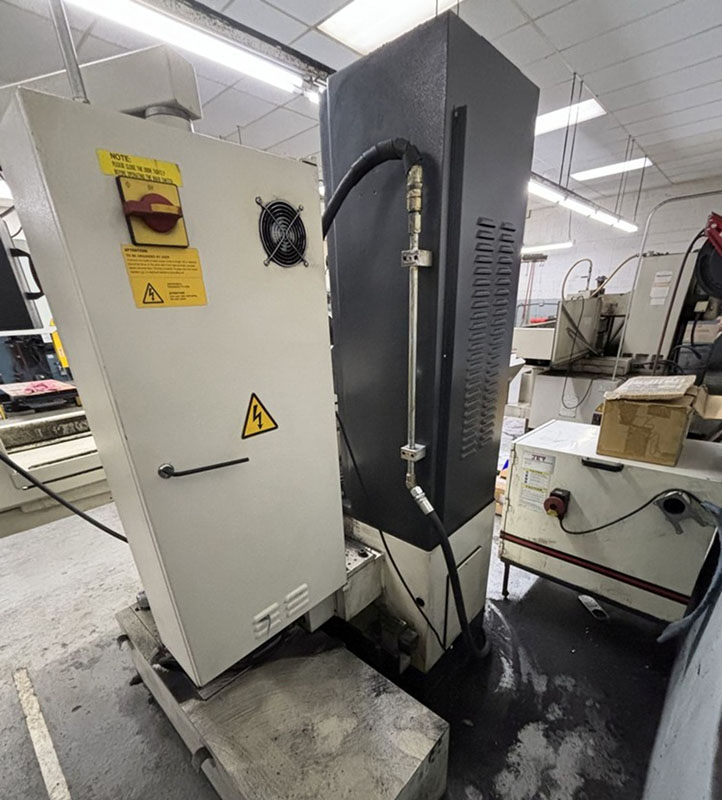

3/60/230-460 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS


** FOB OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) **
