Chevalier FSG-3A818, PROG AUTO IDF, 3X AUTO FEEDS, PMC SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Chevalier

Model:: FSG-3A818, PROG AUTO IDF, 3X AUTO FEEDS, PMC

Year:: 2003

Ref #:: 178018

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

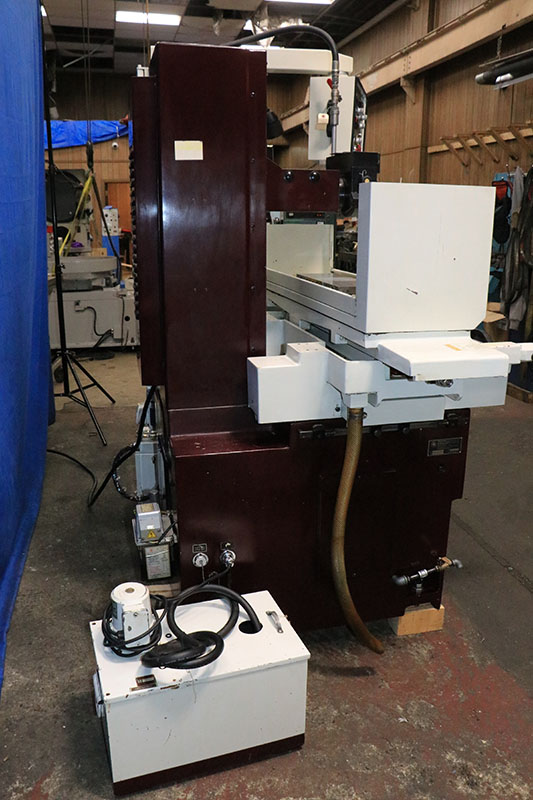

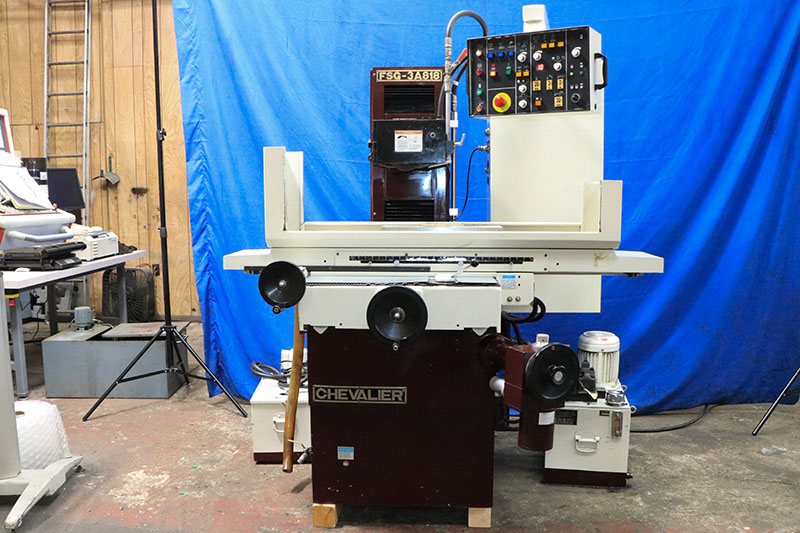

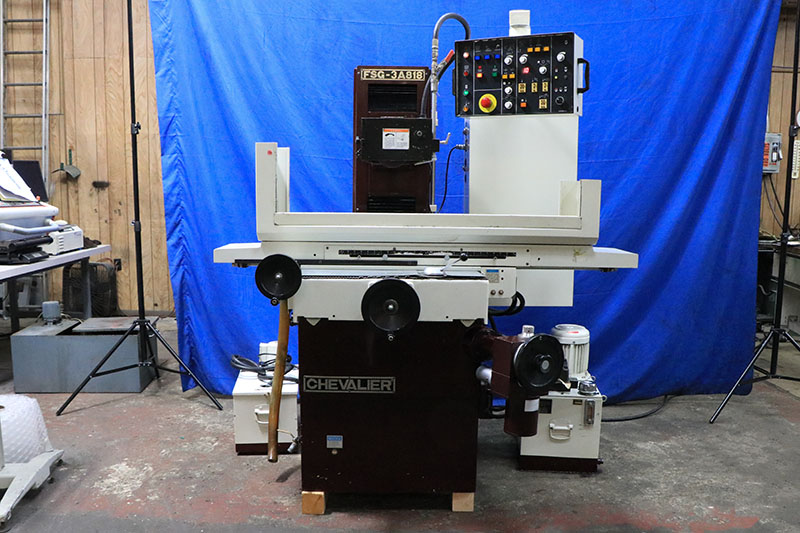

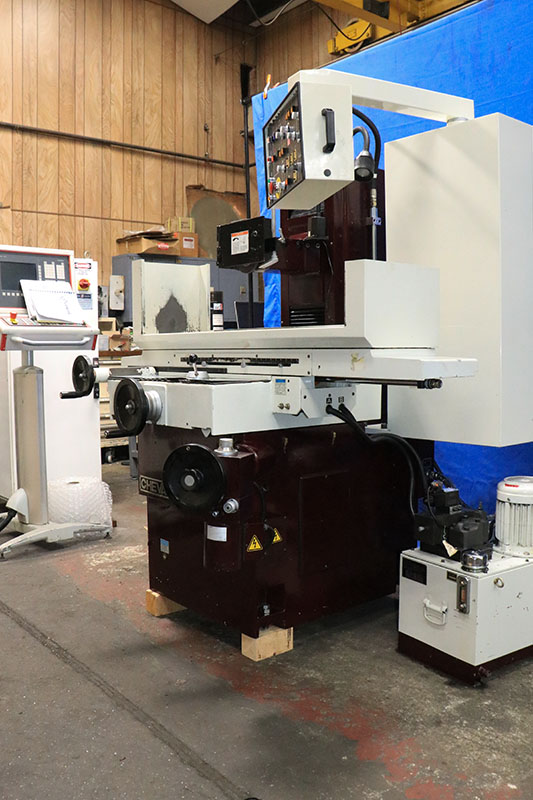

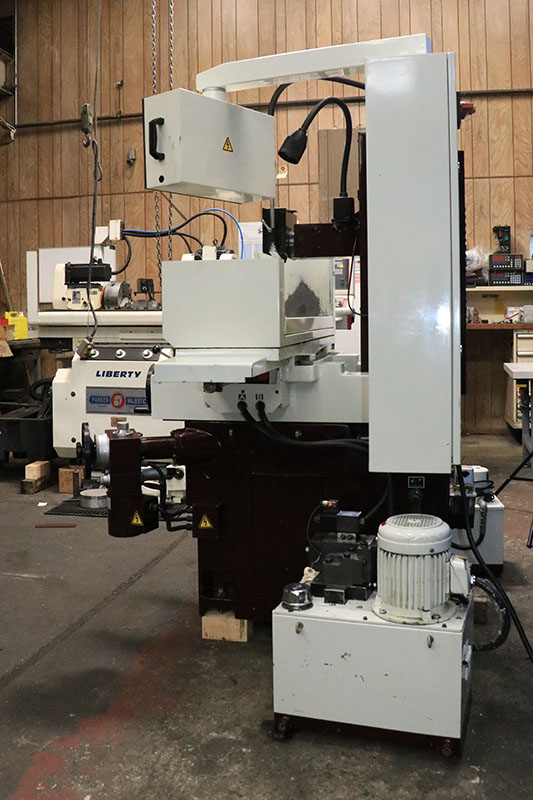

  8" X 18" CHEVALIER PRECISION SURFACE GRINDER
W/MICROPROCESSOR CONTROLLED AUTOMATIC INCREMENTAL DOWNFEED

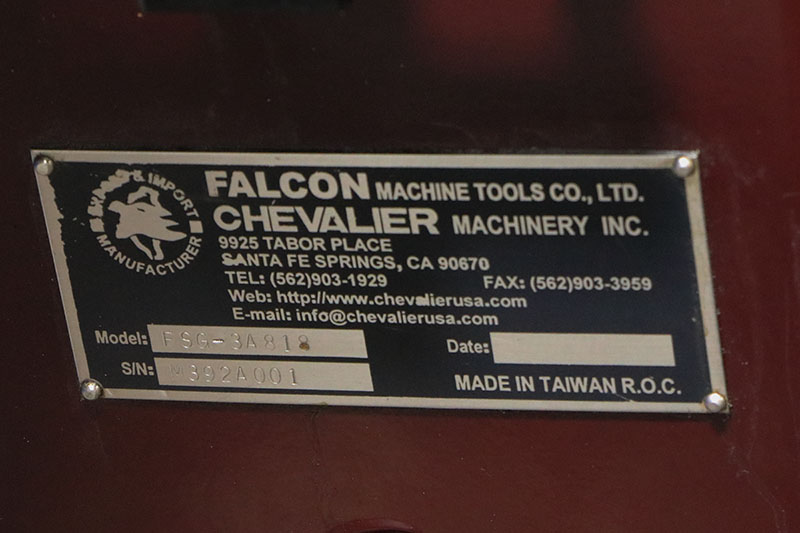

  MODEL: FSG-3A818      S/N: M392A001       NEW: 2003

MAX. GRINDING CAPACITY ......................... 8" X 18"
MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC ...... 19- 3/4"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL ......... 21"
MAX. CROSSFEED TRAVEL, AUTOMATIC ............... 9"
MAX. CROSSFEED TRAVEL, MANUAL .................. 9- 1/2 "
DIST. FROM SPINDLE CENTER TO TABLE ............. 18 "
VARIABLE TABLE SPEED, HYDRAULIC ................ 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT .................. 0.02" TO 0.24"
RAPID TRAVEL, CROSS FEED ....................... 48" IPM

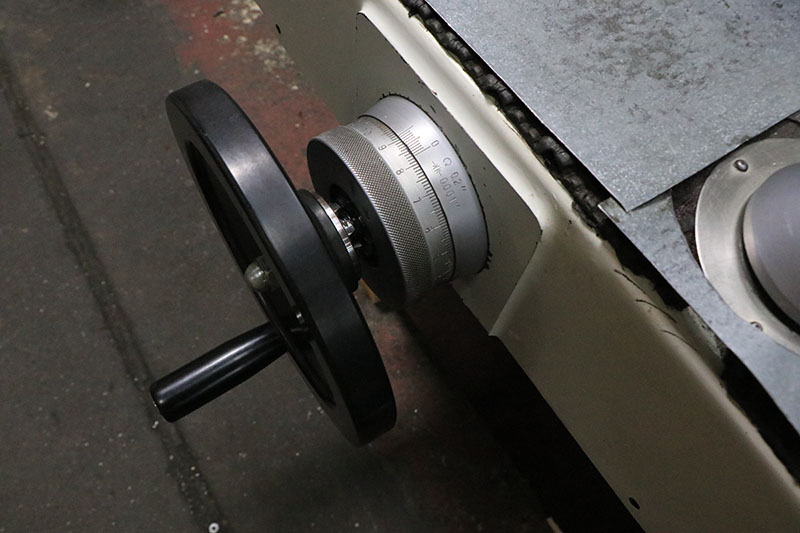

CROSSFEED HANDWHEEL, PER GRADUATION ............ 0.001"
                     PER REVOLUTION ............ 0.2"
AUTOMATIC INCREMENTAL DOWNFEED ................. 0.0001" TO .002"

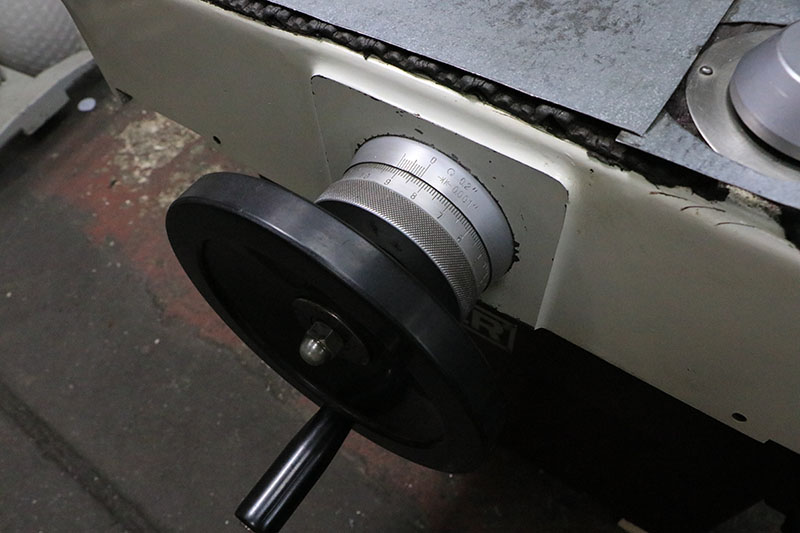

AUTO DOWNFEED DIAL PER GRADUATION .............. 0.0005"
PER REVOLUTION ................................. 0.1"
RAPID TRAVERSE RATE ............................ 13" IPM
SPINDLE MOTOR .................................. 2 HP
STANDARD GRINDING WHEEL ........................ 8" DIA. X 1/2" X 1.25"

APPROX. WEIGHT ................................. 2,620 LBS.
APPROX. FLOOR SPACE REQUIRED ................... 86" X 61" X 75"H

 MACHINE FEATURES:

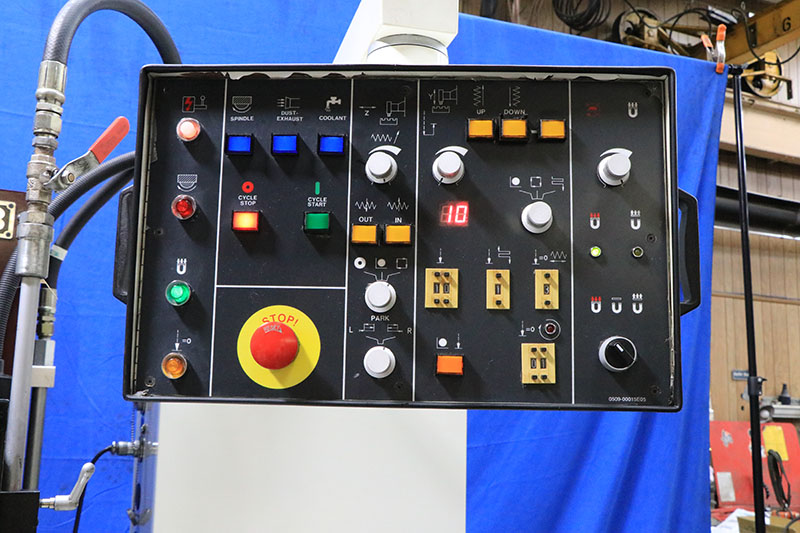

FULLY PROGRAMMABLE AUTO-CYCLE CONTROL W/DIGITAL DISPLAY
-AUTOMATIC INCREMENTAL DOWNFEED (PLUNGE & SURFACE)
-SPARKOUT CYCLE ADJUSTABLE FRO 0 TO 9 TIMES
-AUTOMATIC WHEELHEAD RETRACTION @ COMPLETION OF CYCLE
-POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
POWER CROSSFEED BY AC MOTOR
TABLE GUIDEWAYS ARE HARDENED AND GROUND
BALL BEARINGS FOR FRICTIONLESS TABLE MOVEMENT
ALL SLIDEWAYS ARE LAMINATED WITH TURCITE-B & PRECISELY
  HAND-SCRAPED FOR ACCURACY.

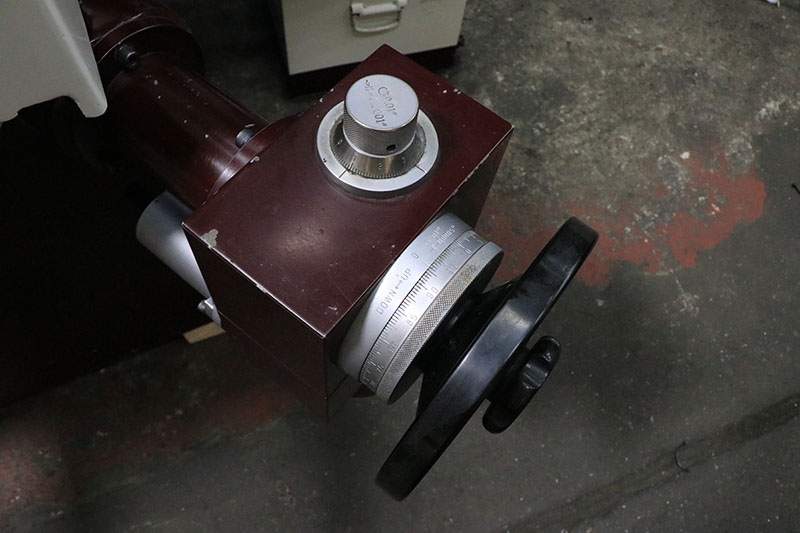

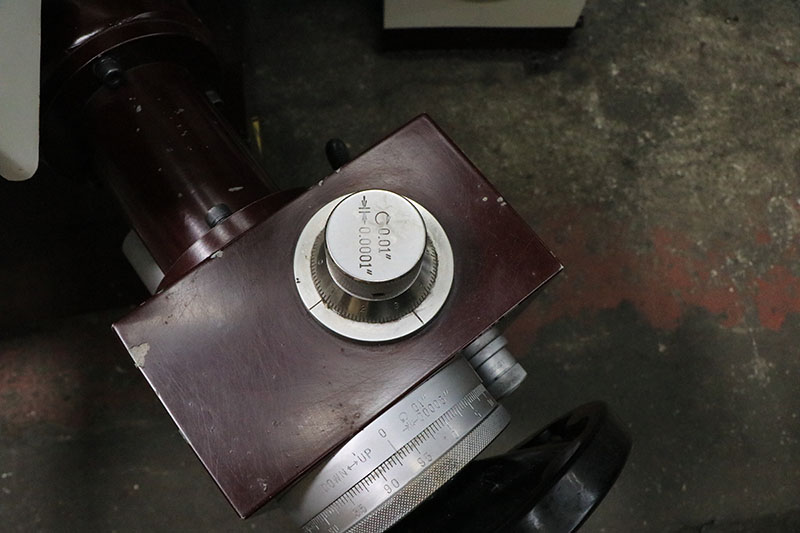

"MICRO" FINE FEED FOR VERTICAL AXIS (.0001" GRAD.)

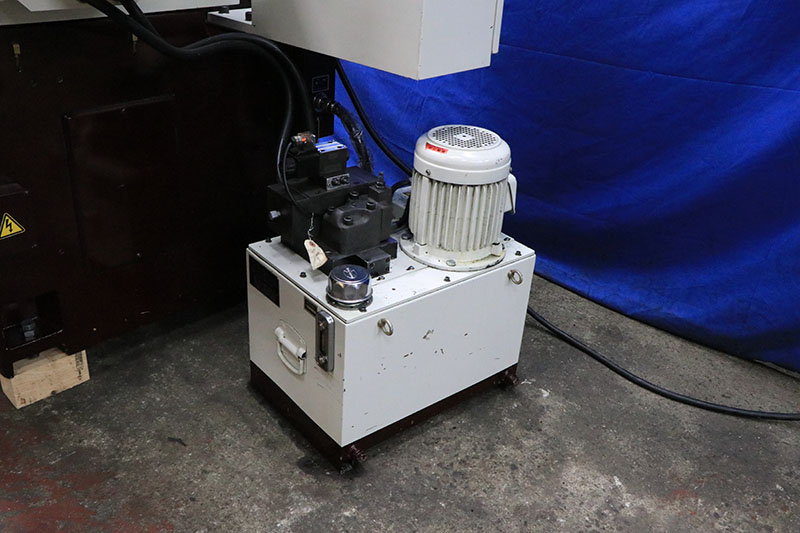

EXTERNAL HYDRAULIC SYSTEM
AUTO LUBE SYSTEM
2 H.P SUPER-PRECISION DIRECT DRIVE SPINDLE,
 3/60/230-460 VOLTS

 EQUIPPED WITH:

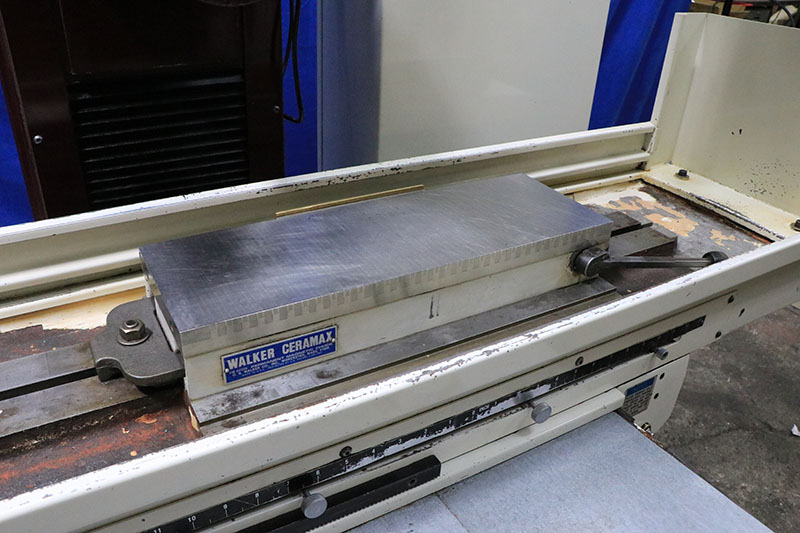

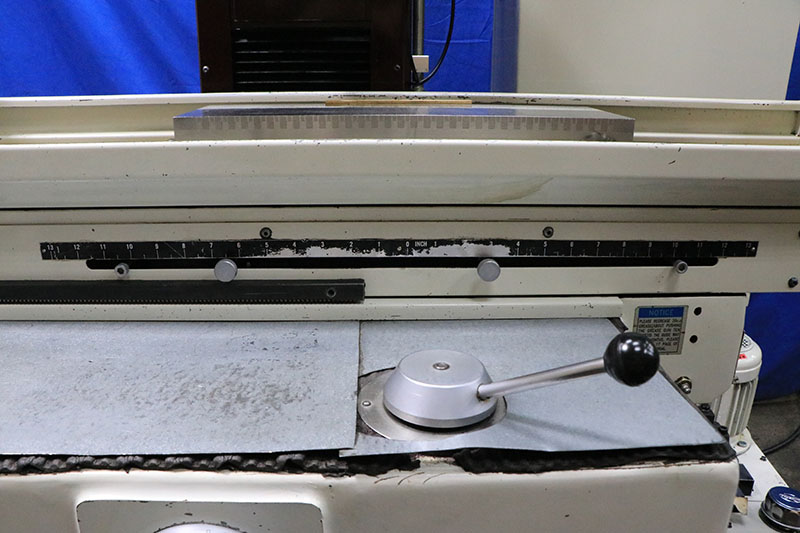

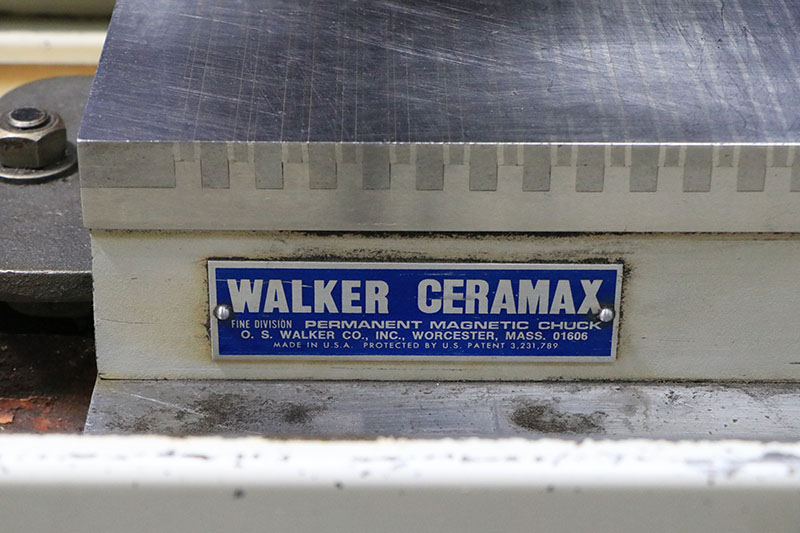

8" X 18" O.S. WALKER "CERAMX" FINE DIVISION
  PERMANENT MAGNETIC CHUCK

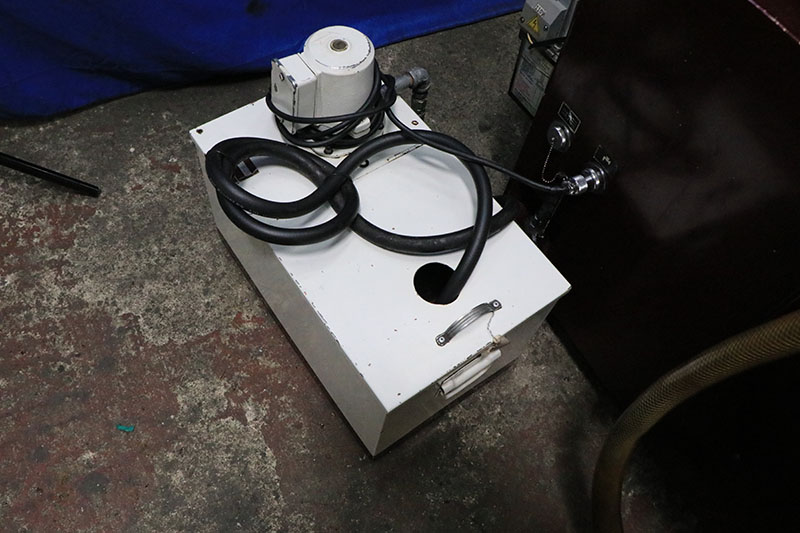

COOLANT SYSTEM COMPLETE W/SPLASH GUARDS
MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLT OPERATION

Link to video:
https://youtu.be/X444jz-yMbQ?si=yBISaxHFtm0R_rrH

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE**
** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
