Chevalier FSG-B818CNC CNC SURFACE GRINDERS

Price on Request

Make:
Chevalier
Model:
FSG-B818CNC
Year:
2000
Ref #:
157316

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

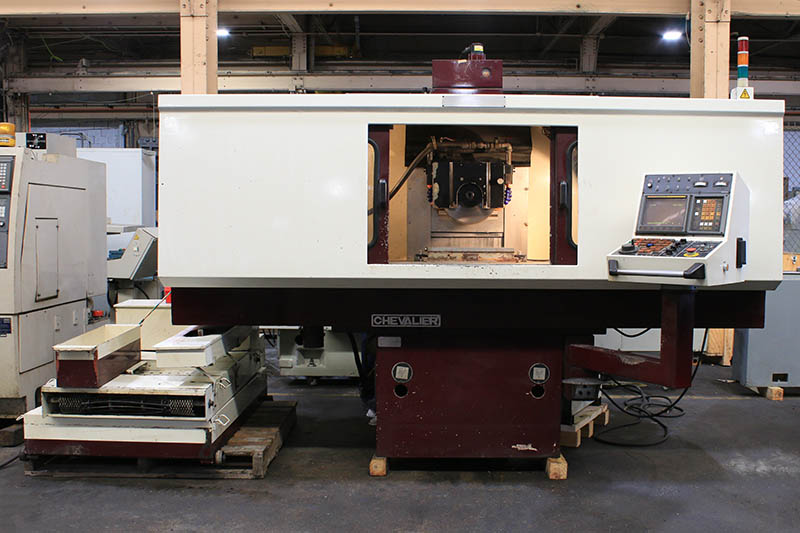

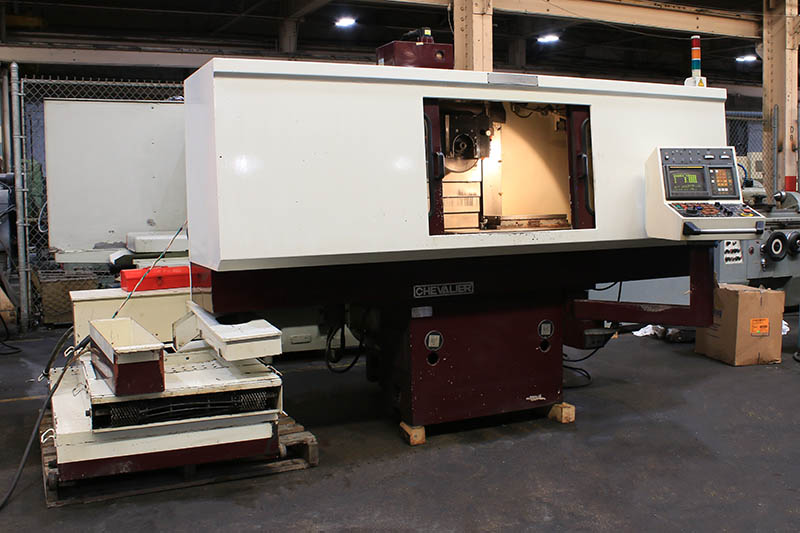

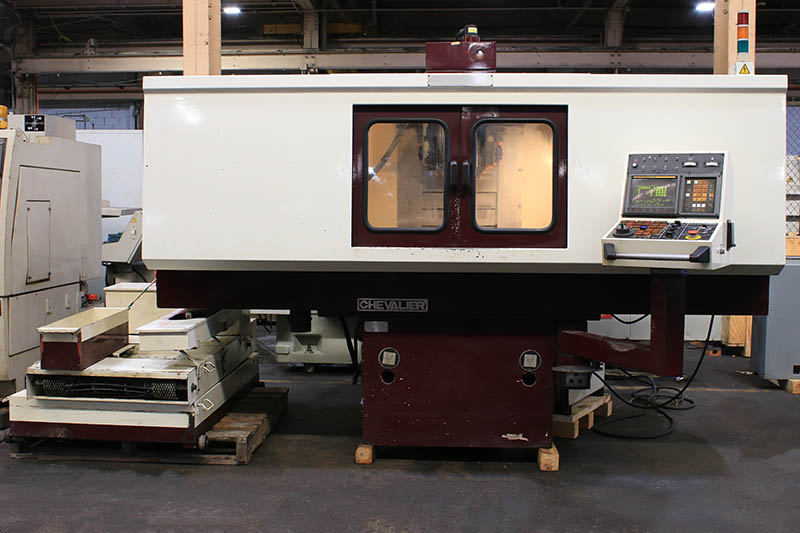

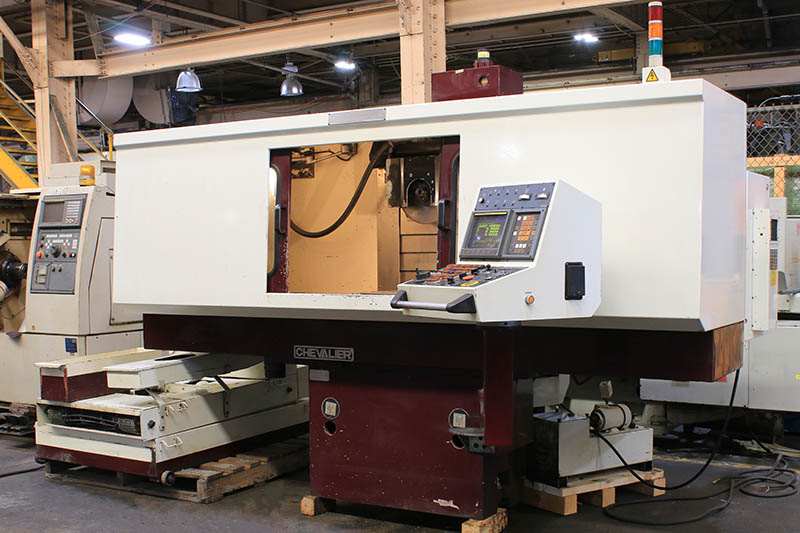

  8" X 18" CHEVALIER CNC COLUMN TYPE SURFACE GRINDER, ALL THREE AXES ARE
 BALLSCREW DRIVEN, WITH FANUC OMC 3-AXIS CNC CONTROL & SERVO MOTORS

* PROFILE, SURFACE, FORM, STEP, INDEX & CREEPFEED *

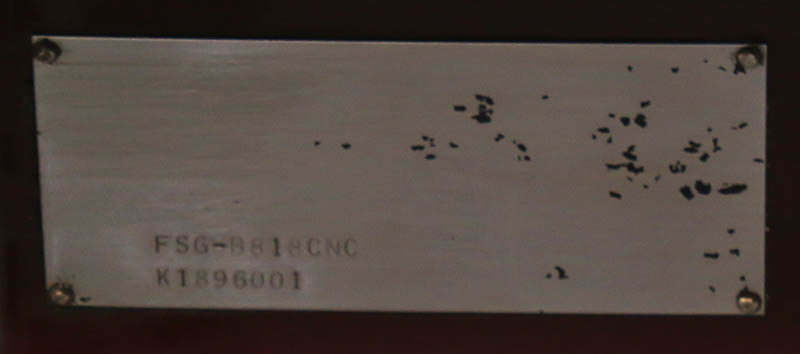

MODEL: FSG-B818CNC    S/N: K1896001     NEW: 2000


SPECIFICATIONS:
TABLE SIZE:                               8" X 18"
MAX DIST FR TABLE TO SPINDLE CENTERLINE:  19"
CROSS TRAVEL, MAX                         11"
COLUMN FEED INFINITELY VARIABLE           0 TO 13' FPM
T-SLOT SIZE X NUMBER:                     15/32" X 1
MAXIMUM TABLE LOAD:                       440LBS
TABLE SPEED - INFINITELY VARIABLE:        0.032 to 49' FPM
MAXIMUM LONGITUDINAL TRAVEL:              25 1/2"
WHEELHEAD  FEED - INF VARIABLE:           0-20IPM
GRINDING SPEED:                           500 to 3,500 RPM
POWER RATING:                             10 HP
GRINDING WHEEL:                           12" x 1- 1/4" x 3"

MACHINE WEIGHT:                           8,700 LBS.
ACTUAL DIMS OF MACHINE:                   118" X 92"W X 93"H

EQUIPPED WITH:

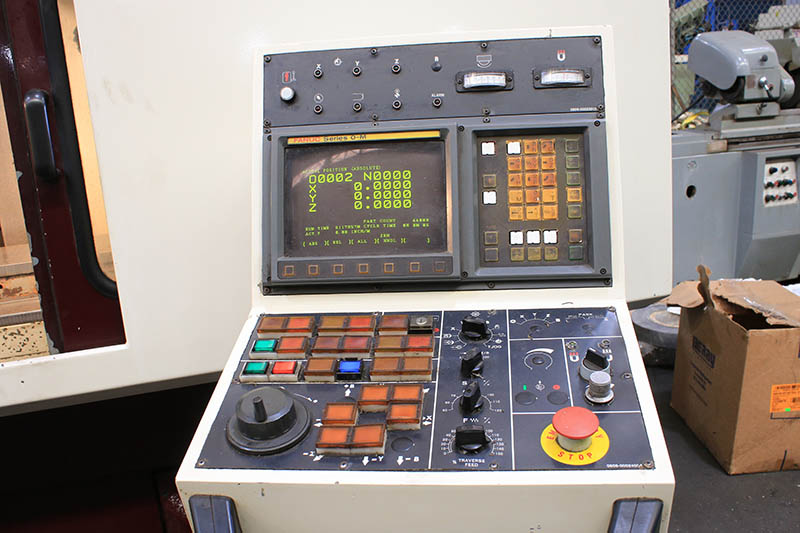

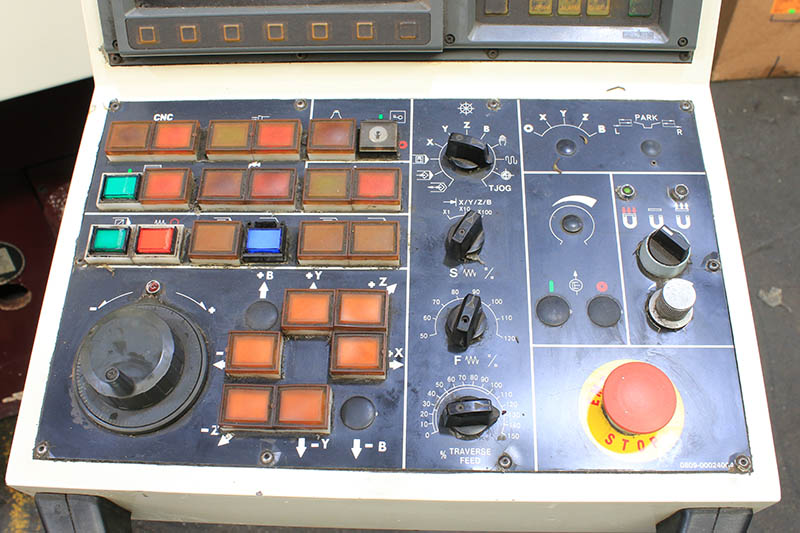

FANUC OMC 3-AXIS CNC CONTROL

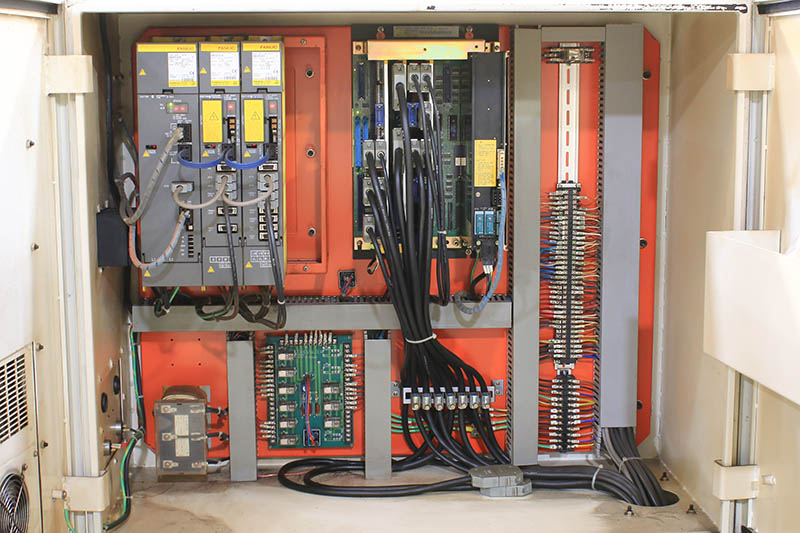

FANUC RED CAP AC SERVO MOTORS
-CRT DISPLAY
-RS-232 PORT
-0.0001" LEAST INPUT COMMAND

-FOUR STANDARD GRINDING CYCLES: CRISS-CROSS, SURFACE,
  PLUNGE AND PITCH MODES WITH AUTOMATIC WHEEL DRESSING AND
  COMPENSATION. THIS MAKES THE MACHINE HIGHLY CAPABLE
  TO DO PROFILE (CONTOUR) GRINDING, CREEPFEED GRINDING,
  FORM GRINDING AND STEP GRINDING WITH AUTO WHEEL DRESS
  WITH COMPENSATION.

10 H.P. SPINDLE MOTOR/3/50-60/230-460 VOLTS
YASKAWA "616PC5" VARISPEED DRIVE FOR THE SPINDLE

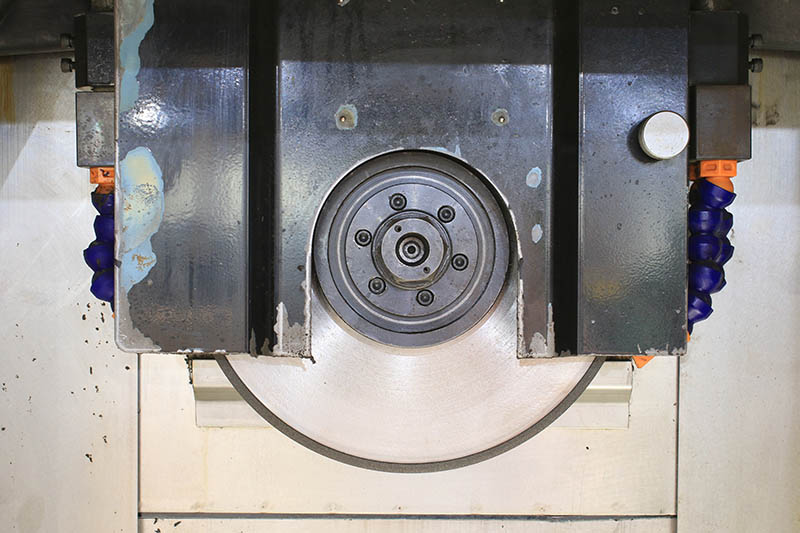

MACHINE HAS A 12" DIAMOND GRINDING WHEEL ON IT
PRECISION BALLSCREWS ON CROSSFEED, ELEVATING AND TABLE
AC SERVO MOTOR DRIVE ON ALL 3 AXES FOR CREEPFEED GRINDING
EXTREMELY RIGID SPINDLE THAT ARE SUPPORTED BY SIX ANGULAR
  CONTACT BALL BEARINGS.
THE COLUMN TRAVERSES ON PRECISION ROLLER BEARINGS ON
  HARDENED AND GROUND GUIDEWAYS.
T-SHAPE DESIGN MACHINE BASE GIVES IT THE RIGIDITY FOR HEAVY DUTY OPERATIONS.

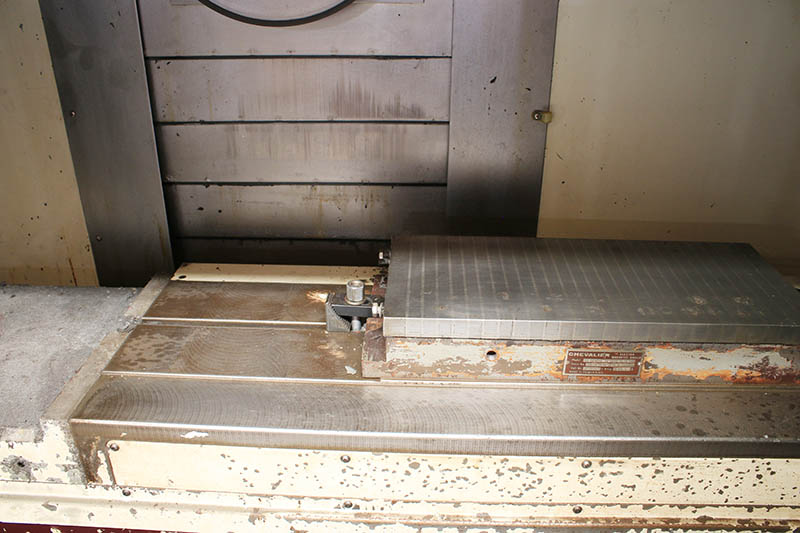

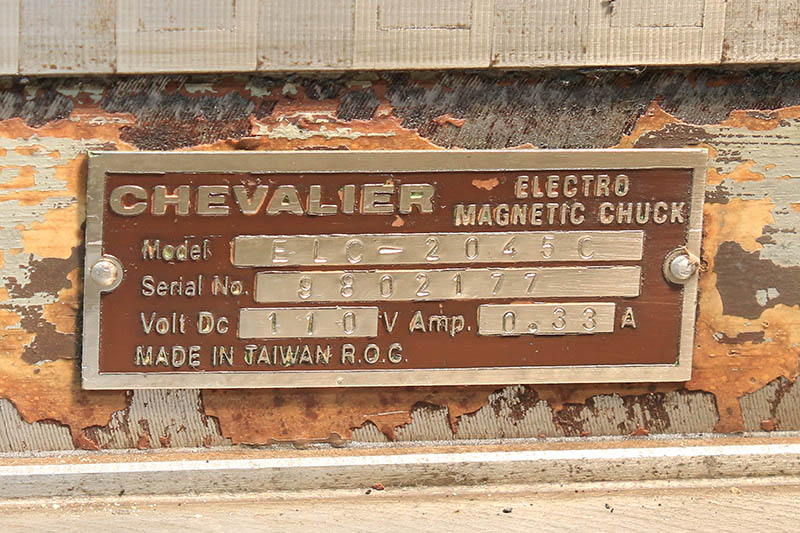

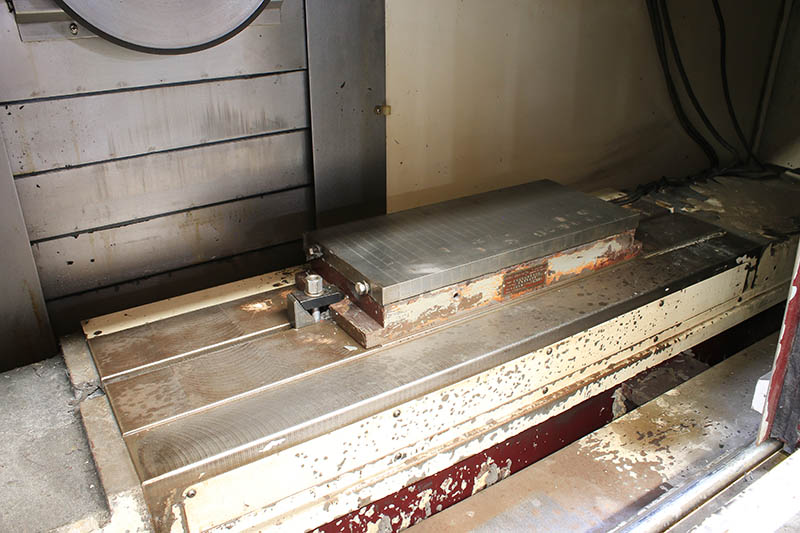

8" x 18" ELECTRO-MAGNETIC CHUCK
CHUCK CONTROL BUILT-IN TO THE CONSOLE WITH VARIABLE HOLD INTENSITY

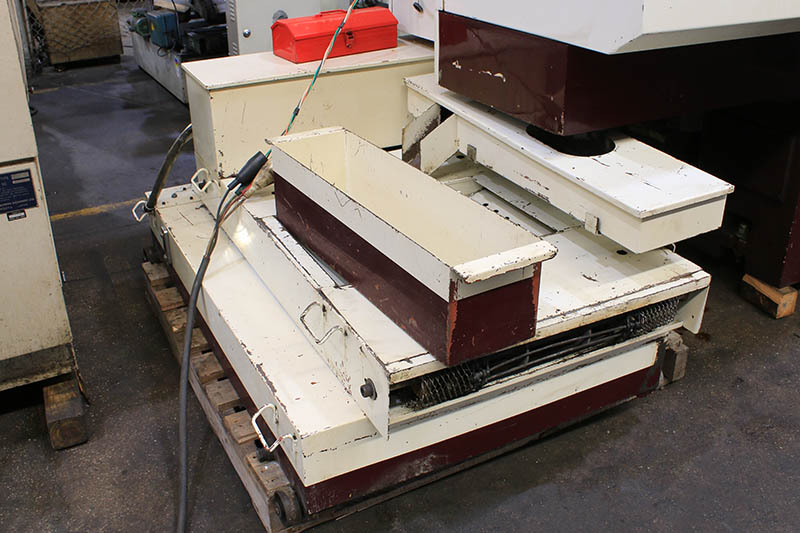

LARGE COOLANT SYSTEM WITH PAPER FILTRATION
FULL ENCLOSURE
MACHINE IS PRESENTLY WIRED FOR 3ph/50-60Hz/230 VOLTS

SPECIAL NOTE:
THIS MACHINE RUNS BEAUTIFULLY.  THE SPINDLE IS SUPER QUIET.


** EXCEPTIONAL (ORIGINAL) CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
