Chicago 135 PRESS BRAKES, MECHANICAL

$4,450

Make:: Chicago

Model:: 135

Year:: 1973

Ref #:: 155603

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

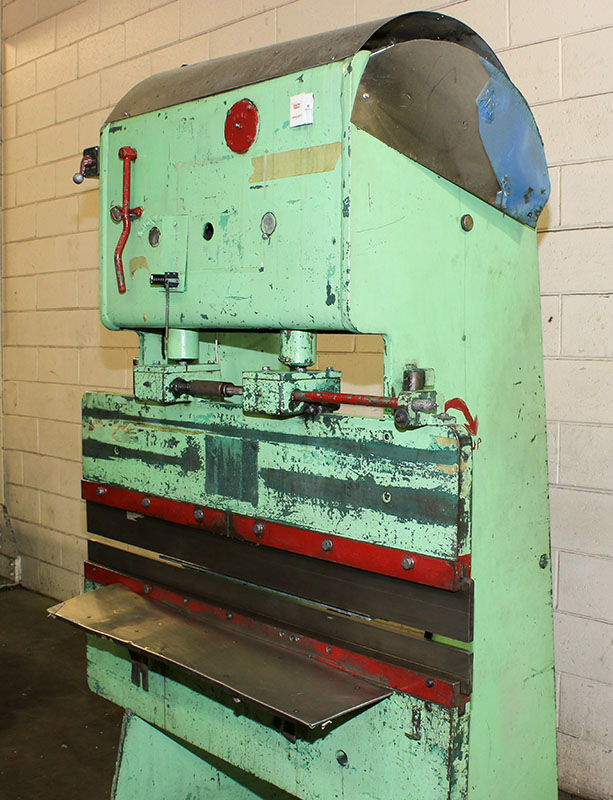

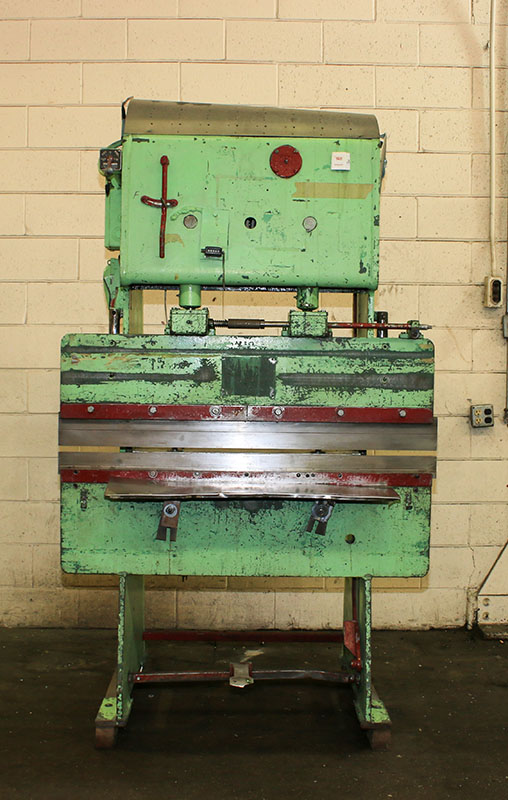

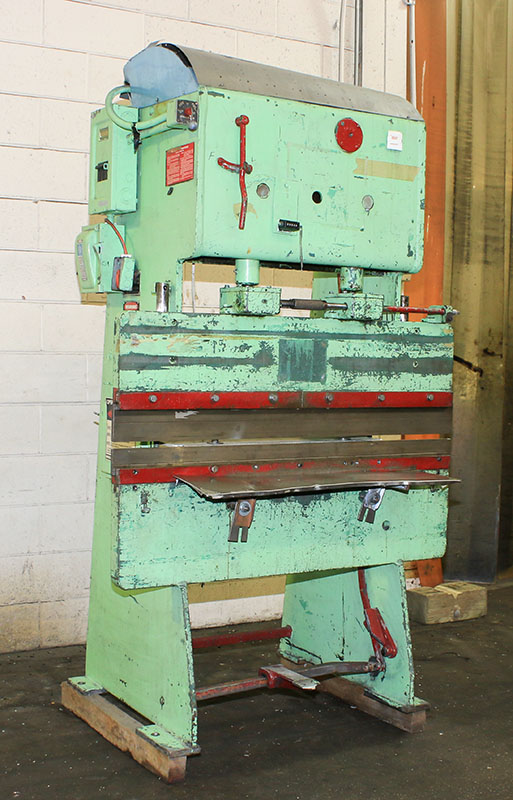

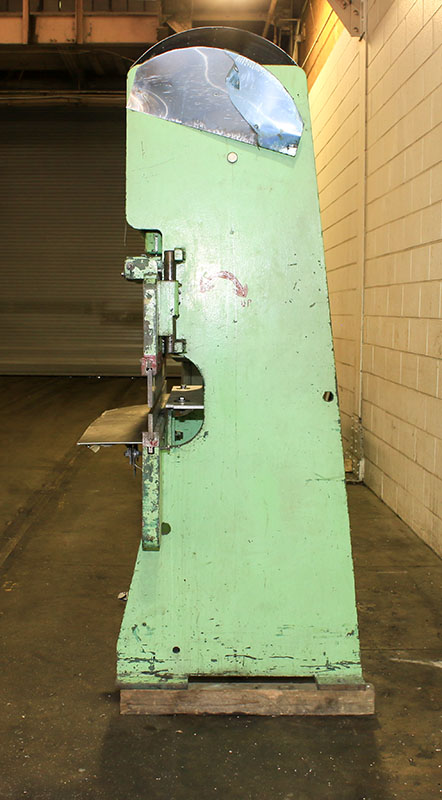

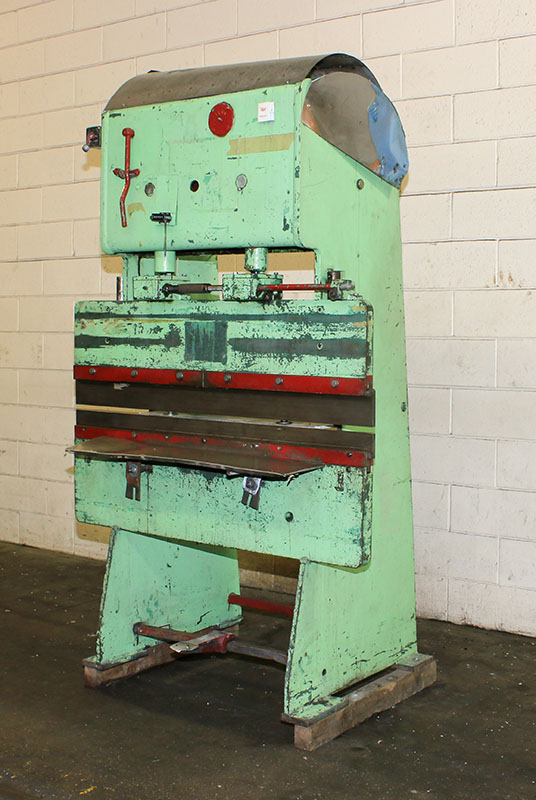

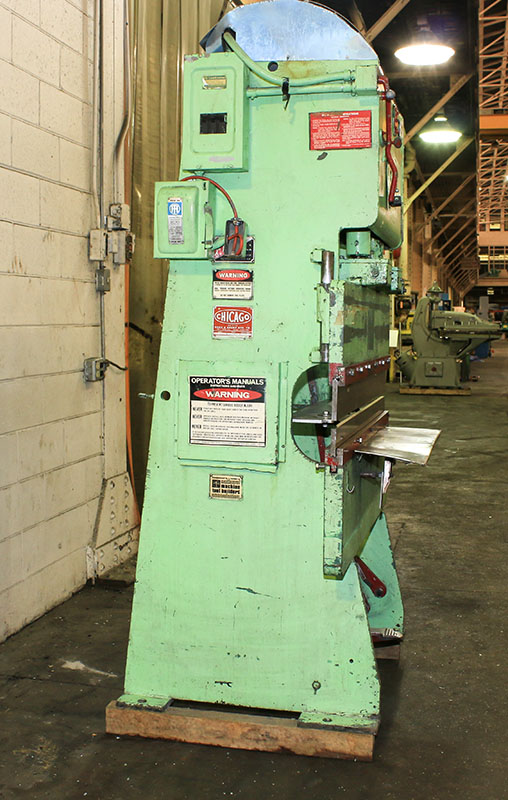

15 TON x 4' DREIS & KRUMP "CHICAGO" MECH PRESS BRAKE

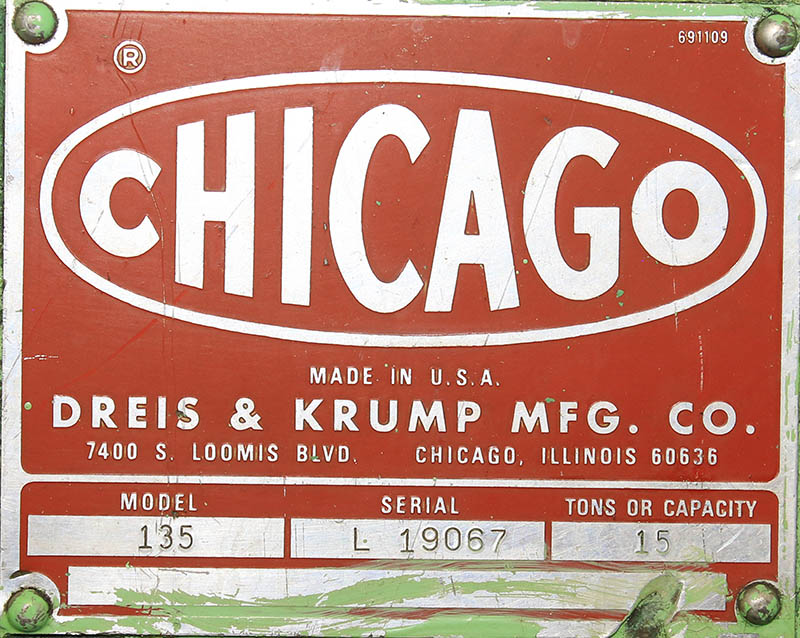

MODEL 135     S/N L-19067     NEW 1973

CAPACITY, MILD STEEL OVER DIE OPENING .. 48" X 16 GA
........................................ 36" X 14 GA
........................................ 30" X 12 GA
STROKE ................................. 2"
RAM ADJUSTMENT ......................... 3"
DISTANCE BETWEEN HOUSINGS .............. 31"
STROKES PER MINUTE ... VARIABLE ........ 25 TO 60
DIA. SPACE, STROKE DOWN ADJ. UP ........ 8"
THROAT ................................. 6"
DRIVE MOTOR ............................ 3/4 HP, 1800 RPM, 220 VOLT
DIMENSIONS ............................. 48" L x 31" W x 82" H
APPROX. SHIPPING WEIGHT .......... 2,100 LBS.

EQUIPPED WITH:
- 4 FOOT DIE HOLDER
- FOOT TREADLE

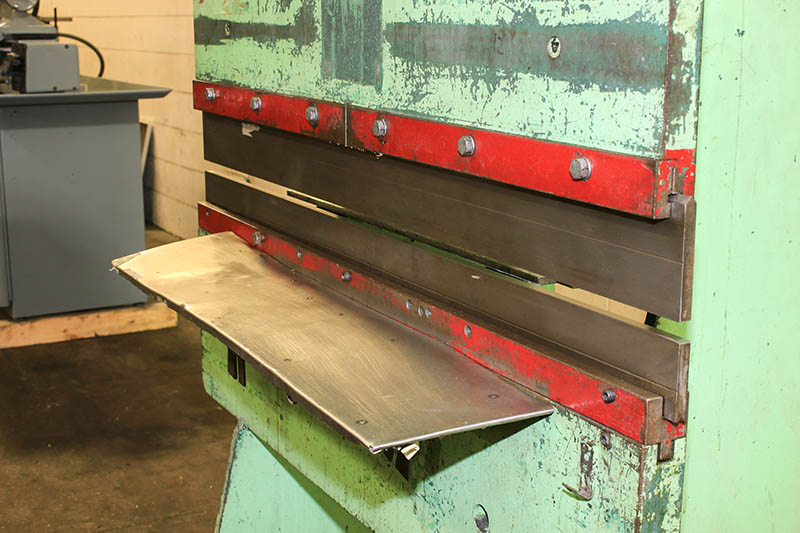

- DIE SET (AS SHOWN)

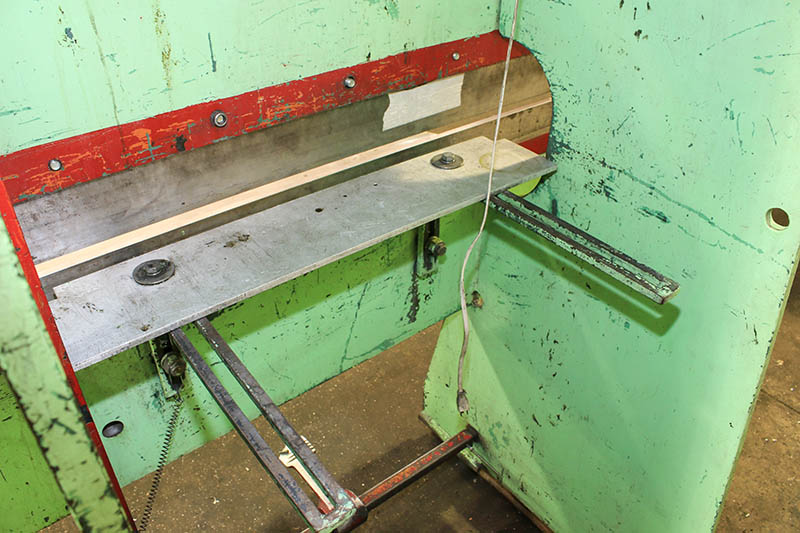

- REAR SHEET SUPPORTS
