Cincinnati-Heald 274 UNIVERSAL WITH LONG BASE ID / INTERNAL GRINDERS

Price on Request

Make:: Cincinnati-Heald

Model:: 274 UNIVERSAL WITH LONG BASE

Year:: 1970's

Ref #:: 158478

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

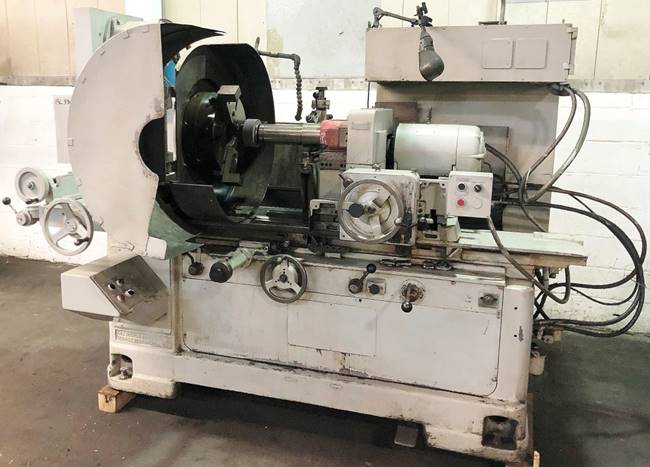

  CINCINNATI-MILACRON HEALD MODEL No. 274 UNIVERSAL
   "LARGE CAPACITY - LONG BASE INTERNAL GRINDER"

   MODEL:  No. 274      S/N: 40414      NEW: 1976

SPECIAL NOTE:
MACHINE WAYS HAVE BEEN REDONE IN 2022 BY A REKNOWNED
 MACHINE TOOL REBUILDER, "AMERICAN MACHINE TOOL REPAIR
  & REBUILDING CO. INC." OF RANDOLPH, NJ
  (973) 927-0820 - **
  MACHINE NEEDS TO BE REASSEMBLED.  THIS CAN BE
  READY FOR DELIVERY 4 WEEKS AFTER ORDER IS RECEIVED **


** A INTERNAL GRINDER WITH WIDE ANGULAR
   CAPACITY, BROAD APPLICATION VERSATILITY,
   SPEED, EASE OF OPERATION.  THIS VERSATILE
   MACHINE GRINDS STRAIGHT OR TAPERED HOLES,
   STRAIGHT OR TAPERED EXTERNAL SURFACES,
   AND FLAT, CONCAVE OR CONVEX FACES. **


SWING OVER TABLE ....................... 34.5"
  (WORKHEAD PARALLEL TO
  TABLE ON CENTER)
SWING INSIDE CHUCK GUARD ............... 31"
ANGULAR ADJ. OF WORKEAD ................ 0 TO 90 DEG.
TABLE WORKHEAD CROSS SLIDE ............. FRONT, MAX. 6"
                                         REAR, MAX. 15"
DIAMETER OF WORKHEAD SPINDLE FLANGE .... 9- 5/8"
WORKHEAD SPINDLE SPEEDS ................ 40 TO 350 RPM
TOTAL TABLE TRAVEL ..................... 30- 1/4"
INFINITELY VARIABLE TABLE SPEED ........ 0 TO 15' FPM
RAPID TRAVERSE OF TABLE ................ 35' FPM


CROSS FEED, 1 REV. OF HANDWHEEL ........ 0.050" ON DIA.
ROUGHING CROSS FEED - ADJ. FROM ........ 0.0001" TO .0006" DIA.
FINISHING CROSS FEED - NON ADJUSTABLE .. 0.0001" ON DIA.
ONE TURN OF WORKSLIDE HANDWHEEL ........ 0.100"

APPROX. DIMENSIONS...................... 120" X 81"W
APPROX. MACHINE WEIGHT.................. 8,850 LBS


MACHINE FEATURES:
LARGE CAPACITY, LONG BASE FOR LONG WORK, WITH
  30-1/4" TABLE TRAVEL34.5" SWING TO TABLE IN
  THE GAP, 31" SWING INSIDE CHUCK GUARD,
  THE CENTER OF GRINDING WHEEL TO TABLE
  TOP IS 16" (32" SWING)
HYDRAULIC TABLE FEEDS WITH HANDWHEEL FOR MANUAL OPERATION
AUTOMATIC FEEDS OF THE WWHEELHEAD, HAS "PLUNGE" FEED
HEAVY DUTY WORKHEAD
WORKHEAD HAS HANDWHEEL FOR CROSS-SLIDE MOVEMENT
WORKHEAD SWIVELS 0 TO 90 DEGREES
INFINITELY VARIABLE SPEED CONTROL FOR WORKHEAD SPINDLE SPEEDS
SELF-CONTAINED HYDRAULIC SYSTEM
HYDRAULIC SYSTEM IN THE REAR OF THE MACHINE,
 WITH NEWER 3 H.P. BALDOR MOTOR & HYDRAULIC PUMP
10 H.P./3/60/230-460 VOLT MOTOR (WHEELHEAD)

EQUIPPED WITH:
15" DIAMETER 3-JAW CHUCK
HEALD RED HEAD I.D. SPINDLE,
  TYPE 407-160209-7,
  S/N: 110069,
  4,800 MAX. RPM,
 SPINDLE IS 12- 3/4" FROM THE CASTING TO THE WHEEL,
  WHEEL IS 5" DIAMETER x 2"WIDTH,
  THIS SPINDLE HAS BEEN REBUILT BY "SOPKO"
   IN THE RECENT PAST
FACING ATTACHMENT
MULTI-POSITION STOP FOR CROSS-SLIDE POSITIONING
DIAL INDICATOR HOLDER FOR MULTI-STOP
DROP DOWN WHEEL DRESSER
COOLANT SYSTEM
COMES WITH ORIGINAL ELECTRIC PRINTS
TAG ON THE MACHINE SAYS "CINCINNATI-MILACRON"
MACHINE IS PRESENTLY WIRED FOR 440 VOLTS


 ** INSPECT UNDER POWER OUR HARRISON, N.J. WAREHOUSE **
** - WAYS REDONE IN 2022 BY:
    "AMERICAN MACHINE TOOL REPAIR & REBUILDING CO. INC."
     OF RANDOLPH, NJ (973) 927-0820 - **

** WITH THE WAYS REDONE, OUR MACHINE IS SUPERIIOR
   IN ALL RESPECTS! **
** OFFERED WITH 30 DAY RETURN PRIVILEGE **
