Cincinnati LR, 1970, ROLL CAMBERING MECHANISM ROLL GRINDERS

Price on Request

Make:
Cincinnati
Model:
LR, 1970, ROLL CAMBERING MECHANISM
Year:
1970
Ref #:
178132

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

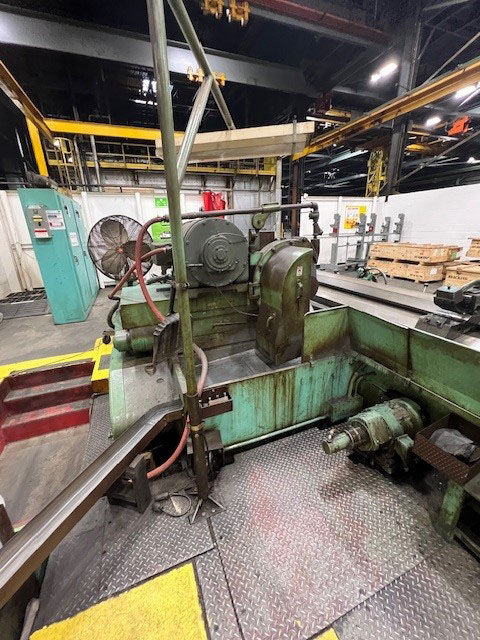

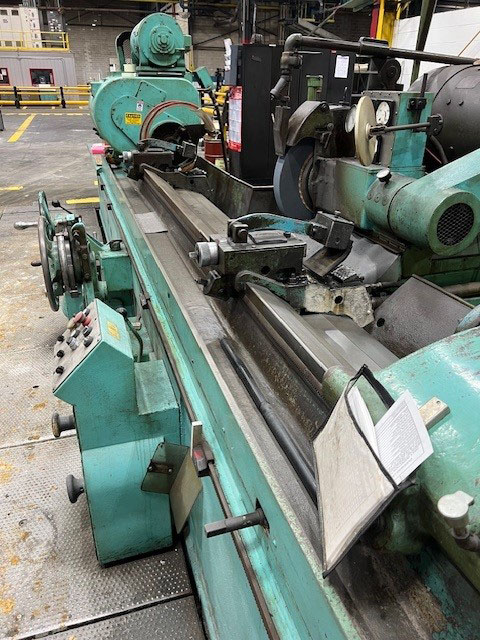

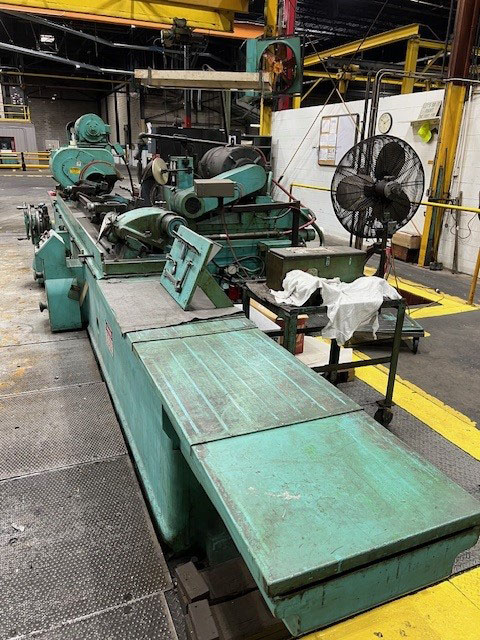

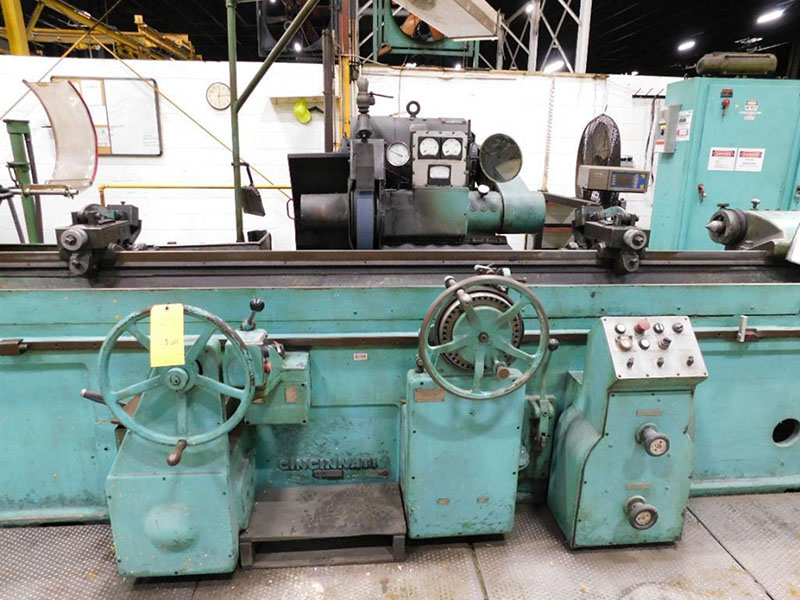

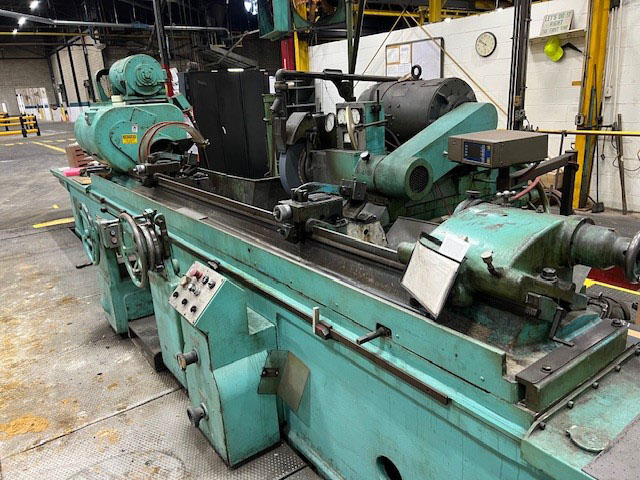

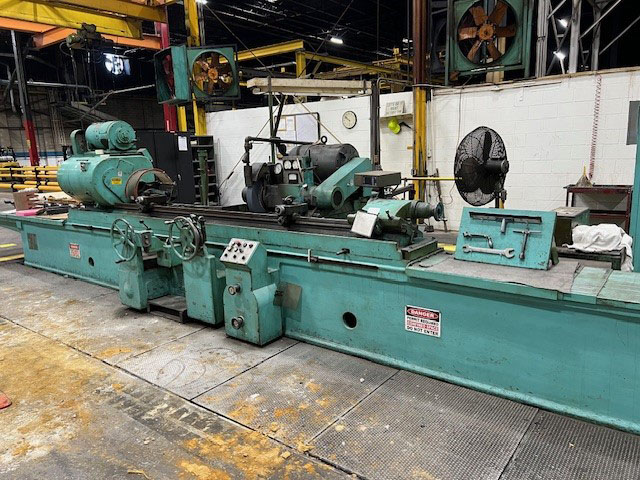

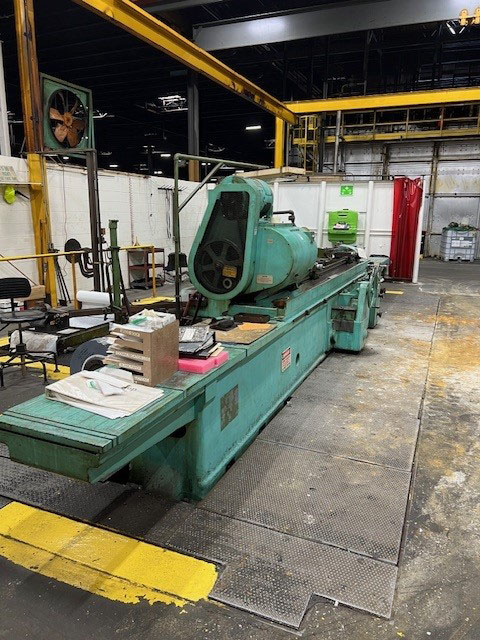

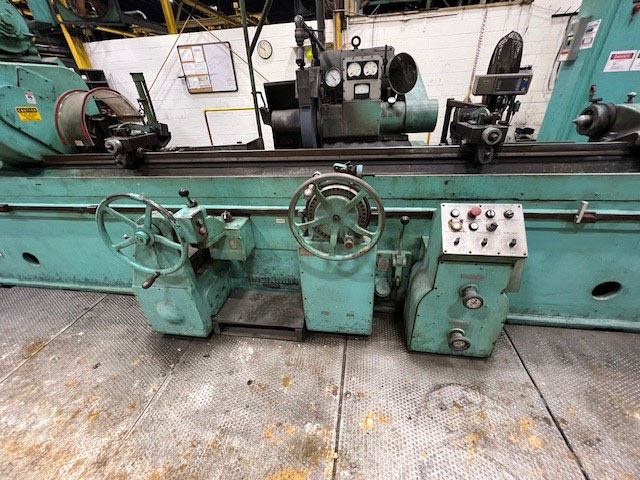

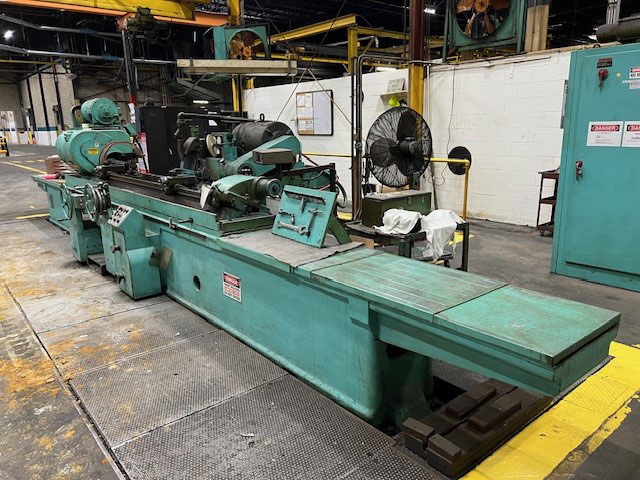

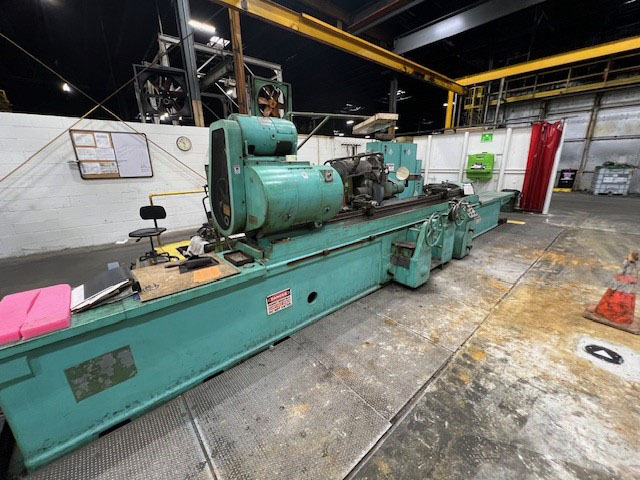

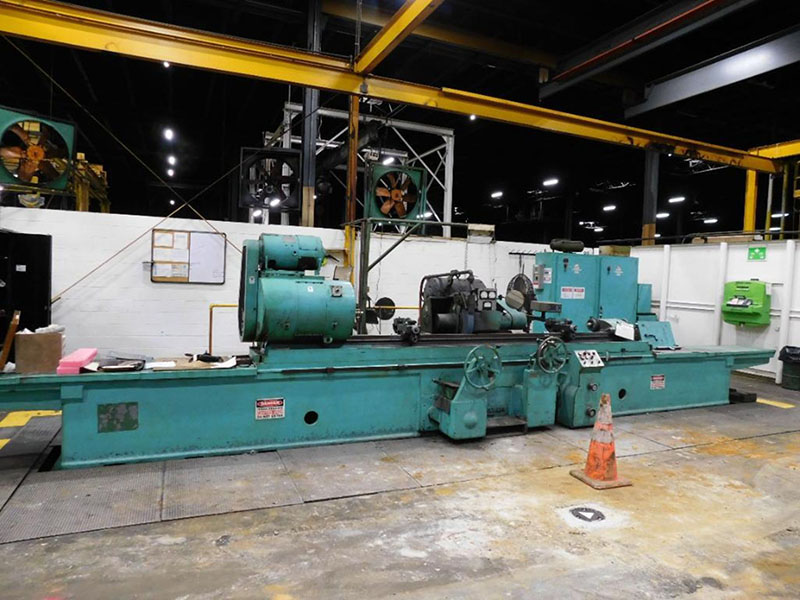

14" X 120" CINCINNATI "HEAVY DUTY" ROLL GRINDER
       WITH ROLL CAMBERING MECHANISM

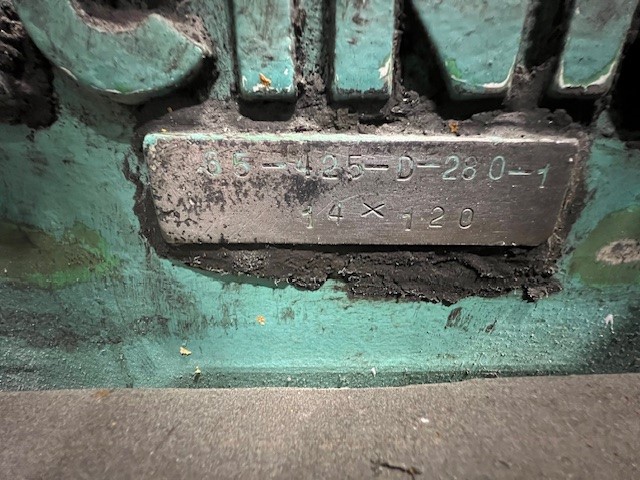

MODEL: LR     S/N: 65-425-D-280-1     NEW: 1970


CAPACITY:
SWING OVER TABLE ................. 14- 1/2"
DISTANCE BETWEEN CENTERS ......... 120"
MAXIMUM WEIGHT BETWEEN CENTERS ... 6,500 LBS.

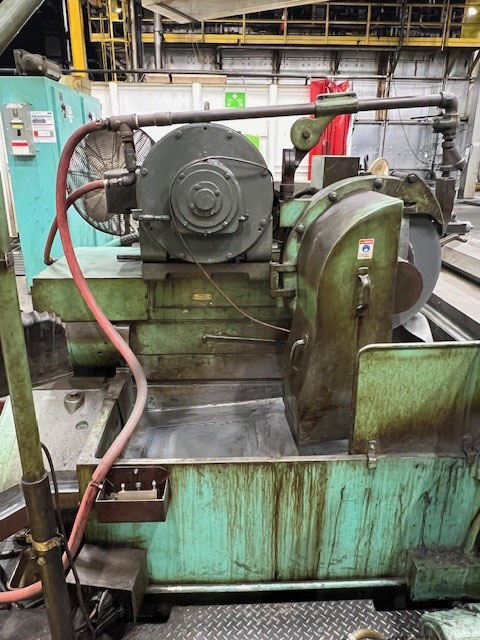

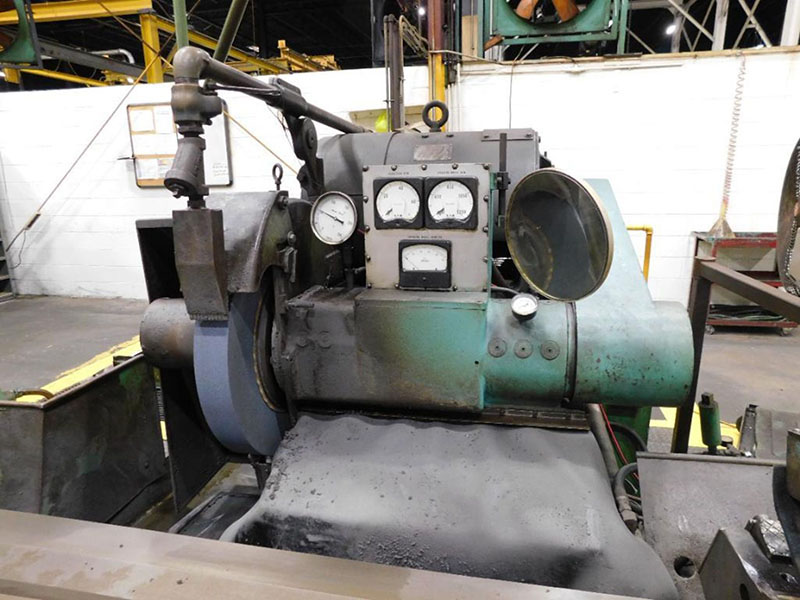

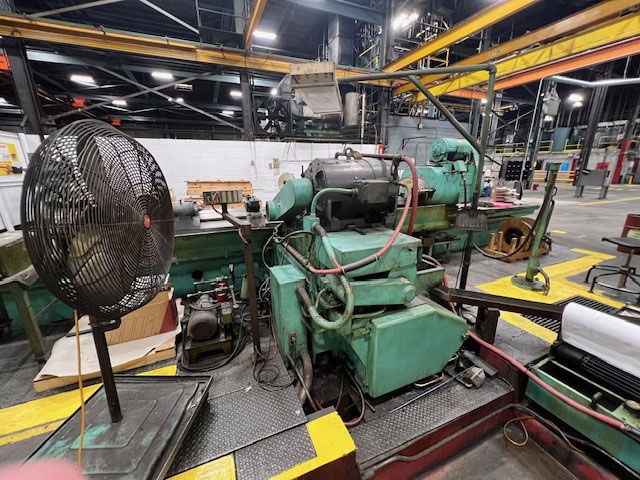

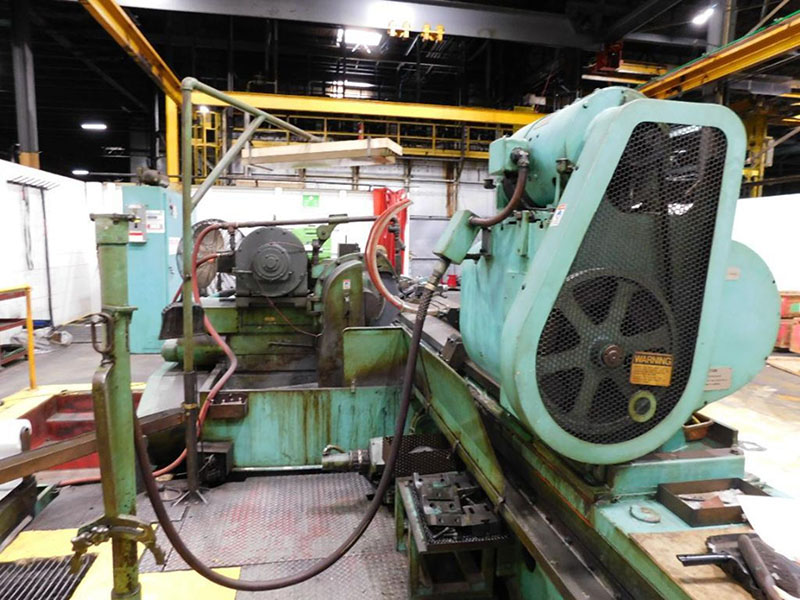

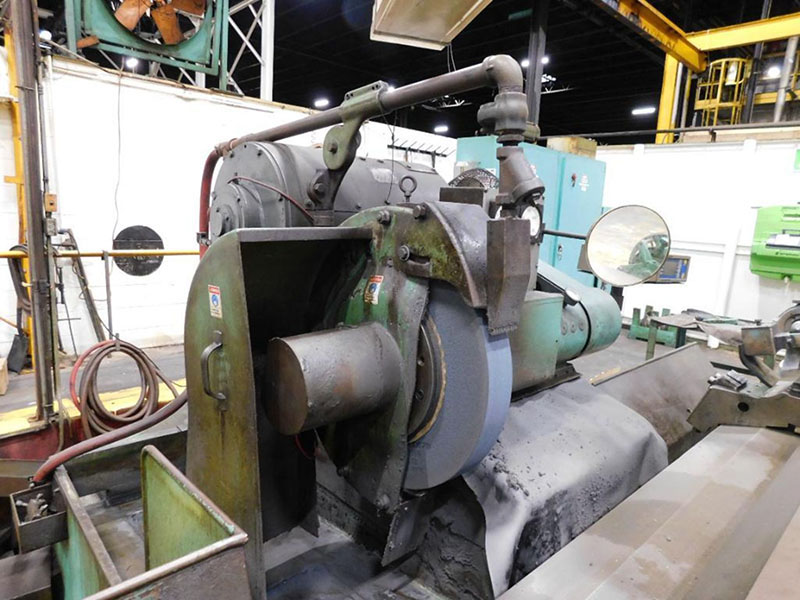

GRINDING WHEELHEAD:

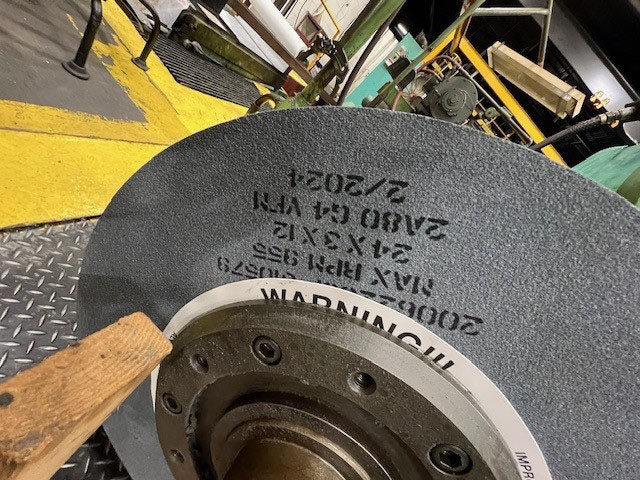

GRINDING WHEEL SIZE ....... 24" DIA. x 3"W x 12"B
GRINDING WHEEL RPM,
 INFINITELY VARIABLE ............. 450 TO 1250 RPM
MOTOR ............................ 15 HP
GRINDING WHEEL AMMETER ........... 0 TO 50 AMPS



TABLE TRAVERSE:
INF. VARIABLE TABLE SPEEDS ....... 3" TO 120" IPM

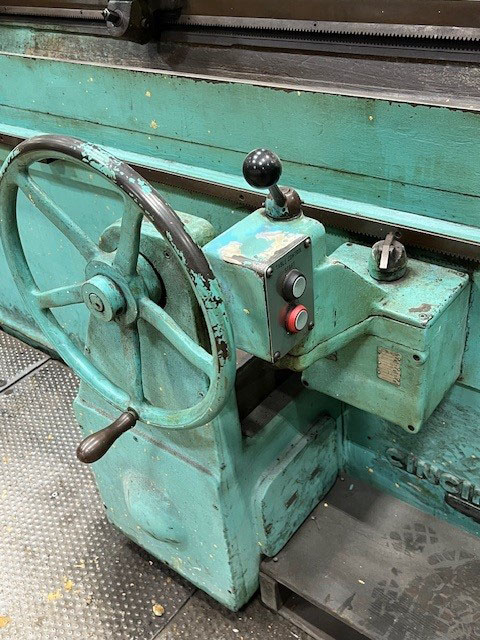

HAND TABLE TRAVERSE PER
 REVOLUTION OF HANDWHEEL
 (RAPID/SLOW) .................... 0.125"

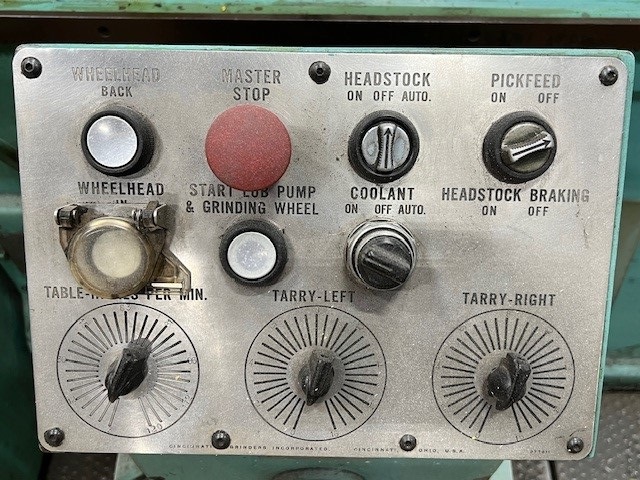

TABLE TARRY ADJUSTMENT
 (EACH END INDEPENDENT) .......... 0 TO 15 SEC.

INFEED ADJUSTMENTS:
MAXIMUM CROSSFEED ................ 11"
DIAMETER REDUCTION EACH REV.

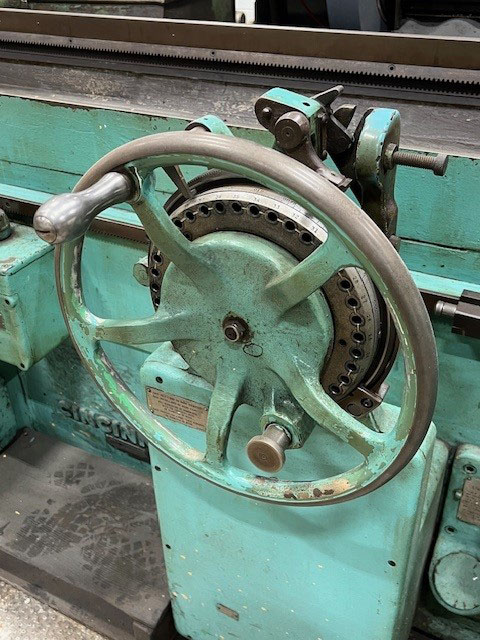

 OF CROSS FEED HANDWHEEL:
 (COARSE)  ....................... 0.100"
 (FINE) .......................... 0.001"
MINIMUM INFEED ON DIAMETER ....... 0.000050"

DIAMETER REDUCTION WITH AUTOMATIC
 PICK FEED ENGAGED AT EACH
 TABLE REVERSAL .................. 0.0002" TO 0.0012"
POWER CROSS FEED RATE
 (INFINITELY VARIABLE) ........... 0 TO 16" IPM

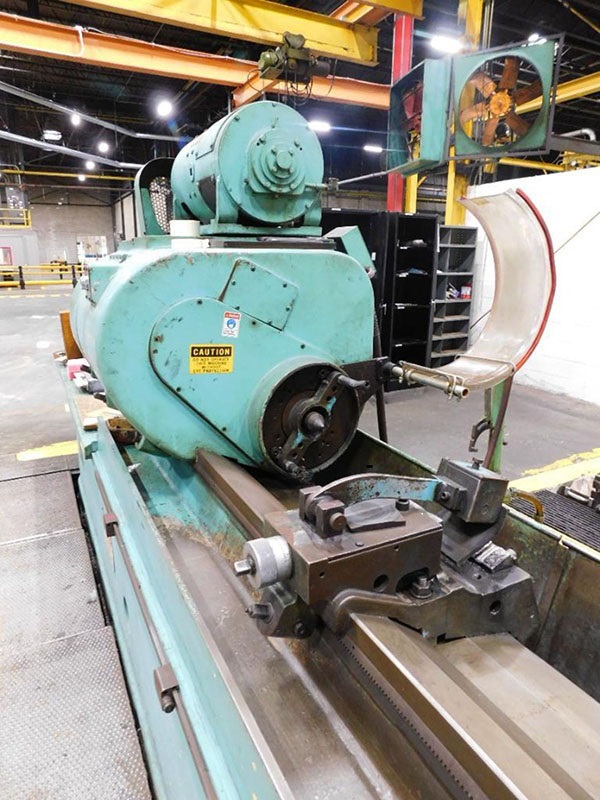

HEADSTOCK:
MOTOR ............................ 2 H.P.
TAPER HOLE IN SPINDLE ............ #13 B&S
INFINITELY VARIABLE
  WORKHEAD SPEEDS ................ 0 T0 75 RPM


APPROX. FLOOR SPACE REQ........... 34' L-R, 12' F-B, 6'H
APPROX. MACHINE WEIGHT ........... 38,000 LBS

EQUIPPED WITH:

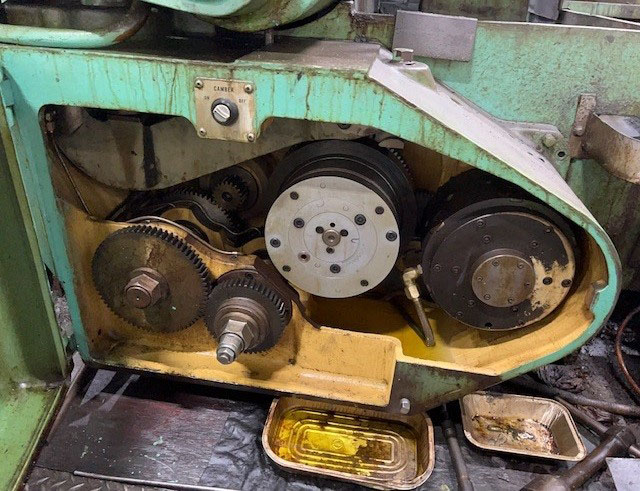

ROLL CAMBERING MECHANISM, TILTING WHEELHEAD
TELESCOPING WAY GUARDS

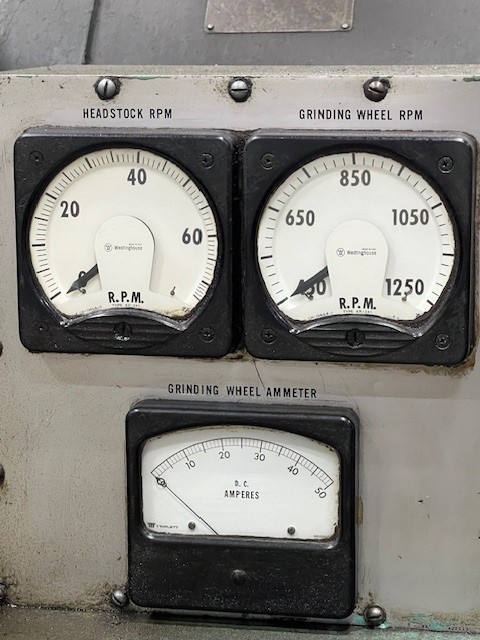

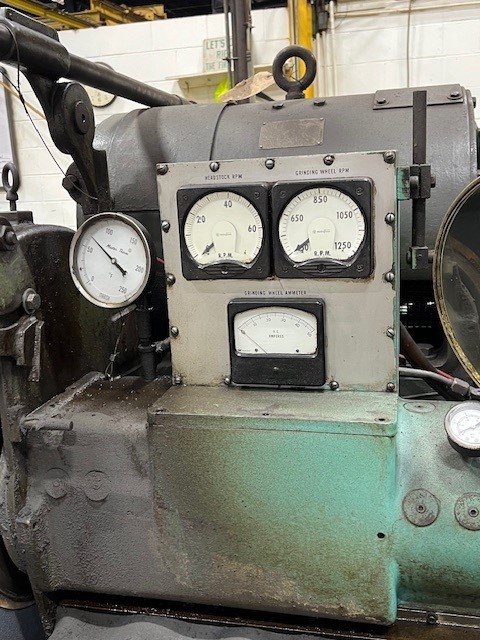

TACHOMETER FOR HEADSTOCK SPINDLE SPEEDS
TACHOMETER FOR GRINDING WHEEL SPEEDS

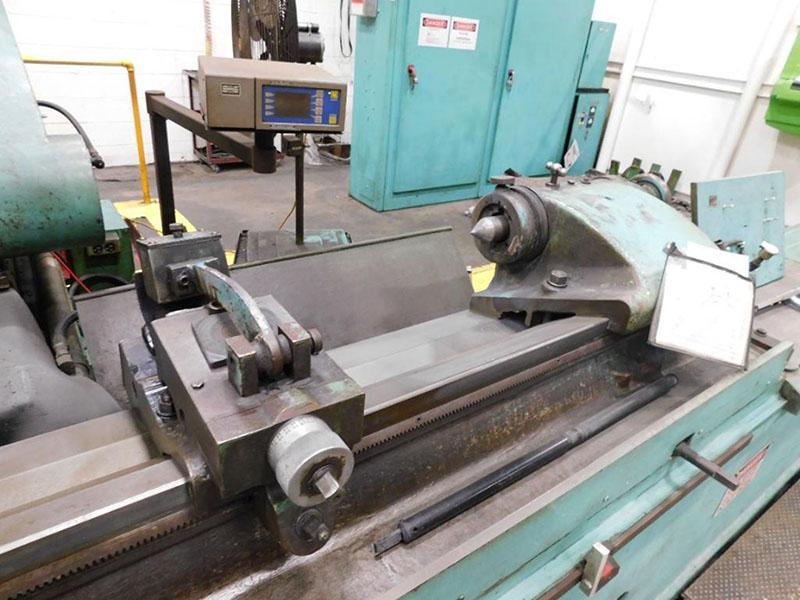

(2) JOURNAL RESTS WITH BABBIT SHOES

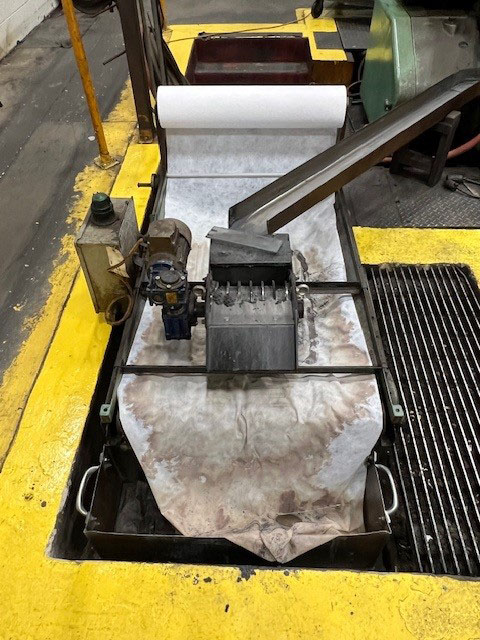

COOLANT SYSTEM WITH BOTH PAPER FILTRATION
 AND A MAGNETIC SEPARATOR

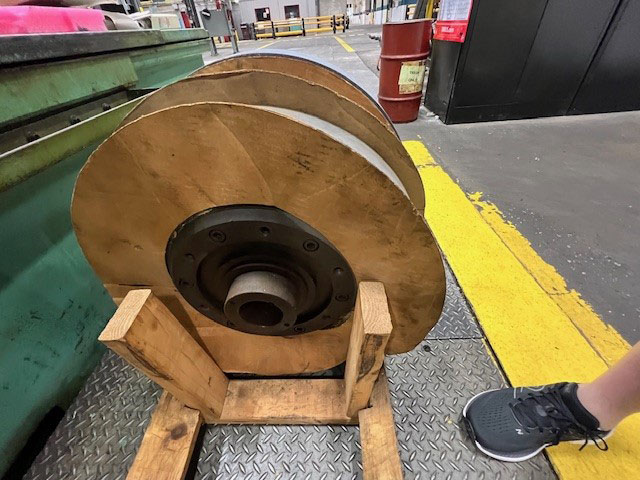

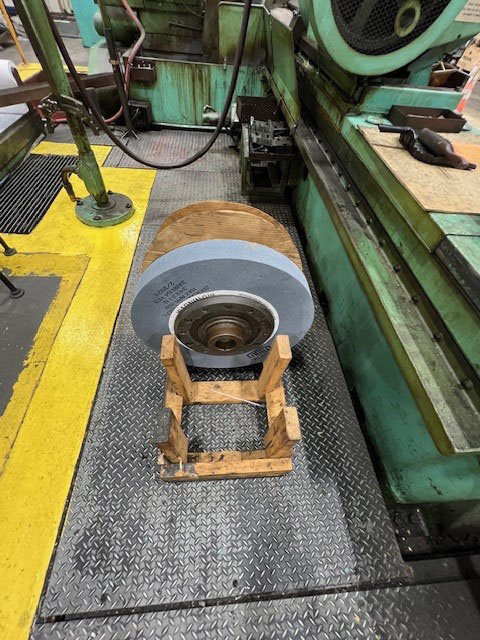

EXTRA GRINDING WHEELS & HUBS

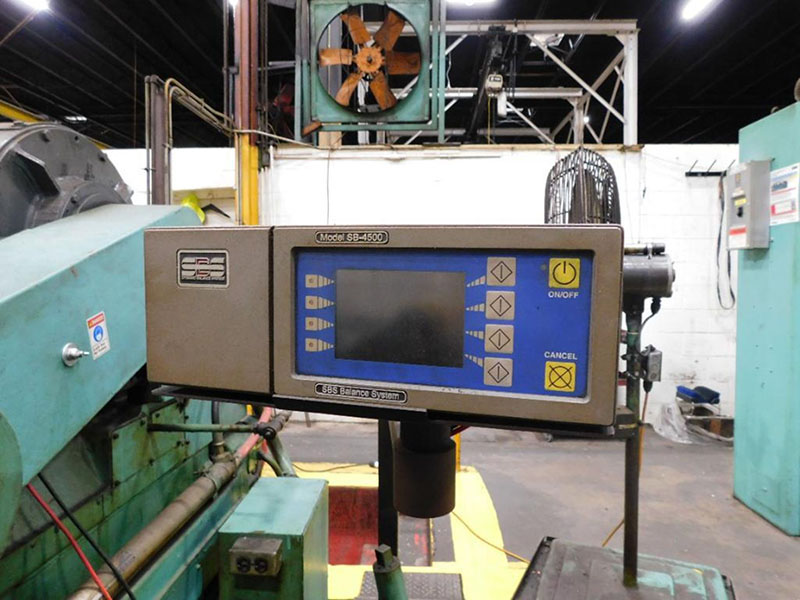

"SBS" "SB-4500" ELECTRONIC AUTO WHEEL BALANCING
FILMATIC SPINDLE BEARINGS

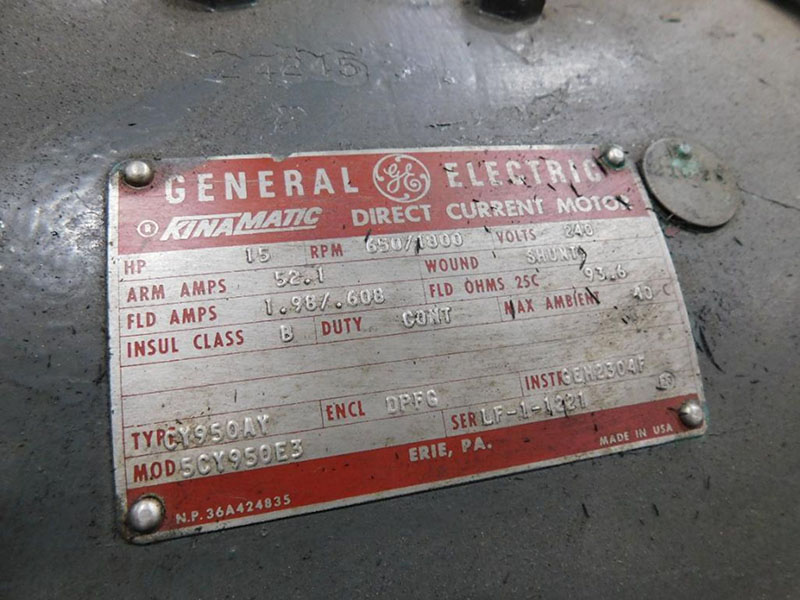

GENERAL ELECTRIC "KINAMATIC" HEAVY TORQUE 15 H.P.
 D.C. MOTOR, SPEED RATIO OF MOTOR IS 650/1,800 RPM

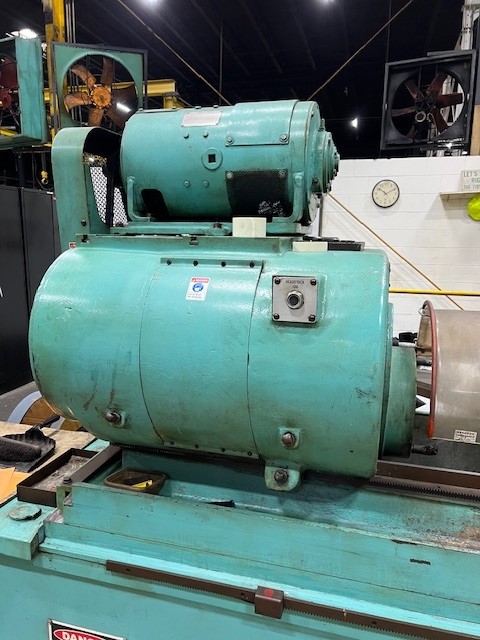

HEADSTOCK, 2 H.P. D.C. MOTOR, 500/2,000 RPM
TABLE DRIVE MOTOR, 3/4 H.P. D.C. THYMOTROL 45/1,800 RPM

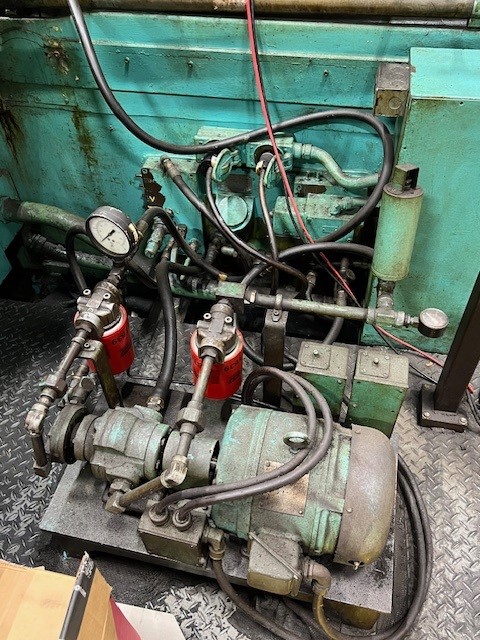

CENTRALIZED LUBRICATION SYSTEM
WIRED PRESENTLY FOR 3/60/480 VOLTS

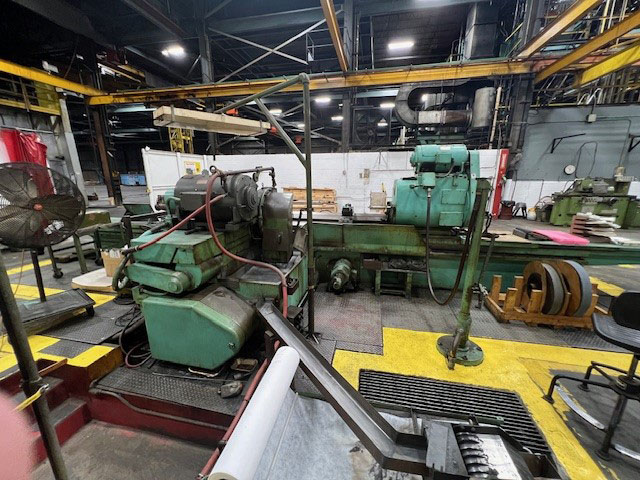

** IN PLANT, SOUTHERN NJ NEAR PHILADELPHIA **
** EXCEPTIONAL CONDITION & APPEARANCE **
