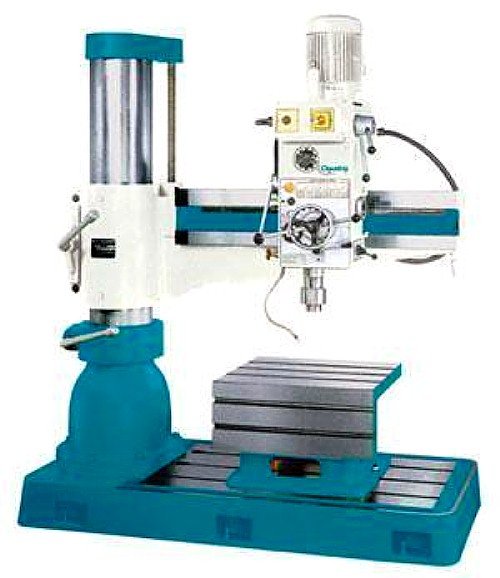

Clausing CL920A NEW RADIAL DRILLS

Price on Request

Make:: Clausing

Model:: CL920A

Year:: NEW

Ref #:: 149370

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com


NEW 3' x 8.28" CLAUSING RADIAL DRILL
 MODEL: CL920A

SPECIFICATIONS:
WORKING AREA:
COLUMN SLEEVE DIA.: ............... 8.28"
COLUMN FACE TO SPINDLE CENTER:
-MAXIMUM: ......................... 37.4"
-MINIMUM: ......................... 8.7"
SPINDLE HEAD TRAVEL: .............. 28.7"
BASE SURFACE TO SPINDLE END:
-MAXIMUM: ......................... 47.6"
-MINIMUM: ......................... 13.8"
ARM VERTICAL TRAVEL: .............. 25.2"
ARM ROTATION (RIGHT & LEFT): ...... 180 DEGREES
BASEPLATE WORKING SURFACE: ........ 35.5" X 25.3"
BOX TABLE AREA:
-LENGTH: .......................... 23.6"
-WIDTH: ........................... 17.5"
-HEIGHT: .......................... 15"
BASE DIMENSIONS:
FLOOR AREA: ....................... 49.6" X 25.2"
HEIGHT:  .......................... 6.3"

CAPACITIES:
DRILLING
-IN STEEL ......................... 1.26"
-IN CAST IRON ..................... 2"
TAPPING
-IN STEEL ......................... 1"
-IN CAST IRON ..................... 1.26"
BORING
-IN STEEL ......................... 2.75"
-IN CAST IRON ..................... 4.06"

DRILLING HEAD:
SPINDLE TAPER: .................... 4MT
SPINDLE STROKE: ................... 8.66"
QUILL DIAMETER: ................... 2.95"
NUMBER OF SPINDLE SPEEDS: ......... 6
SPINDLE SPEEDS (RPM): ............. 88, 154, 282, 455, 796, 1500
NUMBER OF FEEDS: .................. 3
SPINDLE FEED RATE (IN/REV.): ...... 0.002", 0.0035", 0.006"
SPINDLE DRIVE MOTOR: .............. 2 HP
ELEVATING MOTOR: .................. 1 HP
COOLANT PUMP MOTOR: ............... 1/8 HP

OVERALL MEASUREMENTS:
MAXIMUM MACHINE HEIGHT: ........... 91.3"
BASE & COLUMN HEIGHT: ............. 79.1"
SHIPPING DIMENSIONS (L X W X H): .. 71.1" X 32.5" X 86.2"

STANDARD FEATURES & EQUIPMENT:
-LIMIT SAFETY SWITCH FOR SAFE OPERATION
-HIGH SPEED GEARS ARE MADE OF NICKEL-CHROME STEEL AND ARE HAT-TREATED AND GROUND FOR DURABILITY
-POWERFUL 2 HP SPINDLE DRIVE MOTOR FOR HEAVY-DUTY CUTTING
-EXTRA AUXILIARY DIAL FOR SPINDLE FEED DEPTH INDICATION, ALLOWS REVIEW OF SPINDLE FEED DEPTH, .0394" TO 7.874"
-SPECIAL SPINDLE BALANCE MECHANISM, SUPERIOR TO TRADITIONAL BALANCE MECHANISM AND EXTENDS BALANCE SPRING LIFE
-COOLANT SYSTEM
-LOW VOLT AND OVERLOAD PROTECTION
-TOOL KIT AND MANUALS

OPTIONAL EQUIPMENT (CALL FOR PRICING):
-LARGE TABLE, 32 X 28 X 24
-SMALL TILT TABLE, 20 X 20 X 23
-BOX TABLE, 39 X 31 X 19
-CE ELECTRICS W/SPINDLE GUARDING
-CSA/UL ELECTRICS
-AUTO REVERSING TAPPING FEATURE

WARRANTY:
CLAUSING WARRANTEES THE MACHINE AND CONTROL FOR A PERIOD OF ONE YEAR FROM THE DATE OF INSTALLATION. THIS WARRANTY DOES NOT COVER NORMAL WEAR ITEMS SUCH AS FILTERS AND BELTS OR DAMAGE THAT RESULTS FROM THE MISUSE OR ABUSE OF THIS EQUIPMENT.
