Clausing-Kondia FV-1 VERTICAL MILLS - VERTICAL MILLING MACHINES

$6,500

Make:: Clausing-Kondia

Model:: FV-1

Year:: 1990'S

Ref #:: 170375

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

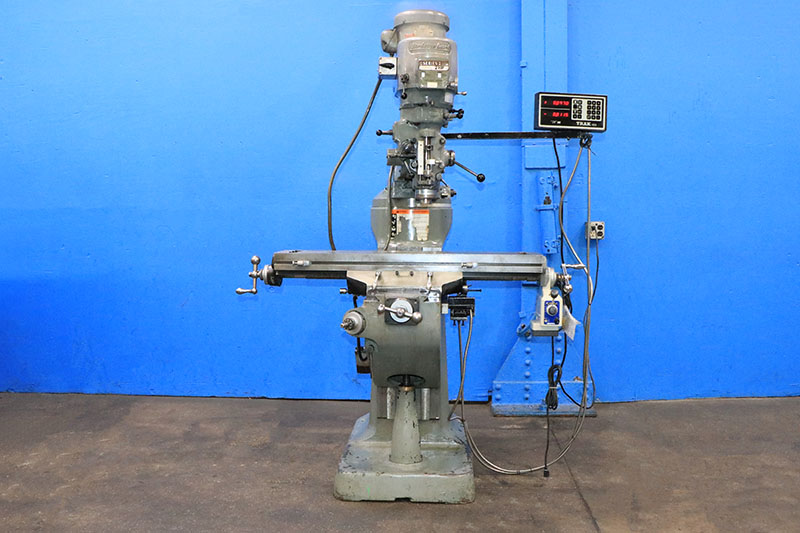

CLAUSING-KONDIA VERTICAL MILLING MACHINE
MODEL: FV1, S/N: V-846, NEW: 1990'S

SPECIFICATIONS:
TABLE SIZE ............................ 9" X 48"
NUMBER OF T-SLOTS ..................... 3
LONGITUDINAL TABLE TRAVEL ............. 36"
SADDLE TRAVEL ......................... 15"
QUILL TRAVEL .......................... 5"
KNEE TRAVEL ........................... 16.5"
RAM TRAVEL ............................ 23"
TABLE LOAD CAPACITY ................... 880 Lbs
MIN/MAX DISTANCE, SPINDLE NOSE TO TABLE 6-5/8" / 29-11/16"
MIN/MAX DISTANCE, CENTERLINE OF SPINDLE
    TP FACE OF COLUMN ................. 0" / 18-5/16"
HEAD TILT, LEFT & RIGHT ............... 90 DEGREES
HEAD TILT, FRONT & REAR ............... 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ....... 60 - 4,000 RPM
SPINDLE TAPER ......................... R-8
MAX COLLET CAPACITY ................... 3/4"
QUILL DIAMETER ........................ 3-3/8"
QUILL FEEDS ...................... 0.0015", 0.003", 0.0047"
APPROXIMATE WEIGHT .................... 3,040 LBS
SPACE REQUIRED FOR OPERATION .......... 78" F-B
                                       100-9/16" L-R
                                       82-1/2" H

EQUIPPED WITH:
PATHFINDER-GURLEY TWO AXIS DIGITAL READOUT
SERVO MODEL: 150 POWER FEED FOR LONGITUDINAL TABLE TRAVEL
HARDENED & GROUND TABLE & WAYS
ONE-SHOT LUBRICATION SYSTEM
3 HORSE POWER VARIABLE SPEED MILLING HEAD

 INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
