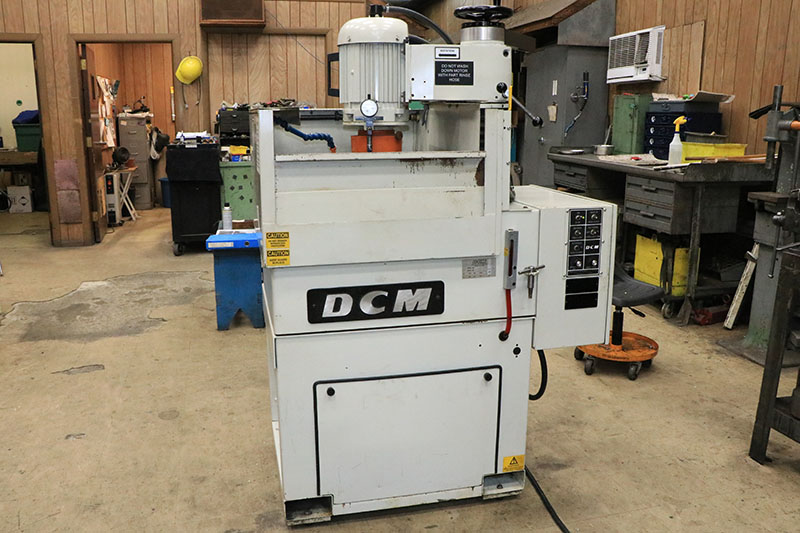

DCM Tech, Inc. PDG 5-3 DCAF, 2011, AUTOMATIC, AUTO IDF PUNCH & DIE GRINDERS

Price on Request

Make:: DCM Tech, Inc.

Model:: PDG 5-3 DCAF, 2011, AUTOMATIC, AUTO IDF

Year:: 2011

Ref #:: 167533

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

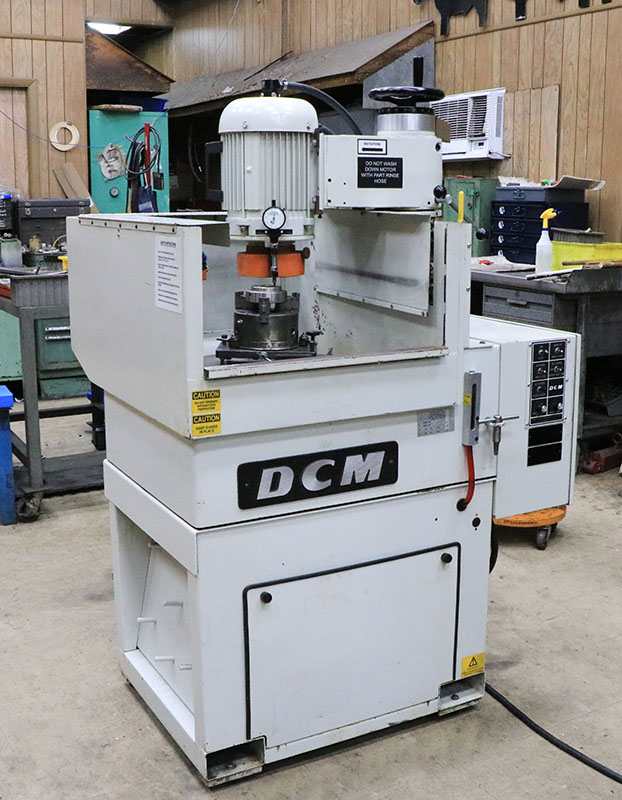

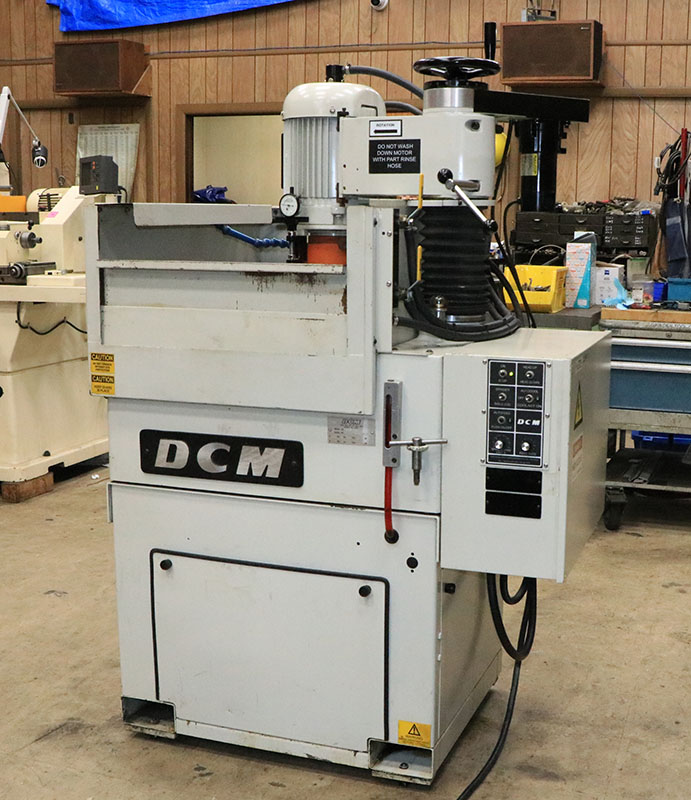

       DCM Tech AUTOMATIC
        "Made in USA"
Punch & Die Rotary Surface Grinder

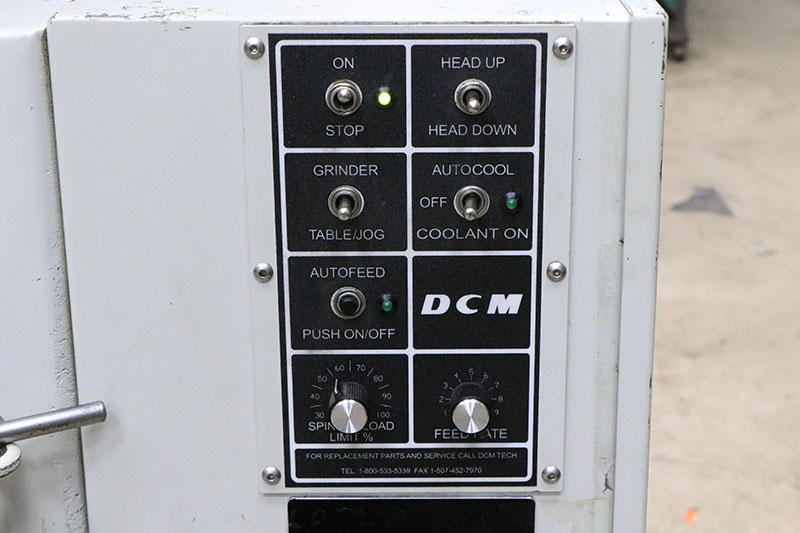

with Automatic Cycle, Automatic Downfeed

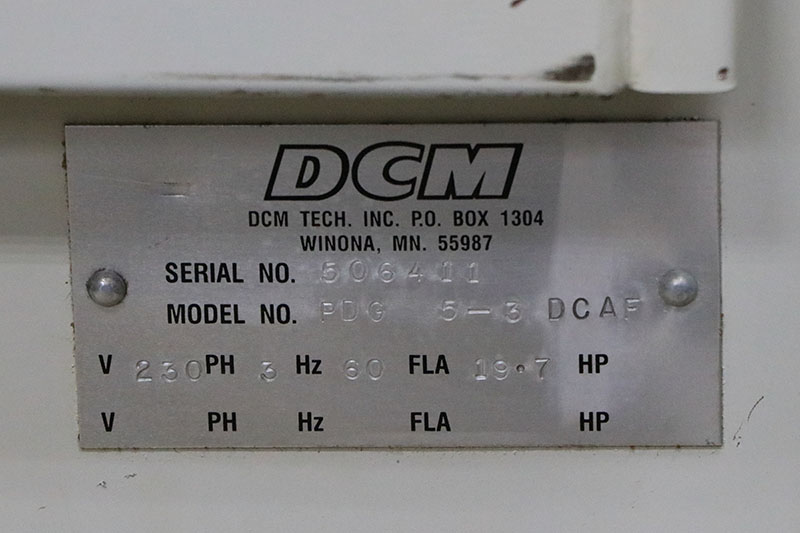

Model:  PDG-5-3 DCAF   S/N: 506411    New: 2011

Specifications:

Diameter:............................. 18"
T-Slot:............................... 6
Speed:................................ 20 RPM
Motor:................................ 1/2 HP
Maximum:.............................. 10"
Speed:................................ 3600 RPM

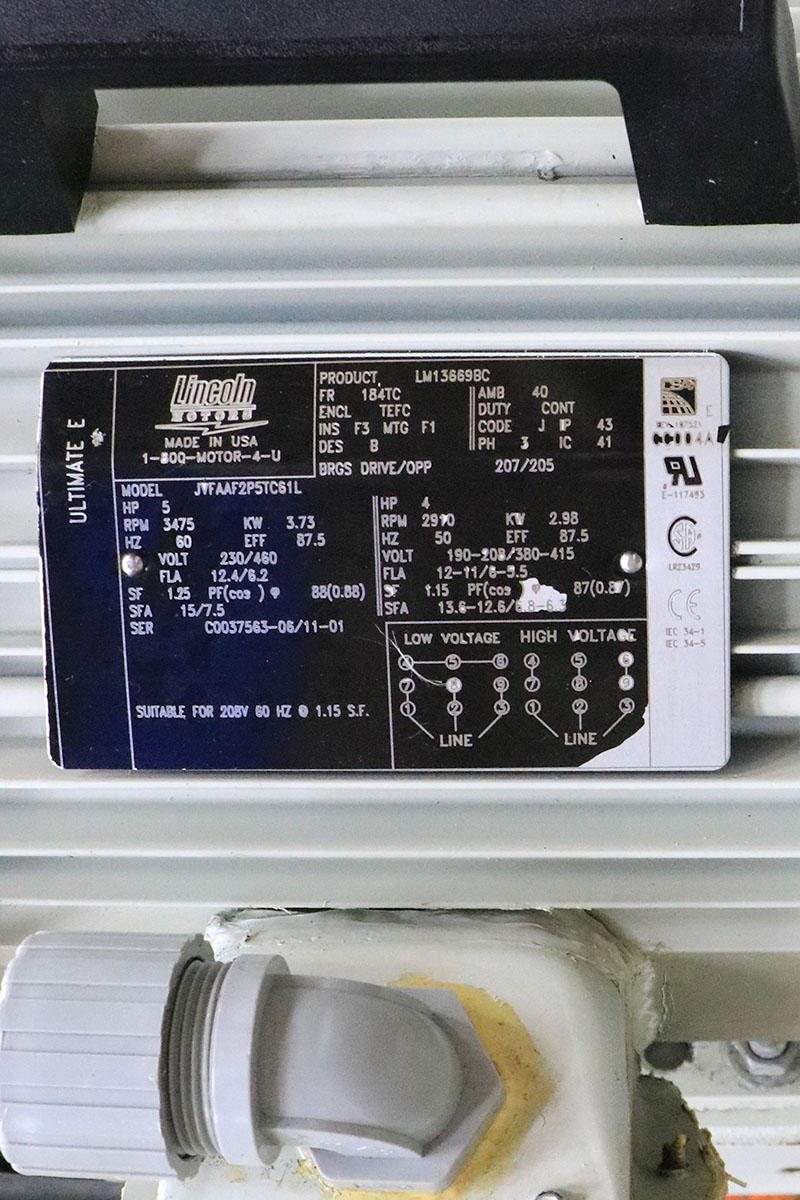

Motor:................................ 5 HP
Autofeed Rate - Infinitely Variable:.. 0.0005-0.020 IPM
Manual Handwheel Graduations:......... 0.001"
Cup Wheel Type:....................... 6 or 11
Size:................................. 6" OD
Spindle Hole:......................... 1-1/4"
Tilt Angle:........................... 0-10°

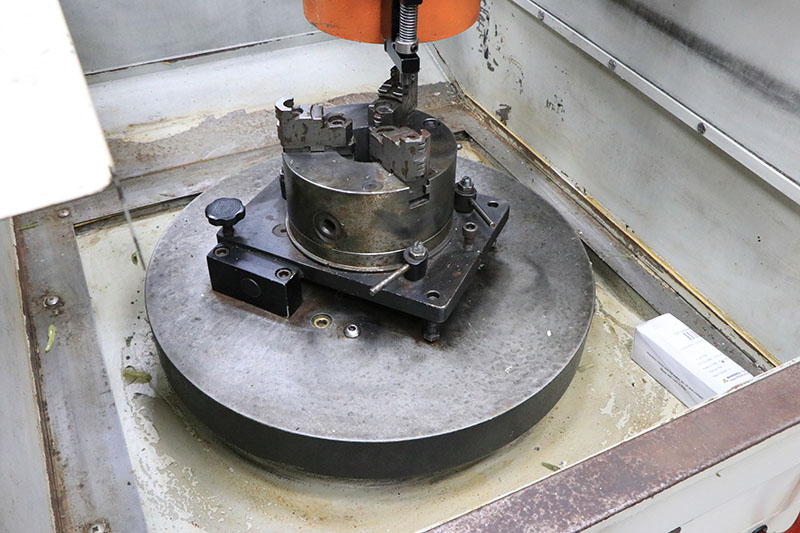

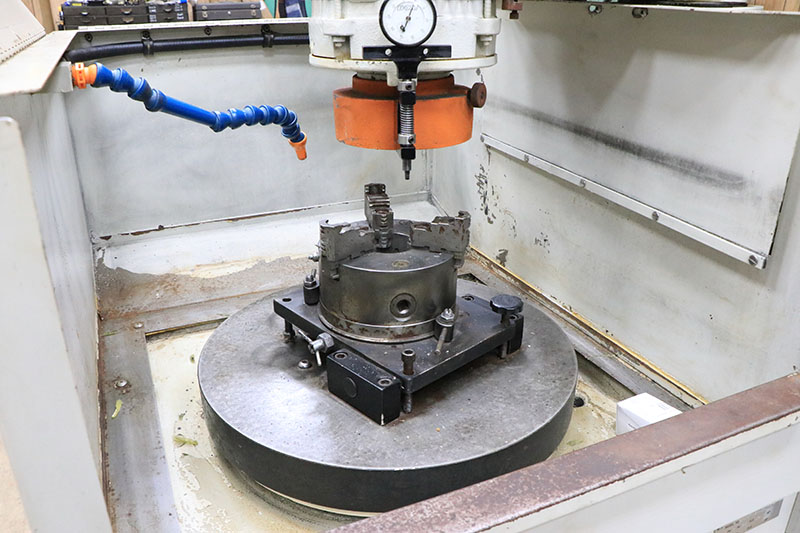

3 Jaw Chuck:.......................... 6-1/2"
Permanent Magnet Chuck:............... 7" x 4"
Dimensions:........................ 42" x 36" x 64"(H)
Weight:............................... 1,500 lbs

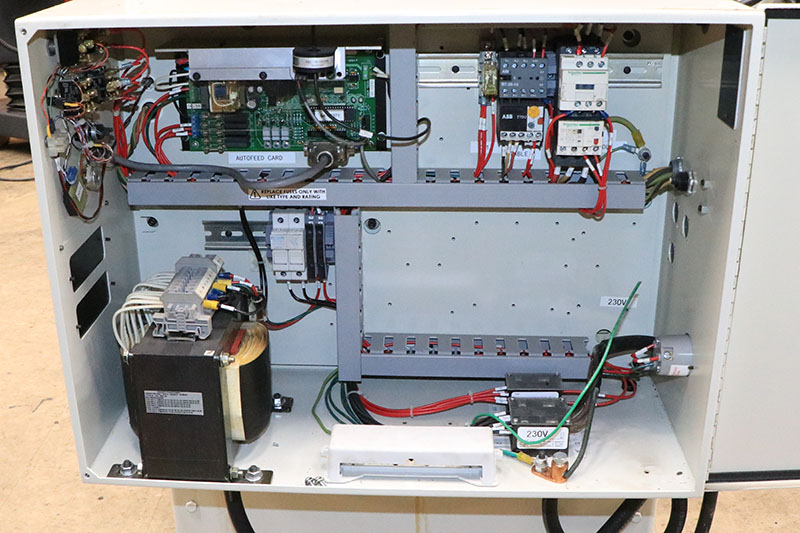

Our Machine is presently wired for
  3/60/230 Volts, 19.7 Full Load Amps

The Punch and Die Grinder (PDG), a Rotary Table
Surface Grinder, is primarily dedicated to the
sharpening of turretpress tooling, but also
includes the sharpening of rooftop punches and
small progressive die details. DCM Tech’s Punch
and Die Grinder is a turnkey package with
autofeed control, self dressing CBN abrasives,
through spindle coolant and universal fixturing
that accepts Amada,Trumpf, Salvagnini, Finnpower,
Weideman, Whitney, and other style tooling.
Sharpen large station dies and rooftop/shear
angle tooling up to 10°with the standard
fixturing package.
Typical grind time is less than 5 minutes.

Look to the PDG Punch and Die Grinder for:

Reduced replacement tooling costs by as much
as 40% Reduced or eliminate deburring operations
Gained labor efficiencies
Payback period as soon as one year

Standard Abrasive:
20-08238-070-80, 6″dia.
Self-Dressing CBN Straight Wheel Provides
aggressive material removal rates and a
high-quality surface finish

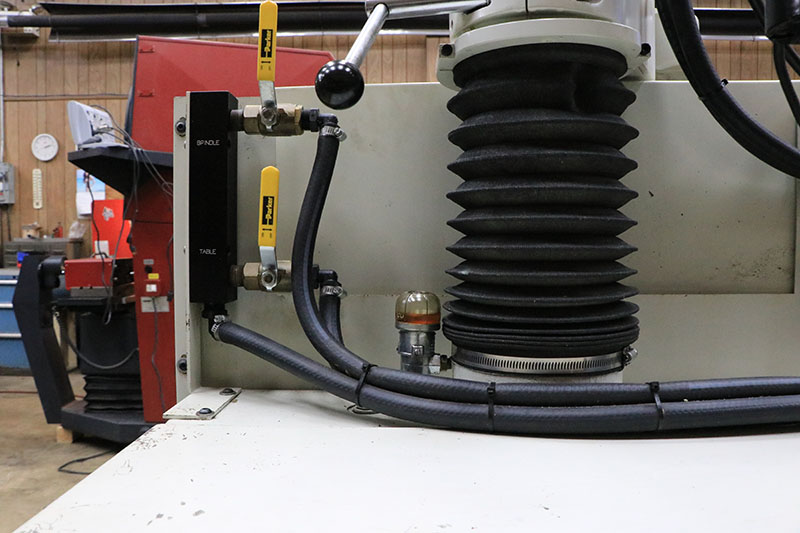

Comes with Coolant System, New Rotary Coupling Installed

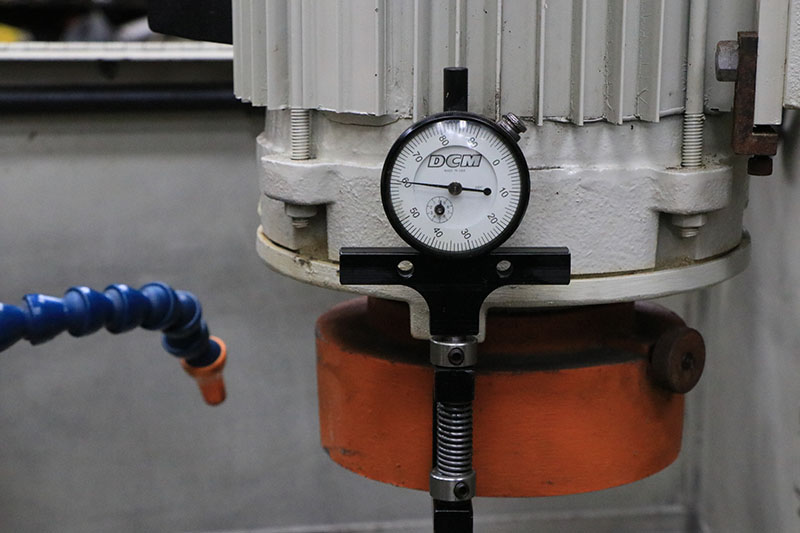

Tool finder Tool with Dial Indicator

LINK TO VIDEO: https://youtu.be/kMgW1zydsco?si=_1z4WsMYPIDmqNc3

** Beautiful & Original Machine, Wow! **
** Offered with a 30 Day MDNA Return Privilege **
** Inspect Under Power in our Harrison, NJ Warehouse **
