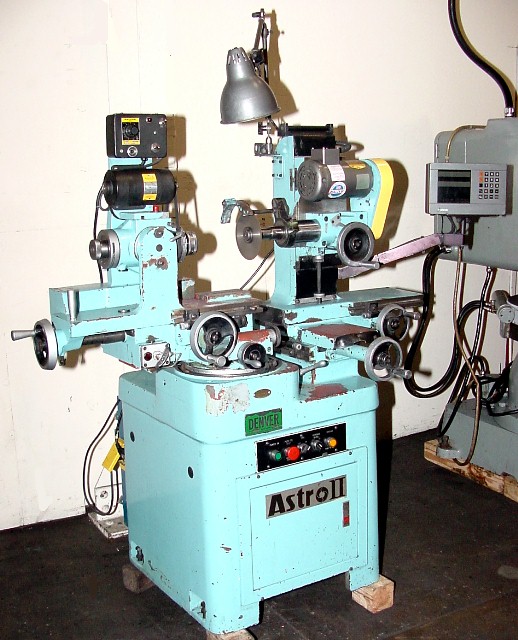

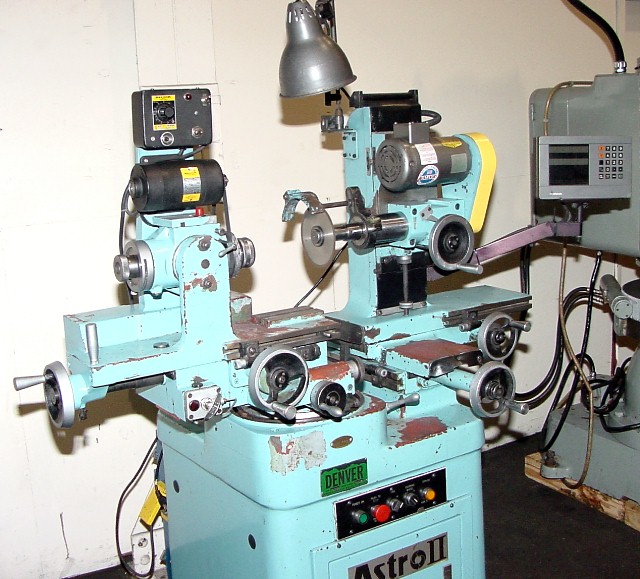

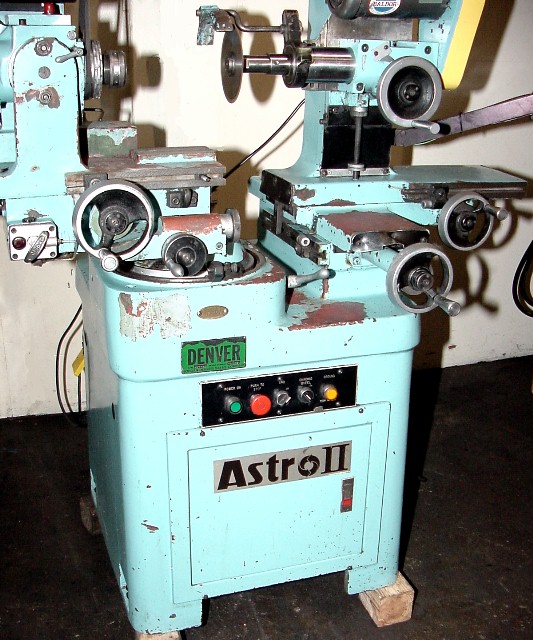

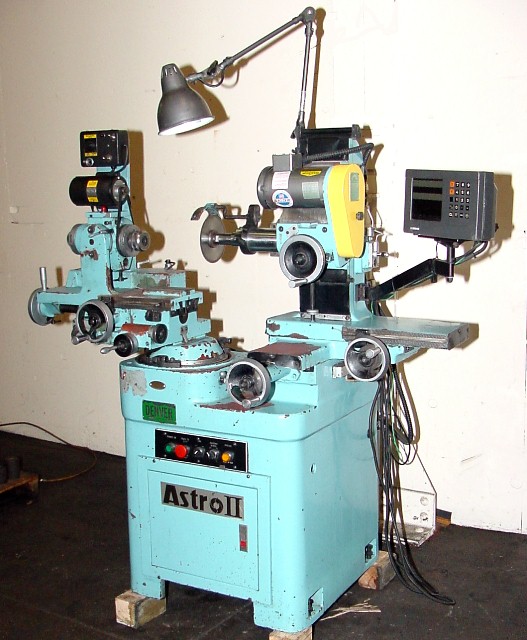

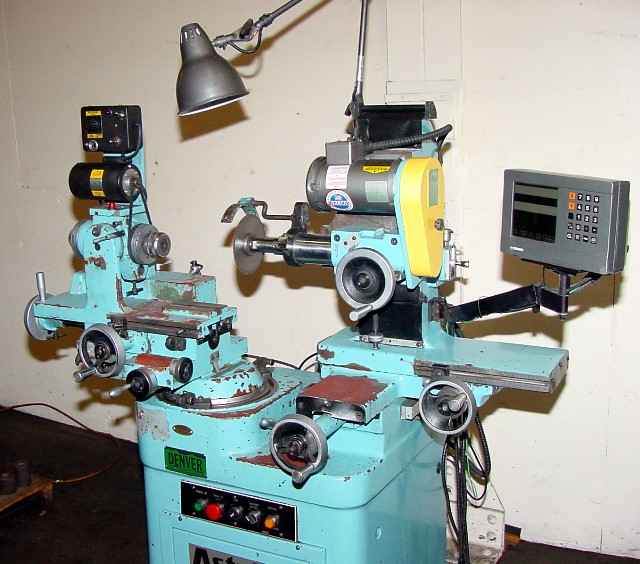

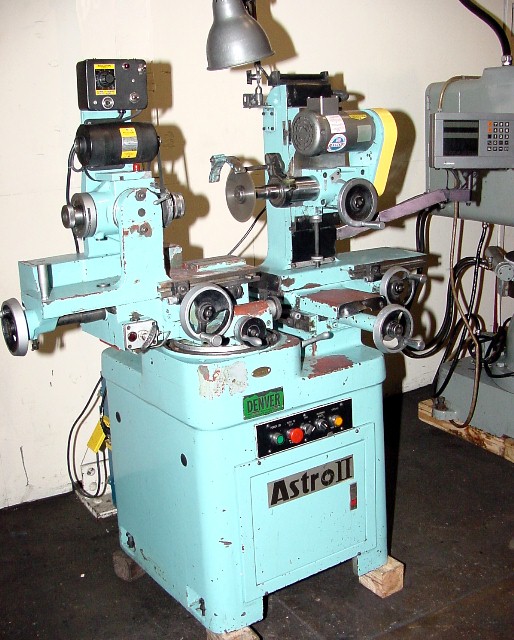

Denver ASTRO II (MONOSET TYPE) TOOL & CUTTER GRINDERS
Price on Request
- Make:
- Denver
- Model:
- ASTRO II (MONOSET TYPE)
- Year:
- 1997
- Ref #:
- 148257
Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

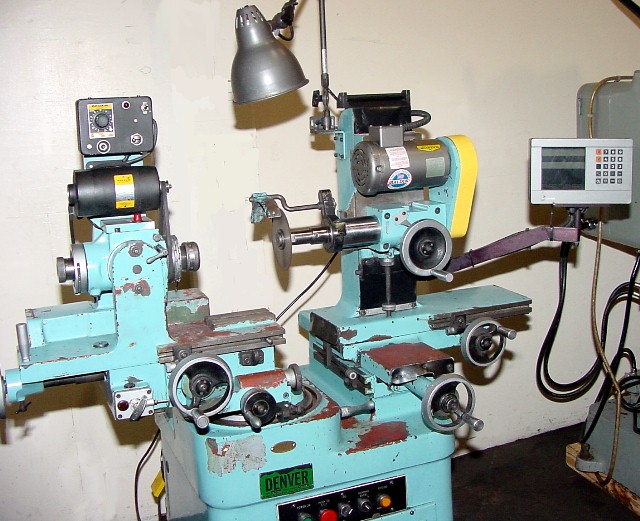

"MONOSET" TOOL & CUTTER GRINDER
*** HEIDENHAIN 2-AXIS DIGITAL READOUT ***

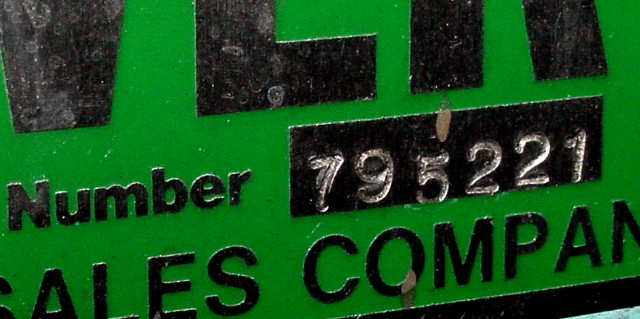

S/N: 795221 NEW: 1997
CAPACITY -
WORKHEAD SWING OVER MAIN SLIDE, MAX. DIA.:... 12"

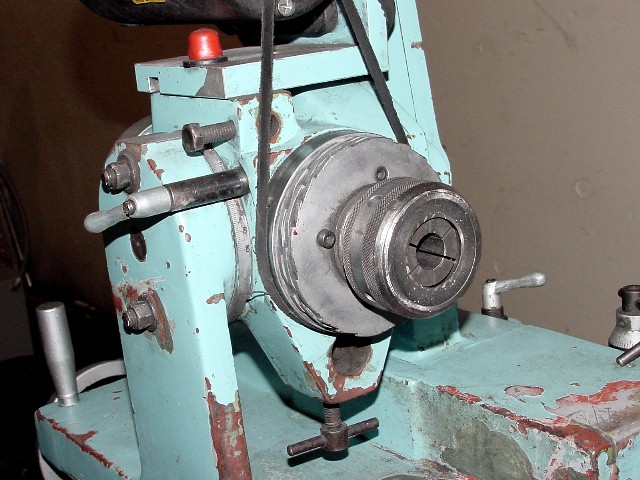

MAX. WORKHEAD COLLET HOLE DIA.:.............. 1-1/4"
MIN. WORKHEAD COLLET HOLE DIA.:.............. 0.12"
MAX. GRINDING WHEEL DIA.:.................... 4"
LEAD GENERATION BY SPIRAL LEAD MECHANISM,
MINIMUM:.................................... 1.81"
MAX. LENGTH OF WORK BETWEEN SPINDLE &
TAILSTOCK CENTER:............................ 6"
RANGE -

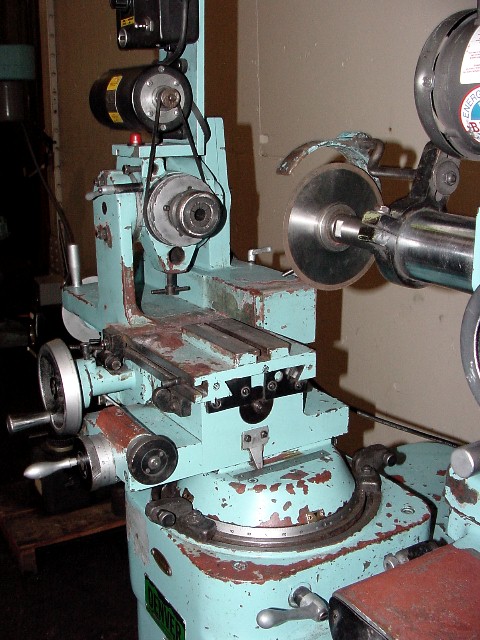

WORKHEAD SLIDE TRAVEL:
MAIN SLIDE TRAVEL:........................... 5- 3/4"
OFFSET SLIDE TRAVEL, TOTAL:.................. 5- 1/4"
-FRONT OF CENTER:........................... 3"
-REAR OF CENTER:............................ 2- 1/4"
WORKHEAD ANGULAR ADJUSTMENT:
MAX. TURNTABLE SWIVEL:....................... 235 DEG.
ABOVE AND BELOW CENTER:...................... 40 DEG.
WHEELHEAD SLIDE TRAVEL:
LONGITUDINAL SLIDE TRAVEL:................... 6"
VERTICAL SLIDE TRAVEL, TOTAL:................ 9-1/2"
-ABOVE CENTER:.............................. 4- 1/2"
-BELOW CENTER:.............................. 5"
CROSS SLIDE TRAVEL, TOTAL:................... 7- 1/2"
-FRONT OF CENTER:........................... 3"
-REAR OF CENTER:............................ 4- 1/2"
SPEEDS -
(3) WHEELHEAD SPINDLE SPEEDS: 4,000, 5,729, 8,000 RPM
WORKHEAD SPINDLE SPEEDS: INFINITELY VARIABLE
APPROXIMATE WEIGHT: 1,525 LBS.
APPROX. DIMS.:34"F-B x 42"L-R x 62"H
EQUIPPED WITH:

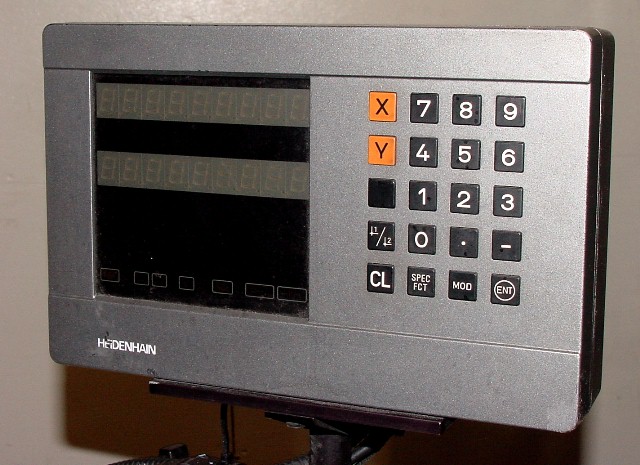

HEIDENHAIN 2-AXIS DIGITAL READOUT DISPLAY
ELECTRONIC VARIABLE SPEED CONTROL FOR INFINITELY VARIABLE
WORKHEAD SPINDLE SPEEDS

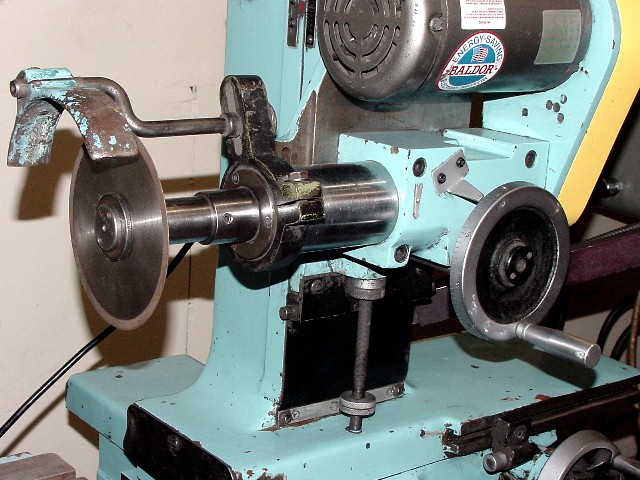

WHEEL GUARD
.0005" HANDWHEEL GRAUATIONS

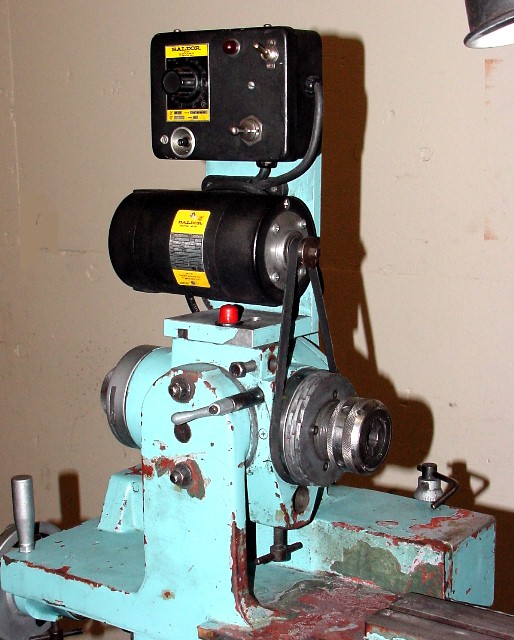

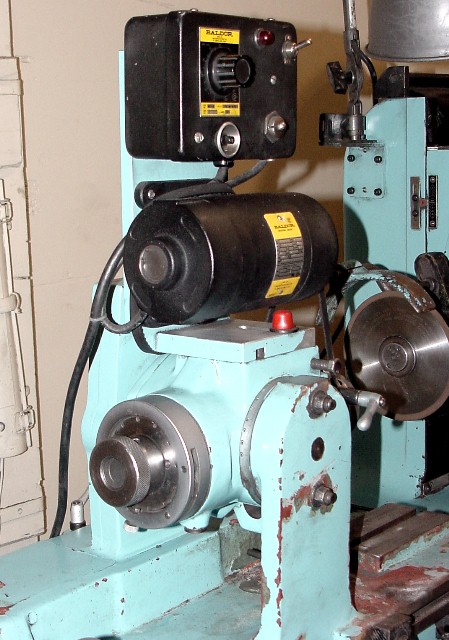

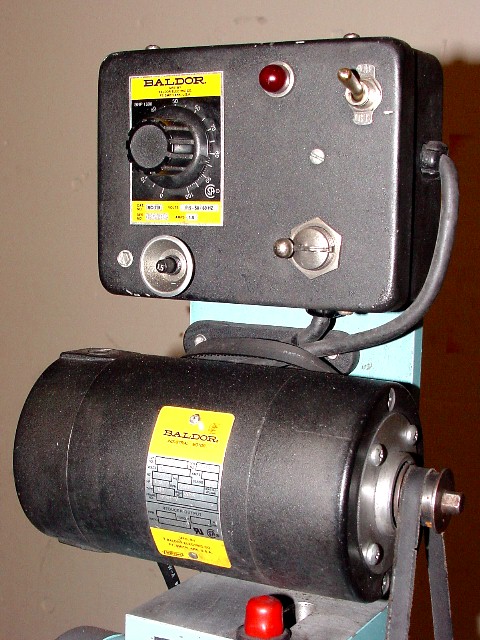

BALDOR ELECTRONIC VARIABLE SPEED MOTOR & SPEED CONTROL,
FOR MOTORIZED WORKHEAD, PROVIDES INFINITELY VARIABLE
SPINDLE SPEEDS.
BIJUR ONE-SHOT LUBRICATION SYSTEM

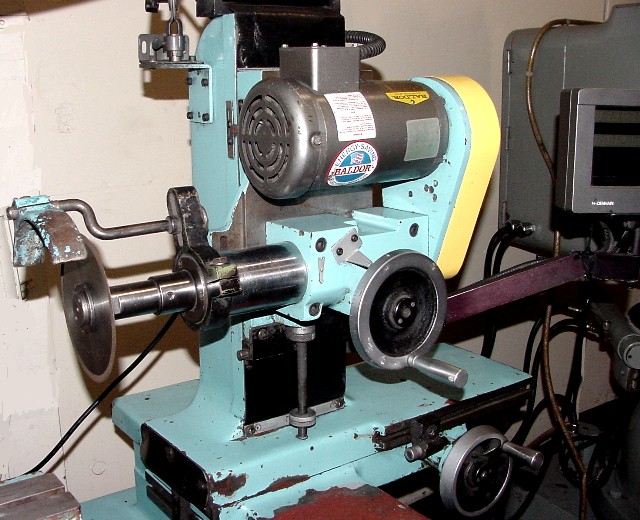

1/2 HP 230-460 VOLT WHEELHEAD DRIVE MOTOR
MACHINE IS PRESENTLY WIRED FOR 3/60/480 VOLTS

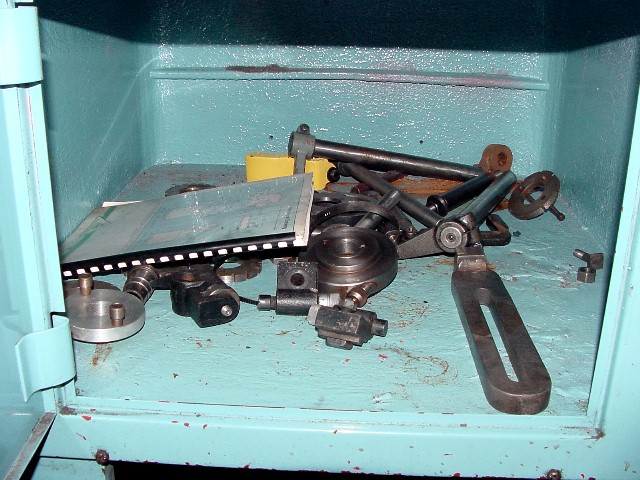

*** TOOLING PACKAGE ***
* * EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
