Diacro 24 Slip Roller NEW BENDING ROLLS

Price on Request

Make:: Diacro

Model:: 24 Slip Roller

Year:: New

Ref #:: 148592

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

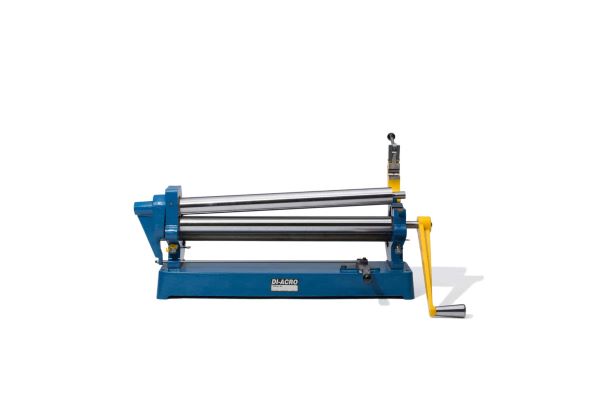

New Di-Acro 24" x 20 ga Hand Operated Slip Rollers
Model: 24                MADE IN USA

Di-Acro Slip Rollers feature a cam-actuated Idler Roll which permits the forming of circles without flat spots on the leading edge of the material. The operator is also able to locate bends at any point along a sheet of material. Parts can be duplicated with a high-degree of accuracy since the Idler Roll always returns to its pre-set position. Round, flat, and square material can be formed with Di-Acro Rollers by grooving the bending rolls to accommodate the shape of the material.

Specifications:
Max Cap, Mild Steel: 20ga
Max Forming Width: 24"
Diameter Rolls: 2"
Min Radius: 1"
Max Radius: No Limit
Machine Shipping Weight: 220 lbs.
Stand Shipping Weight: 94 lbs.

Standard Equipment:
2” diameter forming rollers
Rear roll indicators – enable operator to adjust Idler Roll to a previous setting

Optional Equipment:
Machine stand – dimensions 38” L x 15” W x 33” H – $495.00

Tooling Options:
Round, flat, and square grooves can be machined into rollers to accommodate additional applications. Grooving must be specified at the time of order.
