Diacro #4 NEW PIPE, TUBE & BAR BENDERS

Price on Request

Make:

Diacro

Model:

#4

Year:

New

Ref #:

148456

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

---

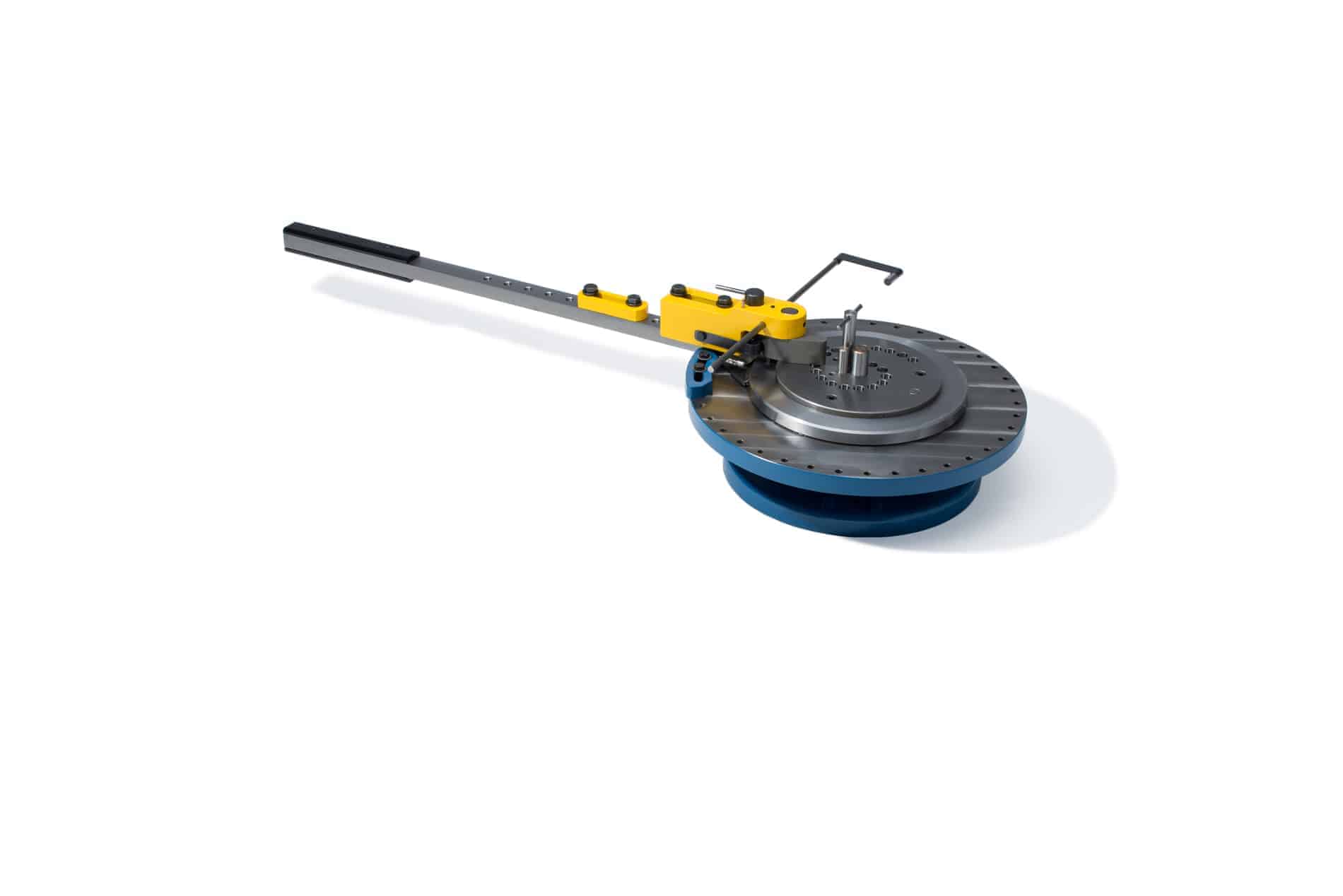

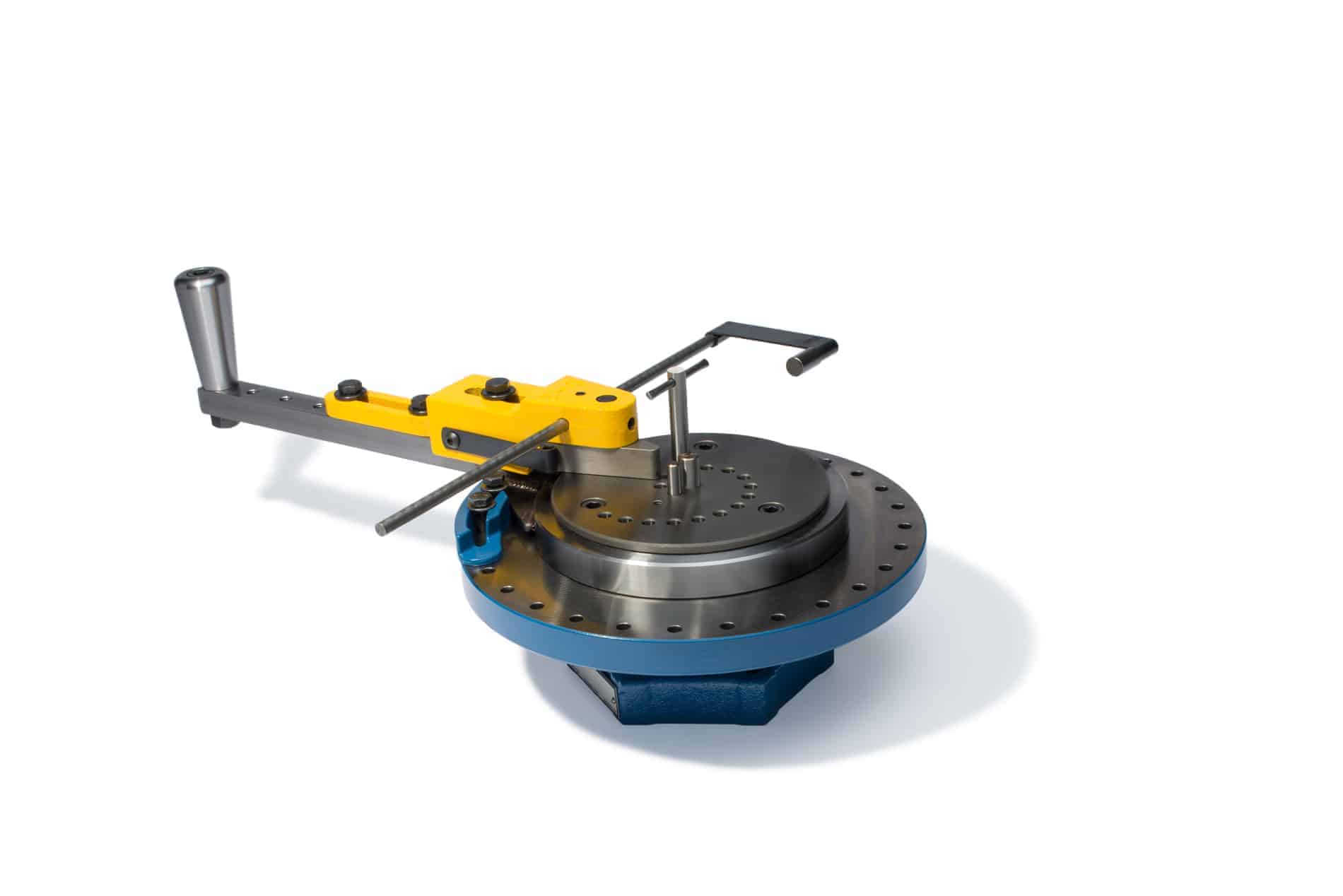

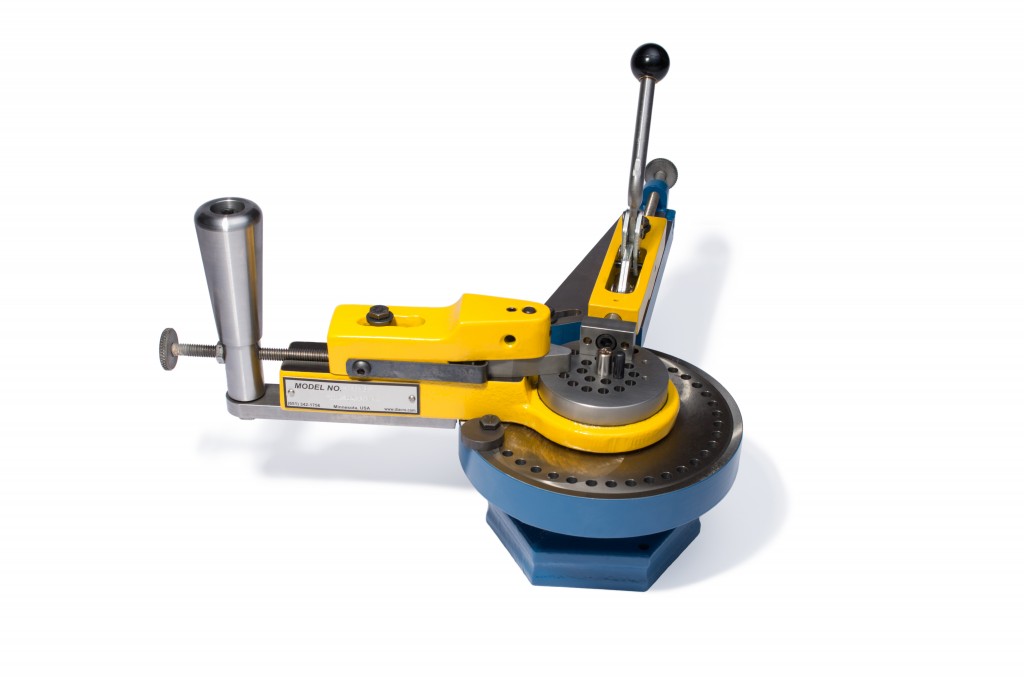

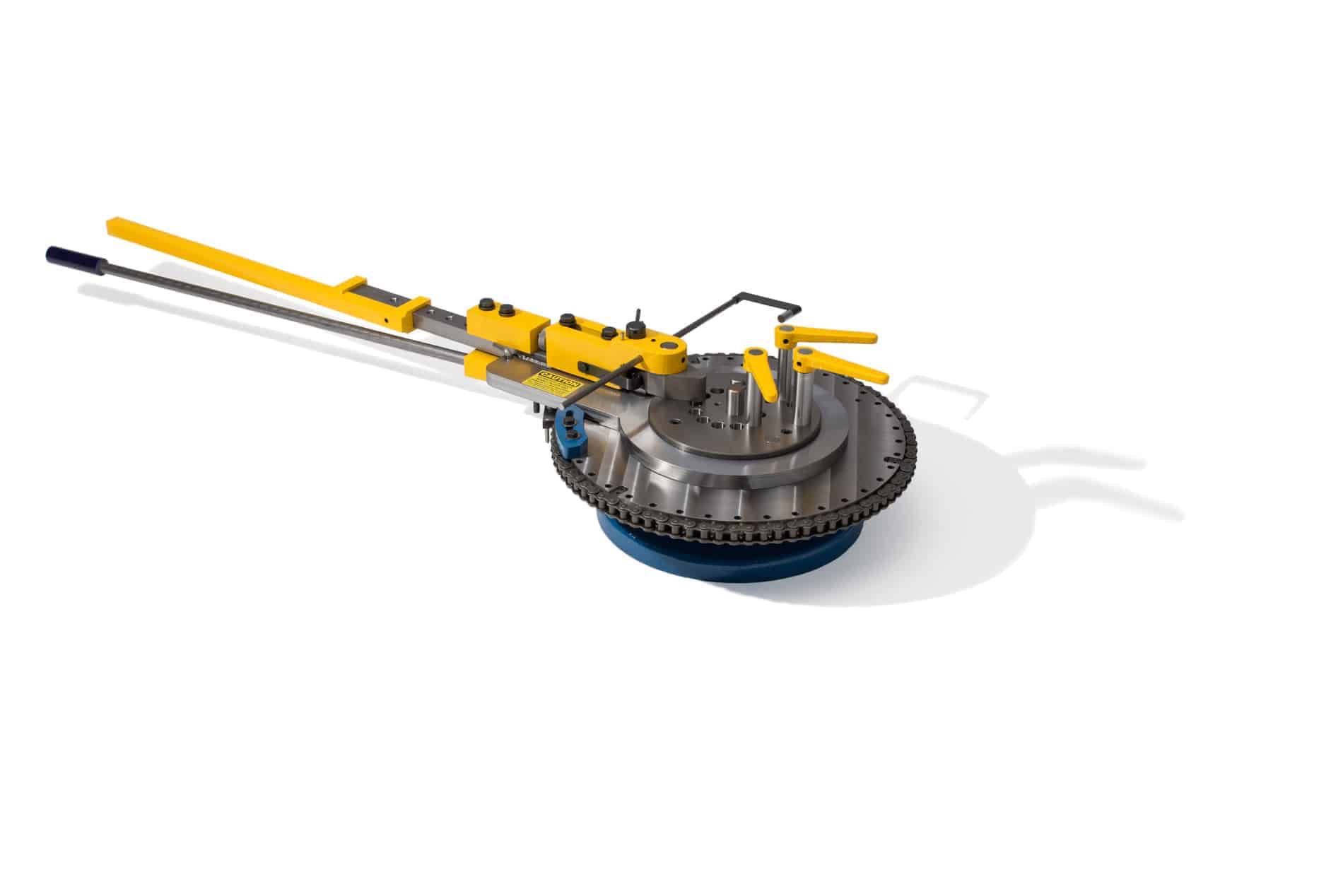

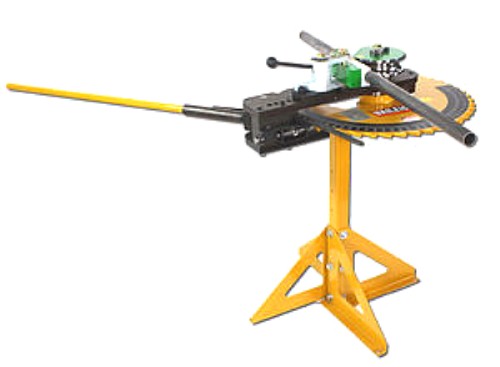

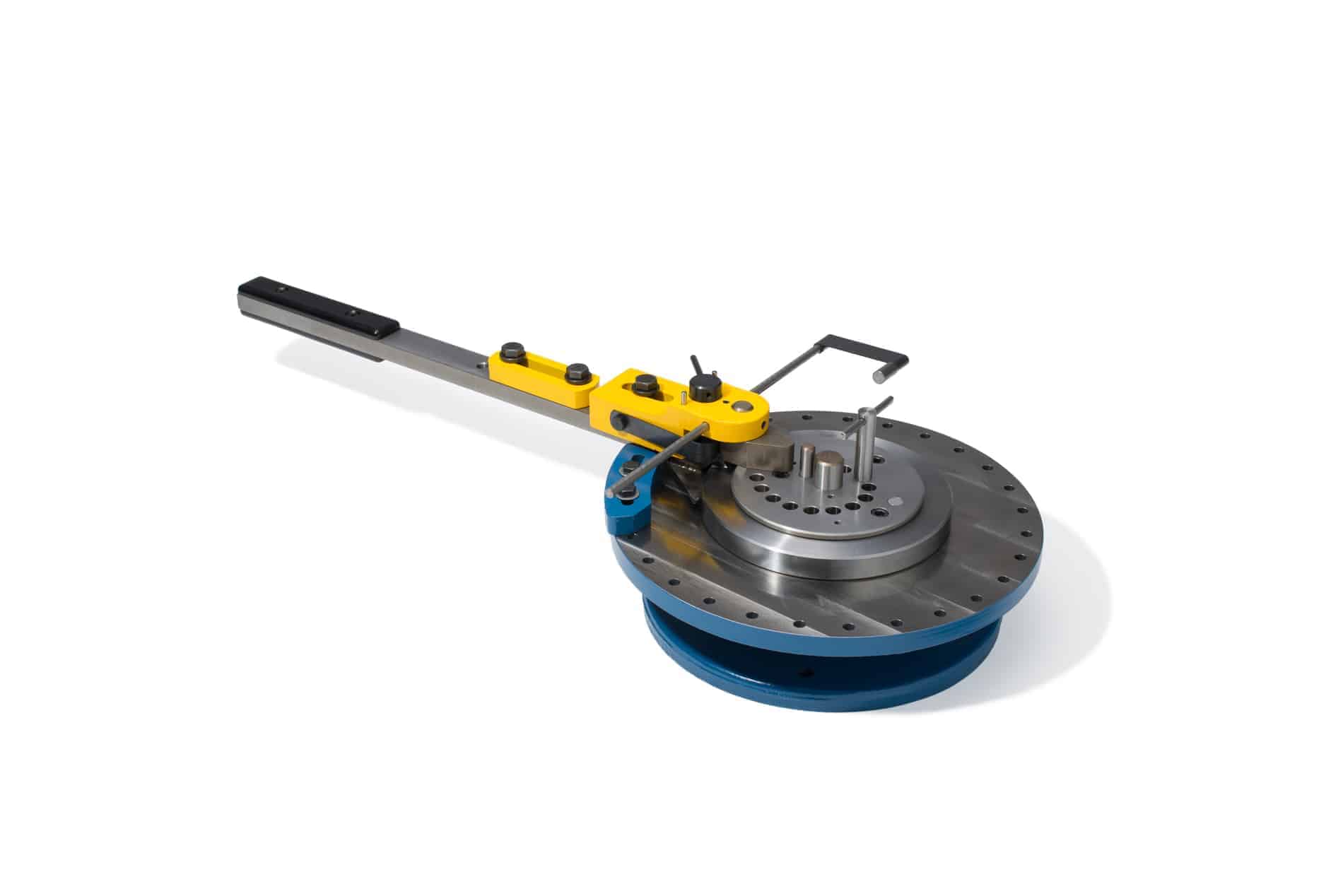

NEW DI-ACRO 1" HAND BENDER

MODEL: #4

MADE IN U.S.A.



DI-ACRO MANUAL BENDERS ARE RUGGEDLY-BUILT, VERSATILE MACHINES FOR BENDING WIRE, SOLID STOCK, TUBING, FLAT STOCK, ETC. ACCURATELY FORMING AND DUPLICATING SIMPLE, COMPOUND, AND REVERSE BENDS IS EASY WITH A DI-ACRO BENDER. THE OPERATOR IS ALSO ABLE TO QUICKLY CHANGE OVER TOOLING FROM ONE BENDING OPERATION TO ANOTHER. A SPECIAL FEATURE OF THE MODEL 4 BENDER IS A RATCHET DRIVE MECHANISM WHICH CAN BE ENGAGED TO INCREASE FORMING POWER WHEN WORKING WITH HEAVY MATERIALS. THE RATCHET CAN ALSO BE DISENGAGED TO INCREASE SPEED WHEN WORKING WITH LIGHTER MATERIALS.

THE FABRICATING POSSIBILITIES OF DI-ACRO BENDERS ARE ONLY LIMITED BY THE INGENUITY OF THE OPERATOR.



WATCH DI-ARCO'S "RATCHET DEMO" VIDEO:

HTTPS://YOUTU.BE/DQTL3UPAXBY



STANDARD EQUIPMENT:

BEND LOCATING GAUGE – MATERIAL STOP

ANGLE STOP – SETS DEGREE OF BEND

THREE (3) LOCKING PIN ASSEMBLIES – SECURE SOLID STOCK FOR BENDING

CENTER PIN – PROVIDES ONE RADIUS SET-UP AND IS USED TO MOUNT ADDITIONAL TOOLING

HOLDING PIN – USED TO SECURE COLLARS AND BLOCKS ON MOUNTING PLATE

RATCHET DRIVE MECHANISM – ENGAGE TO INCREASE FORMING POWER WHEN WORKING WITH HEAVY MATERIALS

EXTENSION ARM WELDMENT – INCREASES OPERATOR LEVERAGE

ACCESSORIES:

QUIK-LOK – MATERIAL CLAMP FOR TUBE BENDING

MACHINE STAND – DIMENSIONS 20” L X 15” W X 33” H





MODEL 4 BENDER MANUAL:

HTTPS://WWW.DIACRO.COM/WP-CONTENT/UPLOADS/2016/07/4-HAND-BENDER-2014.PDF

IN ORDER TO IDENTIFY THE SMALLEST RADII THAT CAN BE FORMED WITH OPTIMAL RESULTS, USE THESE GENERAL RULES:

2-1/2 TIMES TUBING OD = SMALLEST CENTERLINE RADIUS WHEN USING THE FOLLOW BLOCK METHOD

4 TIMES TUBING OD = SMALLEST CENTERLINE RADIUS WHEN USING GROOVED ROLLER METHOD

1 TIMES SOLID STOCK OD = SMALLEST INSIDE RADIUS

WHEN SELECTING TOOLING FOR YOUR APPLICATION, REMEMBER TO COMPENSATE FOR MATERIAL SPRINGBACK (OR ELASTICITY). IN SOME CASES, BY OVERBENDING SLIGHTLY BEYOND THE REQUIRED ANGLE YOU CAN ADJUST FOR SPRINGBACK. IN ADDITION TO OVERBENDING, IT MAY BE NECESSARY TO FORM THE MATERIAL AROUND A RADIUS WHICH IS SMALLER THAN THE REQUIRED RADIUS.



TOOLING GUIDANCE:

HTTPS://WWW.DIACRO.COM/WP-CONTENT/UPLOADS/2018/04/BENDER-TOOLING-GUIDANCE.PDF



BEND-R-PAK– AN ASSORTMENT OF COMMONLY USED TOOLING SPECIFICALLY SELECTED FOR THE MODEL 4 BENDER – $1,075.00

HTTPS://WWW.DIACRO.COM/PRODUCT/MODEL-4-BENDER/

CRUSH BEND TOOLING IS AVAILABLE ON SOME MODELS.

CUSTOM TOOLING CAN BE QUOTED PER CUSTOMER’S REQUEST.
