GMC EFM-1014CNC CNC FOLDING MACHINES

Price on Request

Make:: GMC

Model:: EFM-1014CNC

Year:: NEW

Ref #:: 167704

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

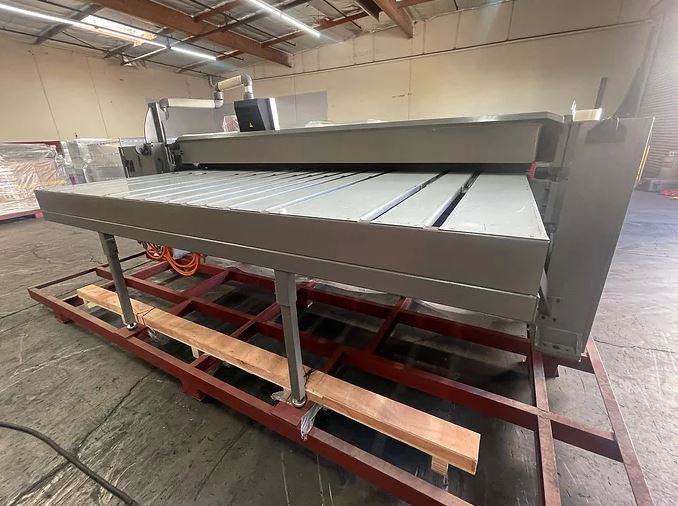

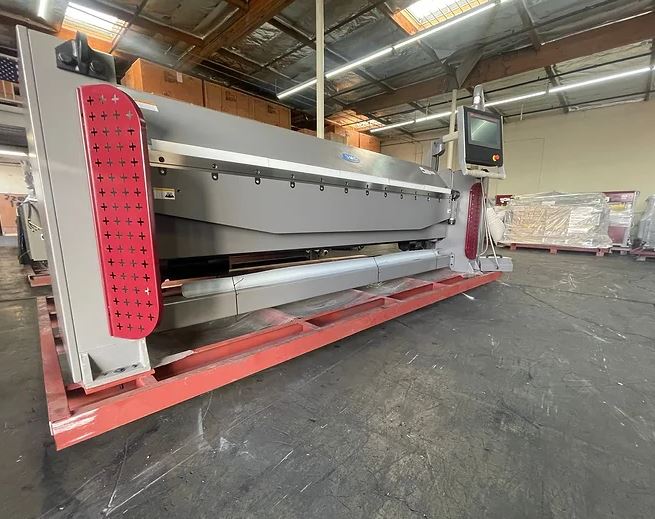

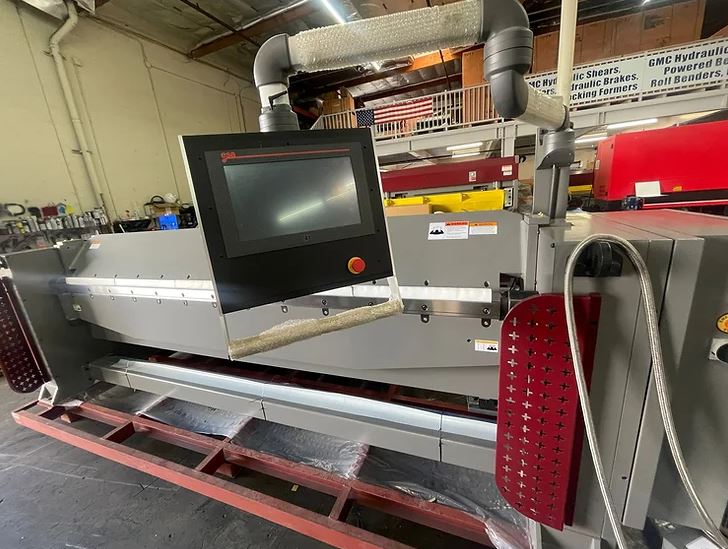

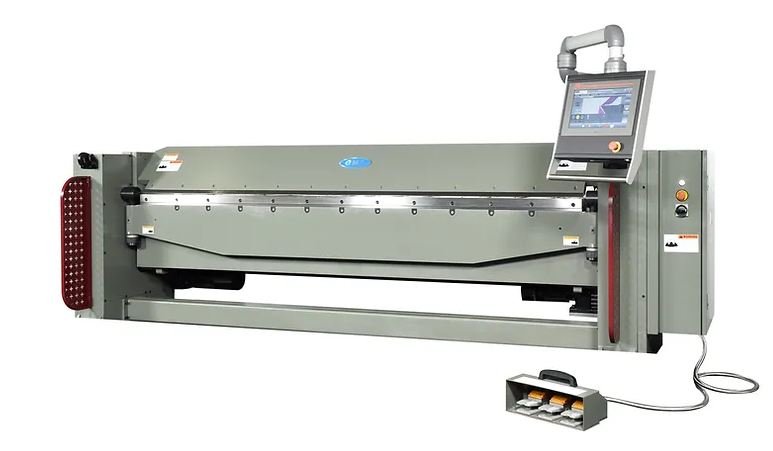

NEW GMC 10' X 14 GA. SHEET METAL FOLDER / CNC FOLDING MACHINE

OVER THE PAST TWO YEARS, OUR SHEET METAL FOLDING MACHINE HAS BECOME EXTREMELY POPULAR AMONGST THE METALWORKING COMMUNITY. THE MANUFACTURING WORLD HAS DEMANDED MORE OF THIS MODEL THAN ANY OTHER SHEET METAL FOLDER.

SPECIFICATIONS:
CAPACITY
MILD STEEL ............................ 14GA
STAINLESS STEEL ....................... 18GA.
CLOSE HEMMING ......................... 26GA.
OPEN HEMMING .......................... 24GA.
BENDING LENGTH CAPACITY ............... 10’1”
BEND ANGLE DEGREE, PROGRAMMABLE ....... 0- 135 DEGREE
LARGE BEAM OPENING/CLAMPING OPENING ... 4-7/8”
MIN. REVERSE BEND ..................... 1/2”
MAX. TABLE BACK GAUGE DISTANCE ........ 48-3/8”
MIN. TABLE BACK GAUGE DISTANCE ........ 1/2”
BACK GAUGE REPEATABILITY .............. 0.0039”
BACK GAUGE TABLE HEIGHT ............... 35-3/4”
MOTOR FOR BENDING LEAF ................ 4HP,220V,3PHASE
SERVO MOTOR FOR BACK GAUGE ............ 2HP,220V,3PHASE
CLAMPING MOTOR ........................ 1-1/2HP,220V,3PHASE
AMPERAGE DRAW ......................... 35A
MACHINE WEIGHT ........................ 9,850 LBS
SHIPPING WEIGHT ....................... 10,150 LBS
MACHINE DIMENSIONS, LWH ............... 168X79X67”
SHIPPING DIMENSIONS ................... 174X80X71”

STANDARD FEATURES
* ISO 9001 CERTIFIED
* DESIGNED IN US AND TAIWAN QUALITY MACHINE
* MEET OSHA AND CE SAFETY STANDARD
* ESA CNC CONTROL, MADE IN ITALY
* MAX. 99 BENDS PER PROGRAM
* UPTO 2000 PROGRAMS STORAGE
* PROFILES LIBRARY WITH GRAPHICS
* PROGRAMMABLE RADIUS BEND
* PROGRAMMABLE ANGLE/ ANGLE CORRECT
* 48” CNC BACK GAUGE WITH TABLE AND FINGERS
* HARDENED NOSE BAR AND TABLE, UP TO 48HRC
* COMES WITH ONE 1” INSERT BAR AND ONE ½” INSERT BAR
* YASKAWA SERVO MOTORS AND DRIVES
* SCHNEIDER ELECTRICAL COMPONENTS
* ALL STEEL CONSTRUCTION FOR MAXIMUM RIGIDITY
* HYDRAULIC LOGIC SYSTEM CENTRALLY LOCATED AND QUIET
* MEET OSHA STANDARD, TO START THE PROGRAM, NEED TO PRESS FOOT PEDAL TWICE
* SAFETY TYPE FOOT PEDAL WITH HANDLE AND E-STOP SWITCH
* SAFETY 24V LOW VOLTAGE & OVERLOAD PROTECTION
* NEED A STEP UP TRANSFORMER IF POWER SUPPLY IS 208V 3-PHASE
* ONE YEAR INDUSTRIAL WARRANTY FOR PARTS
