GMC EPS-0410M 10 Ga x 48" NEW SHEARS

Price on Request

Make:

GMC

Model:

EPS-0410M 10 Ga x 48"

Year:

NEW

Ref #:

145319

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

---

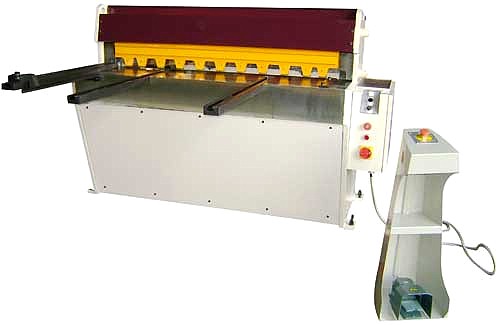

NEW "GMC" 4' x 10ga Heavy Duty Power Shear
Model: EPS-0410M    Made in Taiwan





STANDARD FEATURES:

ISO 9001 certified
HD all steel construction for maximum rigidity
Spring hold-downs
High grade carbon/chrome alloy steel blades and hardened
  to 62 hrc, 2-edge indexable upper blade and 4-edge indexable bottom blade
Full length with full view finger guard
(2) Front supports and 40" squaring arm
Safety type foot pedal control
Jog, single automatic cycle operation modes
One year warranty for parts


STANDARD EQUIPMENT:

24" Manual back gauge with inch/metric dual scale & one
  side operated hand  wheel
2 each 24" front support arms
40" squaring arm with inlaid inch/metric dual scale
Spring independent hold-downs
Full length finger guard
Removable safety foot pedal control
One set blades & manual


SPECIFICATIONS:

Cutting Capacity
  Mild Steel: 52" x 10ga
  Stainless: 52" x 14ga
Blade length 52"
Strokes per minute 47
Hold downs 12
Front Support arm length 24"
Manual Back gauge 24"
Top blade rank angle 1.5 degrees
Main Motor 7.5 hp, 220v
Weight 3,350 lbs
