GMC PSR-5016 NEW BENDING ROLLS

Price on Request

Make:: GMC

Model:: PSR-5016

Year:: NEW

Ref #:: 145847

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

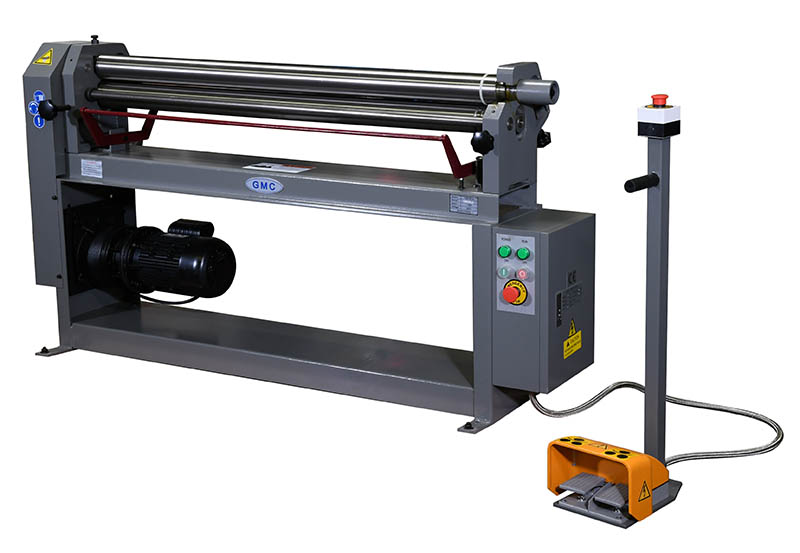

NEW "GMC" POWER SLIP ROLL
MODEL: PSR-5016 - 3PH

FEATURES:
ISO 9001 certified
Heavy welded all steel construction for maximum rigidity
Silent electrical motor
Quick release top roller
Two powered driven rolls
Precision ground rollers
1" roll opening
All three rolls are made of high grade alloy steel, hardened up to 50 HRC
Top & bottom rolls run forward and reverse
Safety type removable foot pedal
Overload protection and disconnect switch
One year warranty for parts

STANDARD INCLUDED EQUIPMENT:
Electrical cabinet
Removable safety foot pedal


SPECIFICATIONS:
Rolling capacity
 Mild steel: 50" x 16 ga.
 Stainless steel: 50" x 20 ga.
Min. Thickness capacity: 50" x 22 ga.
Rolls size: 50"L x 3"dia.
Min. roll bending dia. capacitY: 3-1/2"
Rolls speed: 201"/min.
Rolls opening: 1/4"
(3) grooves sizes: 5/16", 3/8", 1/2"
Main motor: 1 hp, 220v, 3ph
Net weight: 828 lbs.
Machine dimensions: 68"L x 28"W x 47"H
