Haas TL4 CNC LATHES, FLAT BED (ENGINE LATHE STYLE)

Price on Request

Make:
Haas
Model:
TL4
Year:
2007
Ref #:
160631

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com


HAAS CNC LATHE
MODEL: TL-4, NEW: 2007

SPECIFICATIONS:
MAX SWING ................ 35"
SWING OVER CROSS SLIDE ... 16"
MAX CUTTING LENGTH ....... 80"
DISTANCE BETWEEN CENTERS . 91"
X-AXIS TRAVEL ............ 18"
Z-AXIS TRAVEL ............ 80"
CHUCK SIZE ............... 24"
SPINDLE BORE ............. 10.8"
SPINDLE NOSE ............. A1-20
SPINDLE MOTOR ............ 60 HP
SPINDLE SPEED ............ 500 RPM
RAPID TRAVERSE RATE X-AXIS 150 IN/MIN.
RAPID TRAVERSE RATE Z-AXIS 320 IN/MIN.

EQUIPPED WITH:
(2) 24" CHUCKS (FRONT & BACK)
10.8" SPINDLE BORE
2-SPEED GEARBOX
CHIP CONVEYOR
MANUAL TAILSTOCK
MANUAL TOOLPOST
100-GALLON COOLANT TANK
INTUITIVE PROGRAMMING SYSTEM (IPS)
SPINDLE ORIENTATION
RIGID TAPPING
USB PORT
AN ASSORTMENT OF OD & ID TOOL HOLDERS

** AS OF 02/2021, SPINDLE TIME - 6,240 HOURS
** MACHINE CUT PRIMARILY STEEL (4140 & 4145)
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** CHIP CONVEYOR WILL NEED A FEW LINKS REPLACED IN THE BELT

DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.

Similar Machines

We're here to help

Looking for a specific machine?

Address
401 Supor Blvd.
Harrison, NJ 07029
Phone
Voice: (973) 497-7500
Fax: (973) 497-7501
Email
sales@machineryvalues.com
Address
401 Supor Blvd.
Harrison, NJ 07029
Phone
Voice:
(973) 497-7500
Fax:
(973) 497-7501

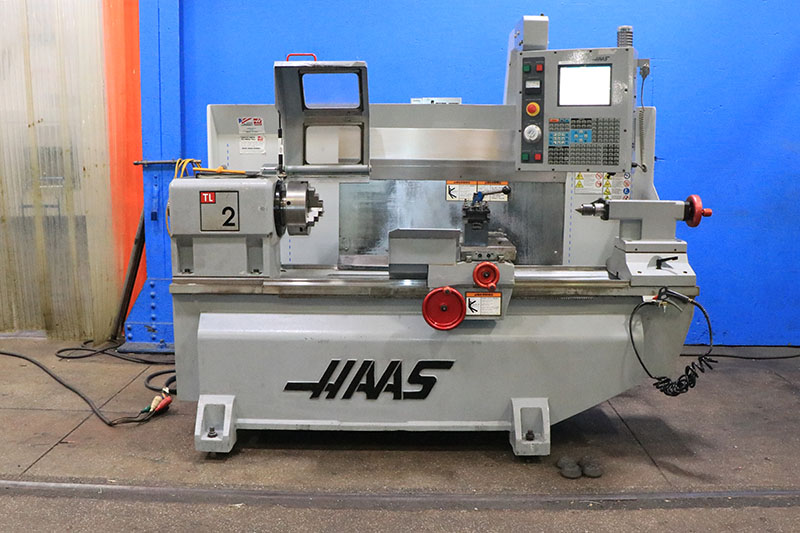

image description
