Haco Synchromaster SRM 240-10-8 NEW PRESS BRAKES

Price on Request

Make:: Haco

Model:: Synchromaster SRM 240-10-8

Year:: NEW

Ref #:: 147356

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

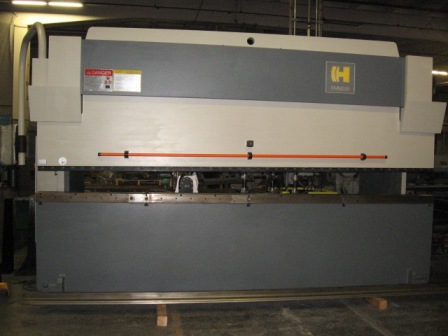

										NEW HACO 240 TON x 10'CNC SYNCHROMASTER PRESS BRAKE
 w/ATS-560 CNC CONTROL
 Model:SRM 240-10-8



 STANDARD EXECUTION:
 - Electronic controlled ram synchro system w/ servo-hydraulic valves.
 - Automatic compensation of the side frame deflection by table referenced linear scales, connected w/ the ram SYNCHRO-system
 - Pendant control panel with Robosoft ATS 560 CNC control
 - X-axis: backgauge with 0.004" positioning accuracy
 - Y1/Y2 ram axes positioning, 0.0004" accuracy
 - Programmable pressure, ram stroke and ram opening height
 - Programmable speed change point
 - Automatic full cycle of the ram

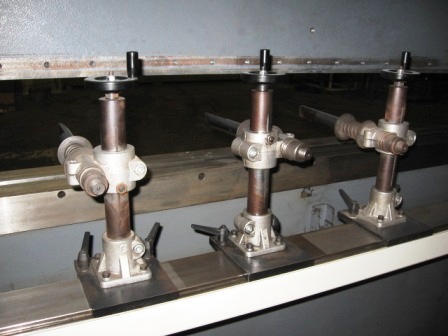

 - 31" CNC controlled backgauge on high precision ballscrews,including 2 universal fingerblocks, manually adjustable in width and height
 - Ram and table machined to use American style tooling.
 - Operation, programming and maintenance manual.

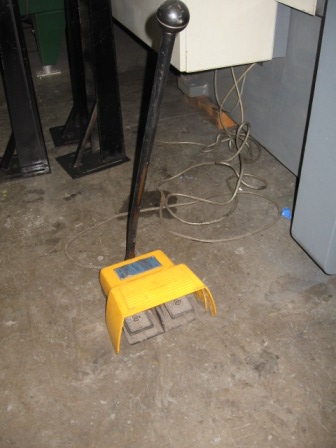

- Foot pedal control

d - Full oiltank

 SPECIFICATIONS:
 Max Capacity 240 Tons
 Working Length 122"
 Distance between housings 102"
 Fast Approach Speed 189 IPM
 Max Working Speed 19 IPM
 Fast Return Speed 236 IPM
 Motor 25 hp
 Ram Stroke 7.8"
 Gap 11.8"
 Daylight Opening 17.7"
 Dimensions: 108" x 131" x 79" (H x L x W)
 Weight 25,500 lbs.

 STANDARD CNC CONTROL MODEL ATS-560:
 - 7 Segment LED display (8 digits)
 - Capacity of 400 steps, max. 200 programs
 - Programmable: top dead center, speed change point, backgauge retracction, material thickness
 - Programmable ram depth or pressure programming
 - Depth jog mode
 - Backgauge jog mode
 - Absolute and incremental programming of the backgauge
 - Part counter (up & down) in manual and automatic model
 - Diagnostics

 OPTIONAL SAFETY DEVICES: (CALL FOR PRICING)
 - Central adjustable anti-deflection tables (manual or CNC controlled, only possible w/ ATS600 Control
 - Extra fingerblocks
 - Pneumatic finger height control
 - Front stops
 - European and new style manual and hydraulic tool clamping
 - Higher level CNC Controls
 (Model ATS 570 & ATS 600)
 - Safety devices
