Harig 618, 1992, O.S. WALKER 618 F-D PMC, SURFACE GRINDERS, HAND FEED

Price on Request

Make:
Harig
Model:
618, 1992, O.S. WALKER 618 F-D PMC,
Year:
1992
Ref #:
178032

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

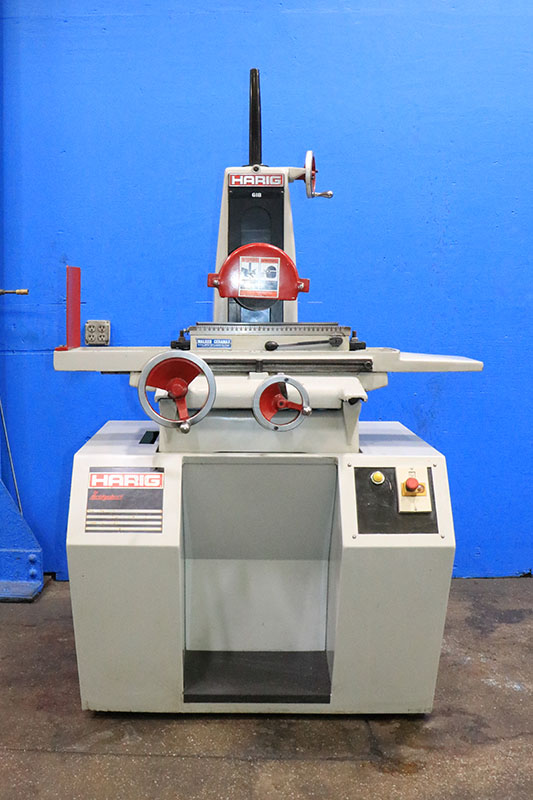

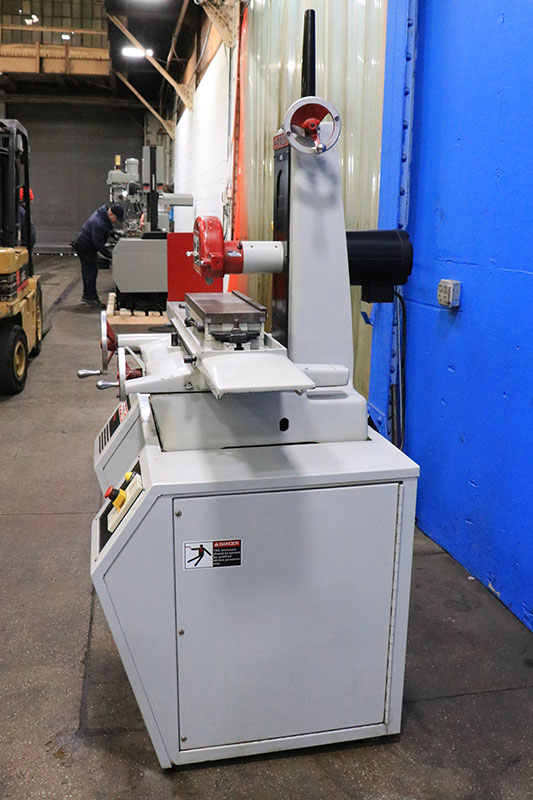

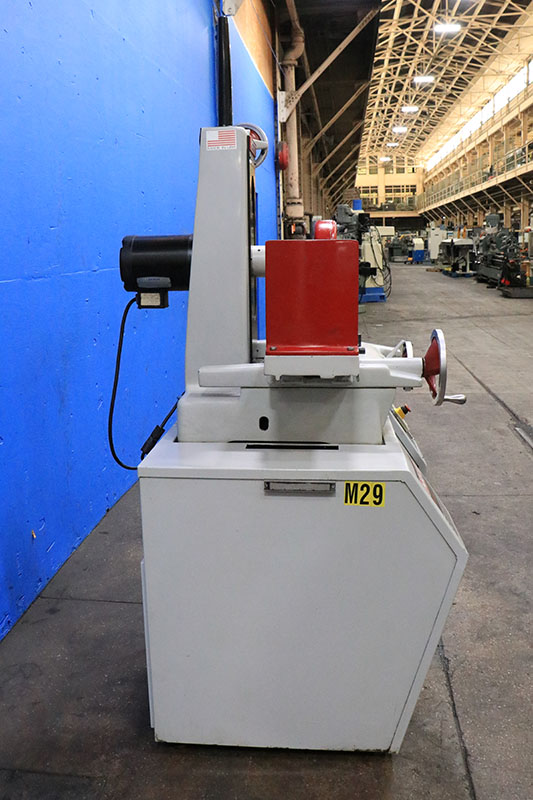

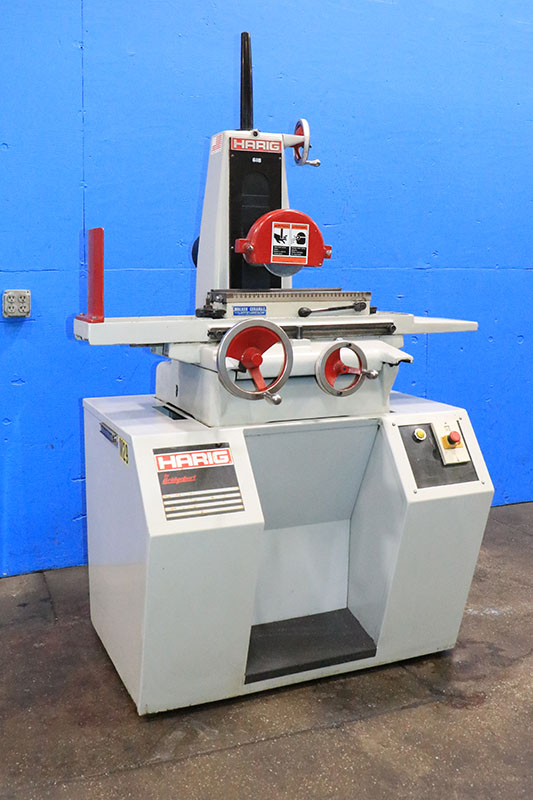

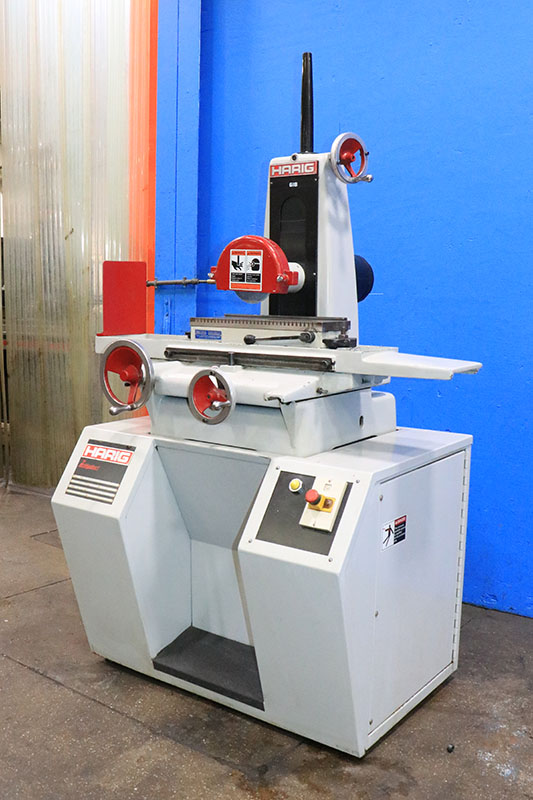

          6" X 18" HARIG "MADE IN USA"
           HAND FEED SURFACE GRINDER

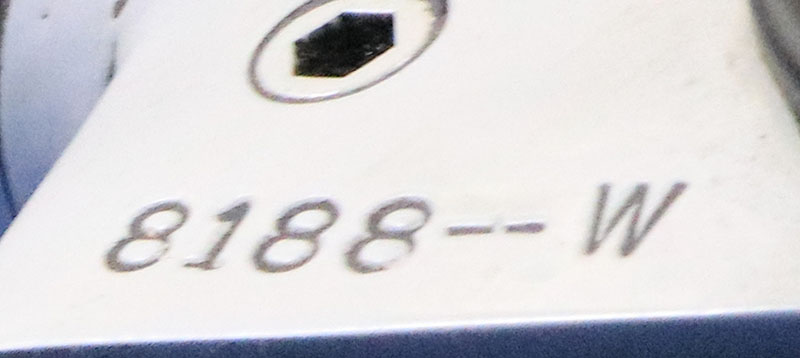

 MODEL: 618     S/N: 8188-W      NEW: 1992

WIDTH & LENGTH GROUND ............ 6" X 18"
VERTICAL, WORKING HEIGHT
 UNDER 7" WHEEL .................. 11- 3/4"
LONGITUDINAL TABLE TRAVEL ........ 20"
CROSS TRAVEL ..................... 6- 3/4"
GRINDING WHEEL ............. 7" x 1/2" x 1-1/4"
MAXIMUM GRINDING WHEEL DIA. ...... 8"
ELEVATING HANDWHEEL GRAD. ........ 0.0005"

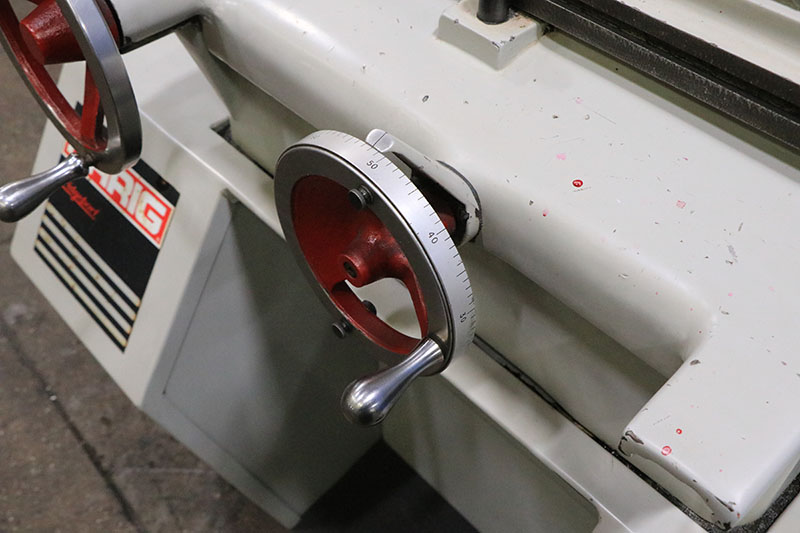

CROSS HANDWHEEL GRAD. ............ 0.001"

FLOOR AREA OPERATING SPACE ....... 69" X 45"
APPROXIMATE WEIGHT ............... 1,250 LBS

EQUIPPED WITH:
RACK & PINION TABLE DRIVE

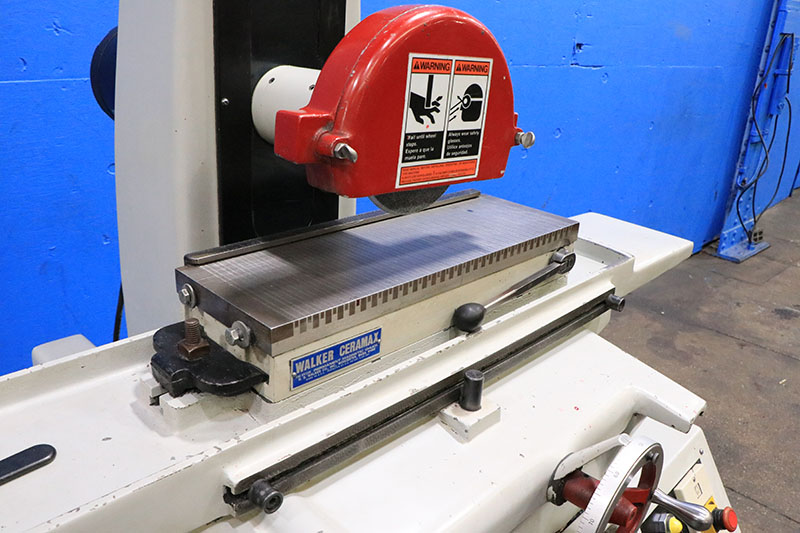

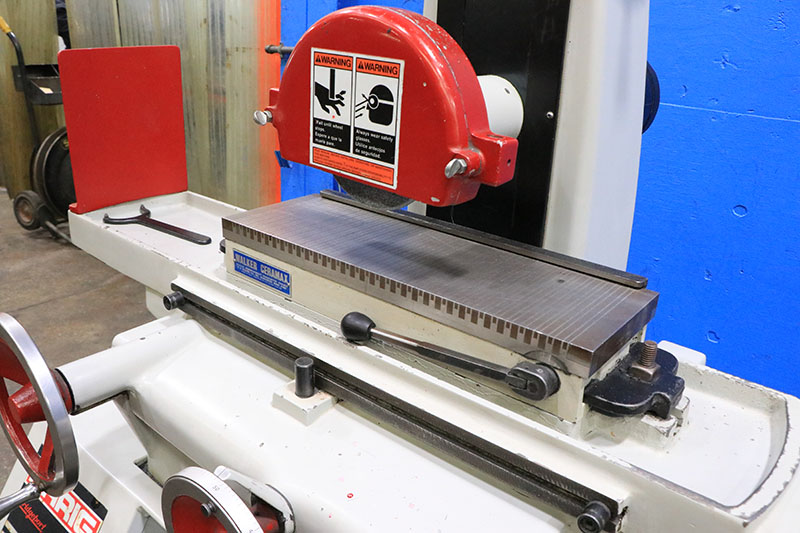

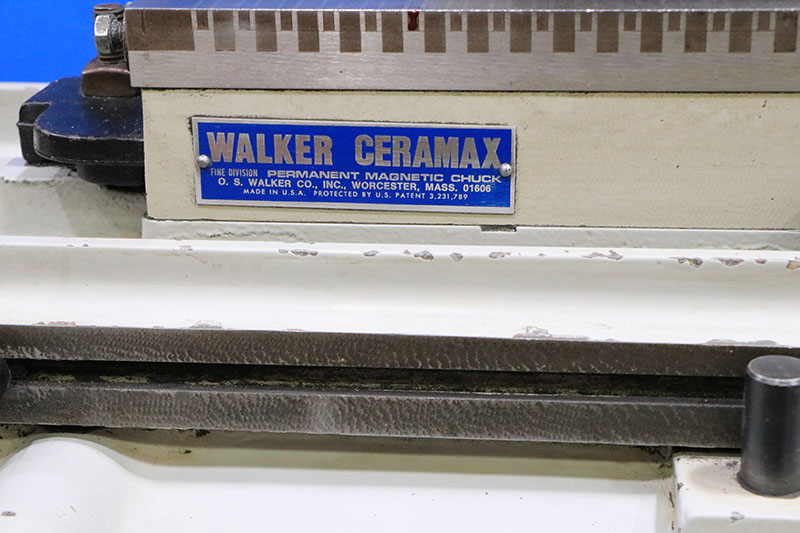

6" X 18" FINE-DIVISION O.S. WALKER
  PERMANENT MAGNETIC CHUCK
AUTOMATIC LUBRICATION SYSTEM
HARIG SUPER-PRECISION DIRECT DRIVE
  CARTRIDGE TYPE SPINDLE

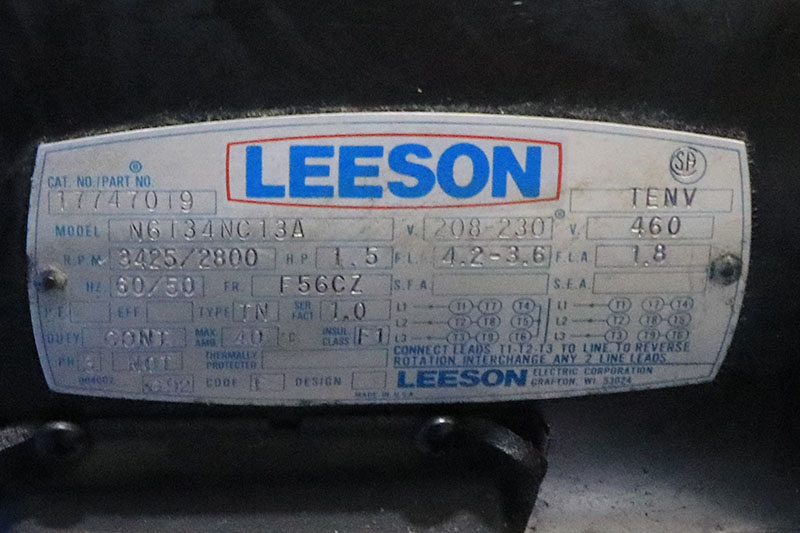

"LEESON" 1.5 HP 3/60/230-460 VOLT SPINDLE MOTOR


** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **
