Harig 618 AUTOMATIC, HYD. TABLE, PWR.ELECTRIC CROSSFEED SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Harig

Model:: 618 AUTOMATIC, HYD. TABLE, PWR.ELECTRIC CROSSFEED

Year:: 1979

Ref #:: 161452

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

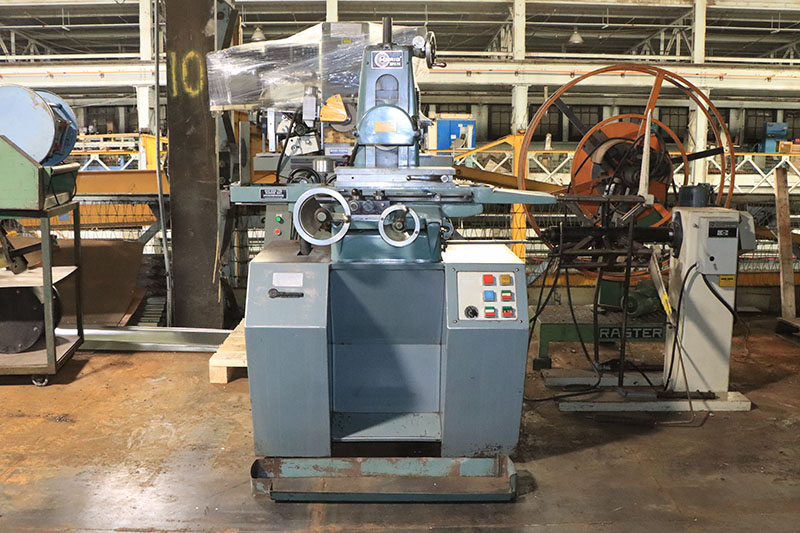

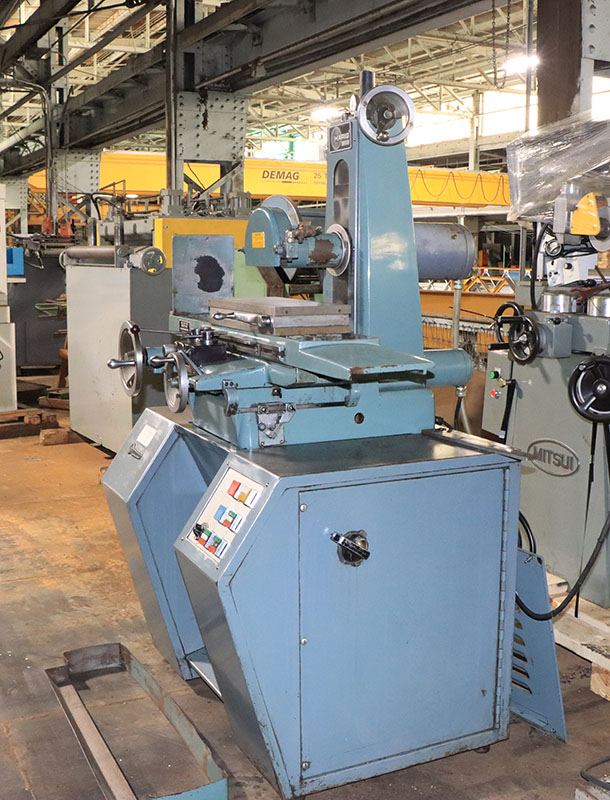

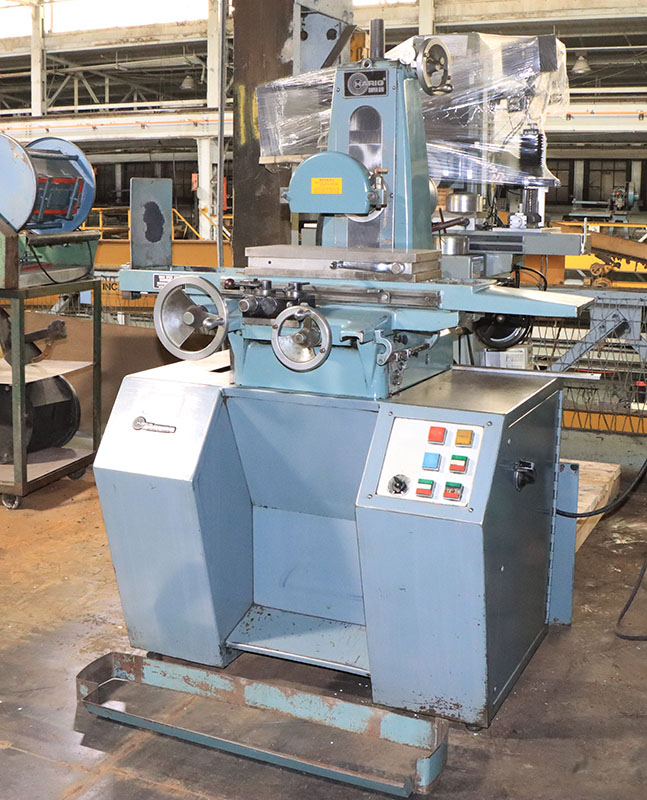

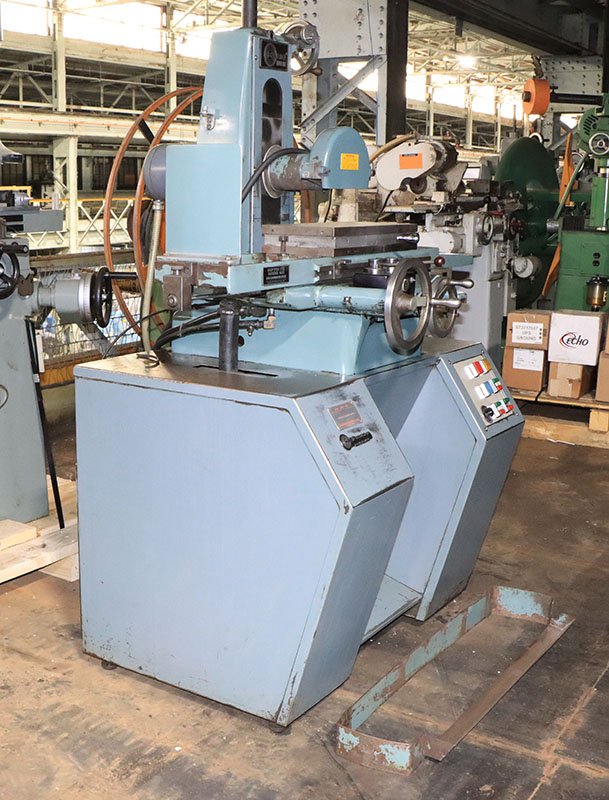

  6" X 18" HARIG SURFACE GRINDER, TWO-AXIS AUTIC FEEDS

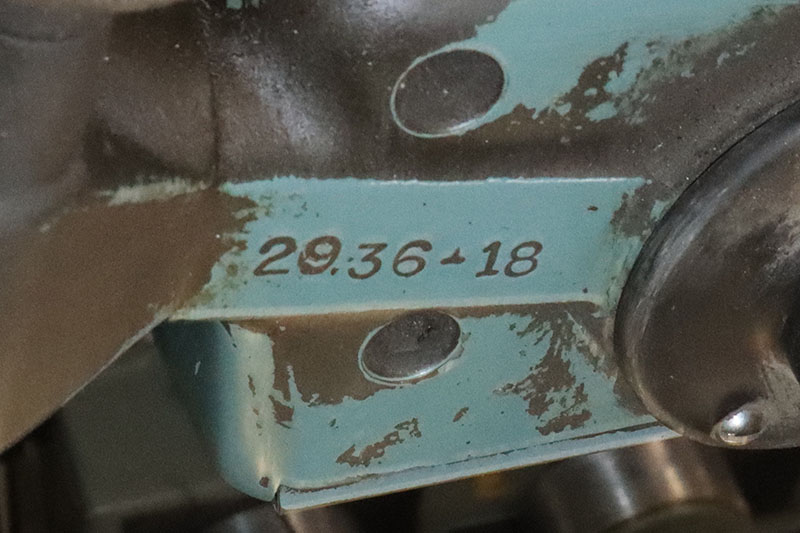

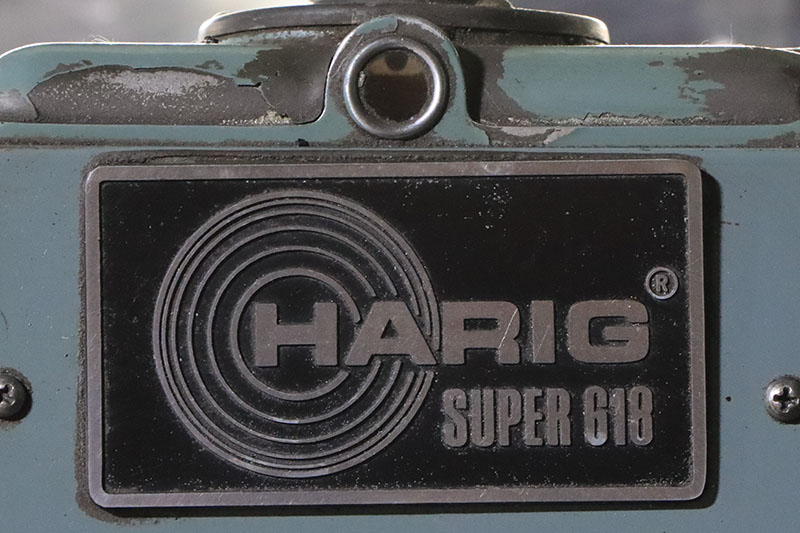

MODEL: 618 AUTOMATIC     S/N: 2936-18       NEW: 1979

SPECIFICATIONS:
WIDTH& LENGTH GROUND ...................... 6" X 18"
LONGITUDINAL TRAVEL ....................... 18- 3/4"
CROSS TRAVEL .............................. 6- 3/4"
LONGITUDINAL TABLE SPEED .................. 0 TO 70' FPM
AUTO CROSS FEED INCREMENT PER TABLE PASS .. 0 TO 3/32"
WORKING HEIGHT UNDER THE WHEEL............. 12"

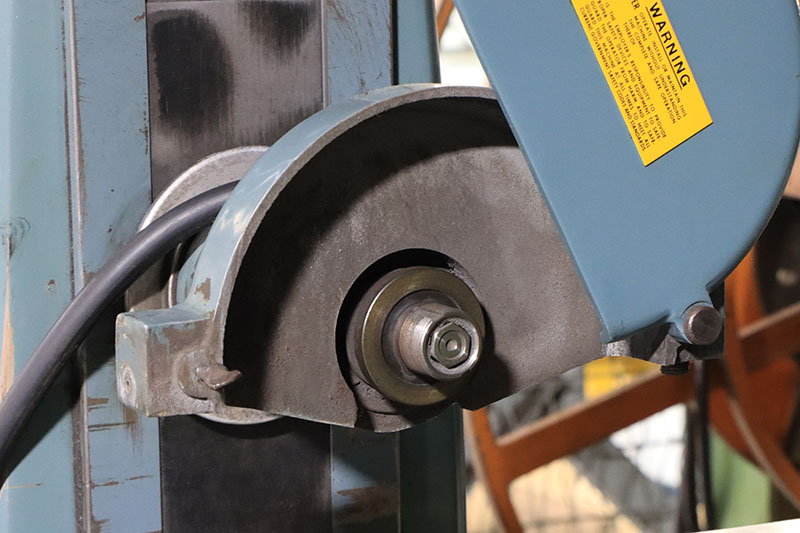

GRINDING WHEEL DIMENSIONS (DxWxB) ......... 7" x 1/2" x 1-1/4"
VERTICAL HAND WHEEL, GRADUATION............ 0.0005"
CROSSFEED HANDWHEEL, GRADUATION............ 0.001"

FLOOR AREA OPERATING SPACE................. 71" X 45"
APPROXIMATE WEIGHT......................... 1,500 LBS

EQUIPPED WITH:
- HYDRAULIC TABLE TRAVERSE

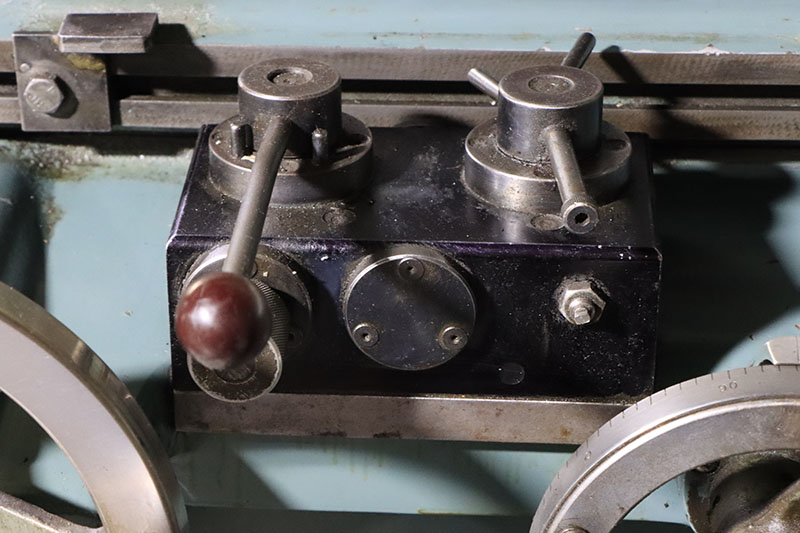

- AUTOMATIC ELECTRO-MECHANICAL POWER CROSS FEED

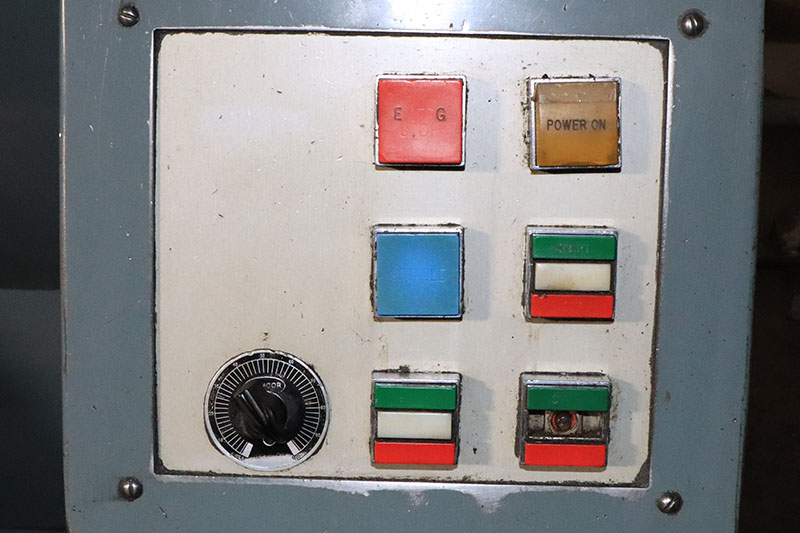

   CONTROLLED BY RHEOSTAT KNOB

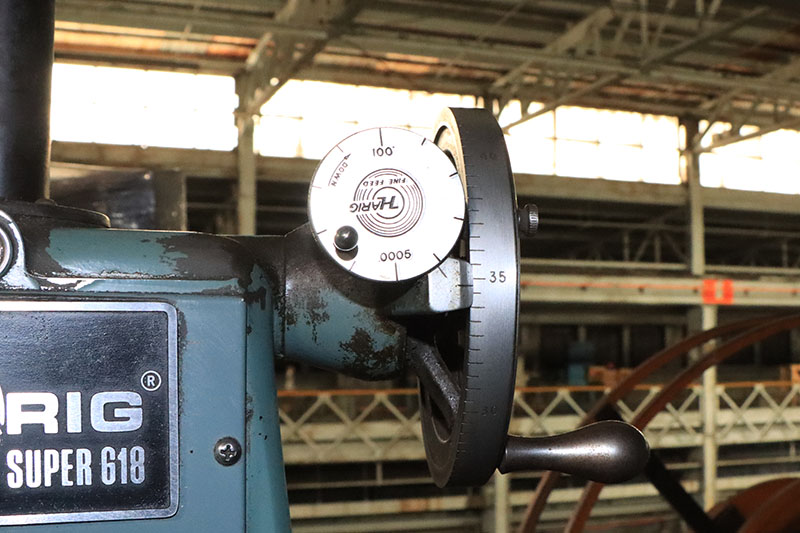

- FINE FEED OPTION FOR VERTICAL HANDWHEEL, 0.0001" GRADUATION

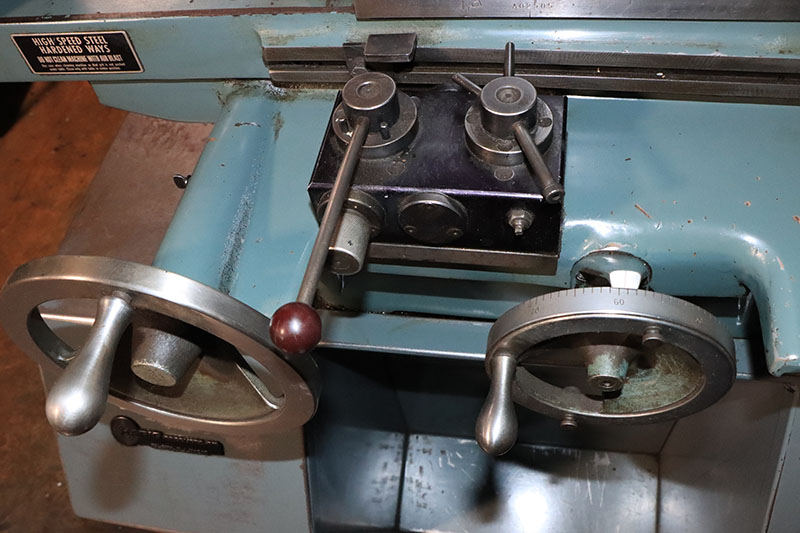

- SPECIAL HIGH SPEED HARDENED STEEL WAYS OPTION
- COOLANT SYSTEM (TANK, PUMP, ETC.)

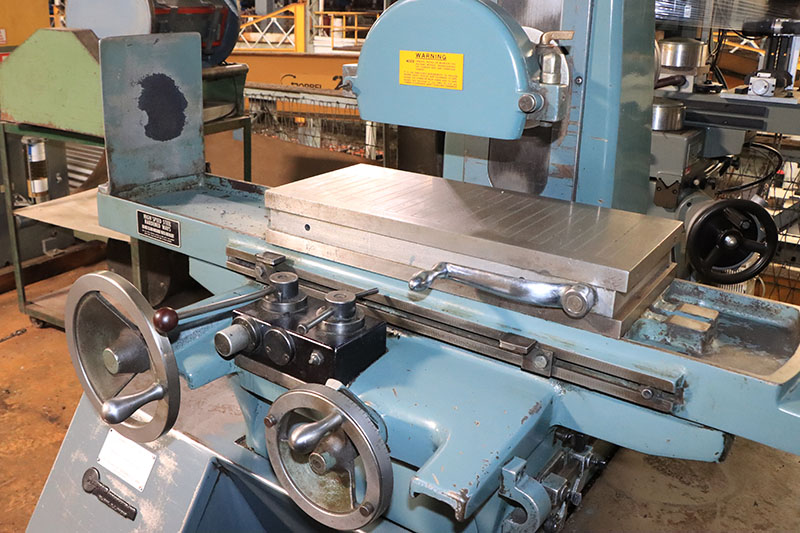

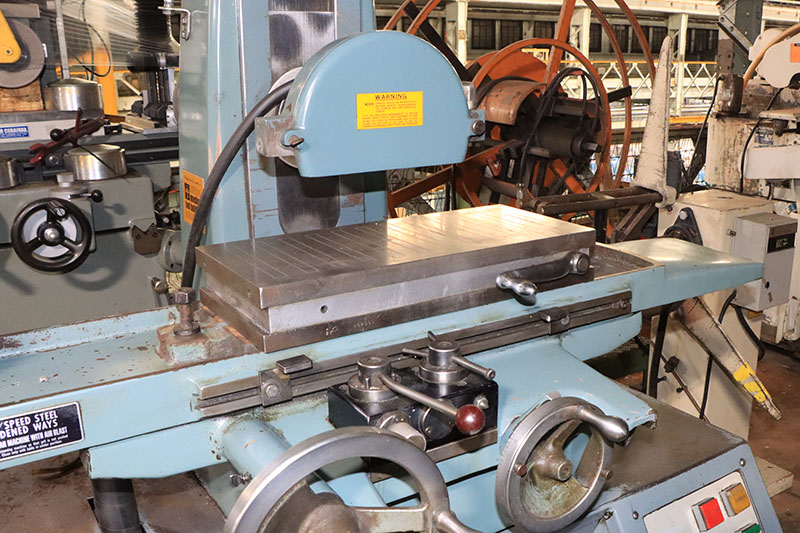

- 6" X 18" FINE-DIVISION PERMANENT MAGNETIC CHUCK
- HARIG "FLO-CLEAN" AUTO LUBRICATION SYSTEM

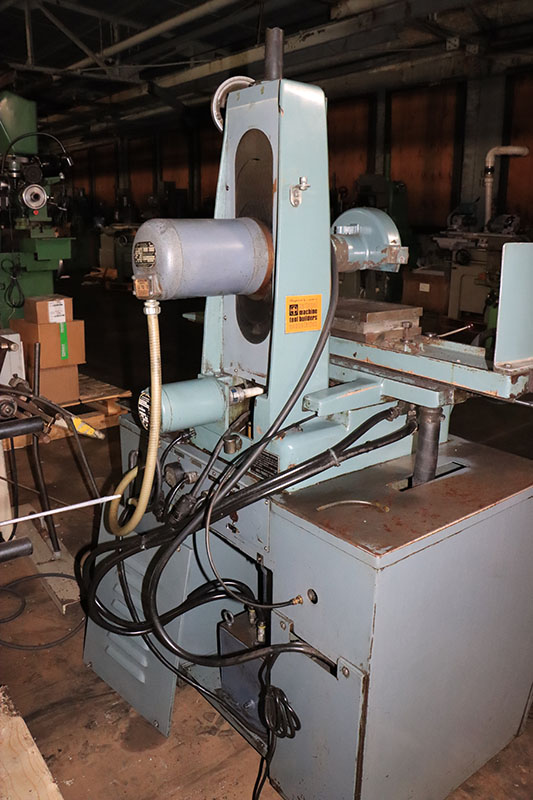

- 1 HP 3/60/208-220-440 VOLT SUPER-PRECISION DIRECT DRIVE
   CARTRIDGE TYPE SPINDLE
- MACHINE IS PRESENTLY WIRED FOR VOLTS


** EXCELLENT CONDITION & APPEARANCE - RUNS SUPERBLY **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
