Harig 618 HYDRAULIC, 1987, 2-AXIS AUTO FEEDS, SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Harig

Model:: 618 HYDRAULIC, 1987, 2-AXIS AUTO FEEDS,

Year:: 1987

Ref #:: 178044

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

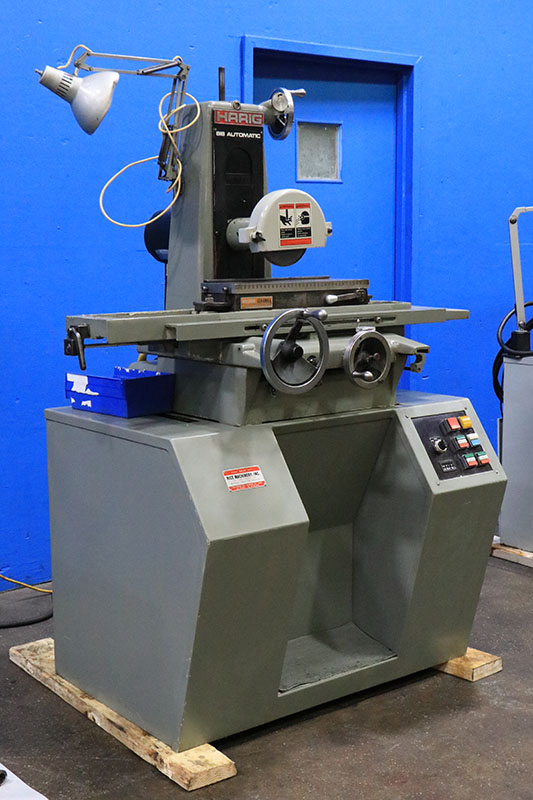

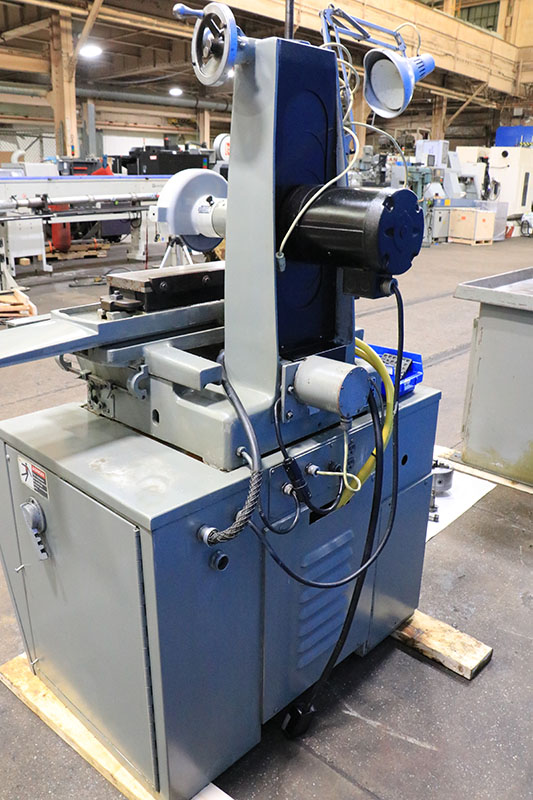

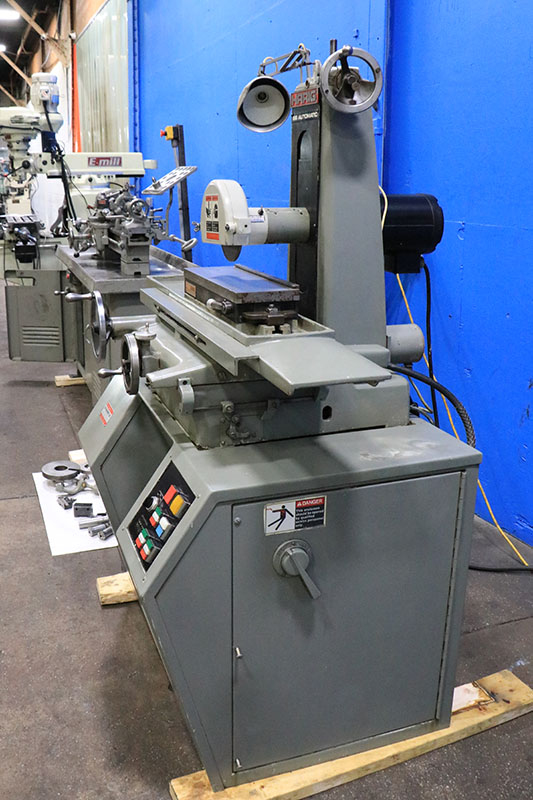

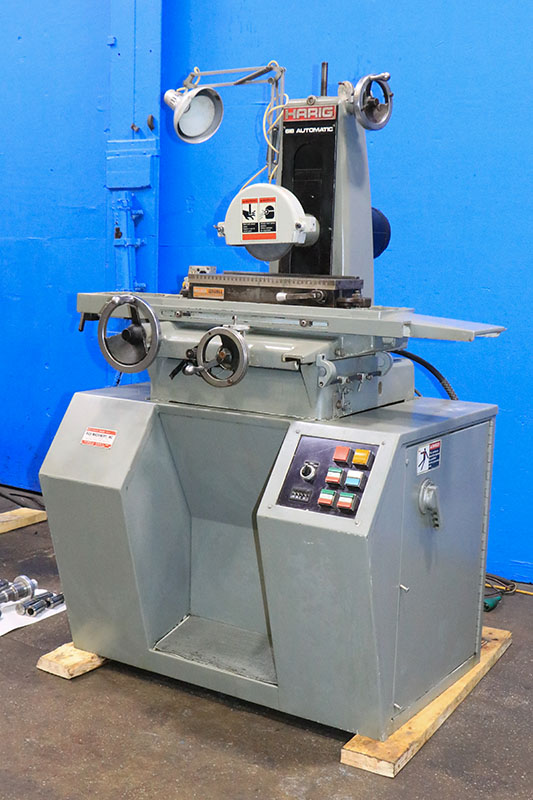

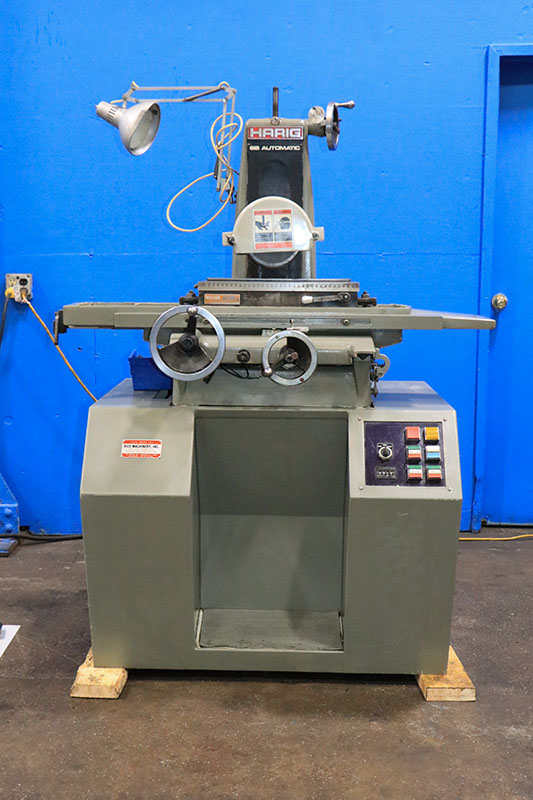

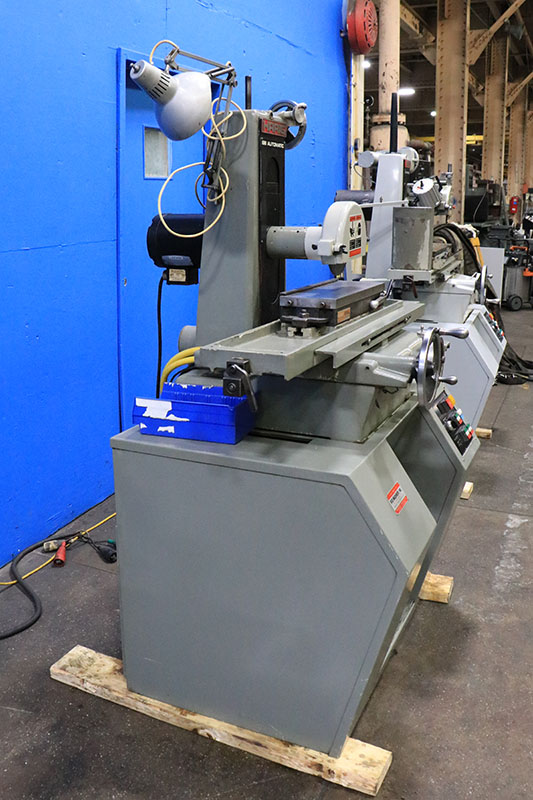

      6" X 18" HARIG (MADE IN U.S.A.)
           2-AXIS AUTOMATIC
    "PRECISION" SURFACE GRINDER

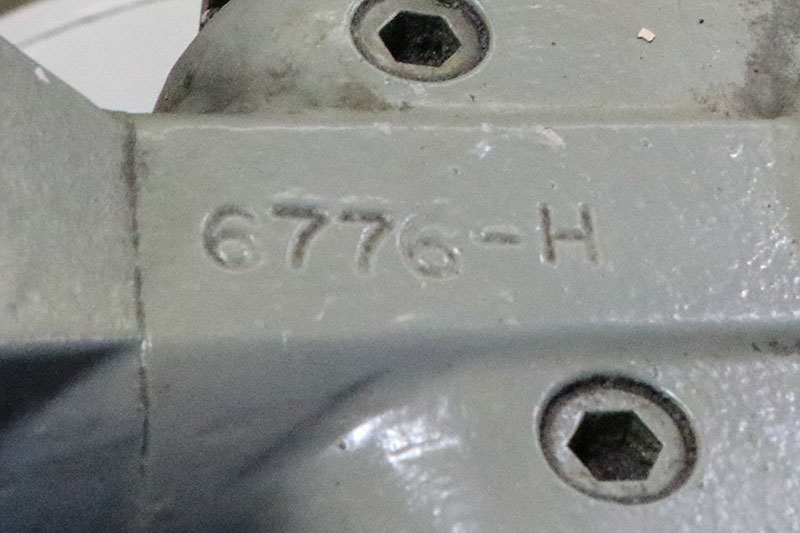

MODEL: 618 AUTOMATIC    S/N: 6776-H   NEW:  1987

  SPECIFICATIONS:
WIDTH & LENGTH GROUND ................ 6" X 18"
LONGITUDINAL TRAVEL .................. 18- 3/4"
CROSS TRAVEL ......................... 6- 3/4"
LONGITUDINAL TABLE SPEED ............. 0 TO 70' FPM
CROSS FEED INCREMENT PER TABLE PASS .. 0.0005" TO .9995"
WORKING HEIGHT UNDER THE WHEEL........ 11- 3/4"
GRINDING WHEEL DIMENSIONS (DxWxB)..... 7" x 1/2" x 1-1/4"

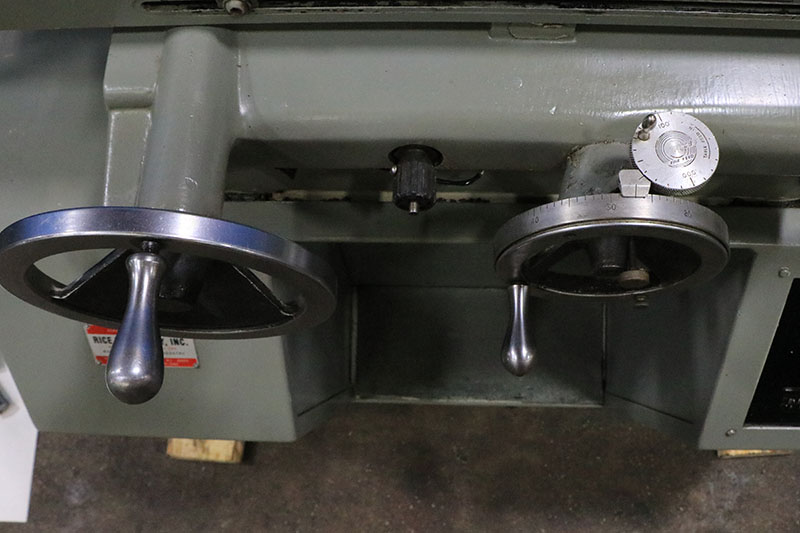

VERTICAL HAND WHEEL, GRADUATION ...... 0.0005"
CROSSFEED HANDWHEEL, GRADUATION ...... 0.001"

FLOOR AREA OPERATING SPACE............ 71" X 45"
APPROXIMATE WEIGHT.................... 1,500 LBS


 MACHINE FEATURES:
- HYDRAULIC TABLE TRAVERSE

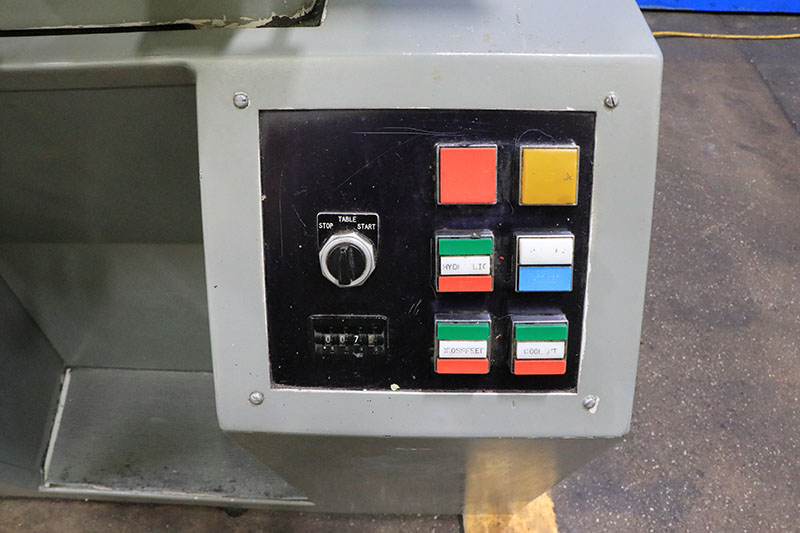

- AUTOMATIC ELECTRO-MECHANICAL POWER CROSS FEED
   CONTROLLED BY THUMSWITCHES
- HARIG "FLO-CLEAN" AUTO LUBRICATION SYSTEM
- 1 HP 3/60/208-230-460 VOLT SUPER-PRECISION DIRECT DRIVE
  CARTRIDGE TYPE SPINDLE

 EQUIPPED WITH:
- FINE FEED OPTION FOR BOTH VERTICAL & CROSS FEED HANDWHEELS

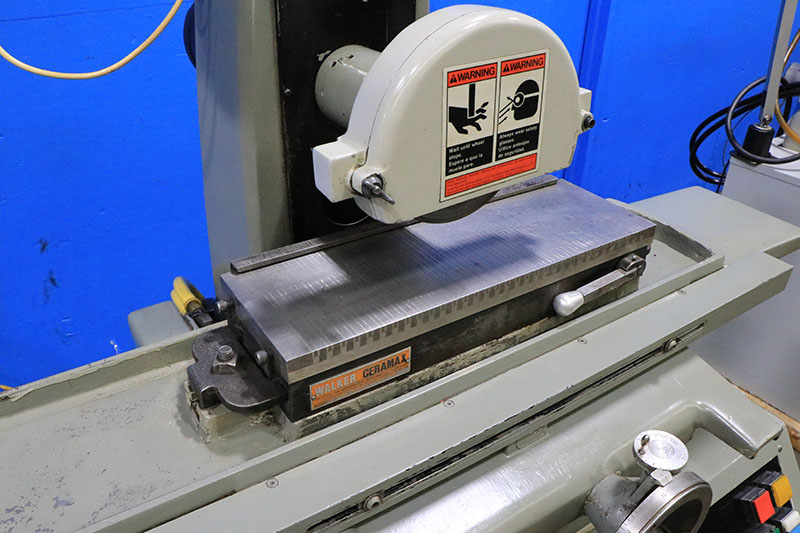

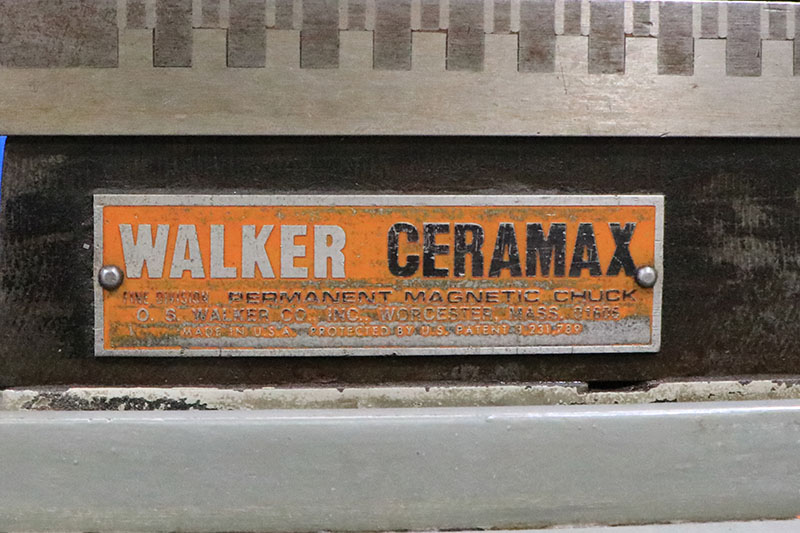

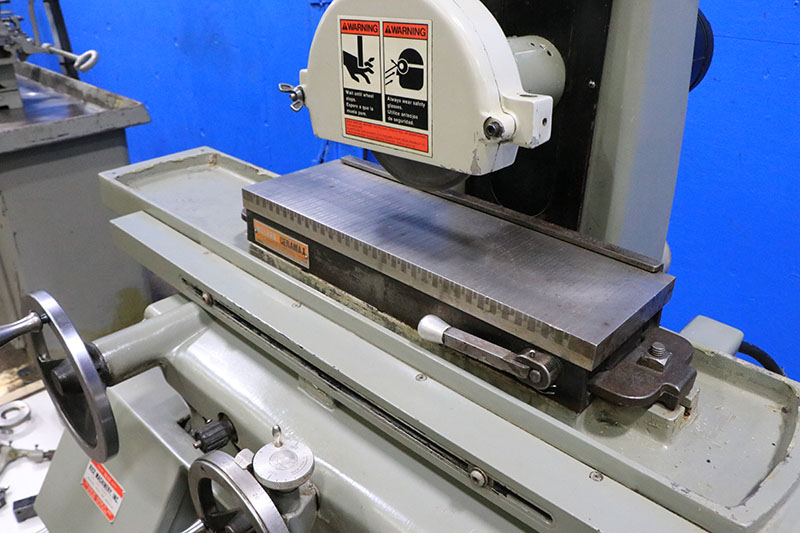

- 6" X 18" O.S. WALKER "CERAMAX" FINE-DIVISION PERMANENT MAGNETIC CHUCK
- COOLANT SYSTEM, COMPLETE WITH GUARDING, TANK & PUMP
- WORK LIGHT
- PRESENTLY WIRED FOR 3/60/220 VOLTS

 link to video: https://youtu.be/VSMW30WVuzA?si=a7yL912yd8cSvvTJ

 ** "EXCELLENT" CONDITION & APPEARANCE  **
**  INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE  **
