Hwacheon CUTEX 160A CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Hwacheon

Model:: CUTEX 160A

Year:: 2017

Ref #:: 158087

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

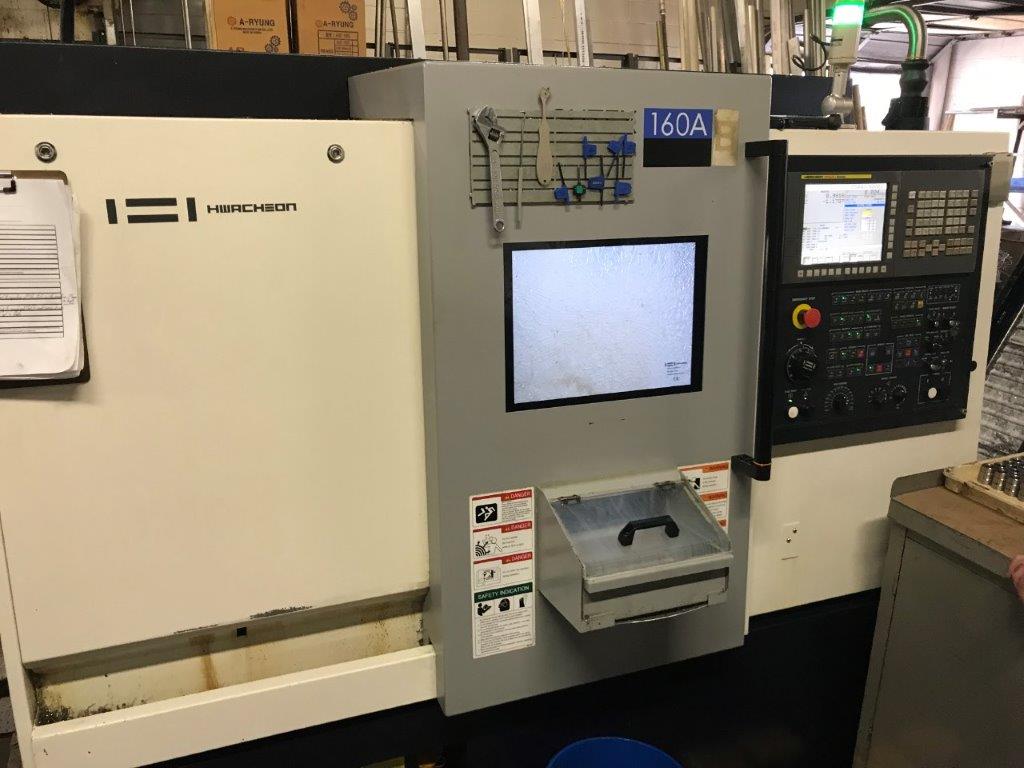

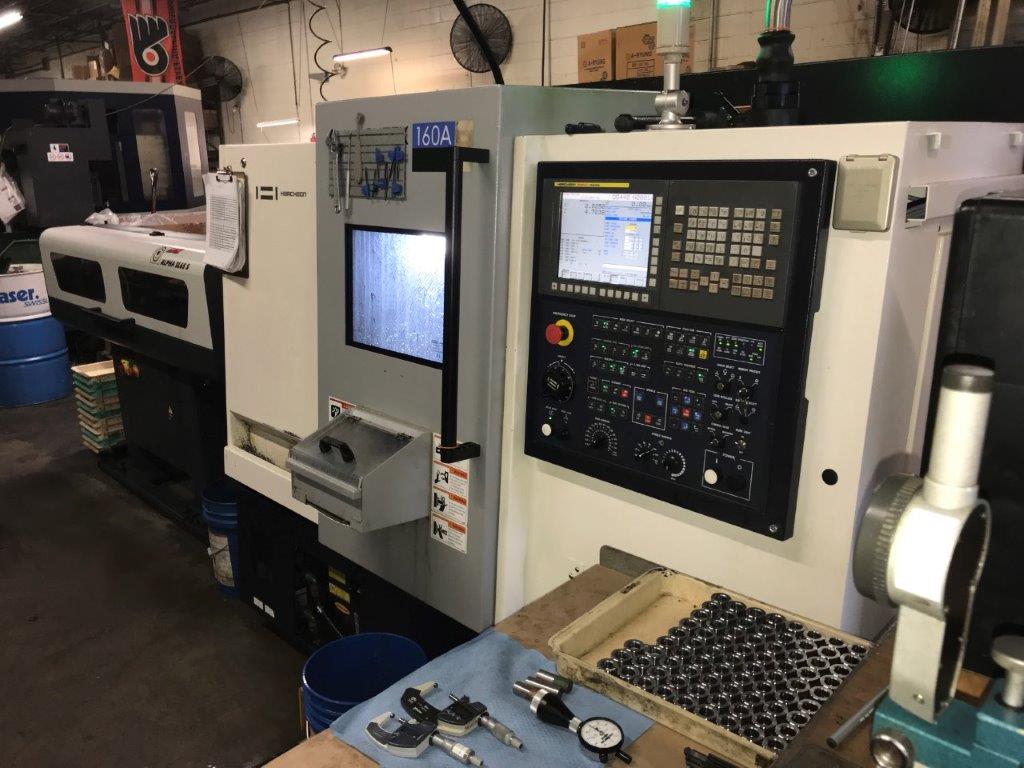

HWACHEON CUTEX 160A CNC TURNING CENTER w/LNS ALPHA SL65 S BARFEED
NEW: 2017
2 MACHINES AVAILABLE

SPECIFICATIONS:
SWING OVER BED ............... 21.65"
MAX. TURNING DIAMETER ........ 11.8"
MAX. TURNING LENGTH .......... 11.81"
CHUCK SIZE ................... 6"
SPINDLE NOSE ................. A2-5
MAX. SPINDLE SPEED ........... 6000 RPM
HOLE THRU SPINDLE ............ 2.2"
MAX. BAR CAPACITY ............ 1.77"
SPINDLE MOTOR ................ 15/10 HP
NUMBER OF TOOLS .............. 12
TOOL SIZE .................... 1" X 1.5"
TAILSTOCK QUILL DIAMETER ..... 2.36"
TAILSTOCK QUILL STROKE ....... 3.15"
TAILSTOCK QUILL TAPER ........ MT#4
APPROX. WEIGHT ............... 7,250 LBS

EQUIPPED WITH:

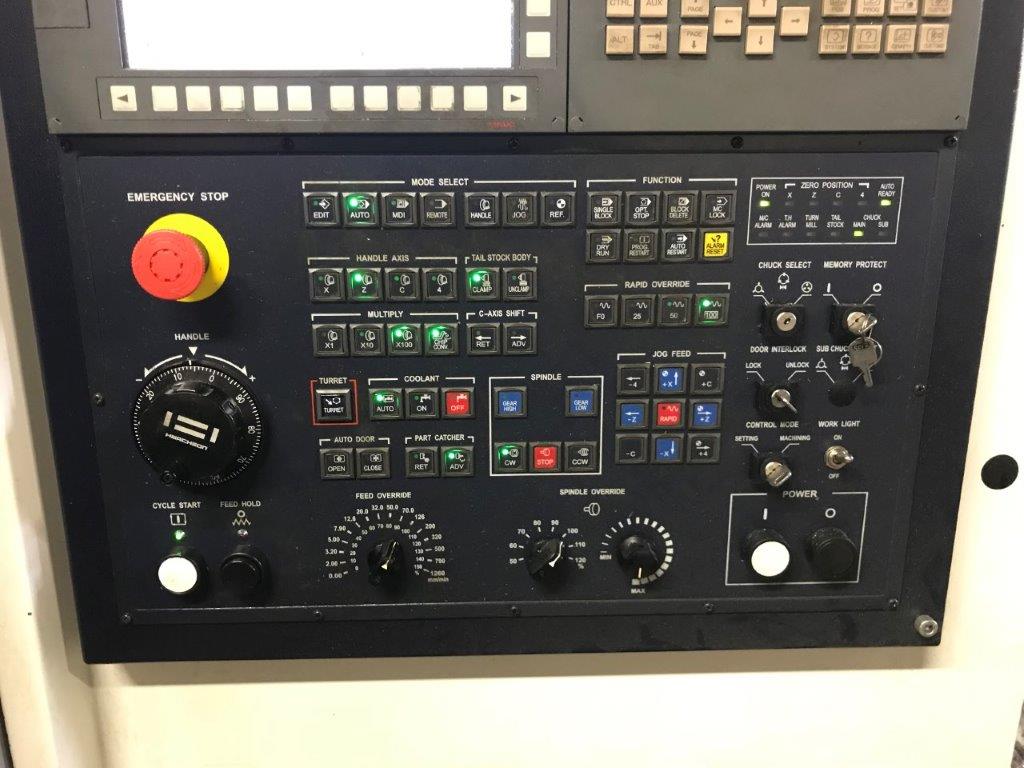

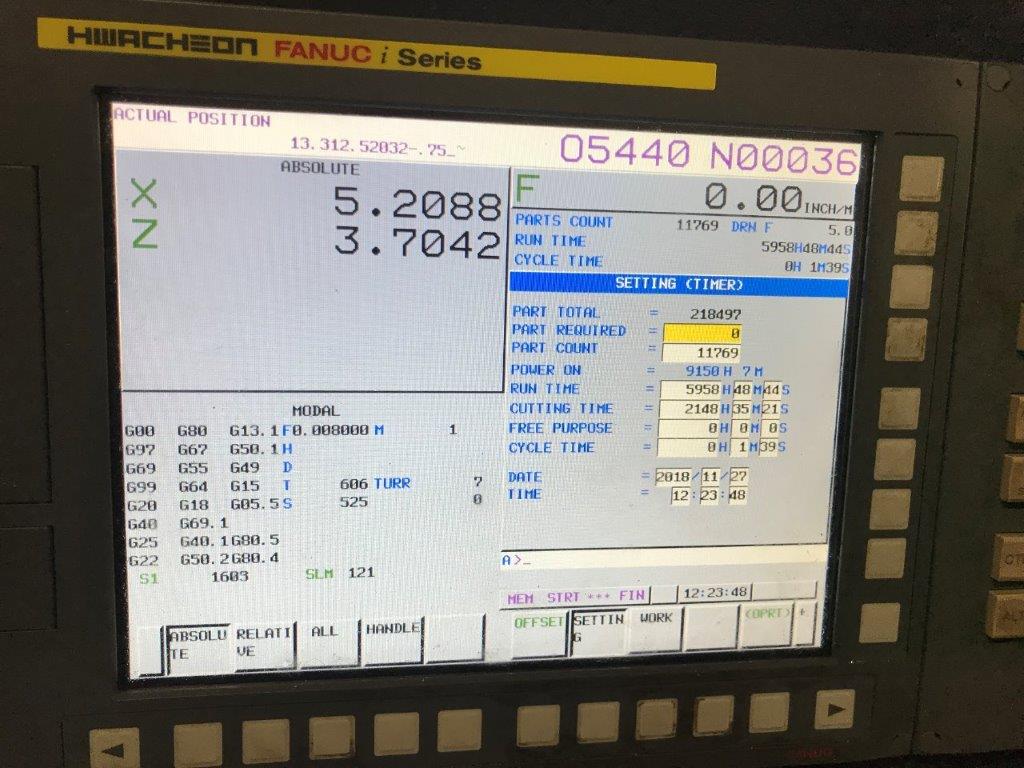

 - FANUC 0iTF CNC CONTROL
 - 16C COLLET CHUCK
 - TOOLSETTER

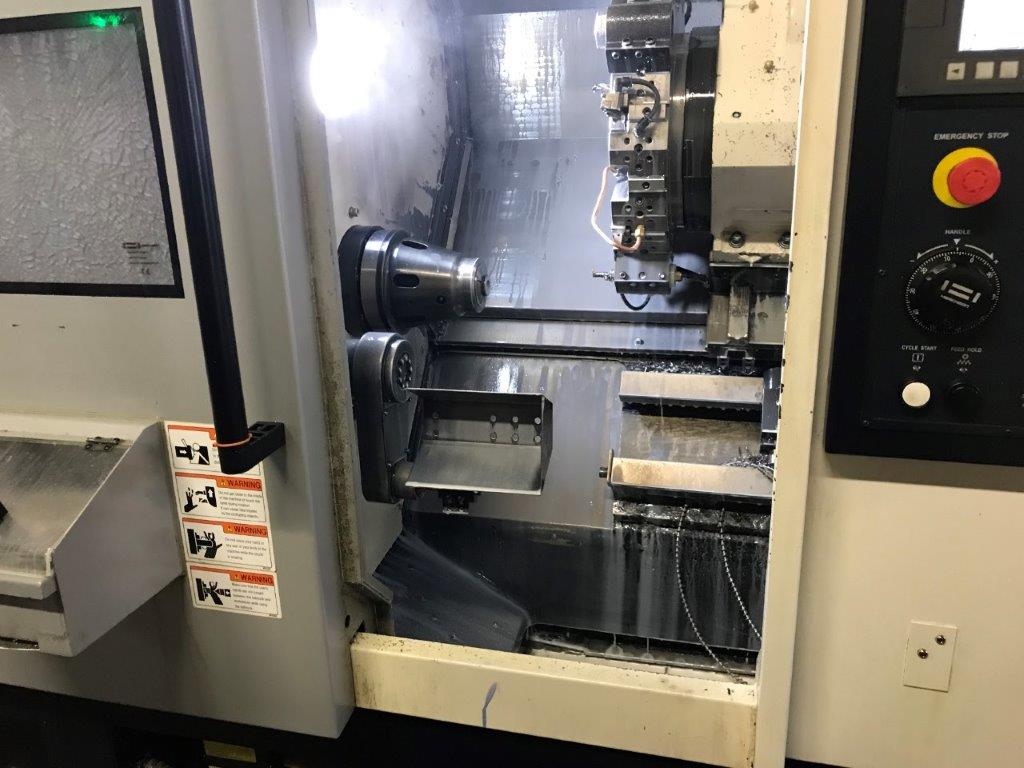

 - PARTS CATCHER
 - 12 POSITION TURRET
 - TAILSTOCK
 - CHIP CONVEYOR

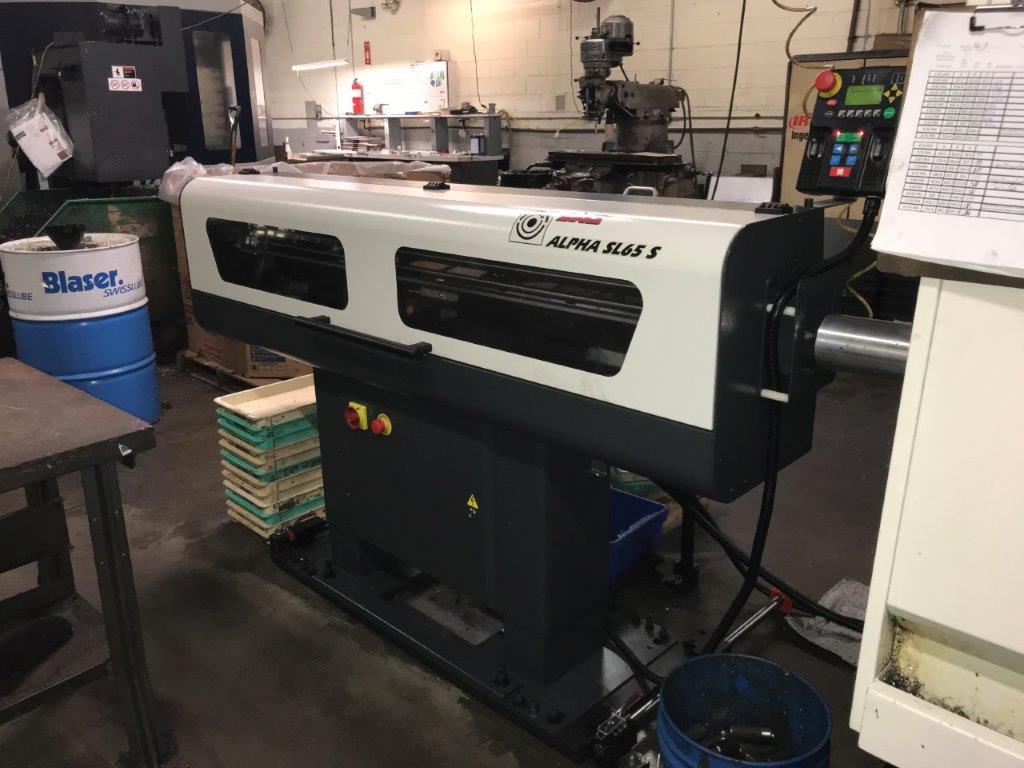

 - LNS ALPHA SL65 S MAGAZINE BARFEED
 - ALL AVAILABLE TOOL HOLDERS AND MANUALS

IN PLANT UNDER POWER, EXCELLENT CONDITION

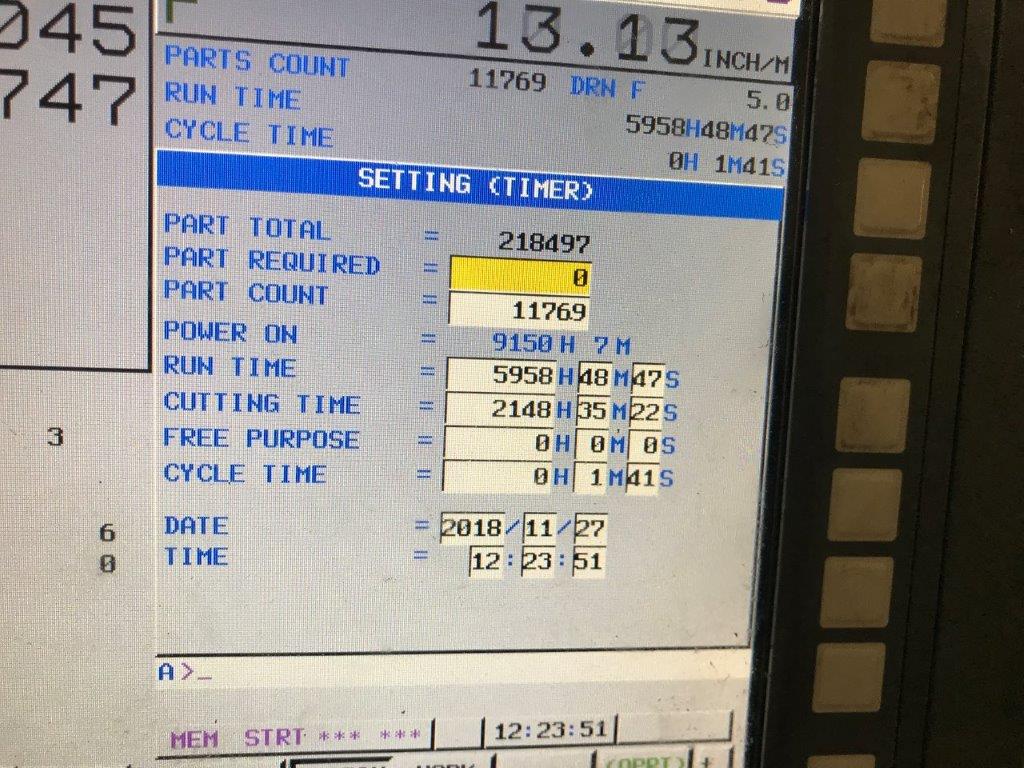

HOURS AS OF NOV. 2018
POWER ON: 9291
RUN TIME: 5590
CUT TIME: 1889
