Jones & Shipman 540, HYD. TABLE & POWER CROSSFEED, SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Jones & Shipman

Model:: 540, HYD. TABLE & POWER CROSSFEED,

Year:: 1960

Ref #:: 167689

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

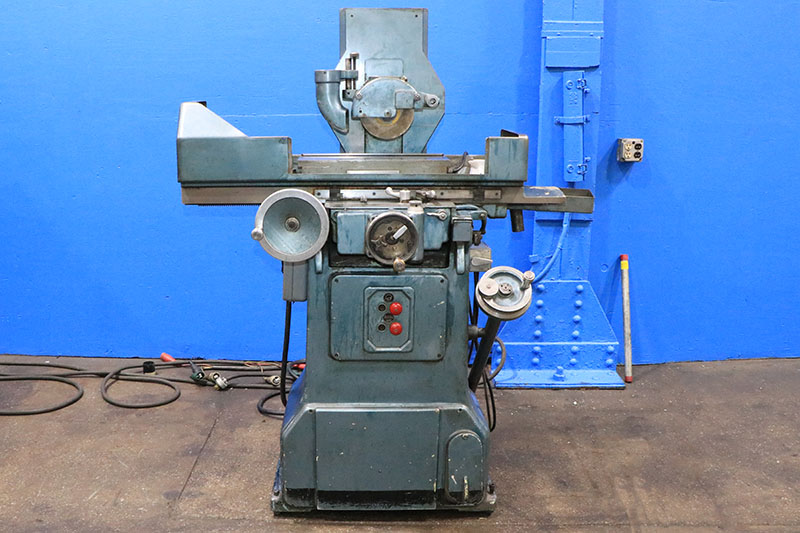

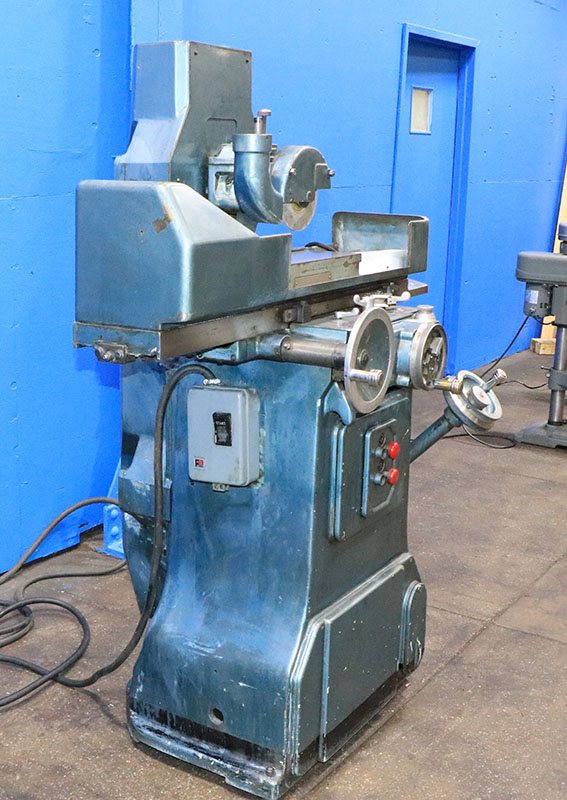

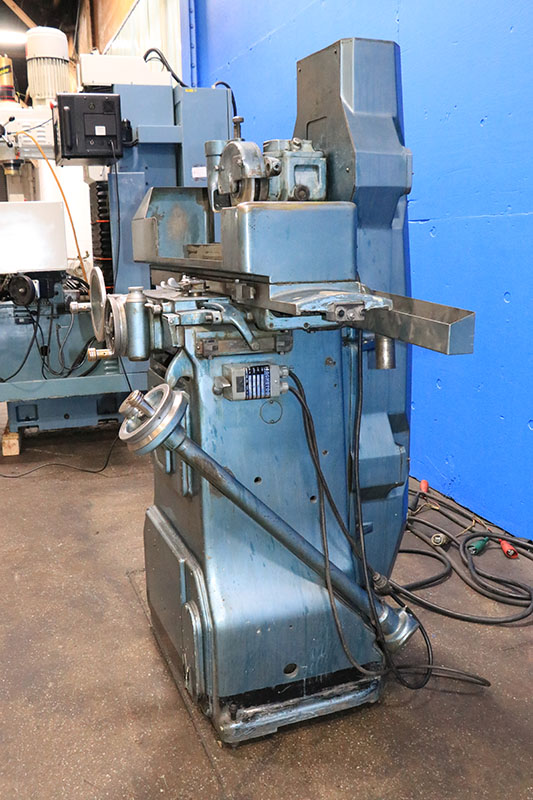

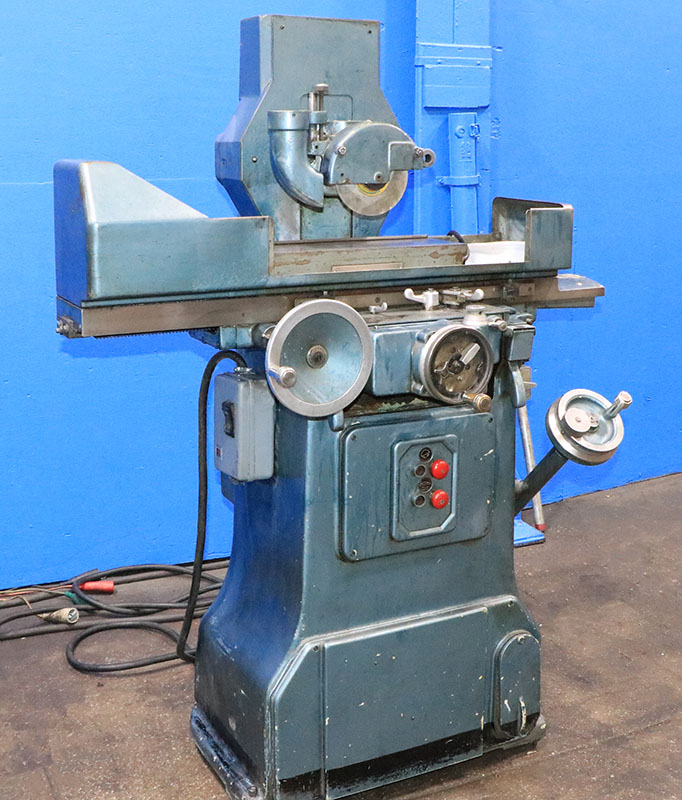

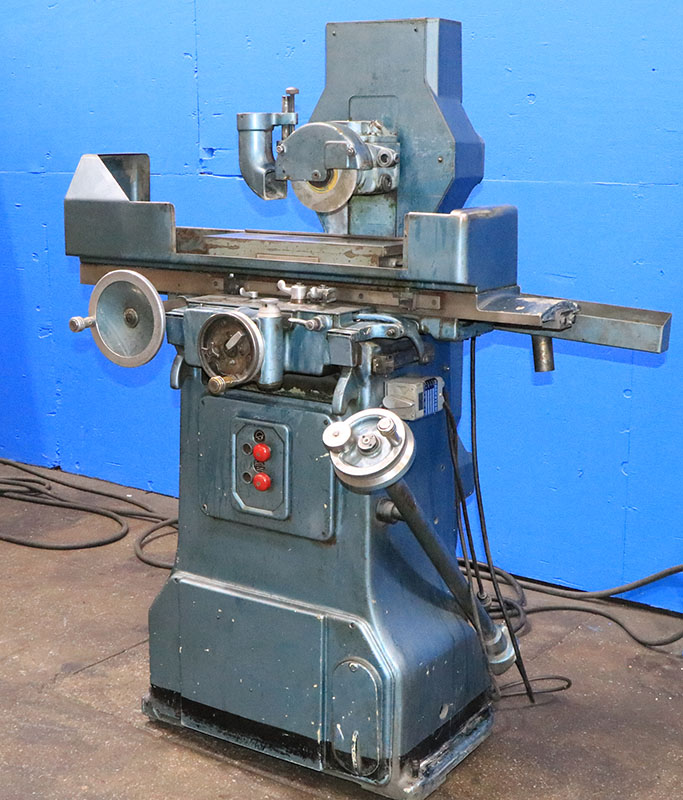

            6" X 18" JONES & SHIPMAN
          MADE IN ENGLAND "PRECISION"
          HYDRAULIC SURFACE GRINDER

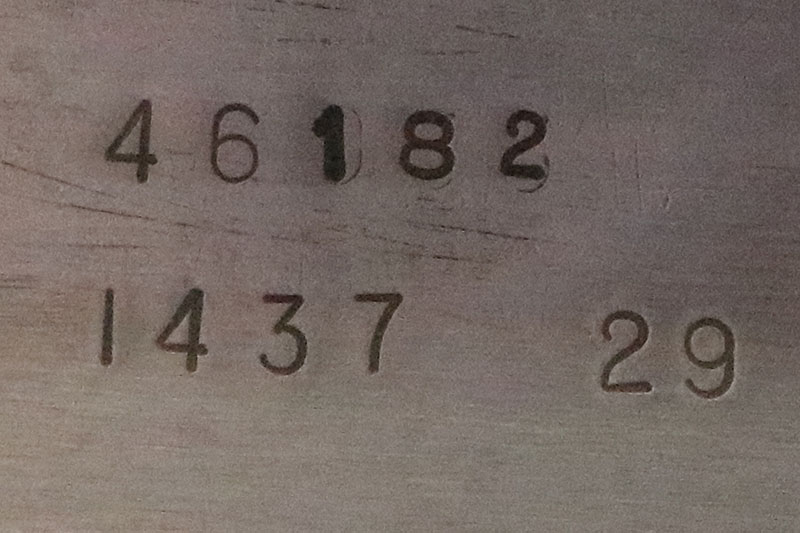

MODEL: 540P         S/N: 46182         NEW: 1960

WIDTH & LENGTH GROUND ................. 6" X 18"
LONGITUDINAL TABLE TRAVEL ............. 19"
CROSS TRAVEL .......................... 6- 3/4"
LONGITUDINAL TABLE SPEED .............. 5' TO 40' FPM
ONE REV. OF HANDWHEEL, LONGITUDINAL ... 4.9"
AUTOMATIC CROSS FEED INCREMENT ........ 0.01" TO 0.07"

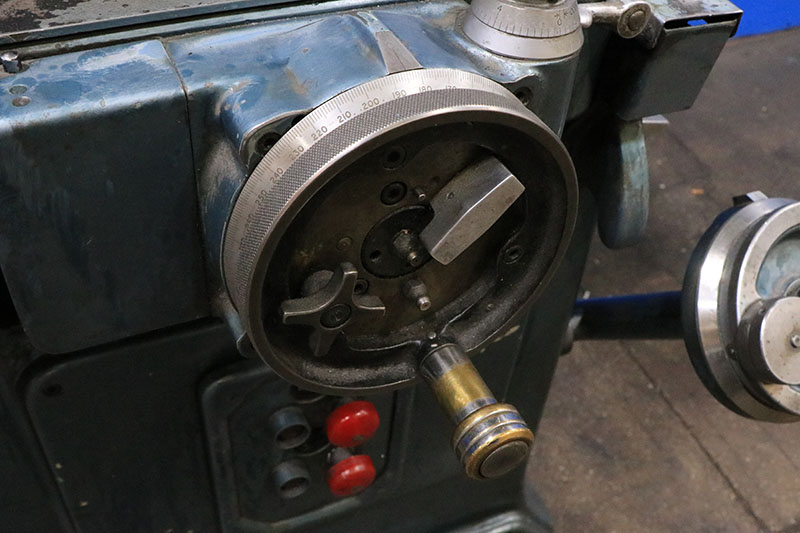

CROSSFEED HANDWHEEL GRADUATED TO ...... 0.001"
FINE CROSS FEED KNOB GRADUATED IN ..... 0.0001"
VERTICAL FEED GRADUATED TO ............ 0.0001"
MAX. VERTICAL MOVEMENT OF WHEELHEAD ... 11"

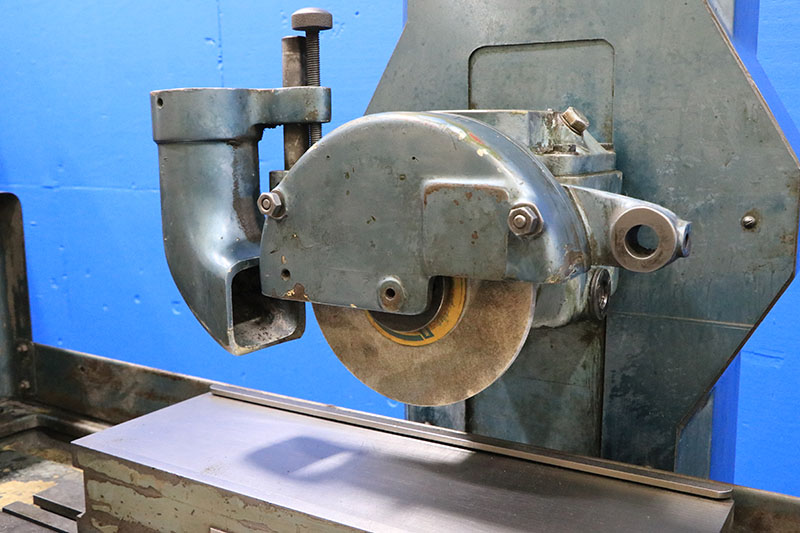

STANDARD GRINDING WHEEL ............... 7" x 1/2"W x 1- 1/4"B
SPEED OF GRINDING WHEEL ............... 3,400 RPM

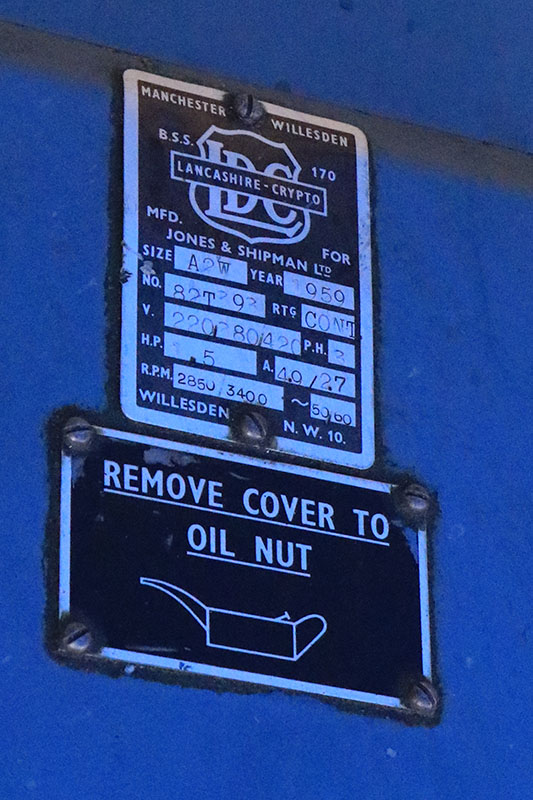

SPINDLE MOTOR ......................... 2 H.P
HYDRAULIC MOTOR ....................... 1 H.P

APPROX. MACHINE WEIGHT ................ 2,000 LBS


WHEELHEAD SLIDE OPERATES ON PRELOADED, GREASE PACKED,
 BALL BEARING ROLLERS RUNNING ON PRECISION BAR GUIDES.

AUTOMATIC LUBRICATION TO THE TABLE & CROSSFEED WAYS,
 PROVIDED BY THE HYDRAULIC SYSTEM.


  EQUIPPED WITH:
HYDRAULIC LONGITUDINAL & CROSS FEEDS
SELF-CONTAINED HYDRAULIC SYSTEM
WHEELHEAD SLIDE OPERATES ON PRELOADED, GREASE PACKED,
 BALL BEARING ROLLERS RUNNING ON PRECISION BAR GUIDES.
AUTOMATIC LUBRICATION TO THE TABLE & CROSSFEED WAYS,
 PROVIDED BY THE HYDRAULIC SYSTEM.
SUPER-SENSITIVE WHEELHEAD SLIDE - WHEELHEAD SLIDE

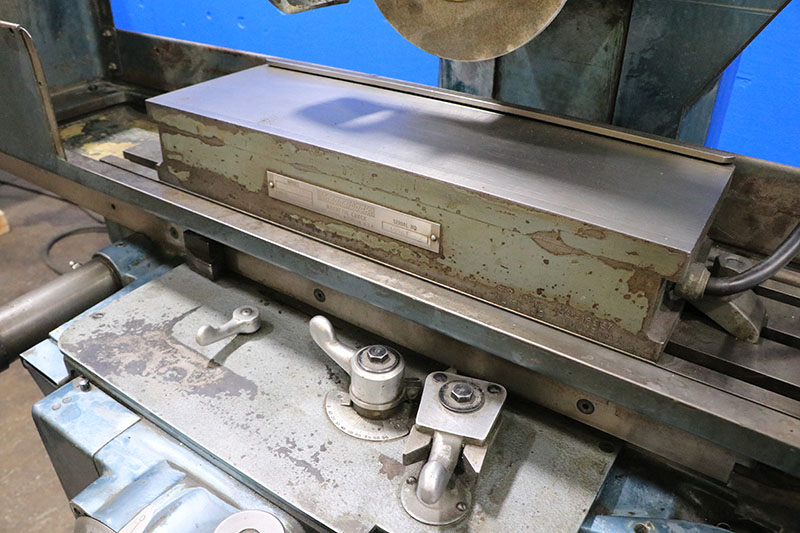

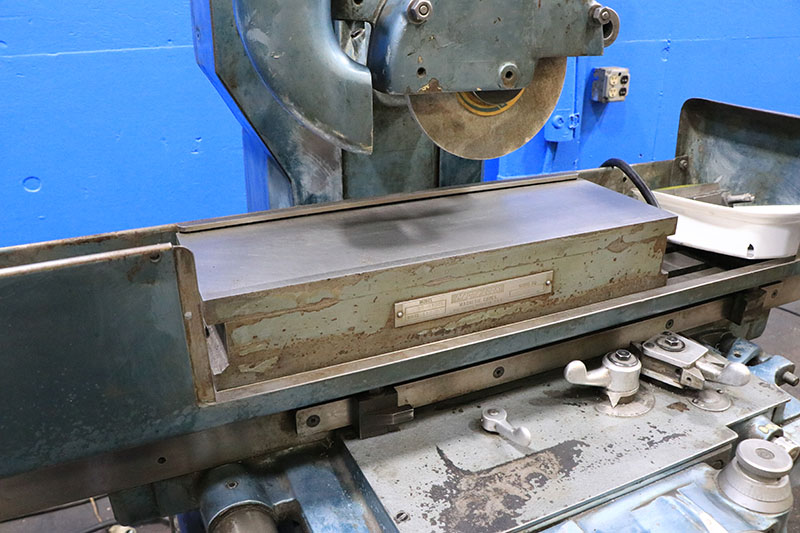

6" X 18" "MAGNETOOL" FINE-DIVISION LBP ELECTRO-MAGNETIC CHUCK
"MAGNETOOL" NEUTROFIER CHUCK CONTROL
3/60/220-440 VOLT ELECTRICS
MACHINE IS PRESENTLY IS WIRED FOR 3/60/220 VOLTS


SPECIAL NOTE:
MACHINE WAS USED "DRY".  IF YOU WOULD LIKE TO HAVE THE
 MACHINE EQUIPPED TO GRIND "WET", WE CAN EQUIP OUR
 MACHINE WITH A NEW COOLANT TANK & PUMP, AND WIRE IT
 INTO THE MACHINE.  PRICE FOR THAT OPTION WOULD BE
 $650 ADDITIONAL.

** FROM A SHOP IN SOMEONE'S HOUSE **
** LOW USEAGE, TRULY EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDWER POWER IN OUR HARRISON, NJ WAREHOUSE **
