JONSEN SD-H DEBURRING MACHINES, BRUSH TYPE

Price on Request

Make:: JONSEN

Model:: SD-H

Year:

Ref #:: 177928

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

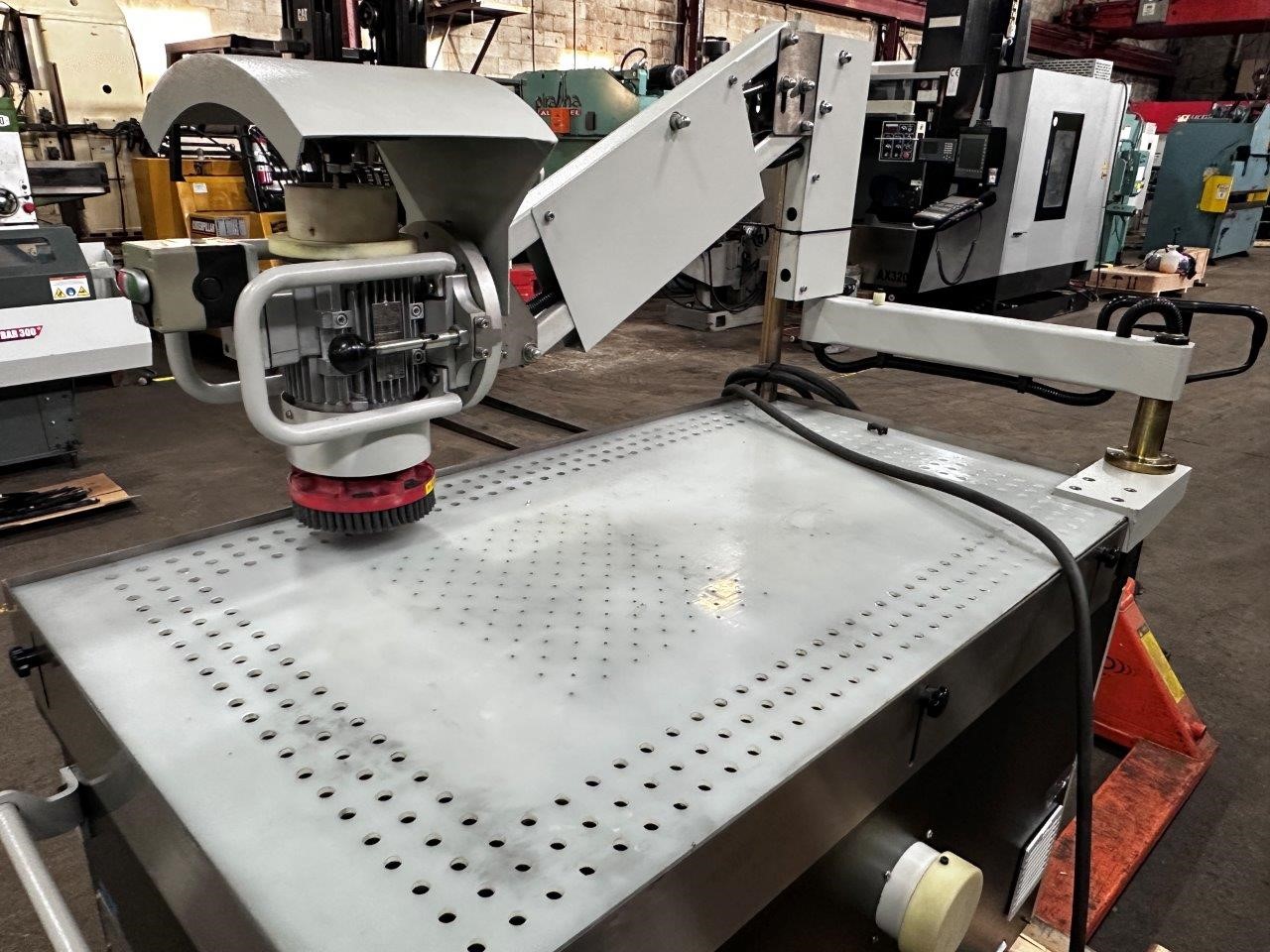

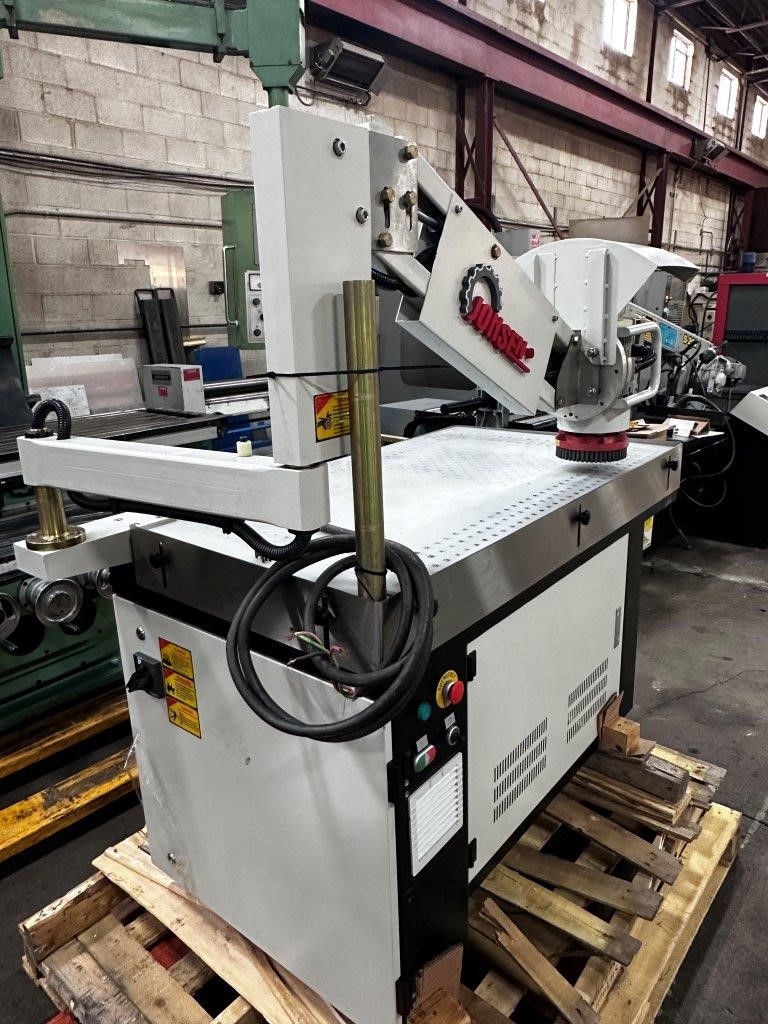

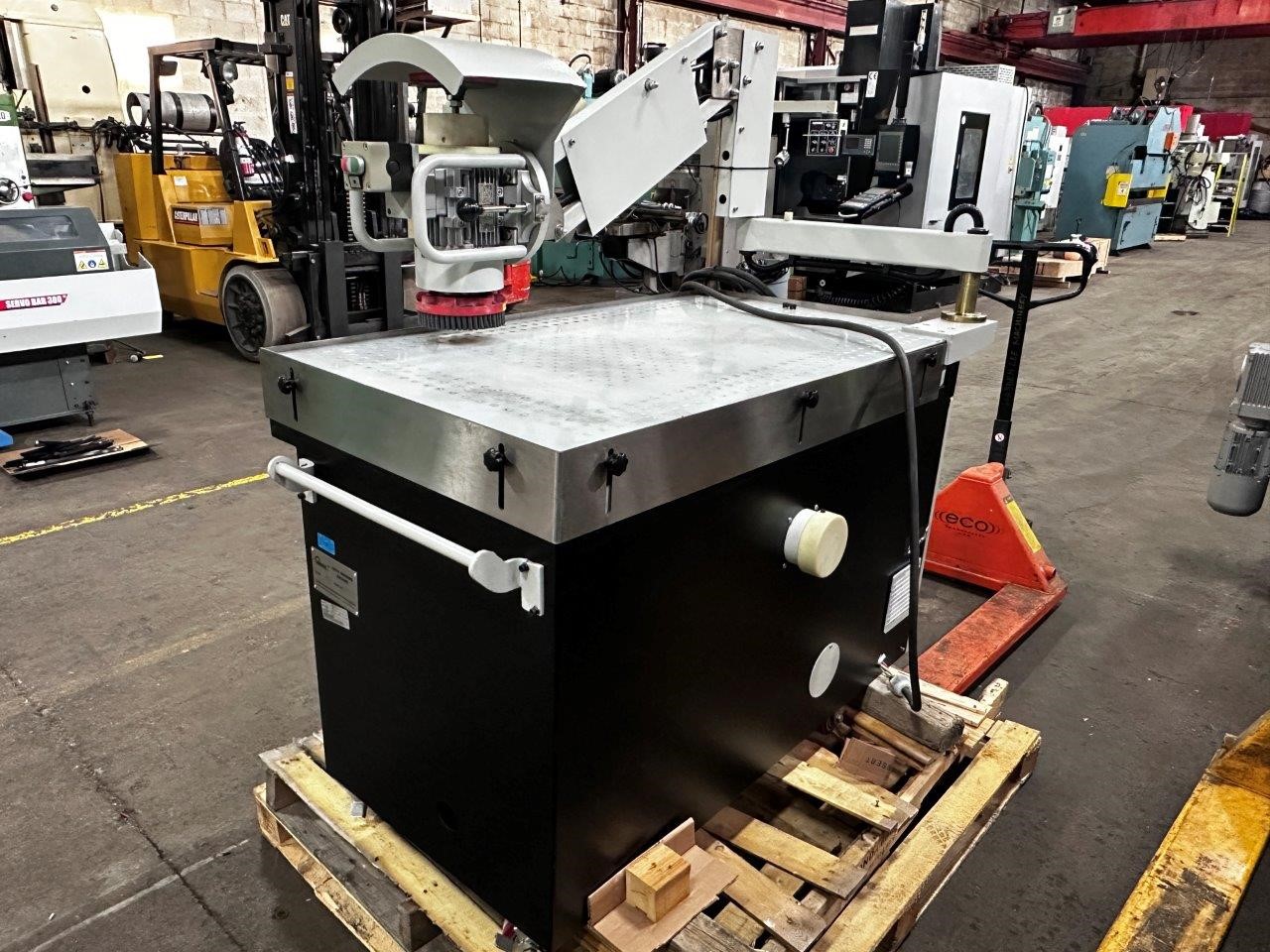

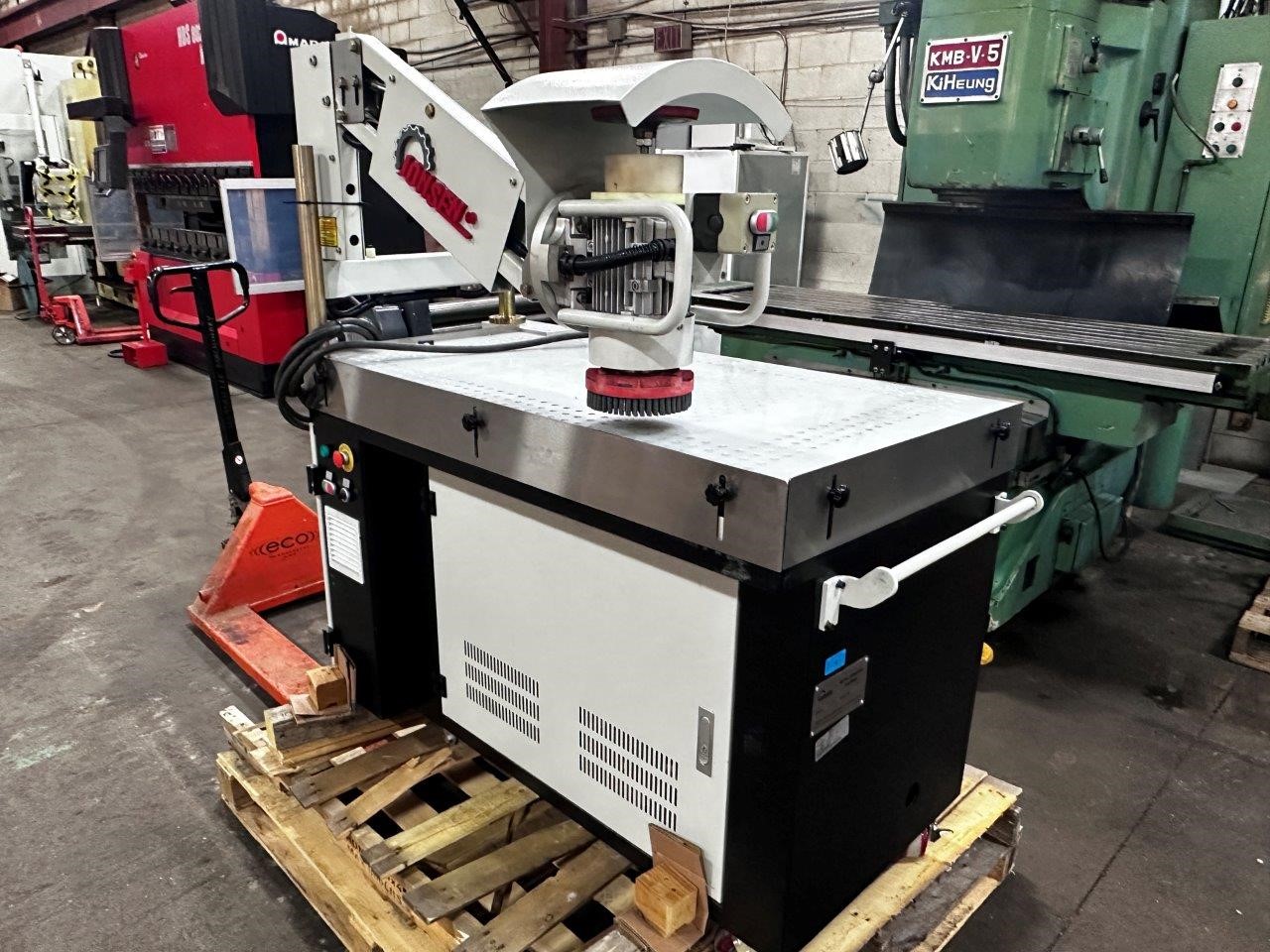

JONSEN SWING ARM DEBURRING & GRINDING MACHINE

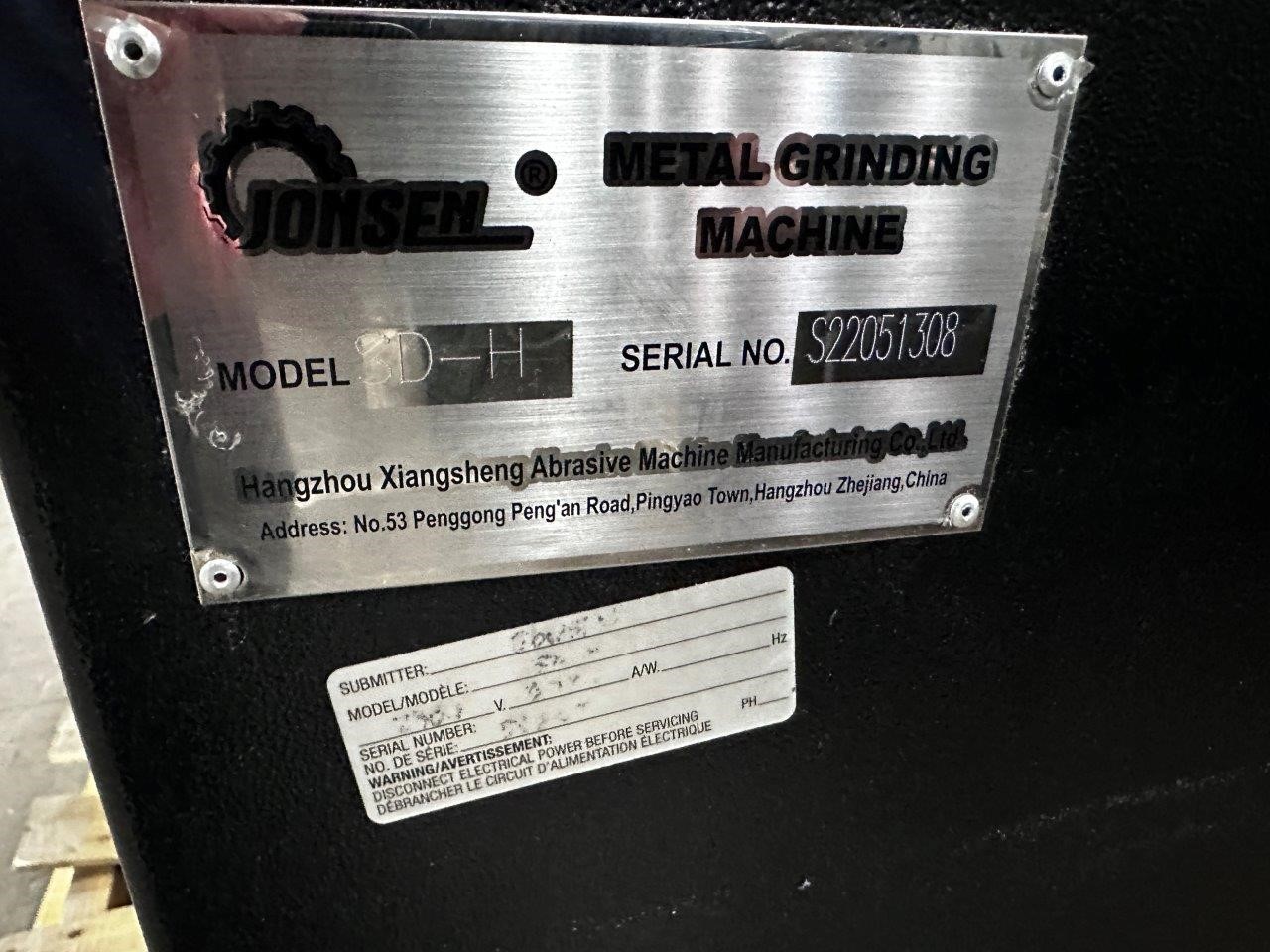

MODEL: SDH, S/N: S22051308, NEW: 2018

SPECIFICATIONS:
TOTAL POWER:............................. 3.75KW
VACUUM PUMP POWER:....................... 3.KW
SWING ARM REACHING SPAN:................. 59" (360 DEGREES)
WORKING THICKNESS RANGE:................. UP TO 11.8"
VACUUM AREA (L X W)...................... 11.8" X 12.9"
ADJUSTABLE ROTATING SPEED OF THE MOTOR:.. 150 - 1500 RPM
GRINDING HEAD POWER:..................... 0.75 KW
APPROX. WEIGHT:.......................... 992 LBS
WORK STATION DIMENSION (L X W):.......... 49.2" X 27.5"
MIN.WORKPIECE SIZE:...................... 3 X 3"

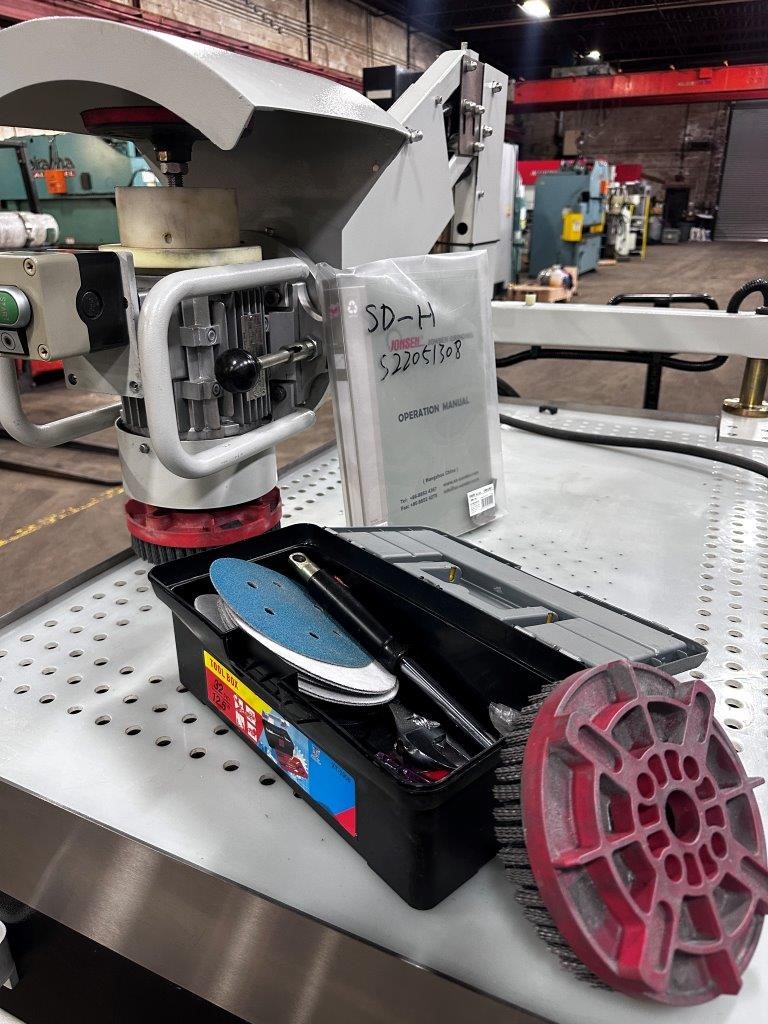

EQUIPPED WITH:

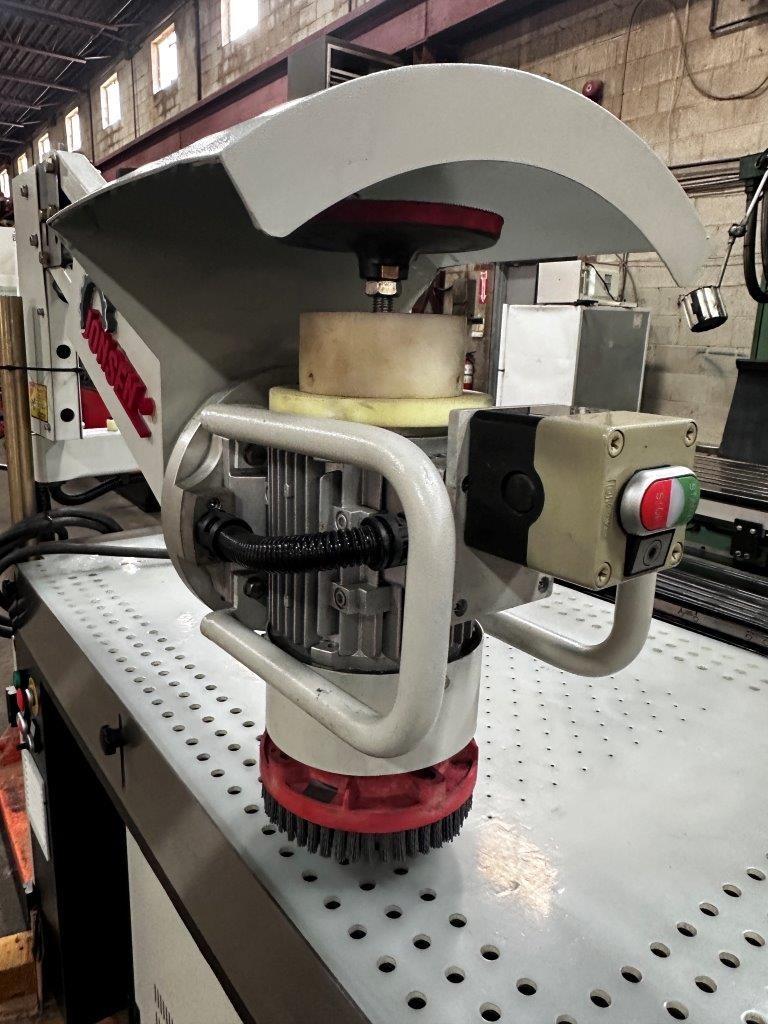

360 DEGREE ROTATING HEAD (TOTAL 8 LOCATION PIN, 45 DEGREE APART)
VACUUM TABLE
(2) ABRASIVE DUPONT FIBER HEADS
ASSORTED ABRASIVE DISCS
TOOL BOX

F.O.B. ONTARIO , CANADA
