Kent KGS-250AHD, NEW 1994, AUTO IDF , 3X AUTO FEEDS, SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Kent

Model:: KGS-250AHD, NEW 1994, AUTO IDF , 3X AUTO FEEDS,

Year:: 1994

Ref #:: 163701

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

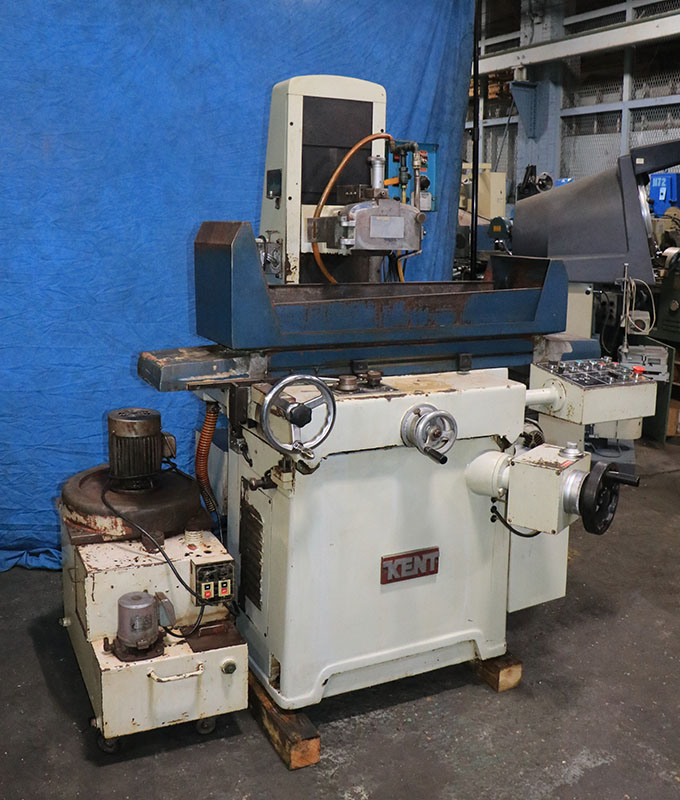

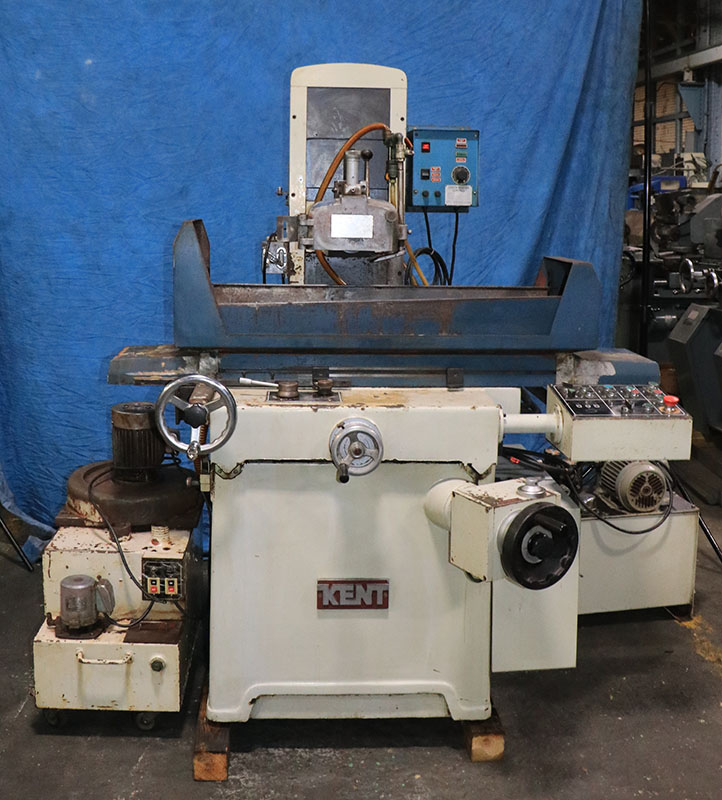

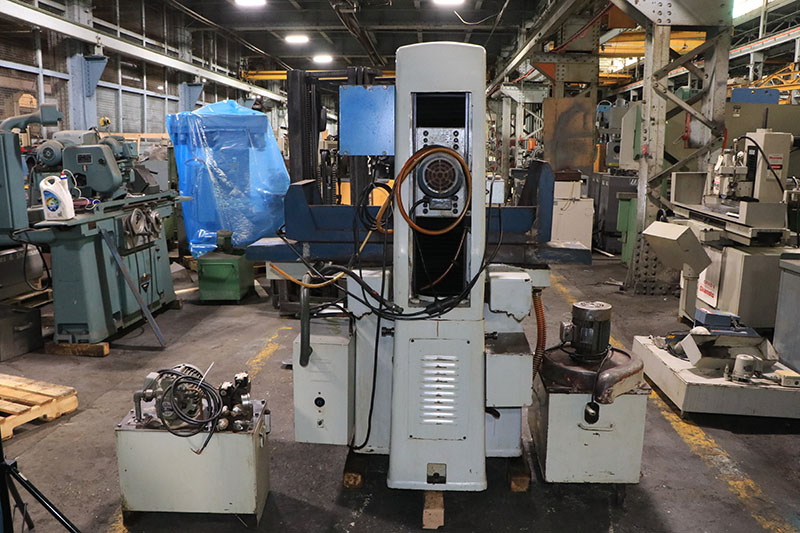

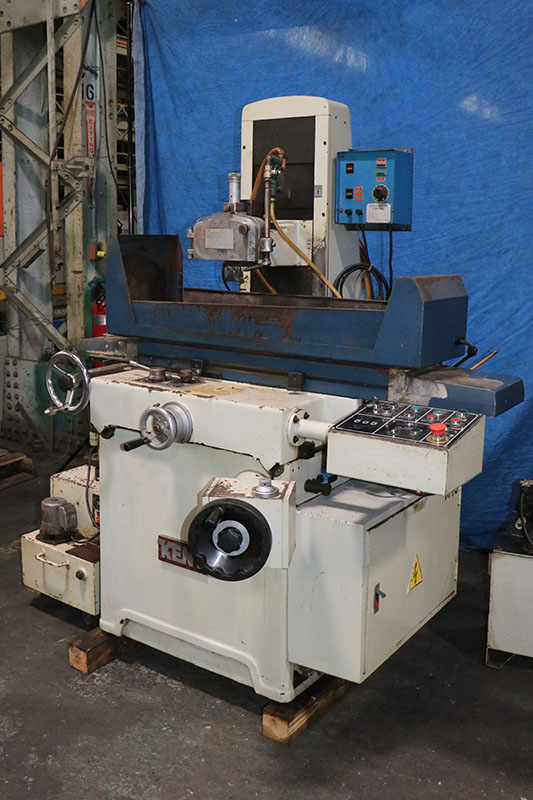

  8" X 18" KENT HYDRAULIC SURFACE GRINDER
  W/AUTOMATIC INCREMENTAL DOWNFEED

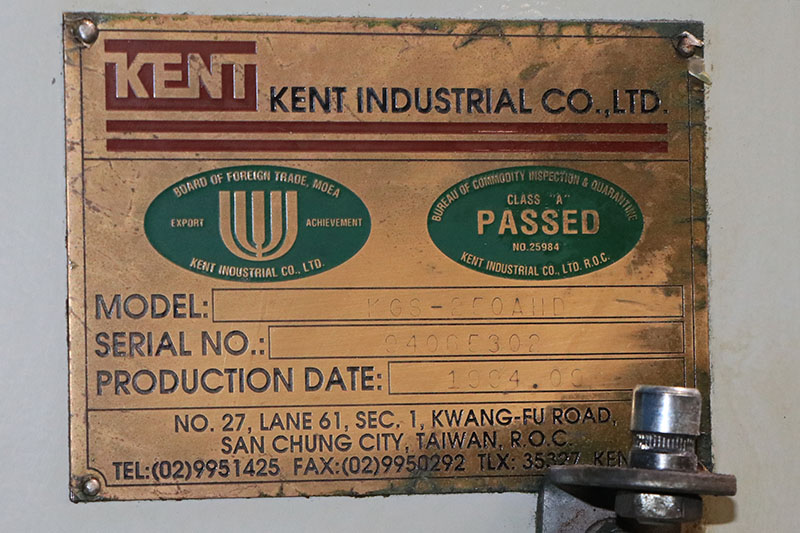

MODEL: KGS-250-AHD   S/N: 94065302    NEW: 1994

MAX. SURFACE GROUND ................ 10" X 20"
DIST. SPINDLE CENTER TO TABLE ...... 16"
VARIABLE TABLE SPEED, HYDRAULIC .... 16' TO 67' FPM
AUTOMATIC CROSSFEED INCREMENT ...... 0.04" TO 0.3"
CROSSFEED HANDWHEEL PER GRAD. ...... 0.001"
  PER REVOLUTION ................... 0.2"
  1 GRAD. .......................... 0.001"
  VERNIER SCALE .................... 0.0001"
AUTO INCREMENTAL DOWNFEED .......... 0.001" TO .0001"
VERTICAL RAPID POSITIONING RATE .... 35" IPM
VERTICAL DOWNFEED ON HANDWHEEL,
 1 REV. ............................ 0.1"
 1 GRAD. ........................... 0.0005"
 VERNIER SCALE ..................... 0.00005"
SPINDLE MOTOR ...................... 1.5 H.P.
STANDARD GRINDING WHEEL ............ 8"D X 1/2" X 1- 1/4"

APPROX. WEIGHT ..................... 2,860 LBS
FLOOR SPACE REQUIRED ............... 71" X 55"W X 70"H

  EQUIPPED WITH:
AUTOMATIC INCREMENTAL DOWNFEED (VARIABLE 10 STEPS)
POWER RAPID WHEELHEAD POSITIONING

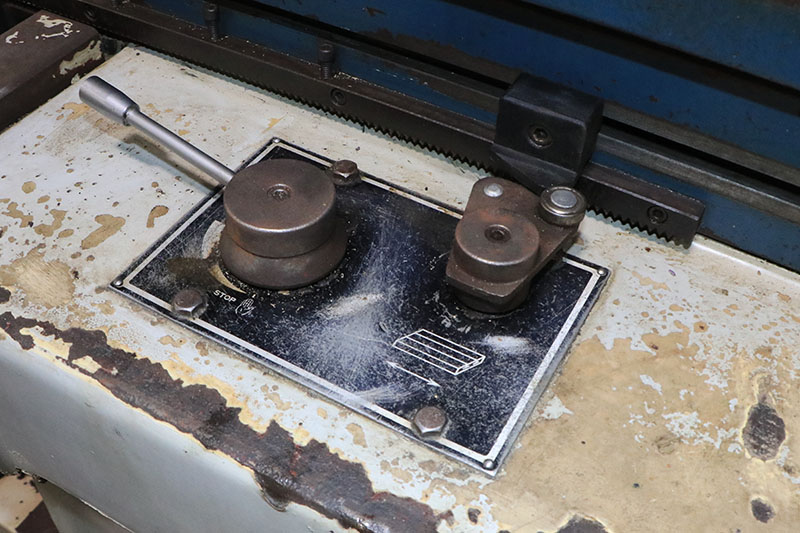

HYDRAULIC TABLE TRAVERSE
POWER CROSSFEED

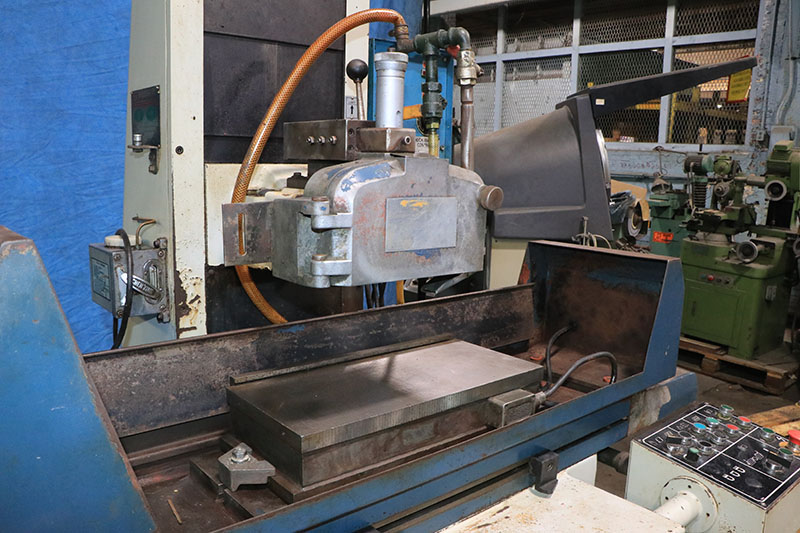

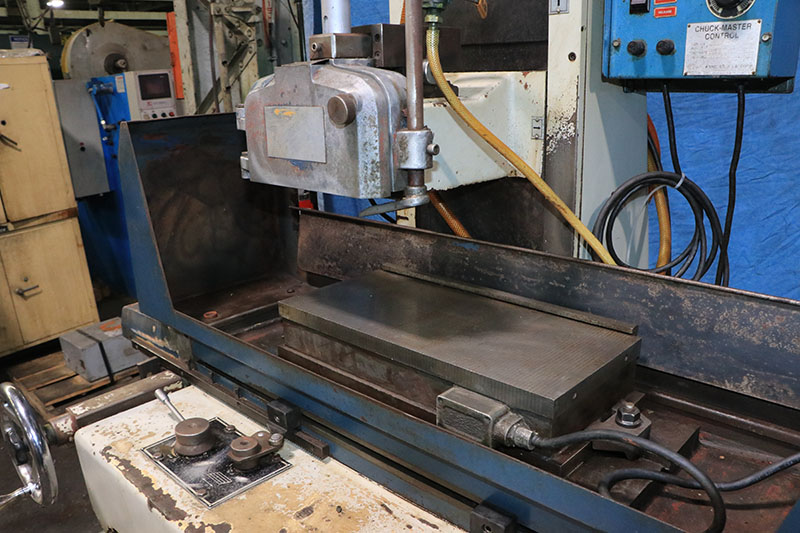

8" X 18" FINE-POLE ELECTRO-MAGNETIC CHUCK

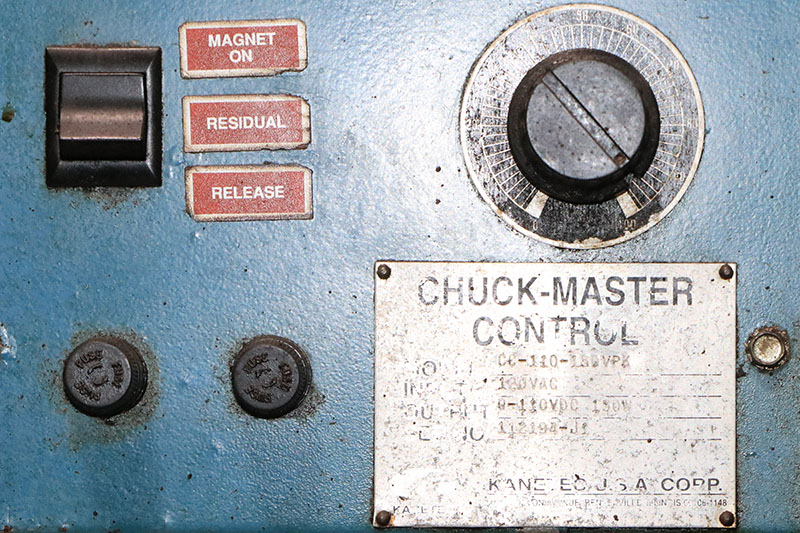

"KANETEC" VARIABLE HOLD NEUTROFIER CONTROL

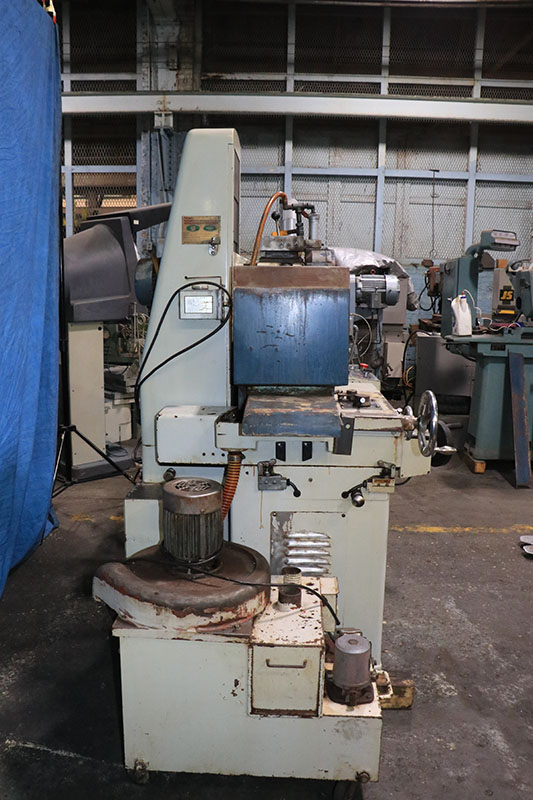

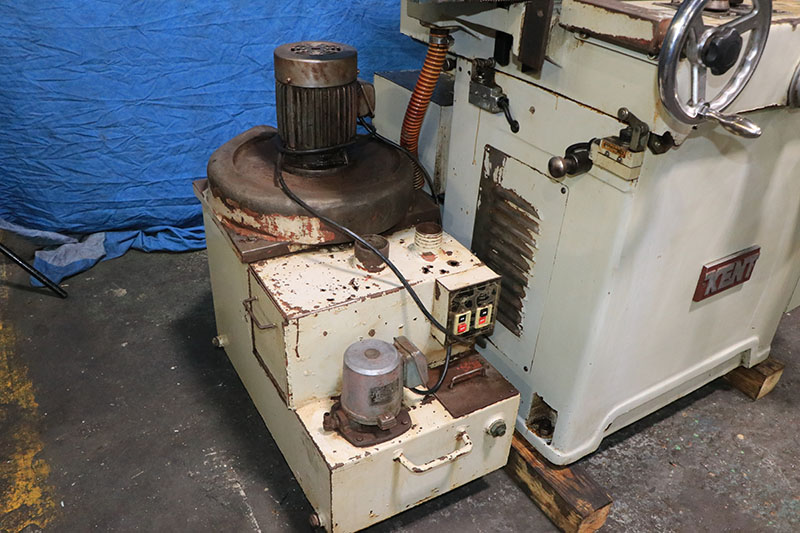

DUST COLLECTOR & COOLANT SYSTEM

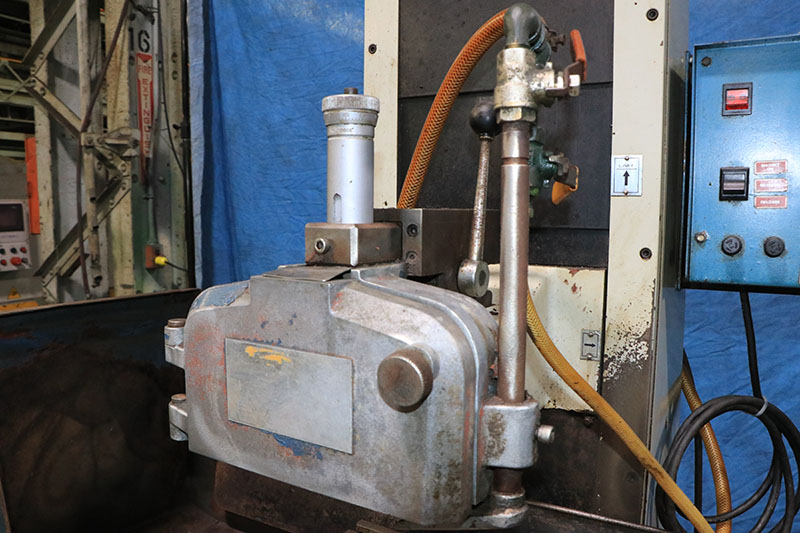

OVER-THE-WHEEL DRESSER
MEEHANITE CASTING

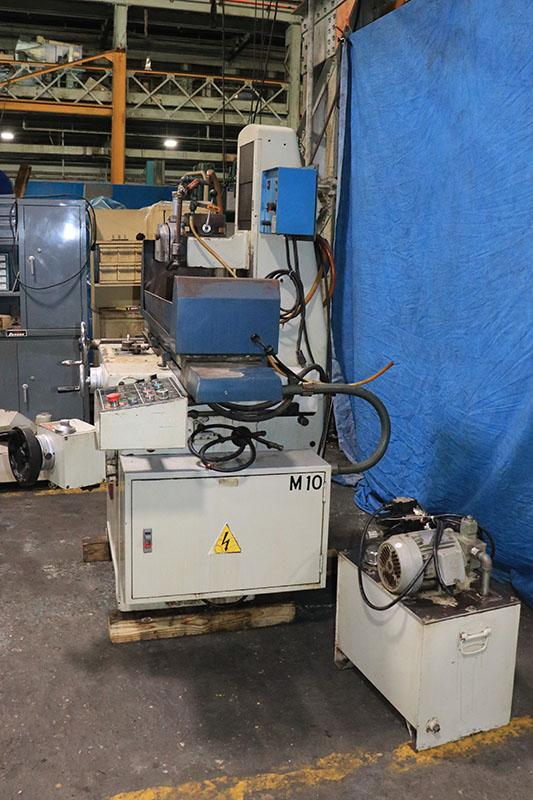

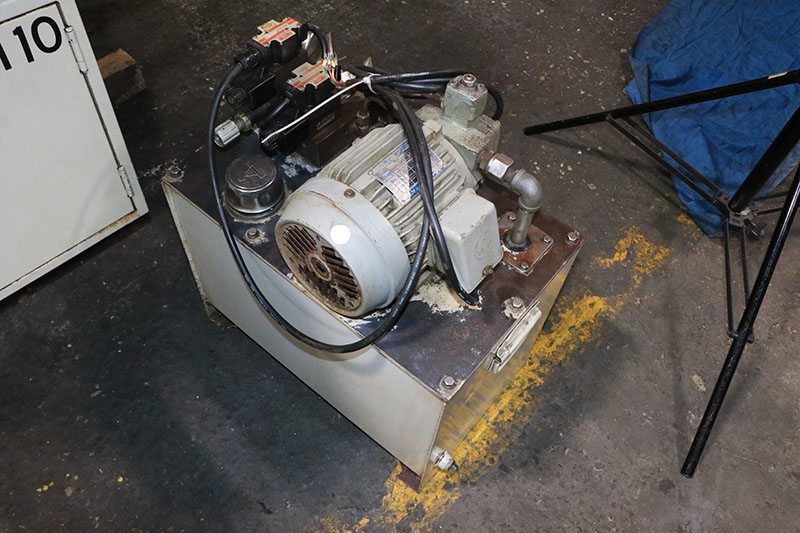

EXTERNAL HYDRAULIC SYSTEM

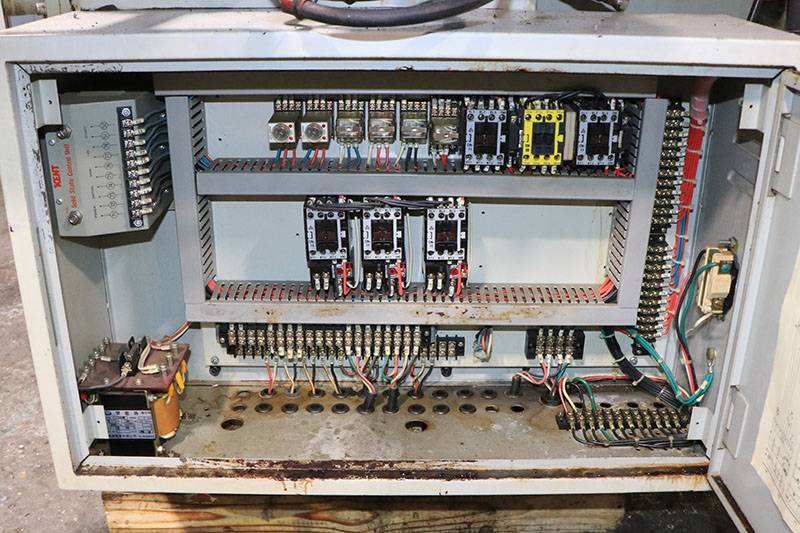

MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS

  ** VERY GOOD CONDITION & APPEARANCE  **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
