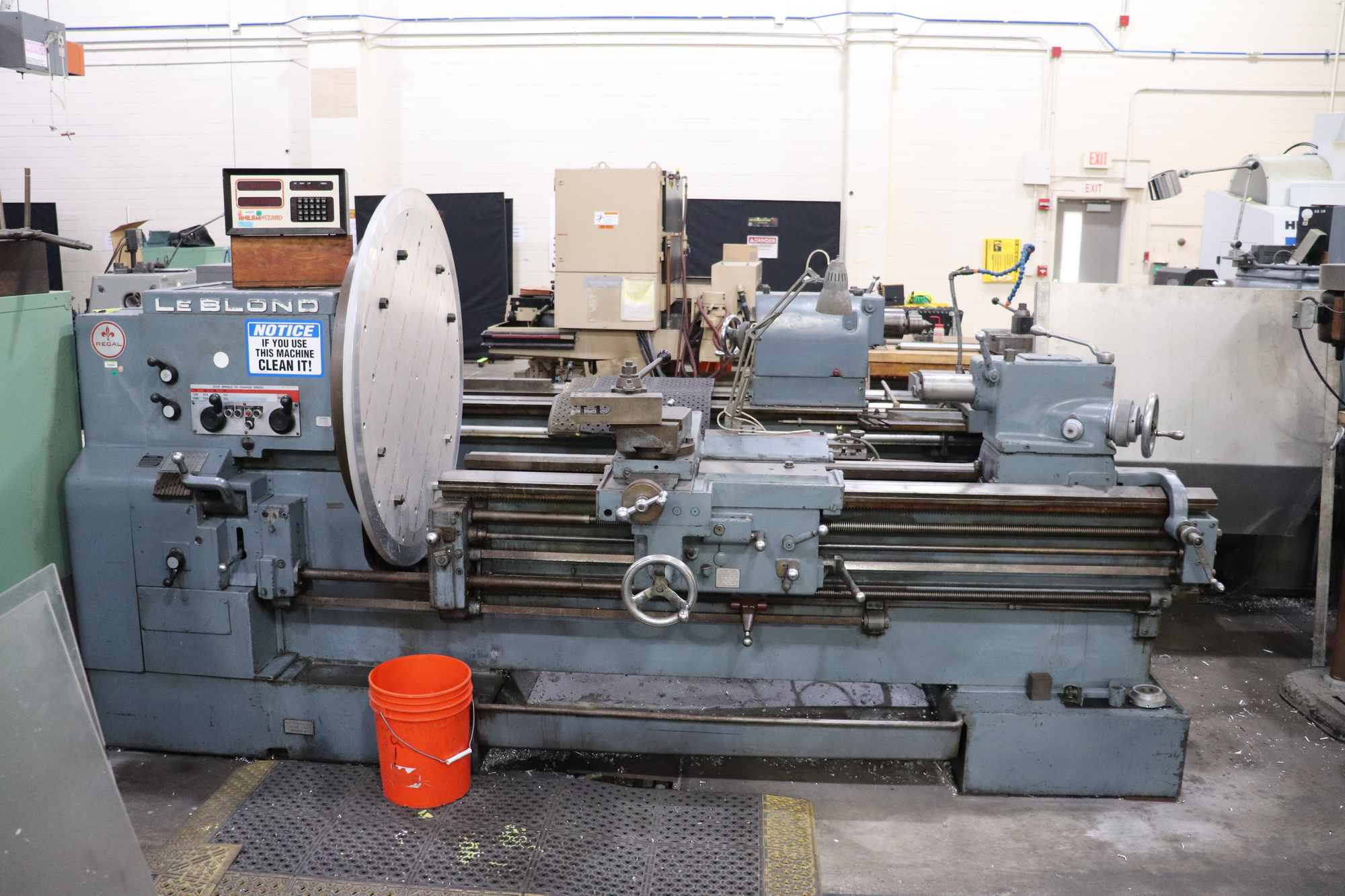

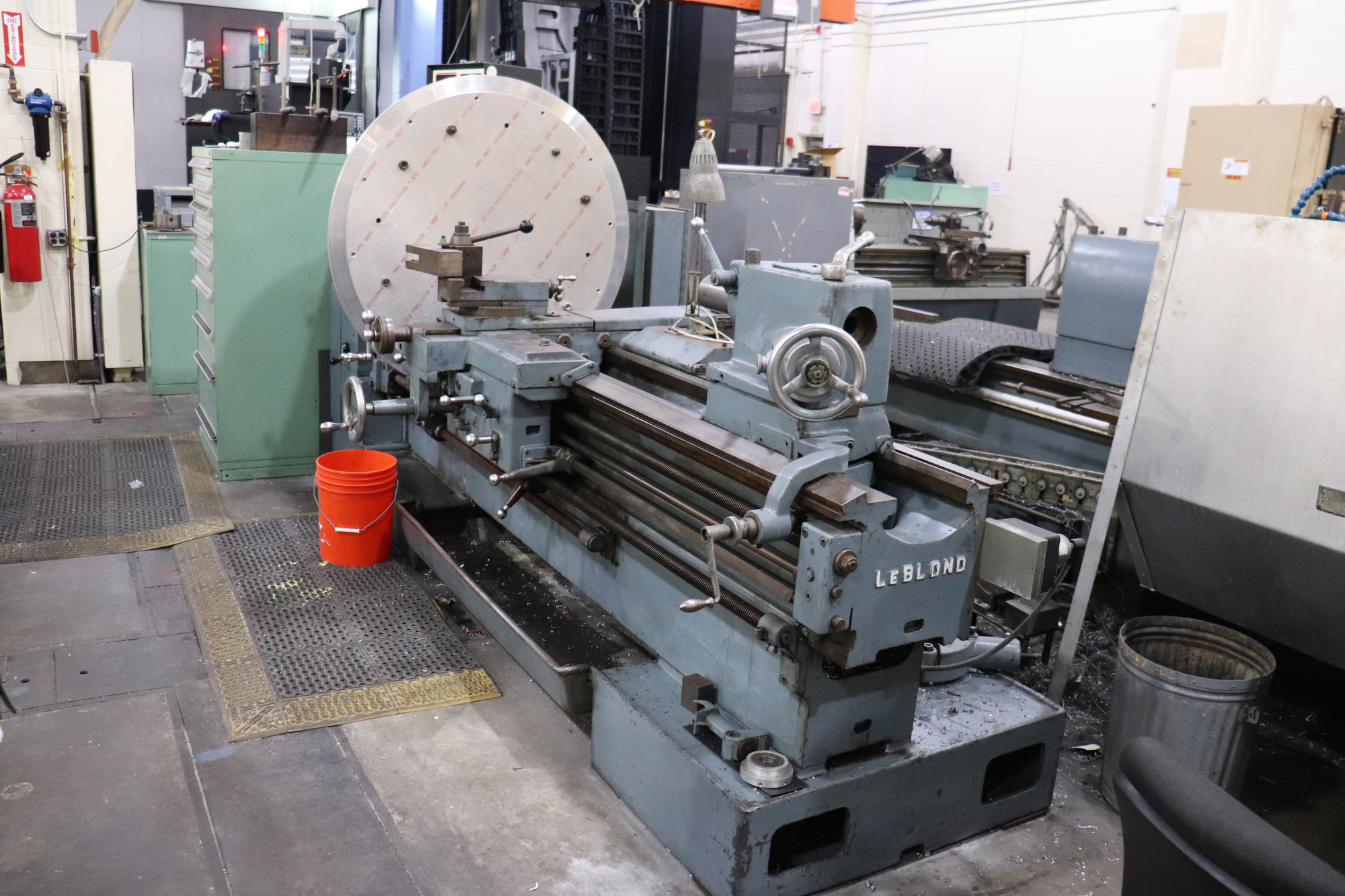

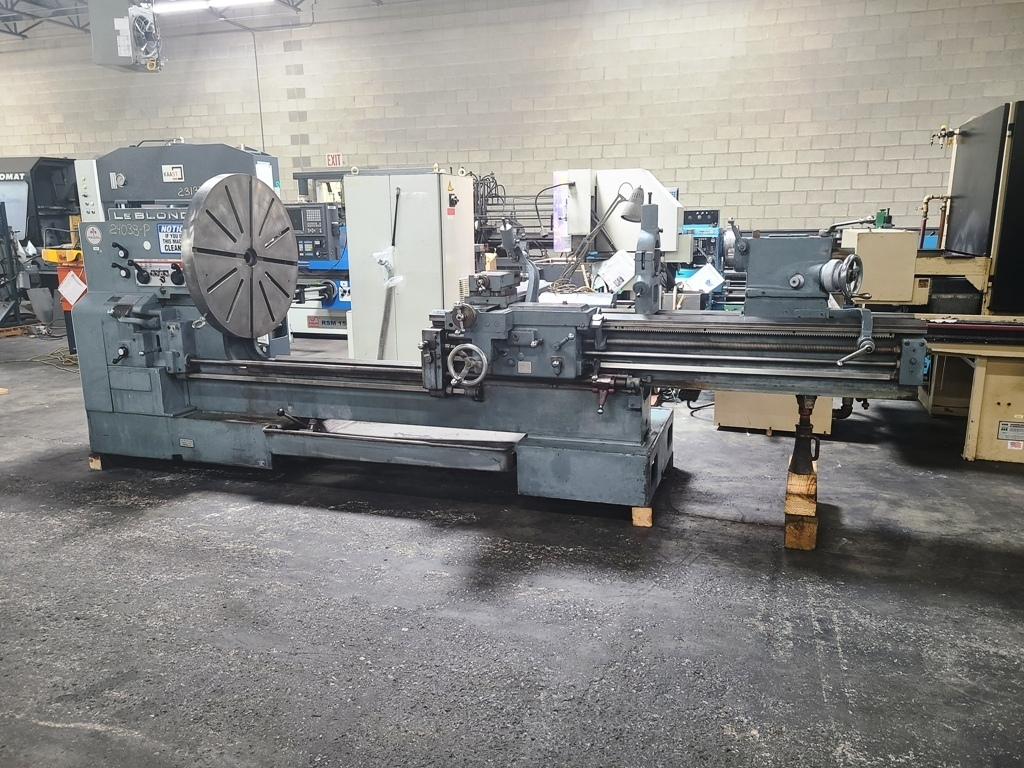

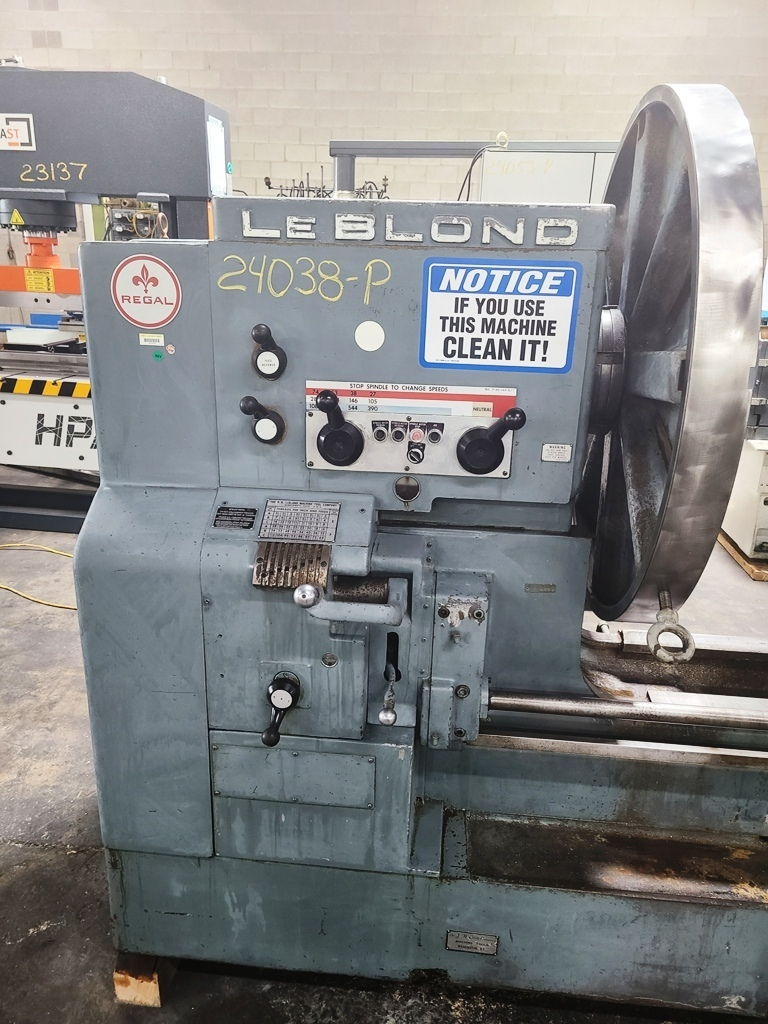

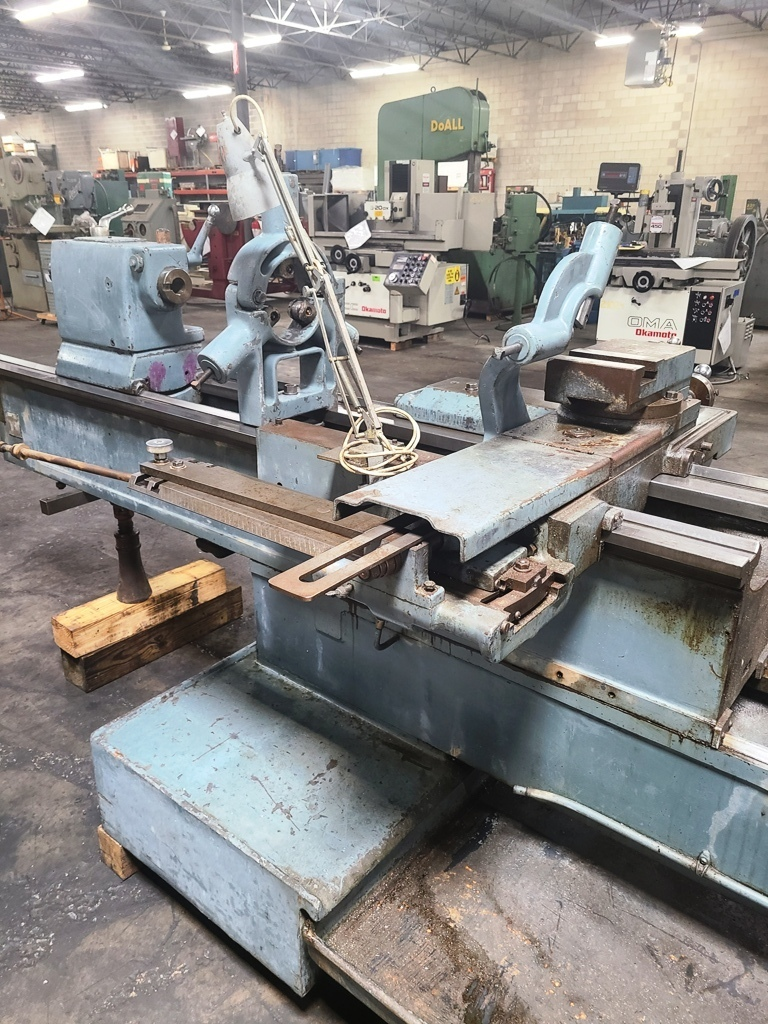

LeBlond REGAL SLIDING BED GAP ENGINE LATHES

Price on Request

Make:

LeBlond

Model:

REGAL

Year:

1962

Ref #:

177861

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

---

24"/52" x 72"/116" LEBLOND

SLIDING BED GAP ENGINE LATHE

MODEL: 24" REGAL SLIDING BED, NEW: 1962



SPECIFICATIONS:

MAX SWING .................... 26.25"

SWING OVER CROSS SLIDE ....... 18.25"

SWING OVER GAP ............... 52.5"

DISTANCE BETWEEN CENTERS ..... 116"

SPINDLE BORE ................. 2.125"

SPINDLE NOSE ................. L2

SPINDLE MOTOR ................ 15 hp

SPINDLE SPEED ................ 1,080 RPM

DIMENSIONS ................... 148" x 70" x 70"

SPINDLE BORE: ................ 2-1/8"

SWING OVER WAYS, BED CLOSED: . 26-1/4"

SWING IN GAP: ................ 52-1/2" Maximum

DISTANCE BETWEEN CENTERS,

-BED CLOSED: ................. 72"

-BED OPEN: ................... 116"

SPINDLE SPEEDS: (12) ......... 27 to 1080 RPM

FEEDS: (48) .................. .0036" TO .205" PER REVOLUTION

THREADS: (48) ................ 2 TO 112 TPI

TAPER IN TAILSTOCK QUILL ..... #5 MORSE

TAILSTOCK QUILL DIAMETER: .... 3-1/8"

TAILSTOCK QUILL TRAVEL: ...... 8"

SWING OVER CROSS SLIDE: ...... 18-1/4"

SPINDLE NOSE: ................ L2

OVERALL LENGTH, BED EXTENDED:. 16'



EQUIPPED WITH:

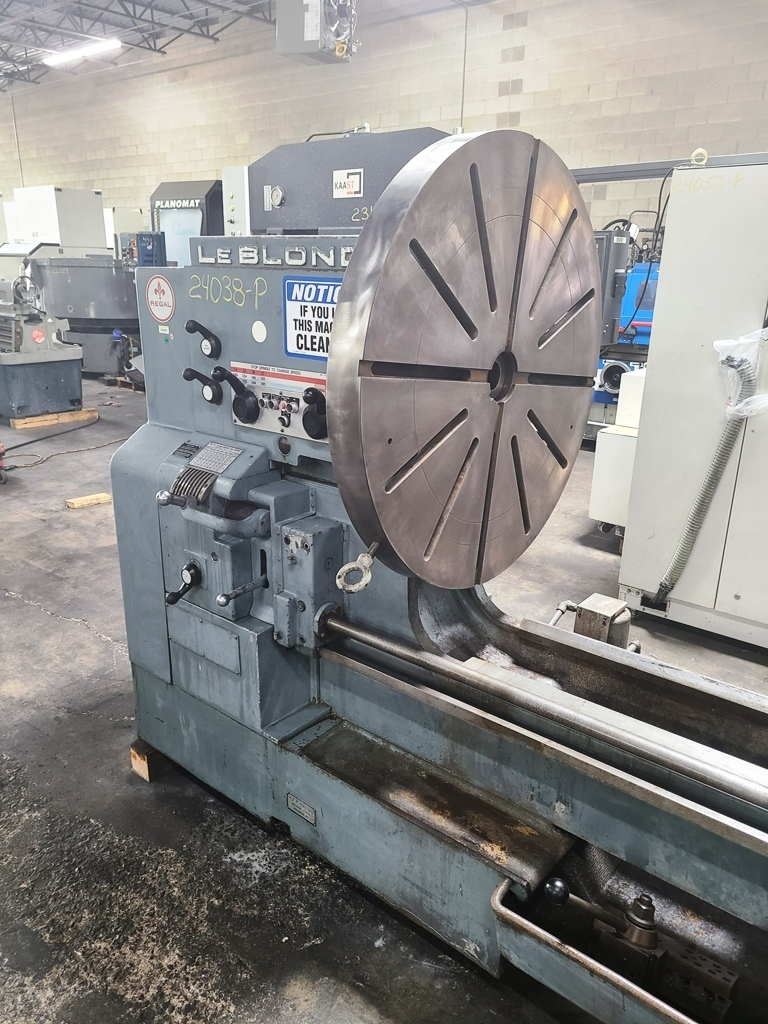

38" DIAMETER FACE PLATE

TAPER ATTACHMENT

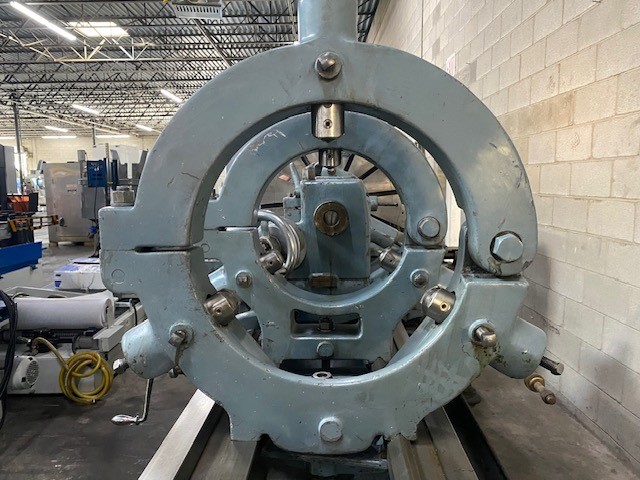

7" CAPACITY ROLLER TYPE STEADY REST

9" CAPACITY ROLLER TYPE STEADY REST

12" CAPACITY ROLLER TYPE STEADY REST

FOLLOWER REST

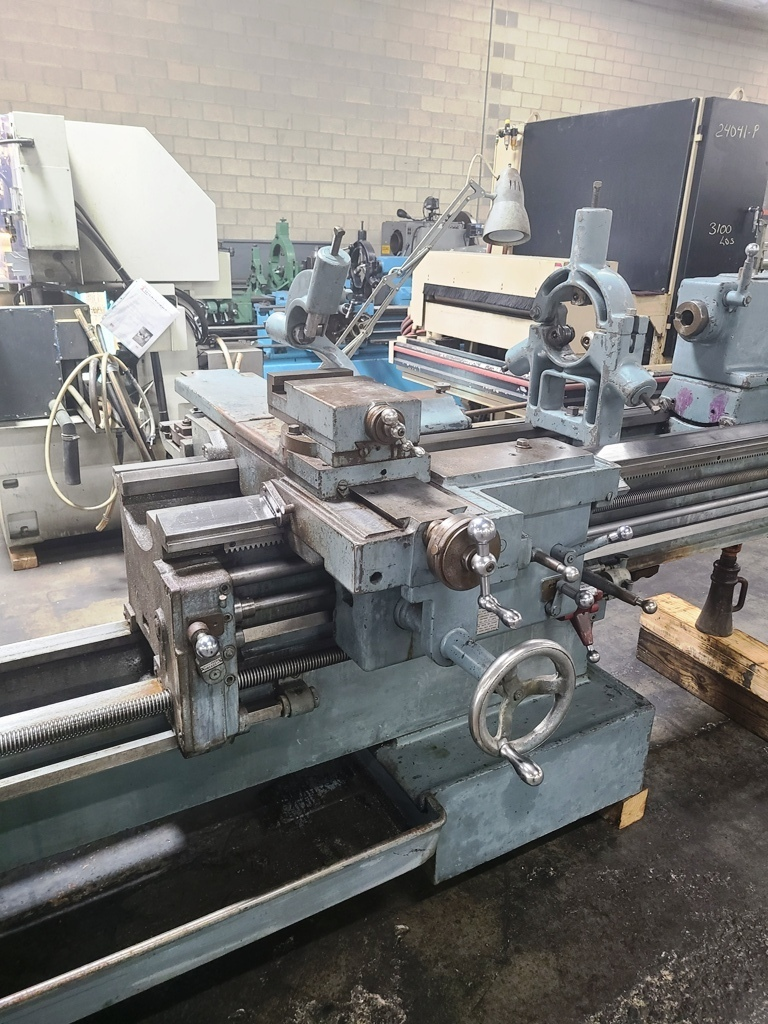

QUICK CHANGE TOOL POST

REMOVABLE CHIP PAN

HARD REPLACEABLE BED WAYS

THREAD CHASING DIAL

INCH GRADUATED DIALS ON CROSS SLIDE & TOP COMPONENTS

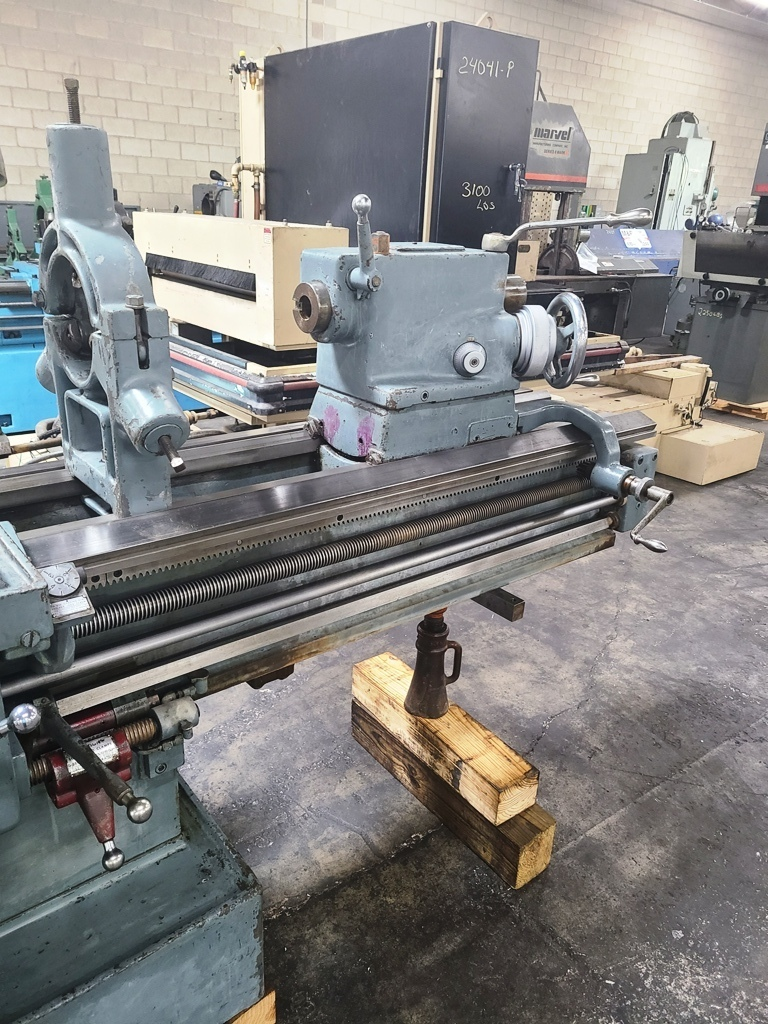

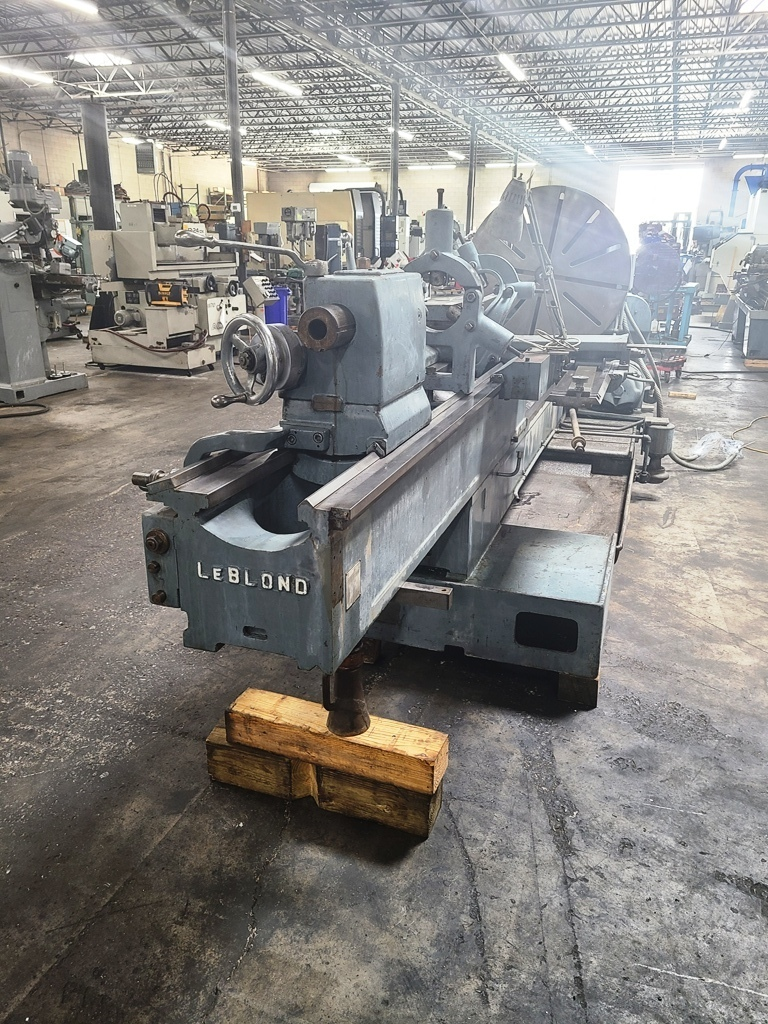

NO BED SUPPORT FOR EXTENDED OPERATION

MISSING (1) BED CLAMP

COOLANT PUMP

WIRED FOR 3 PHASE, 60 HZ, 230/460 VOLTS

15 HORSE POWER SPINDLE MOTOR



** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
